factory price automatic tomato paste cream chess bird nest chili sauce fruit jam glass bottle jar hot filling capping machine
- Category: >>>
- Supplier: Shanghai Paixie Packing Machinery Co. Ltd.
Share on (1600560814726):
Product Overview
Description
Product Description:

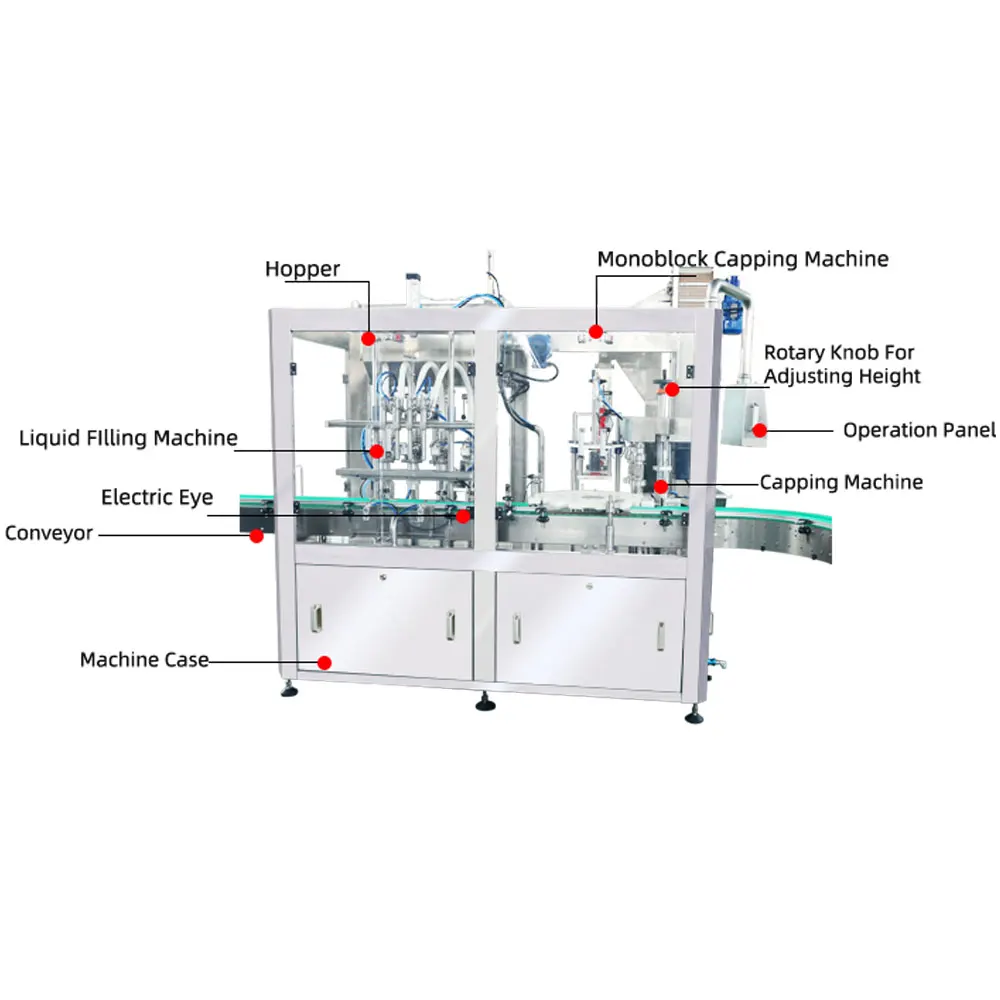

This automatic filling line consist of piston filling machine,capping machine and cap feeder.It is suitable for filling thick liquid like tomato paste,jam,honey.These two machine can work with automatic labeling machine to realize automated production.This line is widely used in food,beverage,cosmetics and daily chemical industries.
This automatic filling line consist of piston filling machine,capping machine and cap feeder.It is suitable for filling thick liquid like tomato paste,jam,honey.These two machine can work with automatic labeling machine to realize automated production.This line is widely used in food,beverage,cosmetics and daily chemical industries.
Features:
1.Stronger PLC software support, may realize the ideal filling operation.
2.The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
3.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.
4.This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.
5.Optional servo filling system.
1.Stronger PLC software support, may realize the ideal filling operation.
2.The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
3.Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.
4.This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.
5.Optional servo filling system.
Product | Full Automatic Small Vial Bottle Filling Capping Labeling Machine |
Output | 1000-6000BPH, or customized |
Filling Volume | 10-5000ml, or customized |
Air compressor | 0.6-0.8Mpa |
Filling Material | Liquid, Gel or etc |

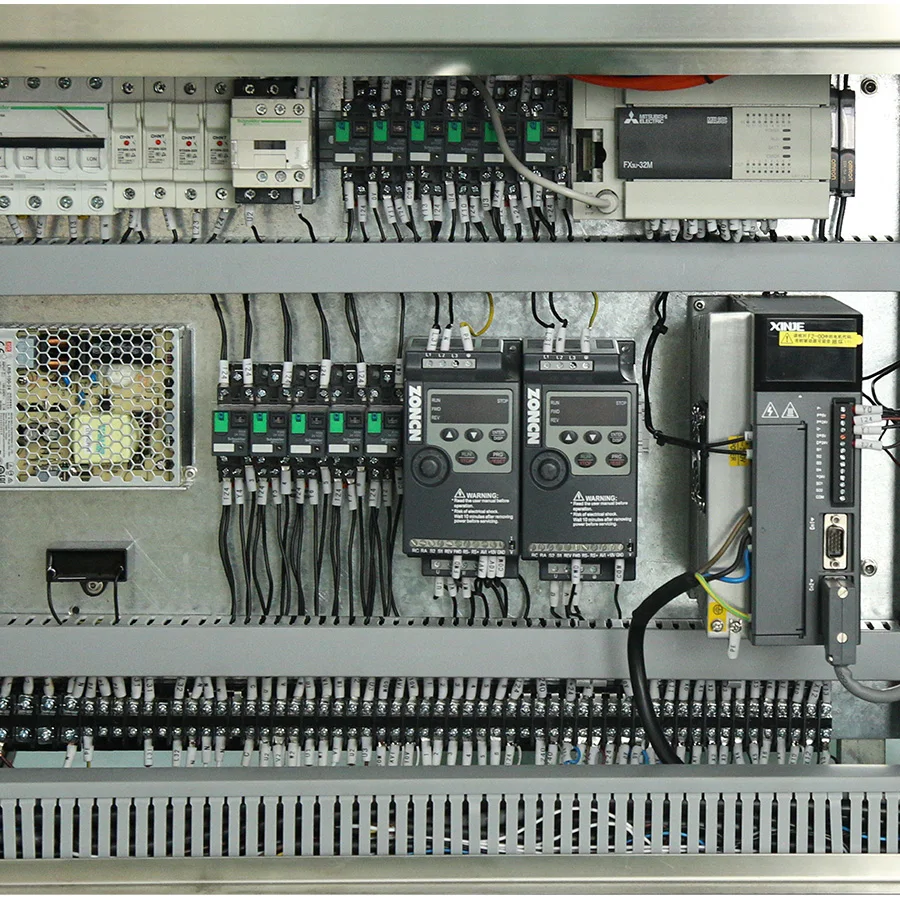

Control | PLC and Touch Screen |
Driving Motor | Servo Motor |
Capping motor | Magnetic motor |
Torque | 0-100N |
Detection | Photocell |
Filling Type | Piston Pump, Peristaltic Pump |
Power | 1.5KW |
Material | SS304 |
Capping Head | Screwing, Pressing, Crimping Head ( According to the cap type) |
Suitable Industry | Cosmetic, medical, food, detergent, etc |
Human protection | Complete safety switch alarm |
Cap type | Dropper ,screw, spray,pump cap ,gun cap |

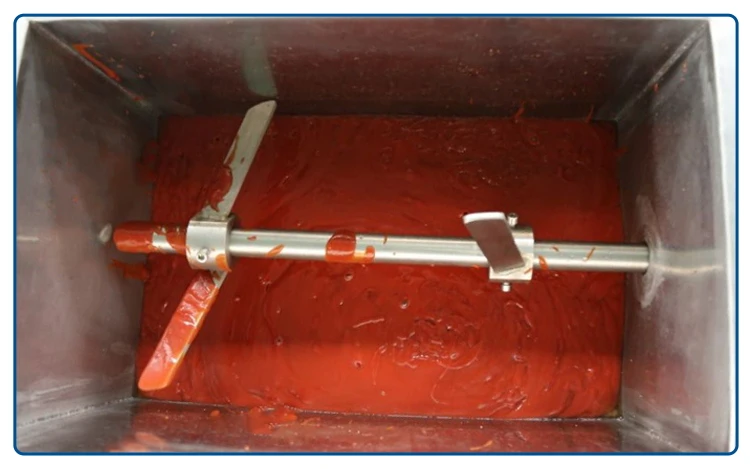

A hopper for storing materials
316L stainless steel hopper, inner wall with heat pipe and oil, heat preservation according to the temperature required by the material. Agitator bar can prevent the thick liquid solidification, increase the fluidity of the material.

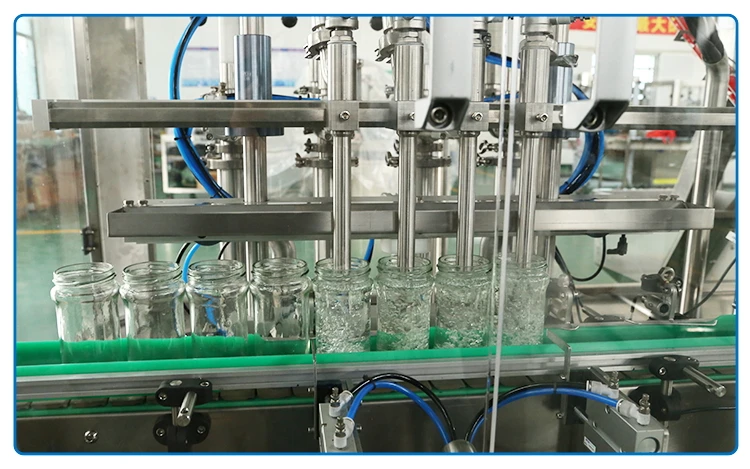

Filling Machine
This is wheel type piston pump filling machine which is designed for small bottle and low capacity filling task, driven by servo motor with high precision. The filling nozzles are made of SS316, resist high temperature filling. drip-proof , via photoelectric detection to ensure no bottle no filling.
Servo motor driving
Different from traditional air driving , paixie customize machine by servo motor , it is contributed to precision control and different volume change ,everything will be done by HMI adjustment
Servo filling station construction
1- High precison , we control the servo motor by PLC , the servo contected with the piston pump by screw , the motor running up ,push the screw , then screw push piston at the opposite , so actually the filling volume is equal to motor running distance .

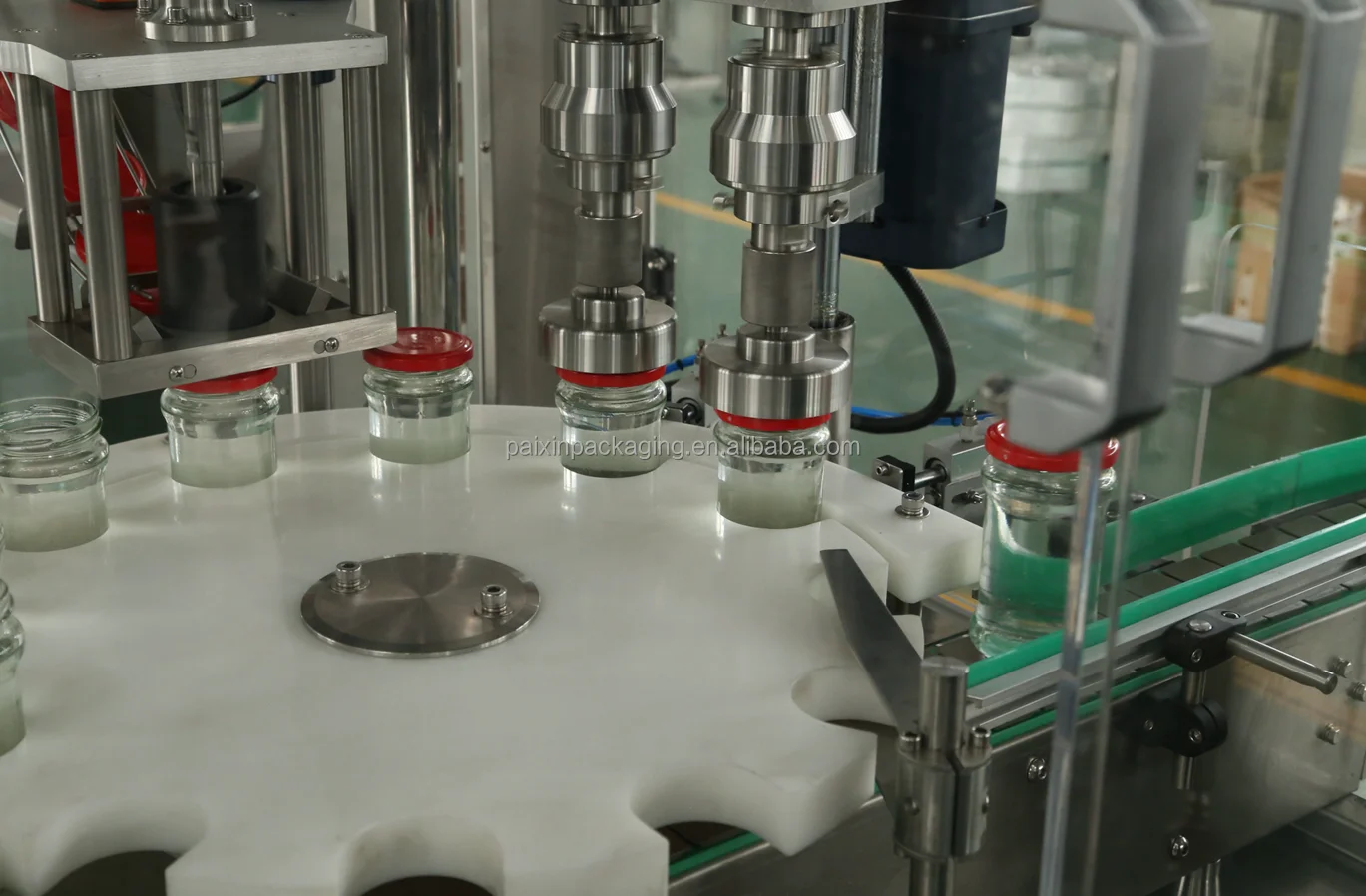

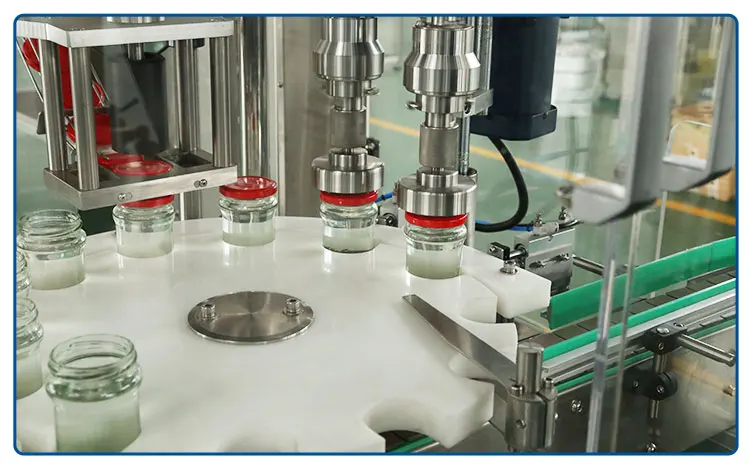

Capping Machine
To be different from traditional capping motor , Paixie uses magnetic motor in torquing , you can set all power as the cap need so that we prevent cap from broken or liquid leaking beucase of toure over or few.

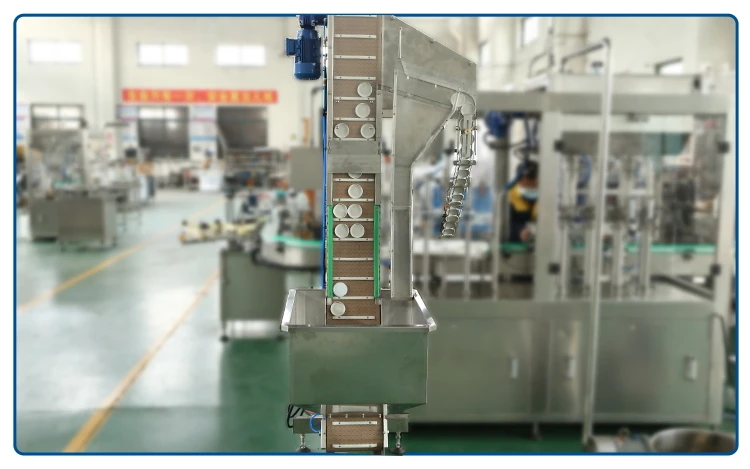

Cap Hopper
Large capacity, automatic replenishment of caps to the vibrating hopper, no need to supply caps very frequently, suitable for high-speed capping machines.

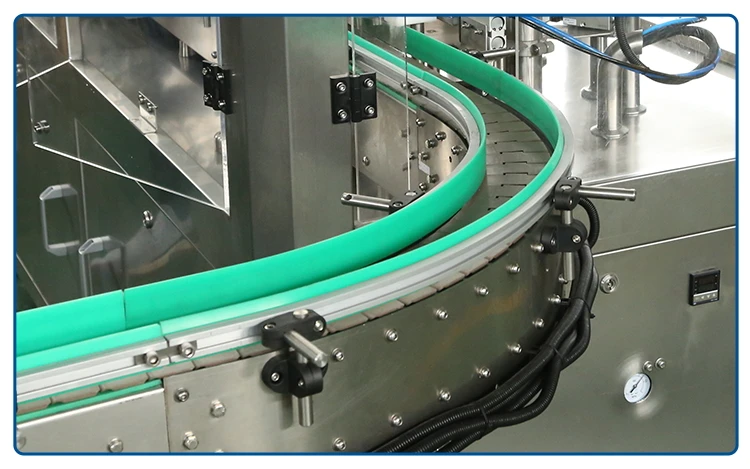

Conveyor
The conveyor width can be adjusted according to the bottle diameter. The transferring speed is adjustable by operation panel.
Shanghai Paixie Packing Machinery Co.,Ltd is a professional manufacturer of filling line for over 12 years, customized filling lines for different industry customers like food and beverage, cosmetic, medical industry, chemical industry and etc, lots of successful cases for your reference. The full automatic liquid filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate and thigh speed working efficiency is ideal for different scale production. It can work with the automatic capping machine and labeling machine and other equipment based on customer requirement. PAIXIE filling line is widely used in the following industries:
* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
