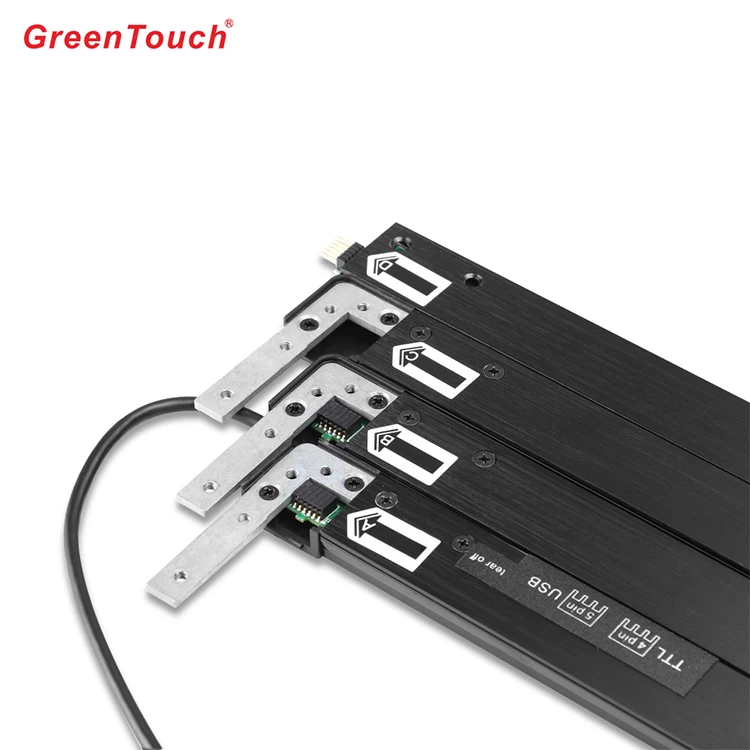

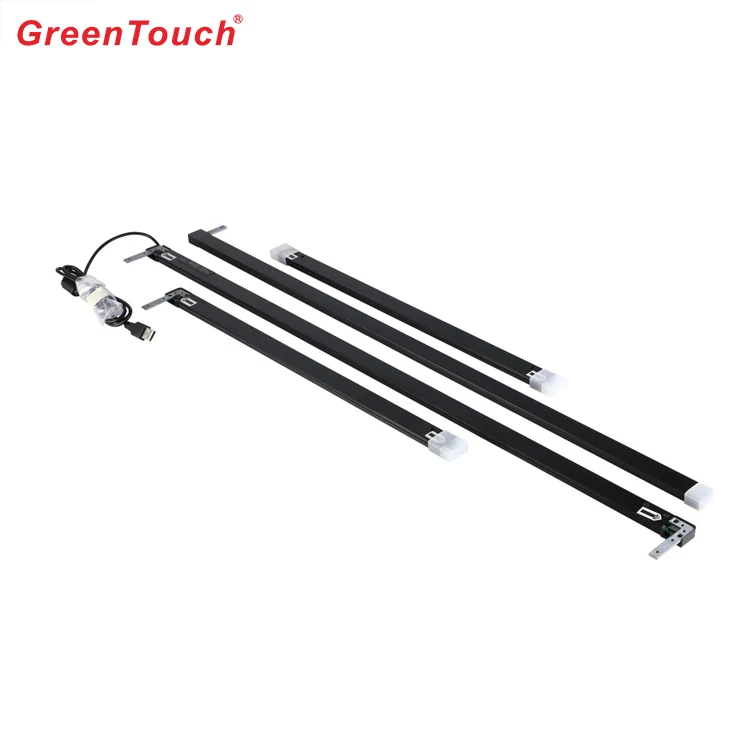

infrared touch screen 55 inch multi ir touch frame,ir touch panel overlays for LCD or TV

Product Overview

Description

ShenZhen GreenTouch Technology Co.,Ltd. is a professional manufacturer of touch products. Its main products include capacitive touch screen,resistive touch screen,infrared touch frame,nano touch foil,touch screen monitor,touch all-in-one PC,advertising digital signage,conference touch all in one PC,teaching all in one PC,advertising machine,etc.The company has its own trademark GreenTouch,and has established a fully automatic production line and a fully enclosed dust-free workshop.It has passed ISO9001 quality management system certification and ISO14001 environmental management system certification,obtained the national high-tech enterprise and Shenzhen high-tech enterprise certificate.Our products are controlled in strict accordance with the quality management system and have acquired CE,FCC,CB,RoHS,UL,CCC,HDMI and other certifications.Our goal is to become a reliable supplier of touch screen products,produce high value-added products and provide systematic touch solutions all over the world.









Product Parameteres
Product Name:	Infrared touch frame	Type:	GT-IR-TF55
Dimensions:	1255.56*726.16mm	Display Size:	1213.8*684.4mm
Regular Size:	32"-98"	Custom Size:	100"-500"

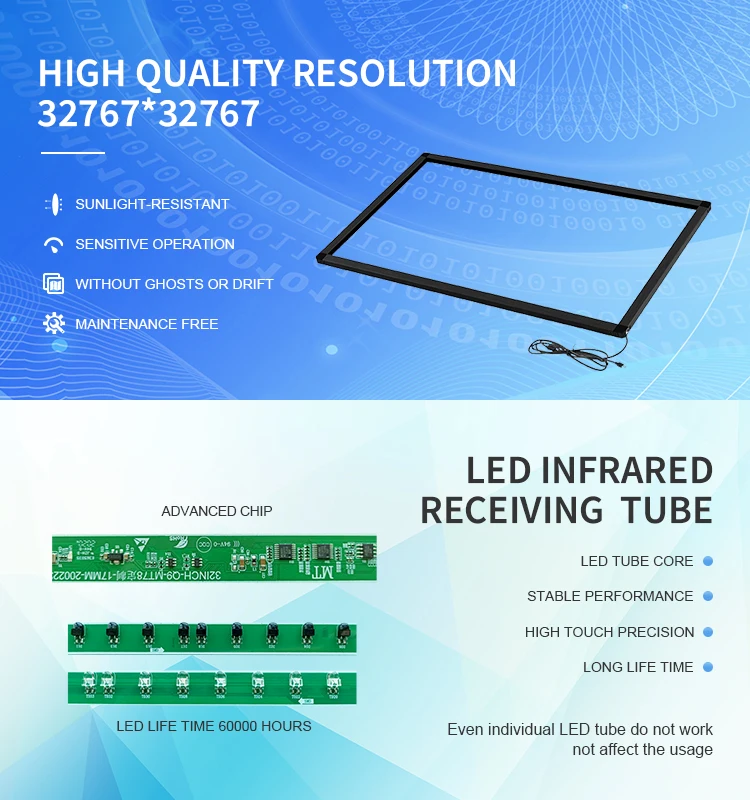

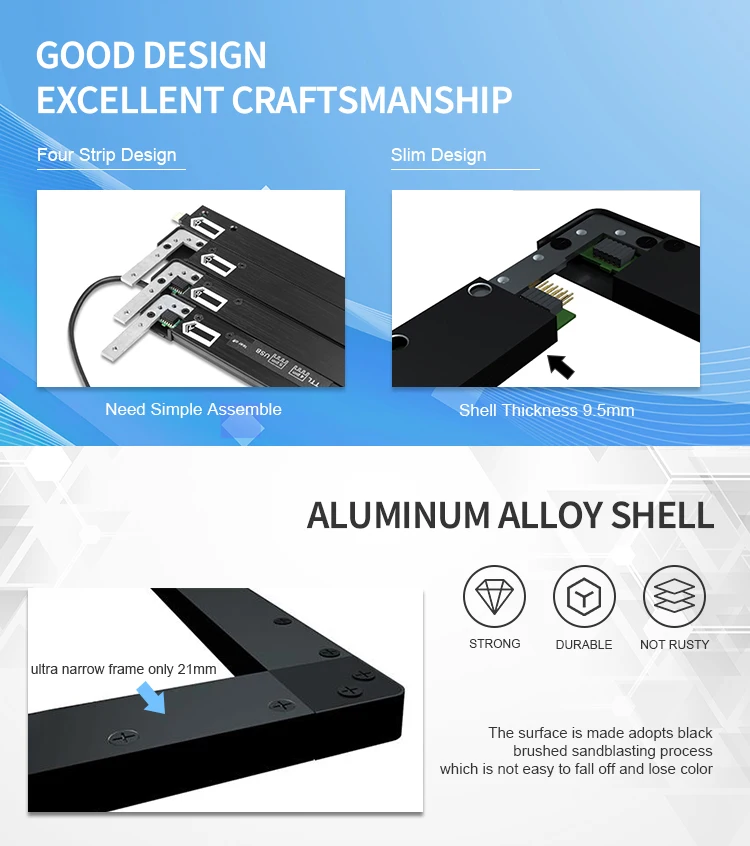

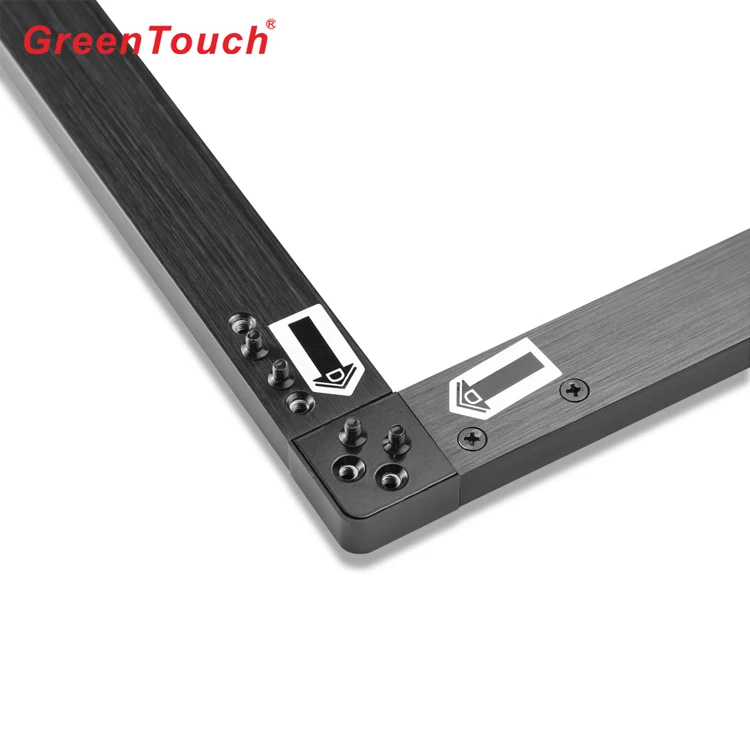

Bezel Material:	Aluminium Alloy	Touch Resolution:	32767x32767
Touch Points:	20 Points	Touch Object:	>5mm In Diameter, IR Opaque
Input Method:	Finger,Touch Pen	Transparency:	100%
Response Speed:	≤8ms	Operating Voltage:	DC 5V ±5%
Operating Current:	<200mA	About Noises:	No Noises

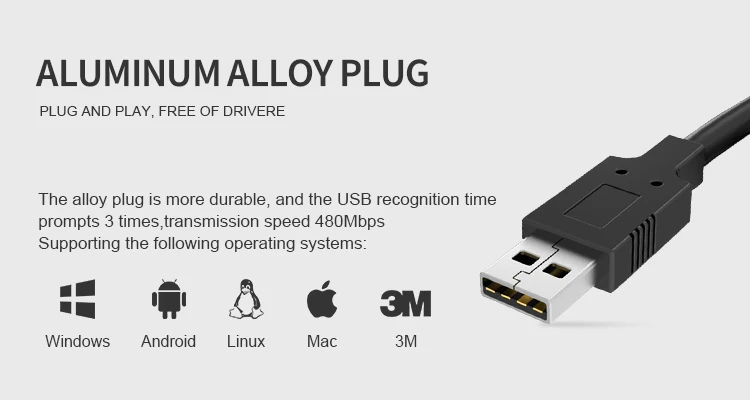

Interface:	USB,Plug And Play	Touch Durability:	Unlimited
Operating Temperature:	–10°C to 50°C	Storage Temperature:	Storage: –20°C to 60°C
Operating Humidity:	10 to 85%	Storage Humidity:	10 to 90%
Anti-light Interference:	>80000 Lux	Certificates:	CE,FCC,RoHS
Warranty:	1 Year	Operation Systems:	Windows,Android,Linux,Mac
