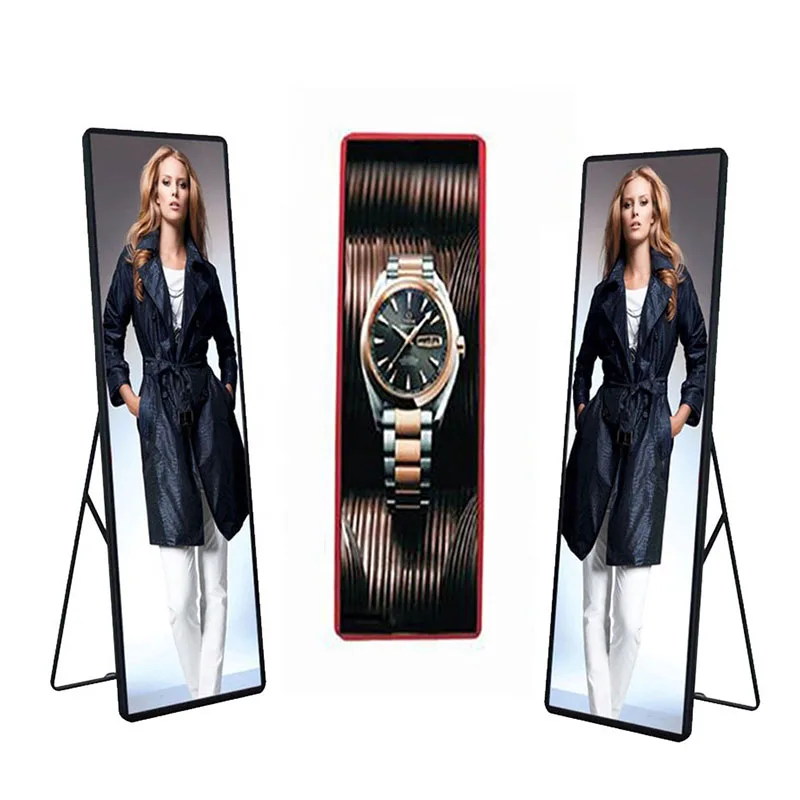

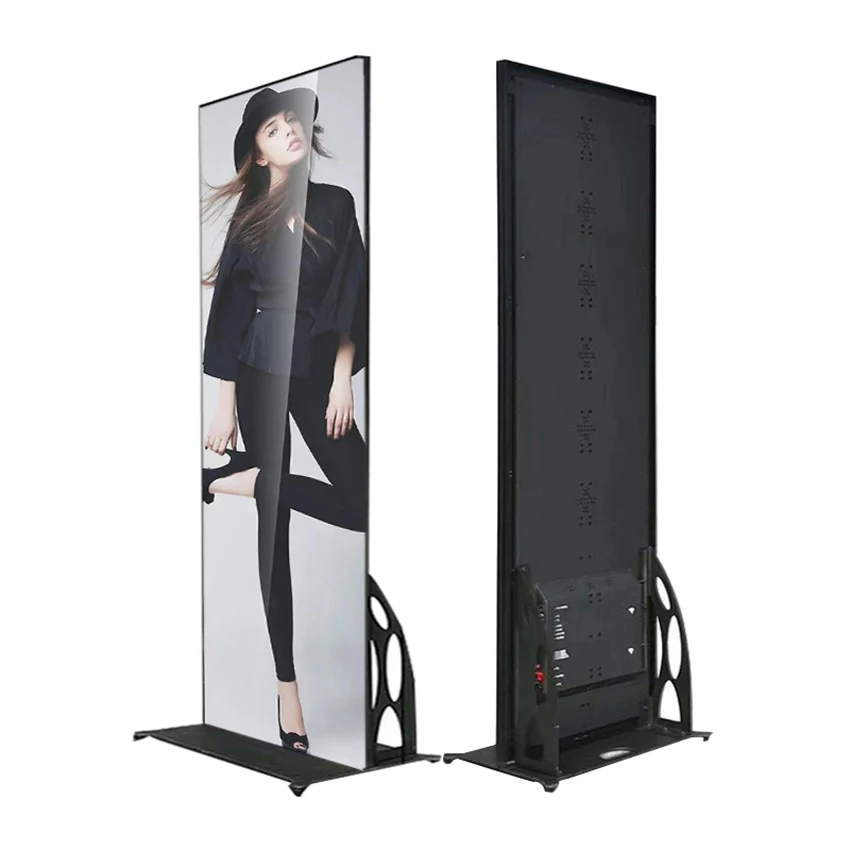

Outdoor Capacitive Indoor P2 Portable Smart Advertising Player Led Screen Poster Display For Shopping Mall
- Category: >>>
- Supplier: Chipstar Led Co. Ltd.
Share on (1600560820414):
Product Overview
Description
Application
LED poster display can be widely used for supermarket, shopping mall, hotels, restaurants, bus station, airport, stores, movie theater, promotion events, advertising, etc.
Product Description

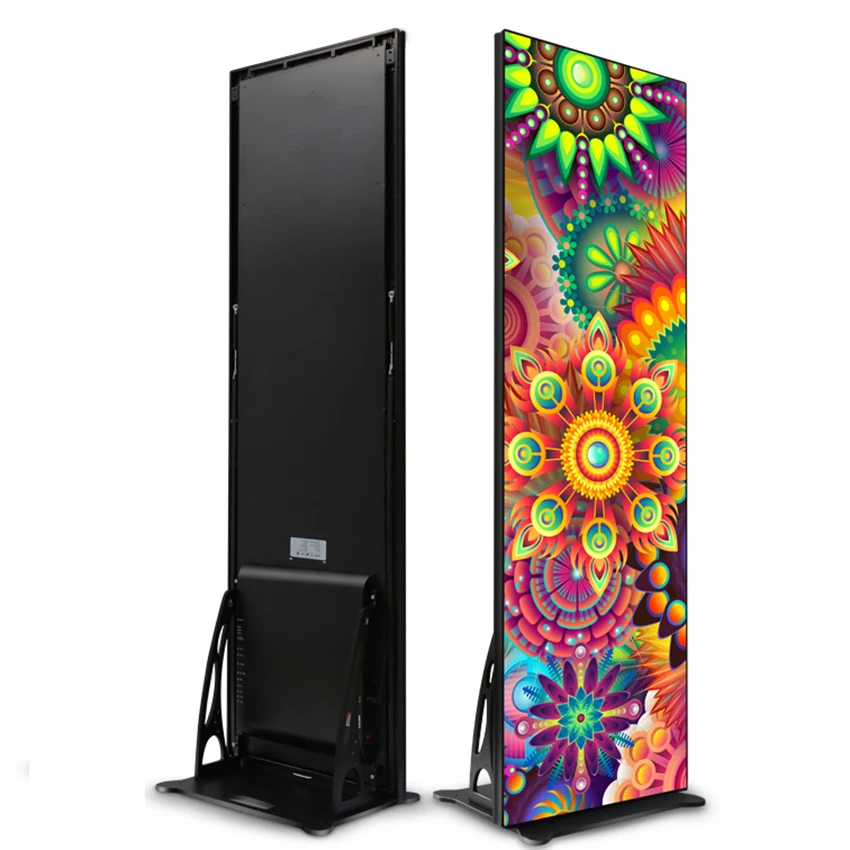

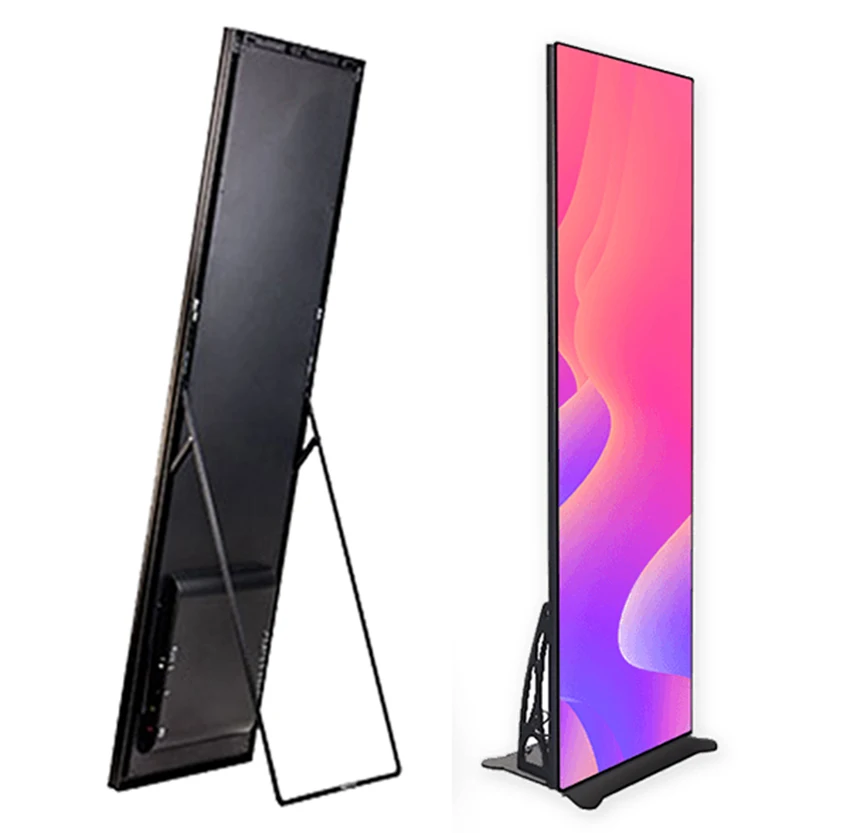

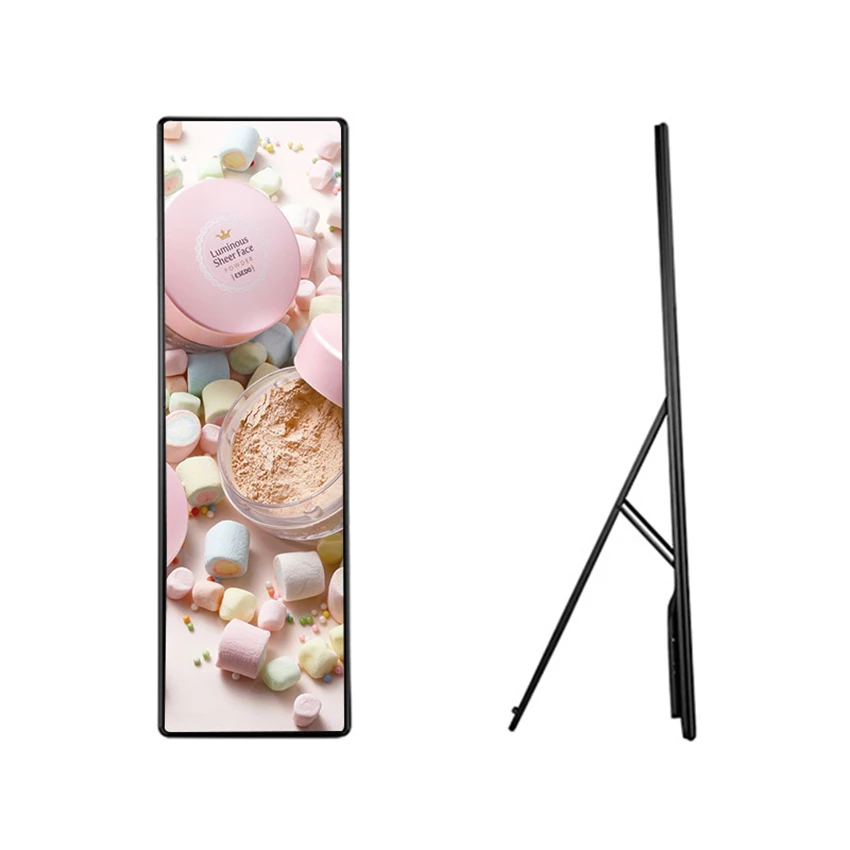

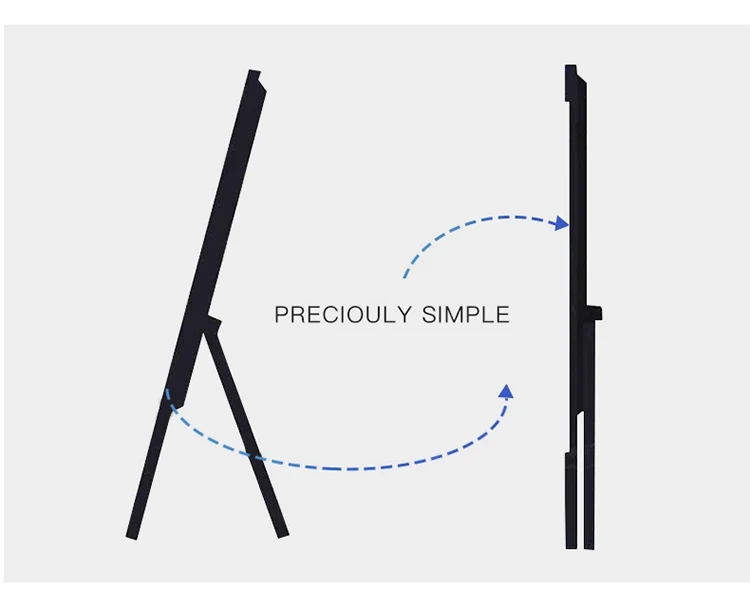

Extremely simple design, light weight to realize turely ultra thin and portable.

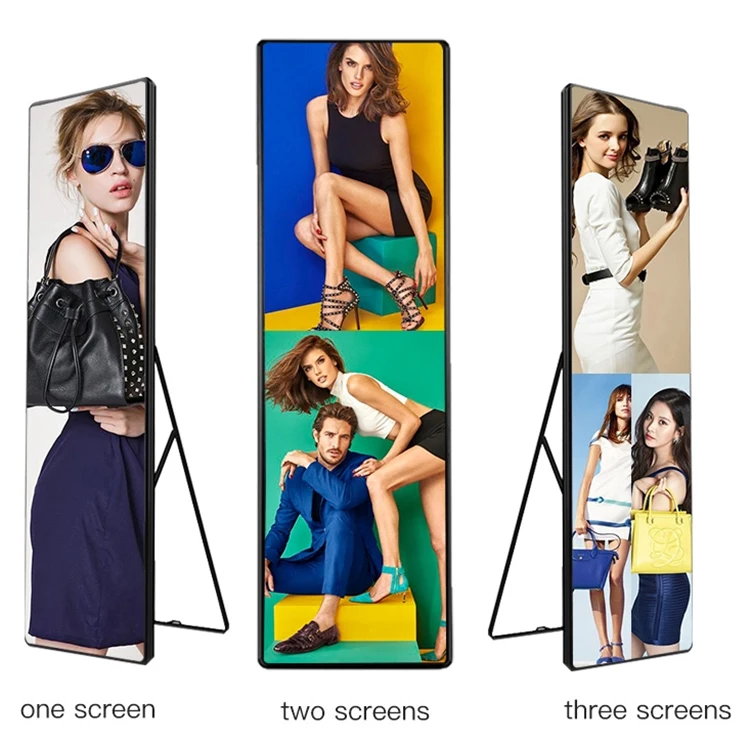

Various usage, optional ways of split screen as you like, support HD pictures or videos split screen display mode, even mixed display mode.
Online control.

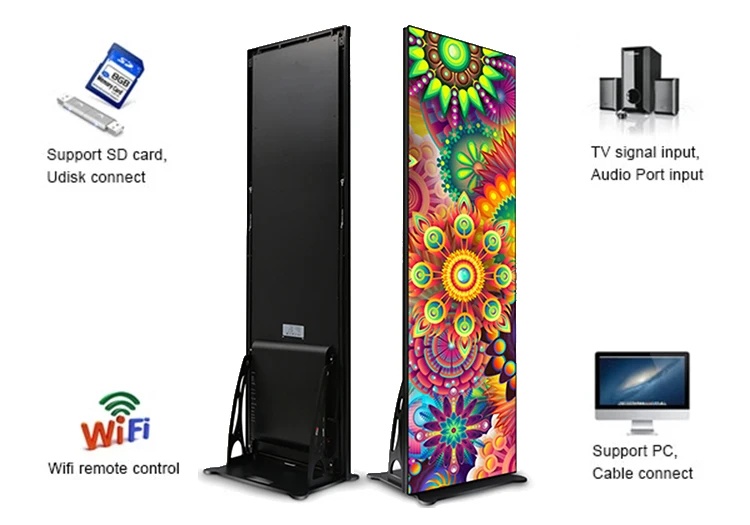

Through the network centralized control management platform to achieve remote monitoring and management, with custom broadcast software, to achieve a key to edit the program content.
Using DXVA technology can be full frame decoding and play a variety of media files, overcome the traditional control card soft
decoding and playing video lag and low-resolution bottlenecks. Play program clearly without video lag.
decoding and playing video lag and low-resolution bottlenecks. Play program clearly without video lag.
Specification
Module Number | PH1.75 | PH2 | PH2.5 |
1.Pixel Pitch | 1.75mm | 2mm | 2.5mm |
Physical Density | 326041 pixels/m2 | 250000 pixels/m2 | 160000 pixels/m2 |

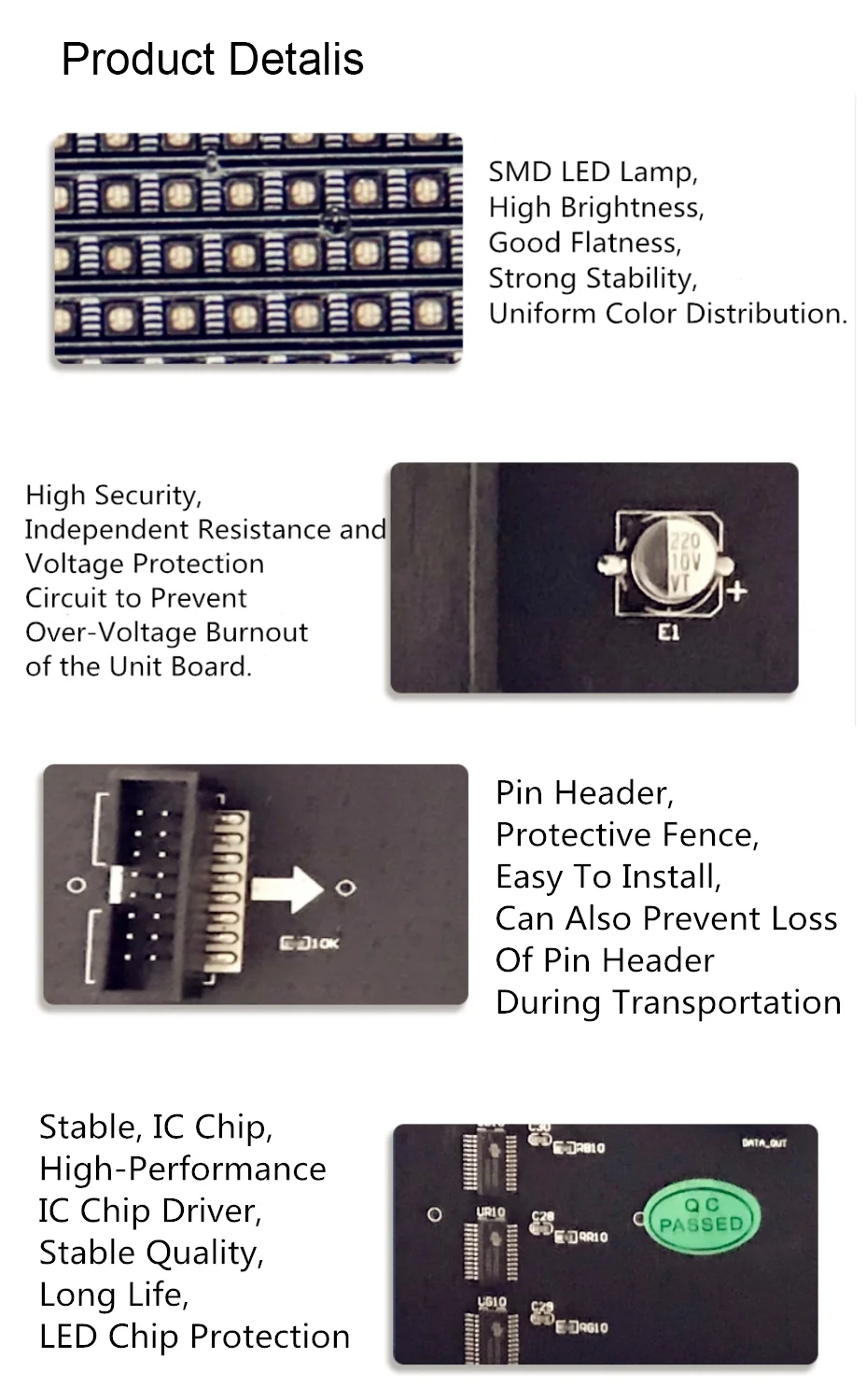

Led Arrangement | 3 in 1SMD | 3 in 1SMD | 3 in 1 SMD |
Module Resolution | 160*120 pixels | 140*105 pixels | 112*84 pixels |
Module Dimensions | 280*210mm | 280*210mm | 280*210mm |
Cabinet Resolution | 320*1080mm | 280*945mm | 224*756mm |

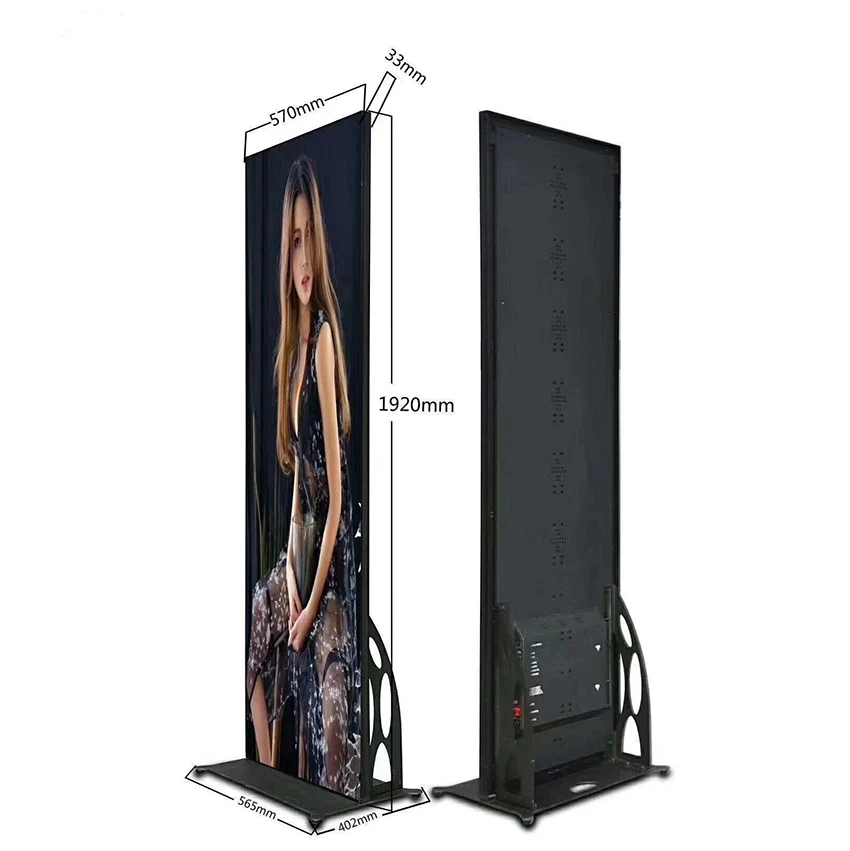

Cabinet Dimensions | 1895*565*33mm | 1895*565*33mm | 1895*565*33mm |
Cabinet Weight | 35 KG | 35 KG | 35 KG |
Brightness | 1000nits | 5500 nits | 5500 nits |
Max Power Consumption | 500w/m² | 400w/m² | 400w/m² |
Ave Power Consumption | 150w/m² | 120w/m² | 120w/m² |
Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
IP Rating | IP30 | IP30 | IP30 |
Control System | Wired, Novastar T1 ,Novastar T6 | Wired, Novastar T1 ,Novastar T6 | Wired, Novastar T1 ,Novastar T6 |
Certificate | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
Company Profile

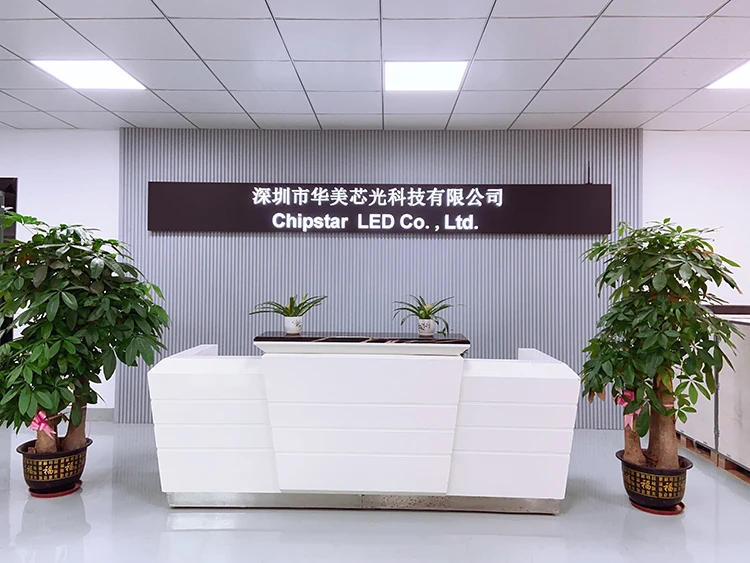

Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
Packing & Delivery
Packaging and Shipment.
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing Shipping Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
Why Choose Us
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
