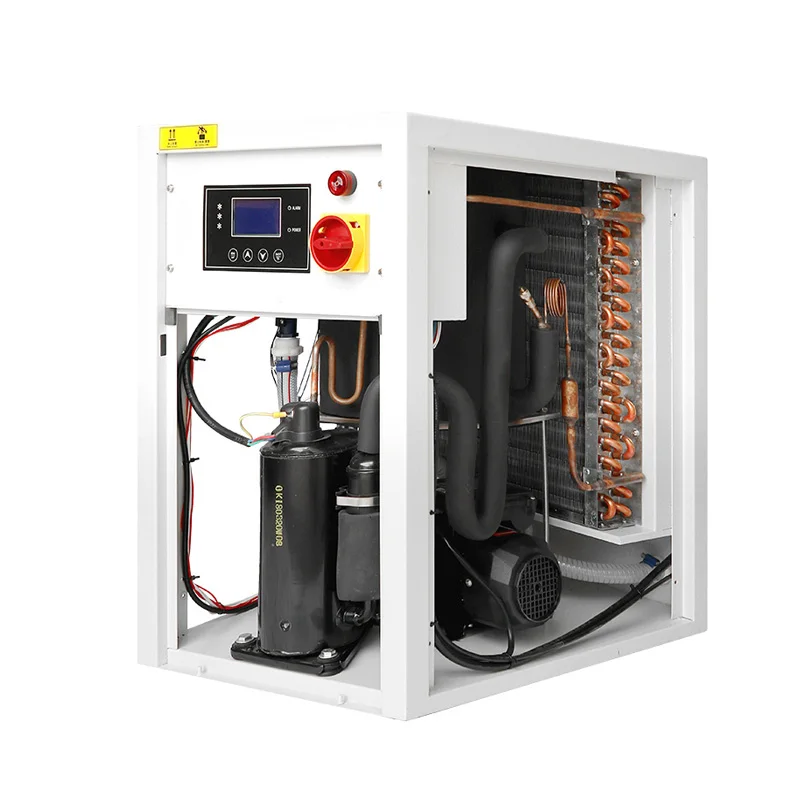

China Professional 1.5hp to 60hp Laser Chiller&Laser Cooling Manufacturer and Supplier

Product Overview

Description

China Professonal 1.5hp to 60hp Laser Chiller&Laser Cooling Manufacturer and Supplier



Laser Chiller Features and Advantages:

(1).Laser is extremely sensitive to heating so Laser Chiller is being used to control the temperature of laser machining at precise working value, configured by the use of hot gas bypass that regulates evaporating pressure and supports persistent cooling.



(2).TopChiller brand Laser Chiller is customized with dual cooling circulation to deal with laser and optics temperature that require different temperature setpoints. Laser Chiller optimized temperature both of laser and optics at a time by releasing heat by dual circulation.



(3).Laser Chiller has longer service life and durability featured by the precise filter devices, water flow protecting devices as well as deionization devices protecting the unit from obstructions and leakage.



(4).A secondary coolant loop is equipped between dual evaporators in those Laser Chiller models customized with deionized water, protecting refrigerant from freezing ensuring reliable constant performance of the unit.



TopChiller can customize Laser Chiller according to the requirements of your application and within a reasonable price.

 2Ton Laser Chiller Specification



Model				AC-2A
nominal cooling capacity		kcal/h		4833
		Kw		5.62
Max power consumption		kw		2.25
Full load		Amp		13.6
power source				1PH -220V -60HZ
refrigerant	type			r22/R407c/R410a
	control			external balance of thermal expansion valve
compressor	type			hermetic scroll type
	power	kw		1.73
condenser	type			Efficient aluminum finned copper sleeve+low noise external rotor fan
	air volume	m3/h		2000
	fan motor	kw		0.15
evaporator	type			Coil in water tank exchanger
	coolant flow	m3/h		0.97
	Water tank capacity	L		27
	inlet and outlet connection(BSP)	inch		1/2
Pump	Power	Kw		0.37
	Max flow rate	m3/h		5.4
	Max head	M		22
safety devices	Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection
dimension		mm	600*480*910
weight		kg	95

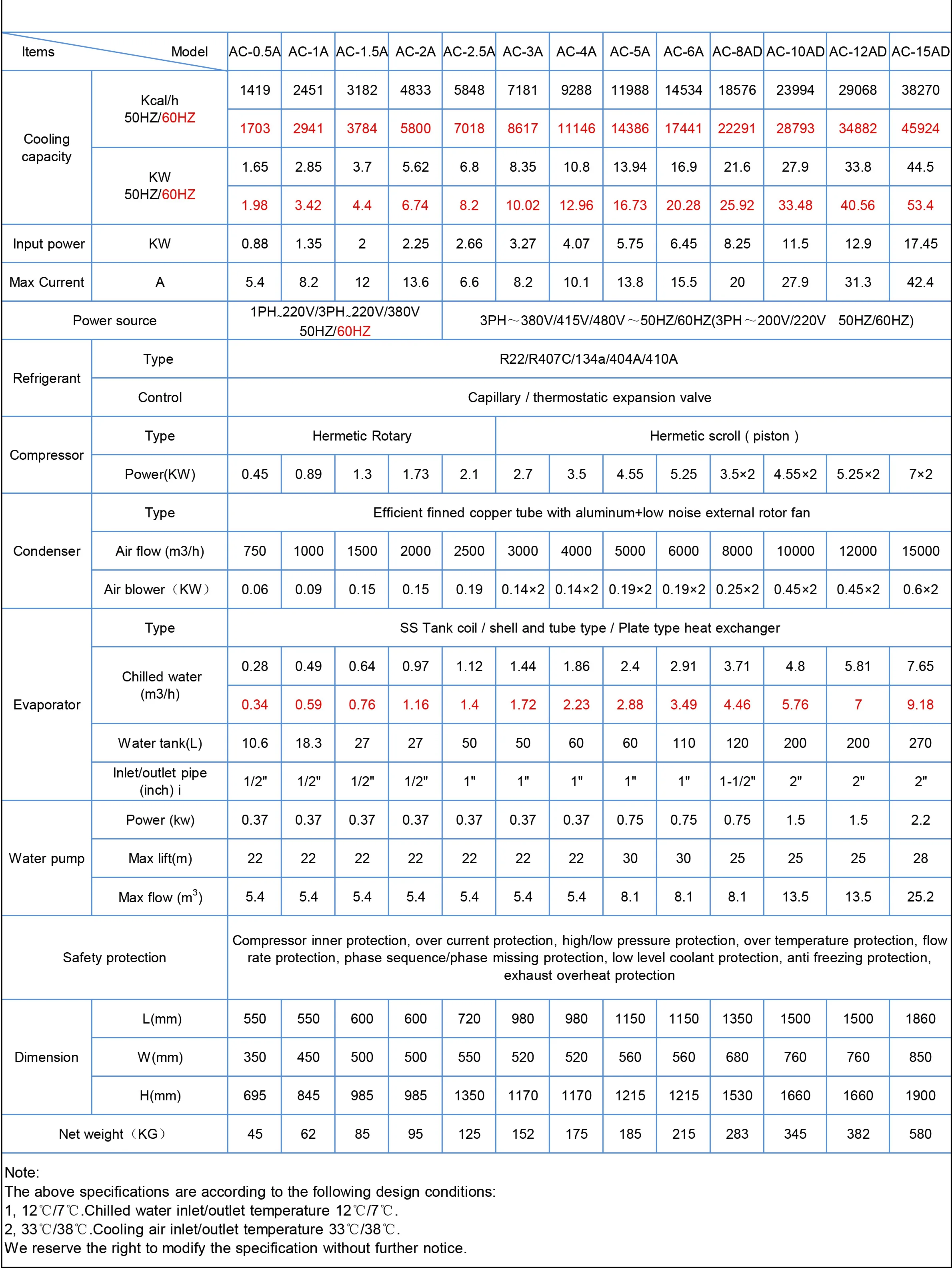

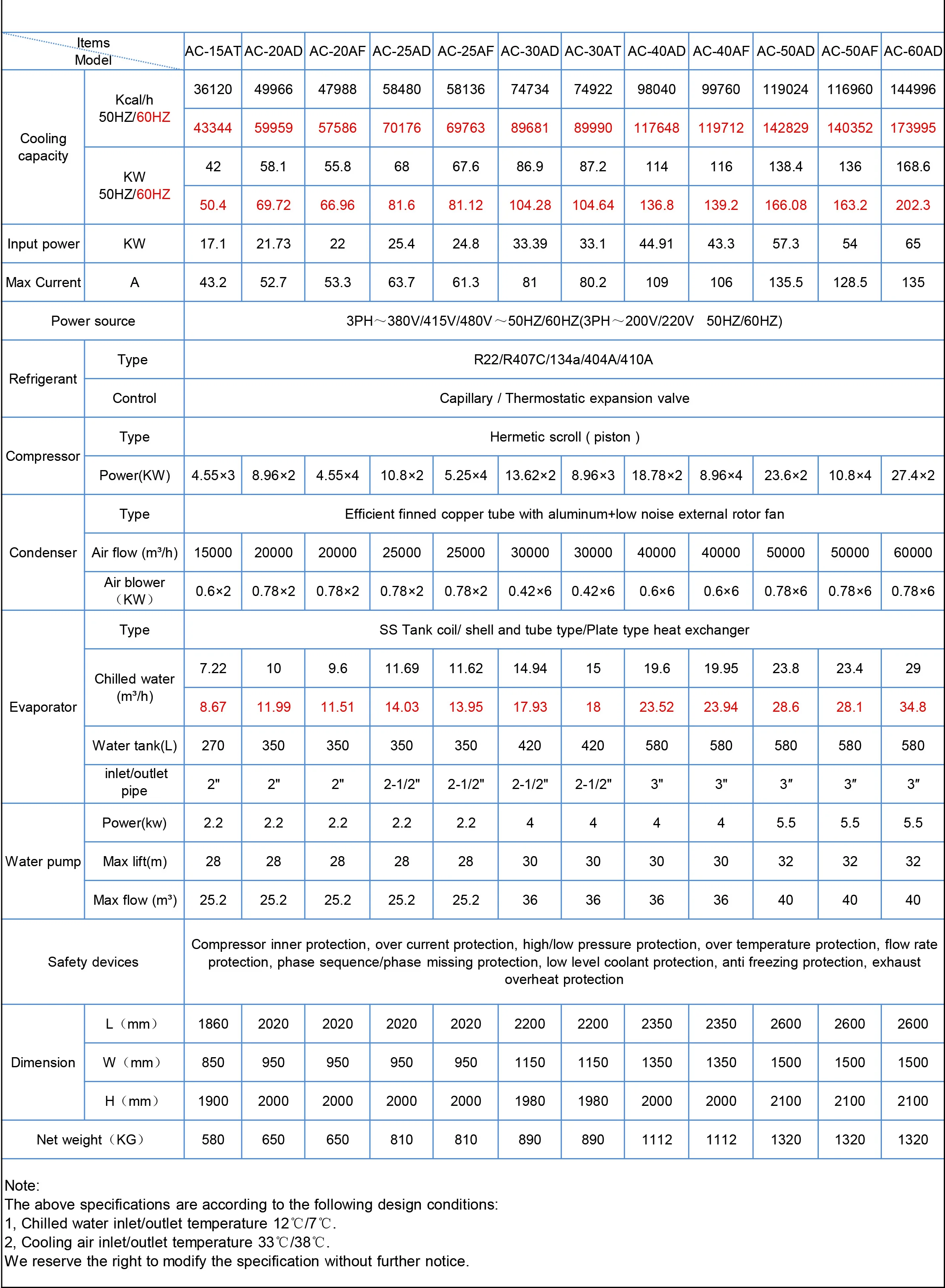

All Laser Chiller Models Specification

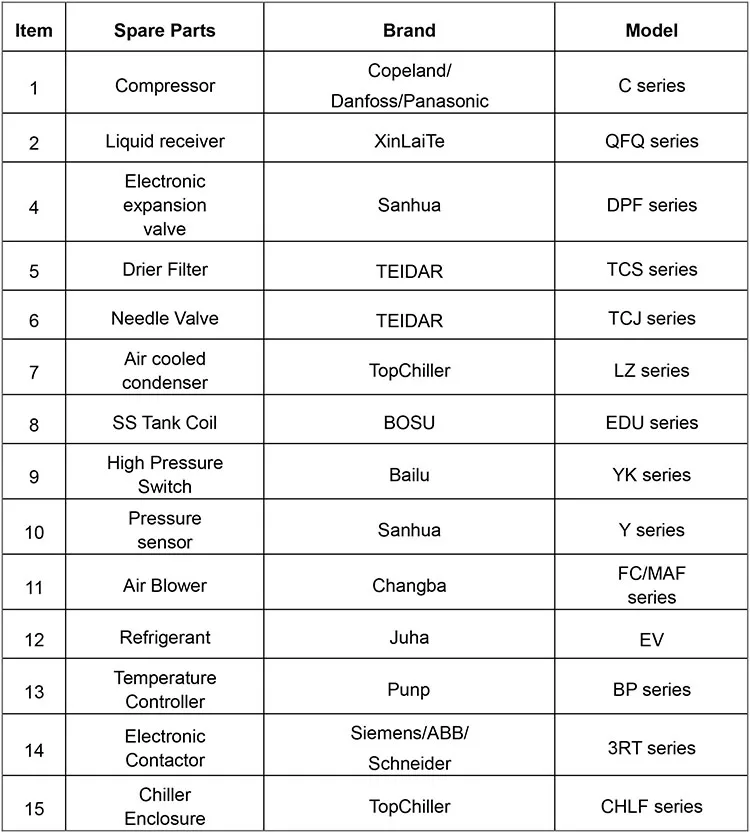

 Laser Chiller Main Refrigeration Configuration Table

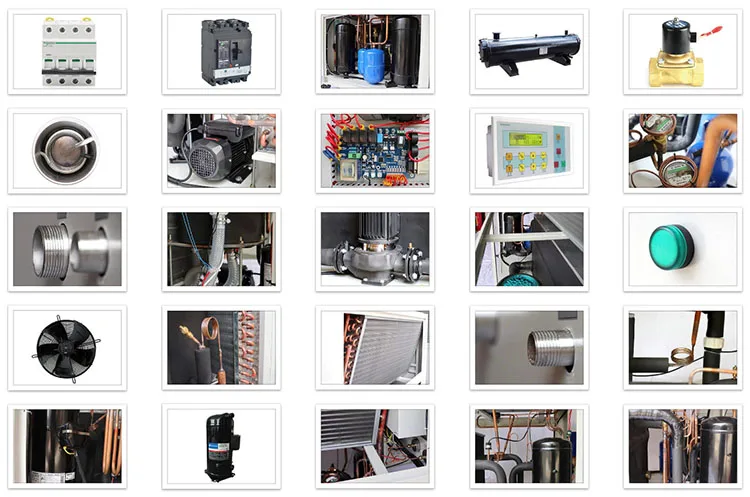

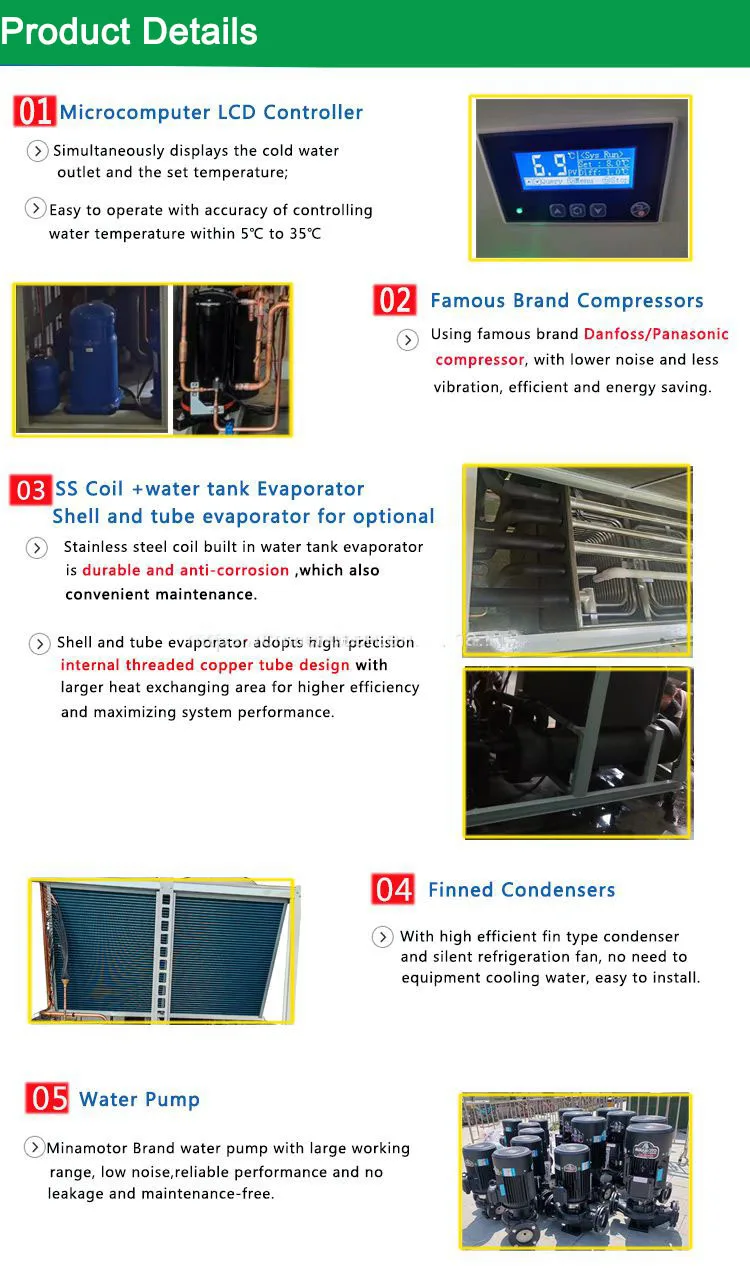

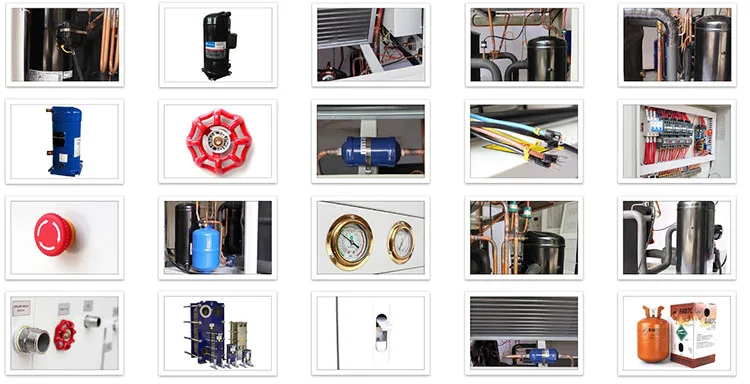

Laser Chiller Unit Main Part











TopChiller is Your Premier Air Cooled Chiller and Water Cooled Chiller Manufacturer In China

TopChiller is rich experience in chiller design and manufacturing for 20 years, having 2 factories both Shenzhen South China and DeZhou North China.

With a modern factory building of 18000 square meters and related supporting facilities, TopChiller has a large number of experienced and well-trained engineers and technical workers, as well as experienced technical experts.

 We are using the most advanced manufacturing equipment and testing methods, including automatic sheet metal flexible production line, AMADA digital bending machine, high-speed laser cutting machine, automatic refrigerant leakage testing line, a full set of cooper fin production line, Fully automatic fluorine pipeline production equipment.

These full sets of production facilities are the guarantee of our high-quality products.

The main products are a full range of industrial chillers including air-cooled chillers, water-cooled chillers, glycol chillers, screw chillers that can meet your process cooling demands in welding machines, plastic processing, laser machine, brewery glycol cooling, semiconductor industry, MRI machine, and other industrial applications.

TopChiller engaged in the chiller and refrigeration business for decade years, we are supplying primer quality of all types of chillers to our customers, gaining a high reputation from the market and our end-users in return.

Let us know your detailed chiller requirements, we have confidence TopChiller is your best chiller supplier here

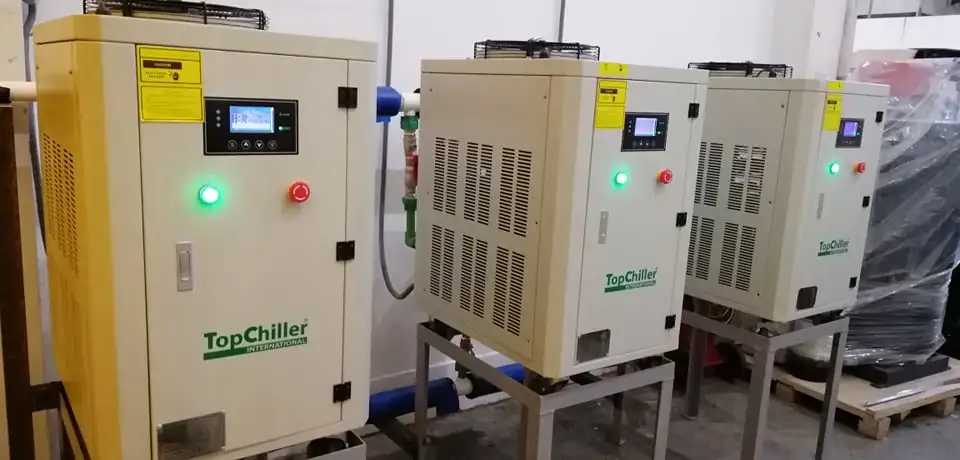

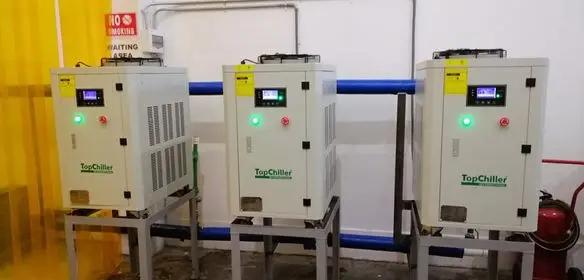

Look At TopChiller Happy Customers Throughout World

Look at TopChiller International Certification and Awards   Chiller Related Exhibition & Fairs





1. How to get my Laser Chiller Unit design and quotation fromTopChiller?

Firstly we promise you will get a professional solution for your Laser chiller unit free of charge, but please provide below important points:

• What’s your electrical power supply?-V-Hz-Phase?


• Do you an idea of the cooling capacity of a air cooled water chiller?


• the refrigerant for air cooled water chiller is R22/R407c/R410a/R134a?


• What’s the required chiller inlet and outlet water temperature? and the water flow rate?


• Which industry this air cooled water chiller to be used in?


• Your country name and destination seaport.

2. What are your payment terms?

TopChiller insists T/T payment – 30% deposit before production once quotation confirmed, and 70% balance before delivery, also can accept 100% irrevocable letter of credit.

3. What’s the warranty time of the TopChiller products?

TopChiller providing 12 months to 24 months warranty time covered all products as clients’ requirements.

4. Can TopChiller provide OEM and ODM service?

Yes, As a professional water-cooled chiller supplier, we do OEM and ODM services for clients.

But first please let us know all your chiller requirements and drawings prior, also indicate the order QTY and volume.

5. Does TopChiller provide any on-site installation and commission service?

Yes, We have a professional engineering team with a rich experience that can do your water-cooled chiller on-site installation and commission. Please contact TopChiller sales for more information.
