Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
- Category: >>>
- Supplier: Taizhou Qihong Electrical Mechanical Co. Ltd.
Share on (1600560879555):
Product Overview
Description
Product Description

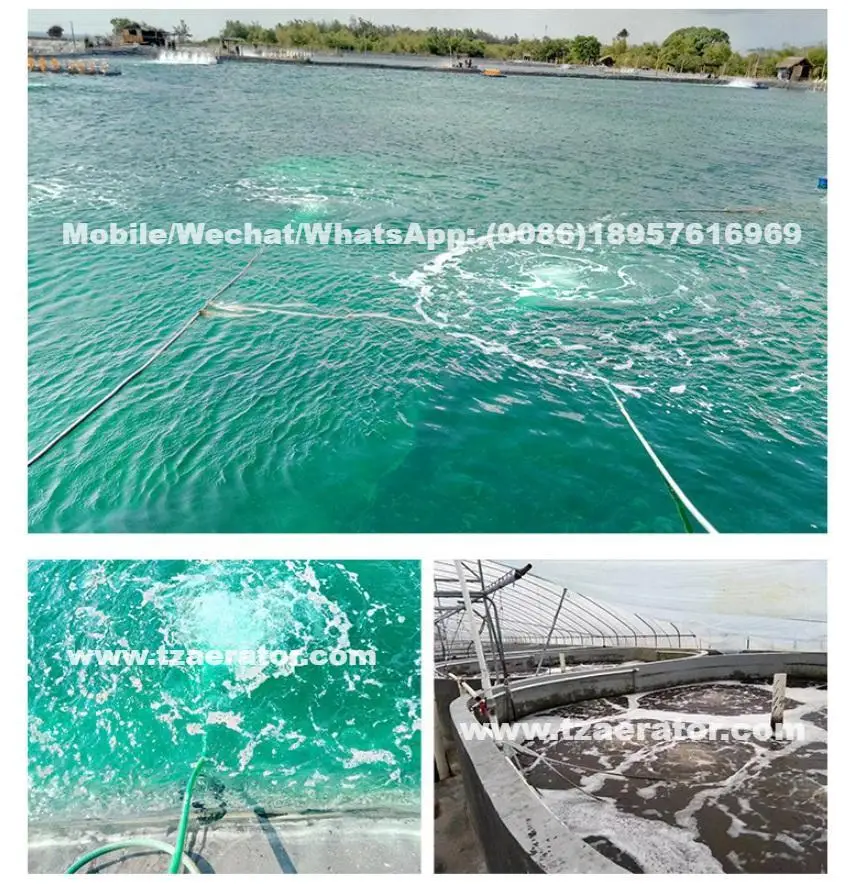

Product Application:
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
1. Oxygenation and aeration in sewage treatment process
2. Aeration in improving the water quality of rivers and lakes
3. Oxygenation aeration in aquaculture
Specification
Applicable water depth | 0-5 meters,Cold resistance(-40°C,8h) | ||||
Cold resistance(-40°C,8h) | Tensile length ≥2.2 Mpa Tensile elongation ≥130 percent | ||||
Hot empty aging (70°C 72h) | Tensile strength rate ≤20 percent Break elongation rate ≤20 percent | ||||
Resist 5% NaOH (23°C 72h) | Tensile strength rate ≤20 percent Break elongation rate ≤20 percent | ||||
Resist 5% HCl (23°C 72h) | Tensile strength rate ≤20 percent Break elongation rate ≤20 percent | ||||
Working principle and Scope of use:
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
1) Specification application problem: the water condition and depth have different requirements for the diameter of the nano hose :1. For Outdoor farming, if the water depth is 0-1.5m, please use nano hose with OD of 16mm and ID of 10mm, the length of nano hose should not exceed 50m.
2. For factory aquaculture water body, with a water depth of 0-1.5 meters, please use nano hose with OD of 16mm and ID of 10mm, the length of the tube shall not exceed 50 meters; 3. For large water surfaces with a water depth of less than 1.5 meters, please usenano hose with an OD of 25 mm and ID of 12 mm, the length of the tube shall not exceed 60 meters.
2) It is more appropriate to use a long nano hose per mu of water surface, and many issues need to be considered:
2) It is more appropriate to use a long nano hose per mu of water surface, and many issues need to be considered:
The requirements of the breeding objects for the amount of dissolved oxygen in the water, the balance of dissolved oxygen in the water, the amount of aeration and the amount of dissolved oxygen per unit time of a nano hose per unit length under relative conditions, etc.
According to the estimates, a 40-70 meter long nano hose (ID of 10 and OD of 16 mm) is required for each acre of intensive cultivation ponds with a depth of more than 1.5 meters. When the dissolved oxygen in the water body is lower than 4mg/l, the aeration can be increased to more than 5mg/l for 2 hours.
3) Determination of the average spacing of the long strip arrangement of nano hose:
Example: A pond has an area of 4 mu, a length of 100 meters, and a width of 26.7 meters. The existing nano hoses are 280 meters, and the hoses are arranged horizontally. The pipe length is 20 meters, and the pipe distance is 100÷(280÷20)=7.14 meters.
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
4) Horizontal adjustment of pipe layout (10cm from the bottom of the pool) :
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
4) Horizontal adjustment of pipe layout (10cm from the bottom of the pool) :
1. After clearing the pond, arrange the pipes according
to the remaining water level at the bottom of the pond;
2. Deploy pipes in the pond for a long time, adopt the horizontal methodfor leveling, and fix the benchmark. The water depth of the pool is 1 meter, and the nano hose should be placed 10cm away from the bottom of the pool, or 90cm below the horizontal line. In this way, we can use two bamboo poles longer than 1.2 meters to fix the nano hoses on the bamboo poles. 30cm from the bottom to the top, then a mark at 90cm upwards, and then two people grab a bamboo pole, pull the nano hose tightly to each side of the pond, insert the bamboo pole into the bottom of the pond until the mark is marked, it's up to the level. If the depth of the bottom of the pond is not on a horizontal line, the pipe shall be laid out on the shallow side.
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
Certifications
Database
Factory directly selling aeration system water pump submersible aerator for pond
Factory directly selling fish shrimp farming pond air diffuser micro nano bubble oxygenation aeration tube
1. 21years experience in aeration tube Industry.
2. Sale 5000000 rollers per year.
3. Save 20% energy than other factory.
4. Dissolved oxygen 15% higher than other factory.
5. Reorder rate up to 94.8%.
6. More than 92..2% customers make payment before meeting us!
21 Years production experience for Aeration Tube!
