Pinch valve Manual pinch valve Wear resistant rubber lined valve suitable for wastewater treatment, etc.
- Category: Valves >>>
- Supplier: Anhui Fengchi Pump & Valve Manufacturing Co. Ltd.
Share on (1600560893339):
Product Overview
Description
Power Plant | Sewage Plant | Mining | Chemical |
FGD System | Sludge Control | Tailings Disposal | Corrosive and Abrasive |
Gas scrubbing System | Sand Removal | Flotation Control | Powder |
Coal Conveyor | Raw Sewage | Mud Discharge Pipeline | Particles |
Fly Ash Control | Lime Carbon | Multiple Slurry | Waste Disposal |
Size range:
15~2000mm, ½~84in；
15~2000mm, ½~84in；
Pressure range:
1-10MPa, 1:2 safety factor, which means bursting pressure is 2 times higher than the operating pressure；
1-10MPa, 1:2 safety factor, which means bursting pressure is 2 times higher than the operating pressure；
Material of valve body：
DN15~200 (carbon steel, ductile iron, aluminum alloy, stainless steel-casting process)；
DN15~200 (carbon steel, ductile iron, aluminum alloy, stainless steel-casting process)；
DN250~2000 (45#steel, stainless steel welding technology )；
Material of valve sleeve：
NR, EPDM, CR(chloroprene rubber), NBR, butyl rubber, FPM, Hypalon rubber.
NR, EPDM, CR(chloroprene rubber), NBR, butyl rubber, FPM, Hypalon rubber.

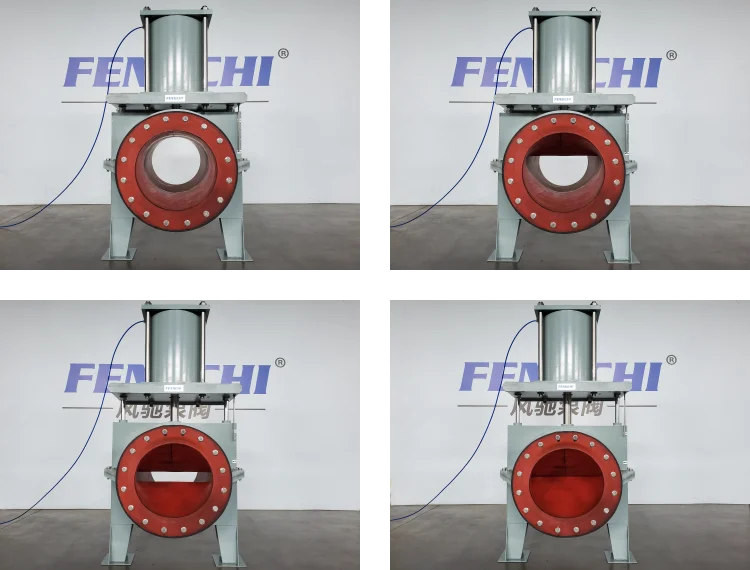

Working status of pinch valve
Fully-open: the full-bore elastic valve sleeve of pinch valve without any gaps & dead spots.
Center closed: closed on the center line of the valve body, which avoids turbulence and abrasion, as a result, the valve sleeve becomes a smooth and enclosed venturi with self-cleaning during every operation.
Fully-closed: it ensures the pinch valve is with no leakage of two ways when shut off, and the safe design of inner valve sleeve requires no maintenance of sealing elements.
Center closed: closed on the center line of the valve body, which avoids turbulence and abrasion, as a result, the valve sleeve becomes a smooth and enclosed venturi with self-cleaning during every operation.
Fully-closed: it ensures the pinch valve is with no leakage of two ways when shut off, and the safe design of inner valve sleeve requires no maintenance of sealing elements.
