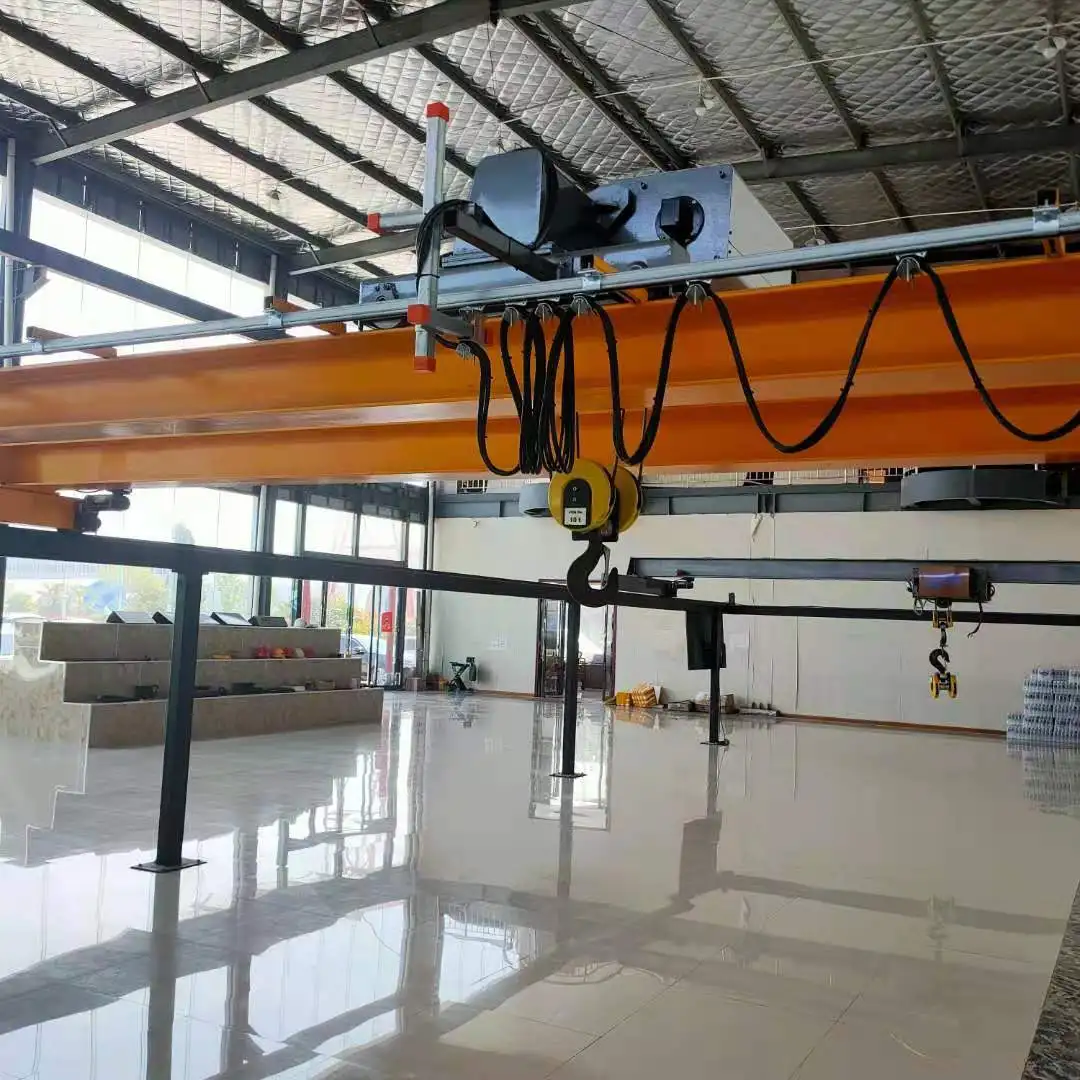

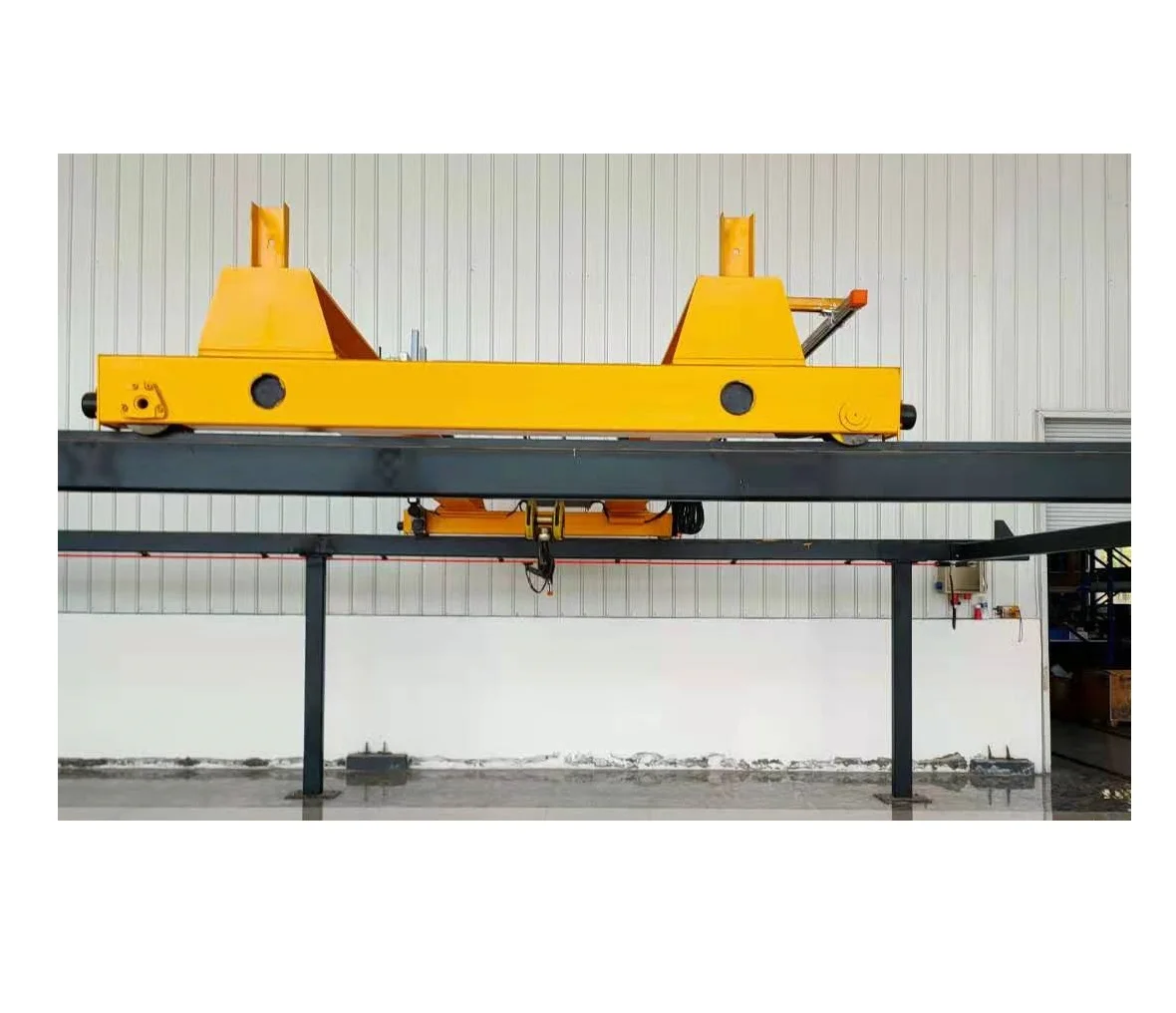

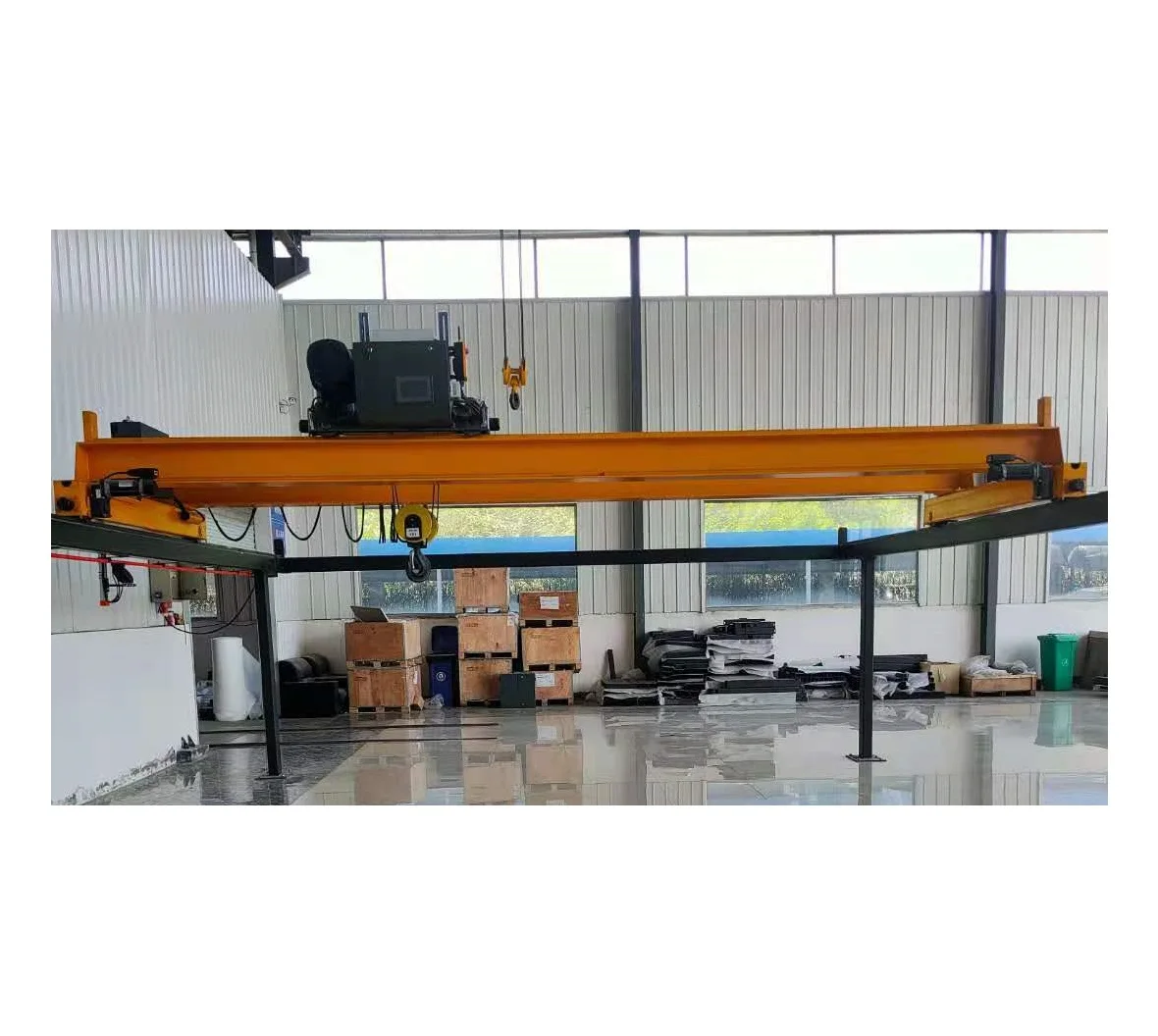

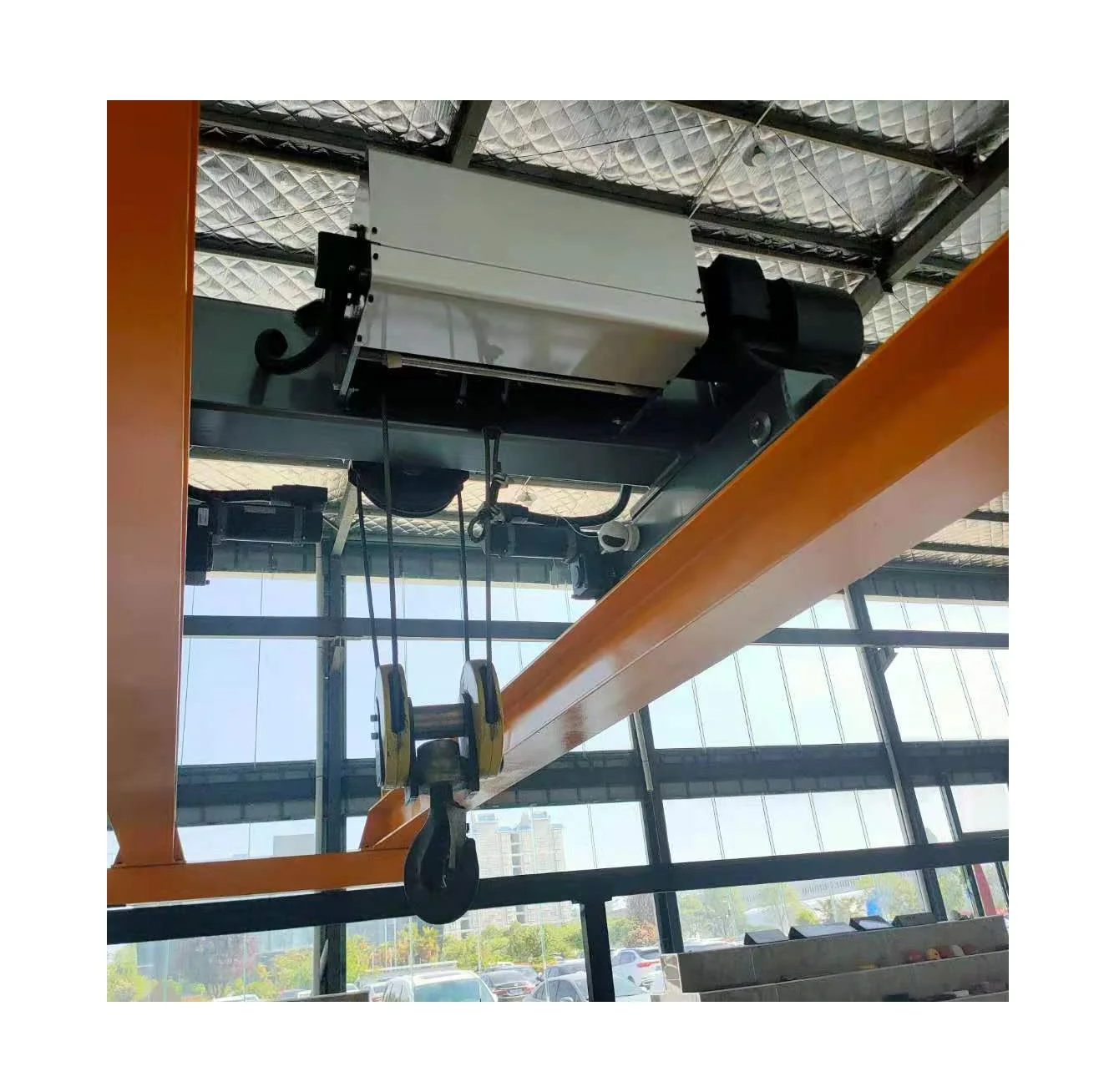

5~50 ton European hoist double beam bridge crane
- Category: >>>
- Supplier: Henan Lantu Mechanical And Electrical Equipment Co. Ltd.
Share on (1600560893432):
Product Overview
Description

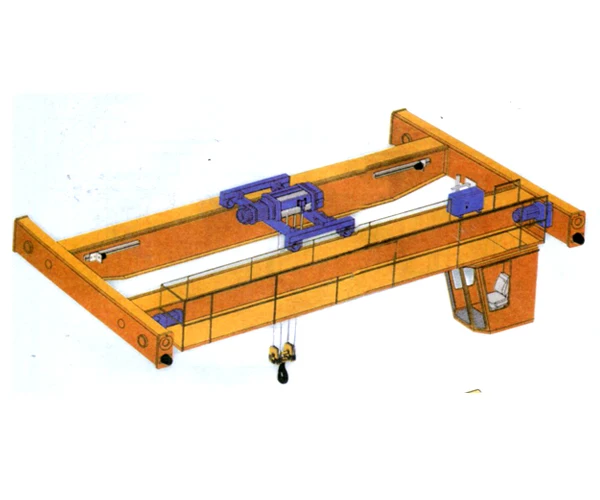

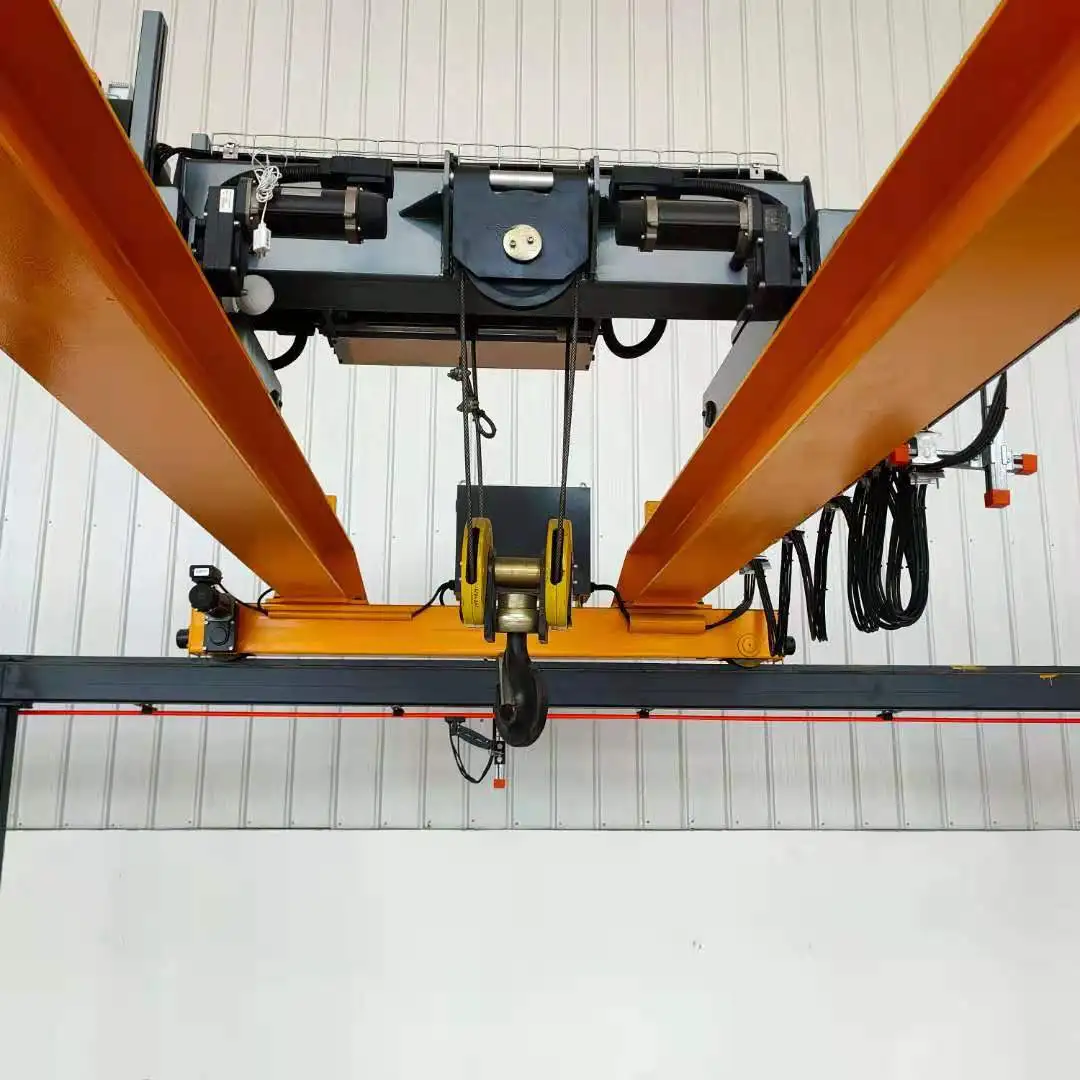

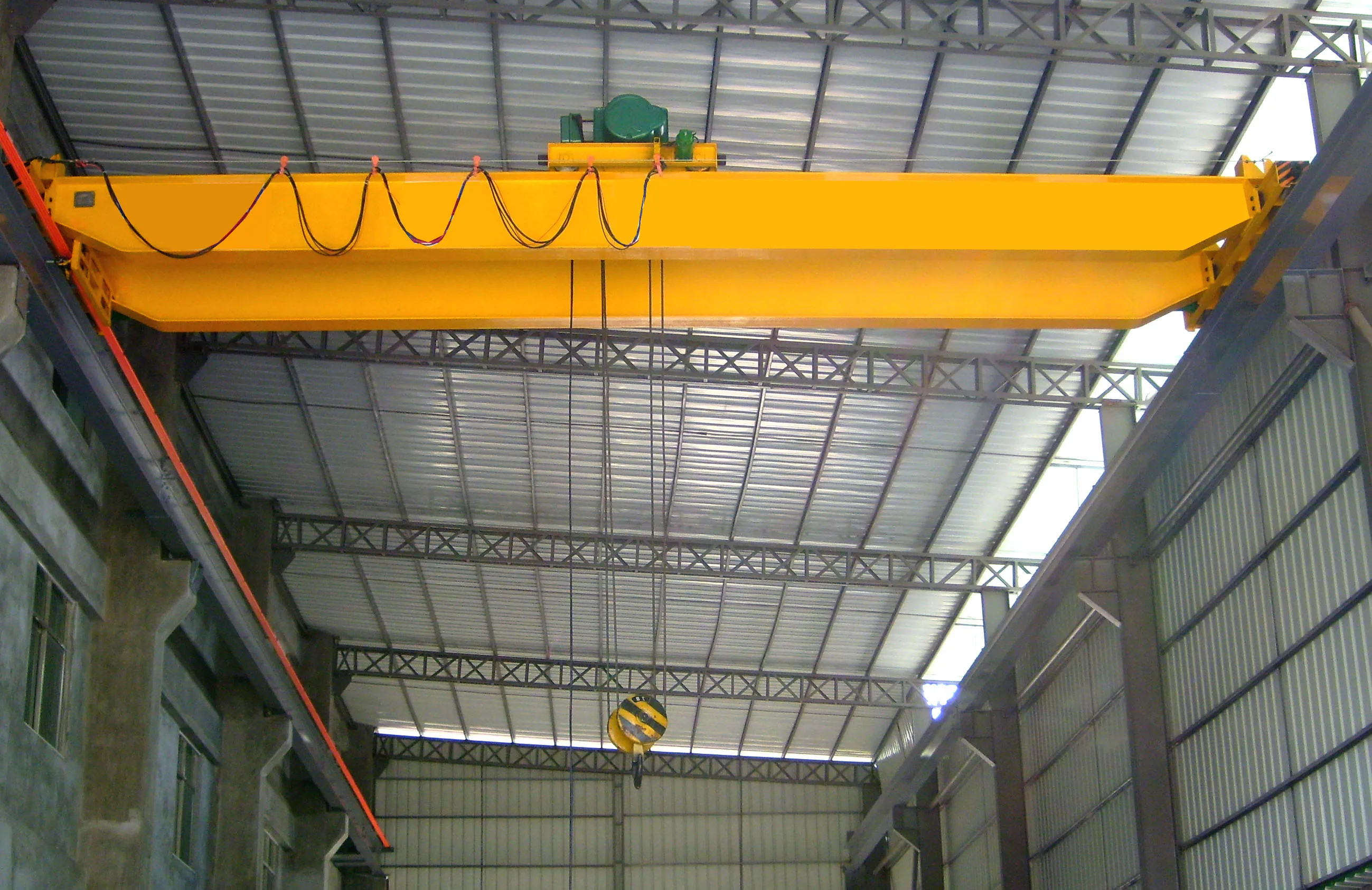

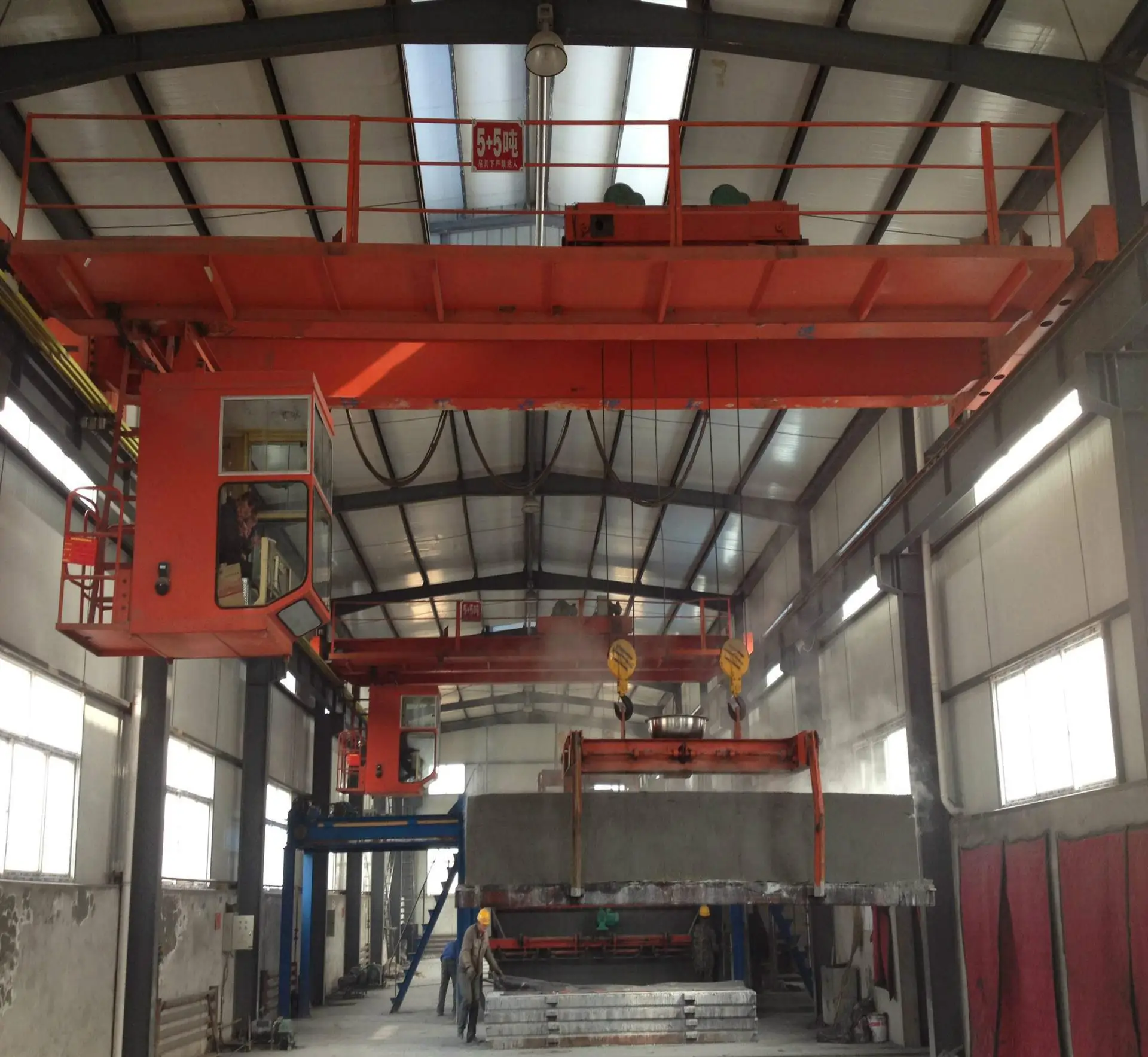

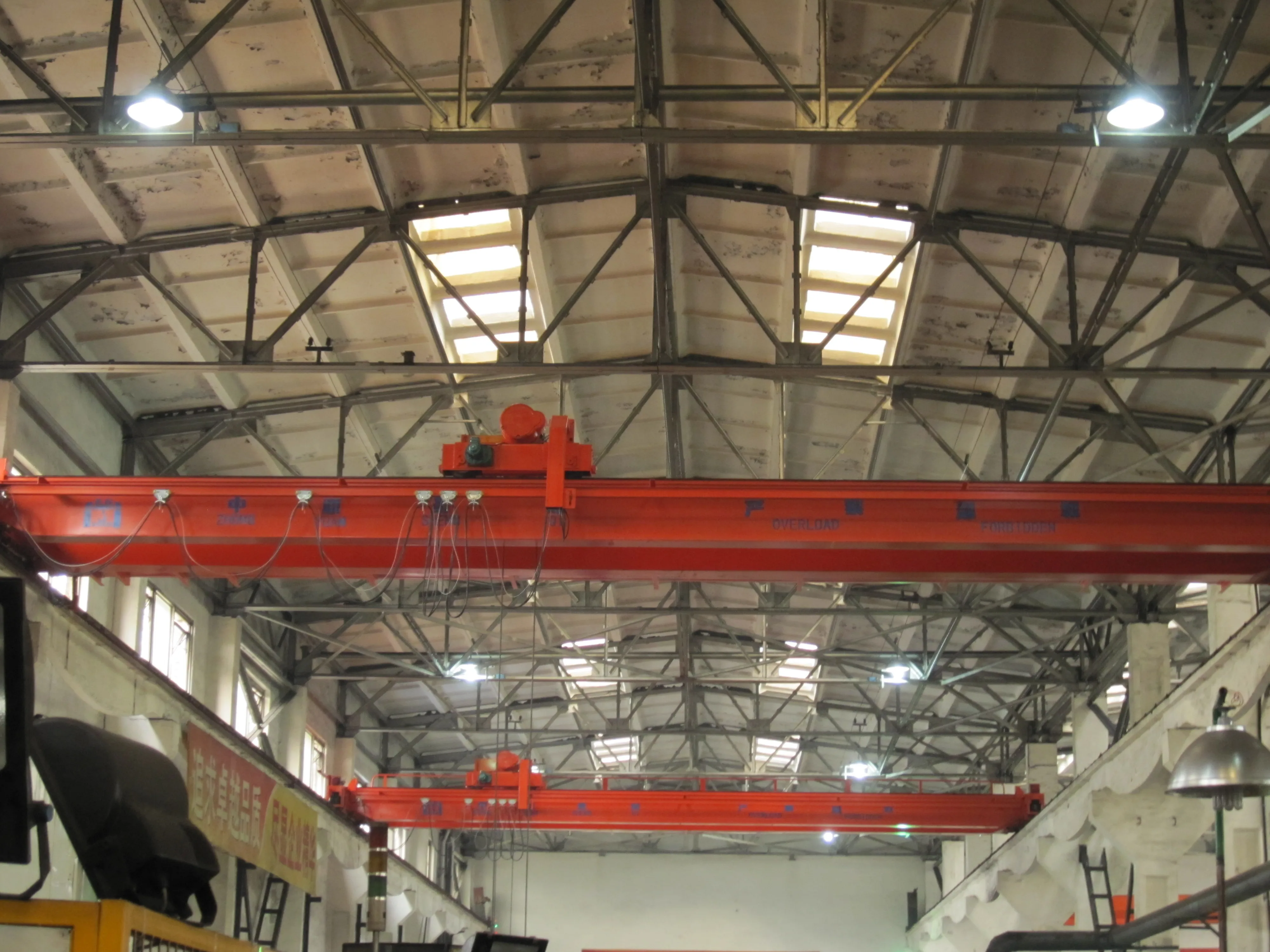

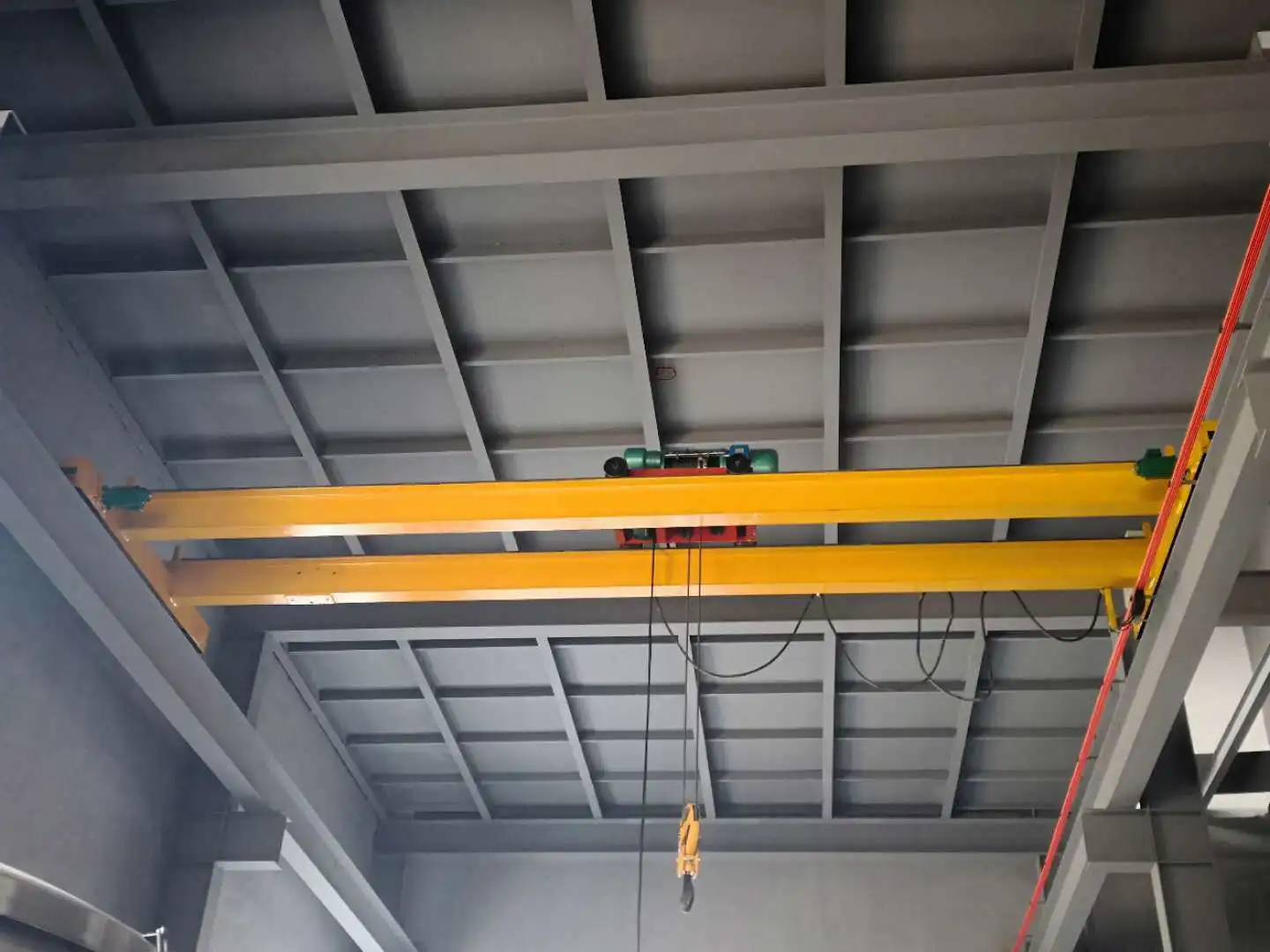

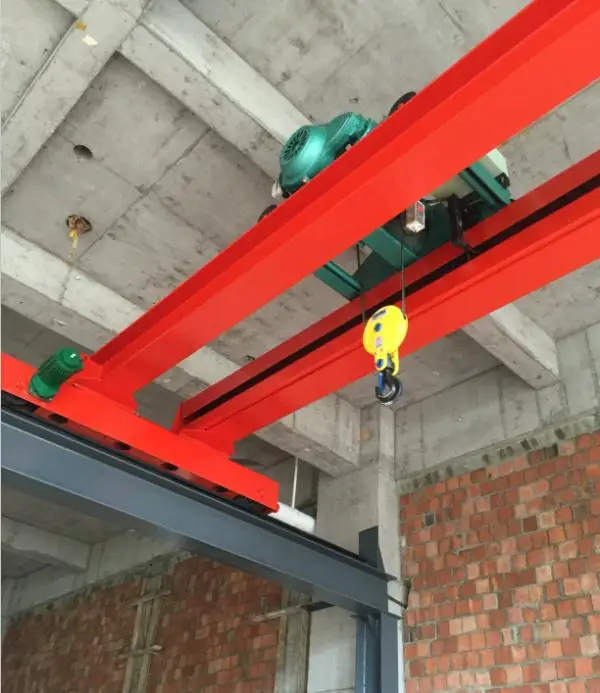

LH type electric hoist double beam crane is traveling on fixed support, the frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane, the capacity from 3 tons to 20 tons. The span is 10.5-31.5m. Working class is A3~A4. Working temperature is -20°to 45°centigrade.

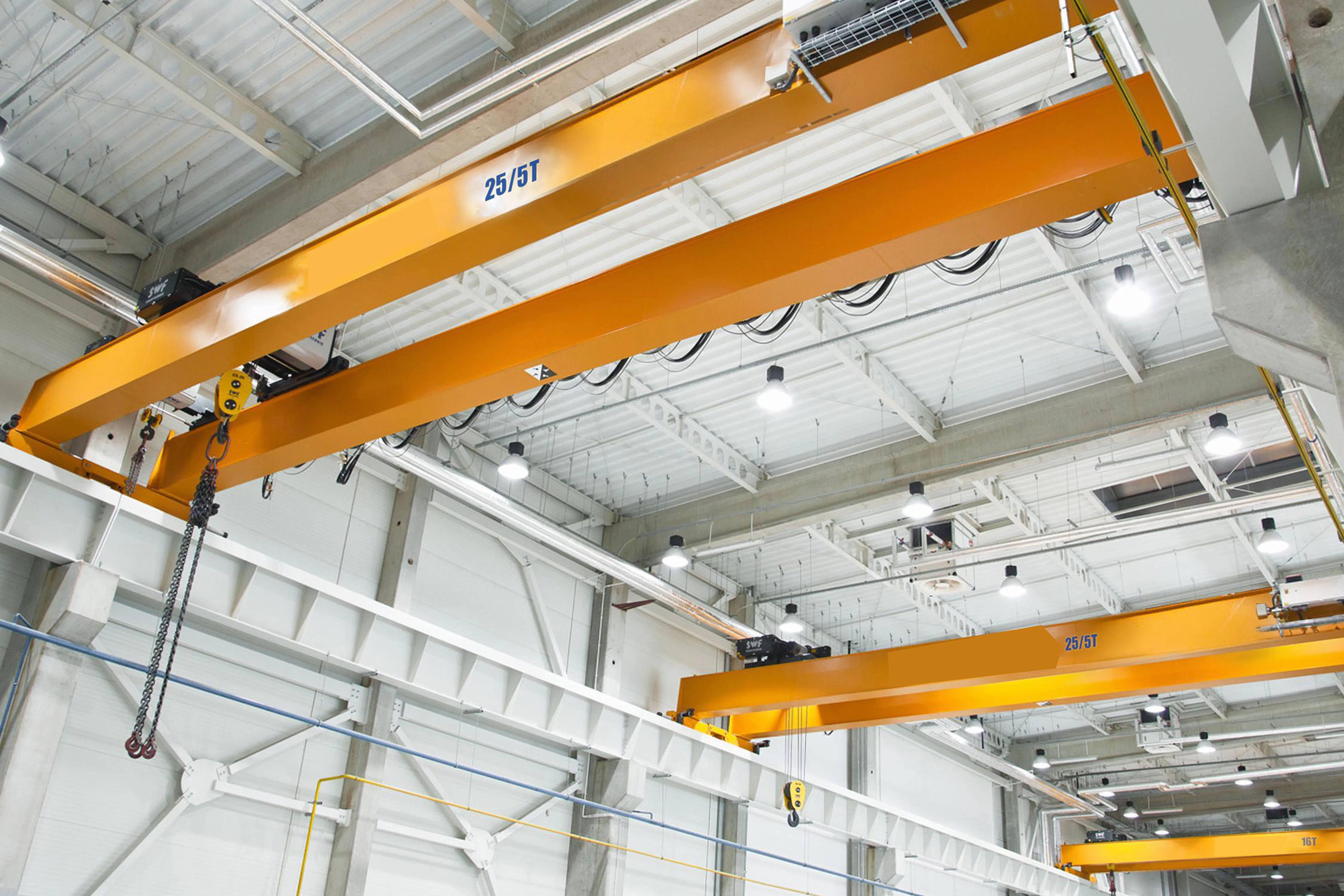

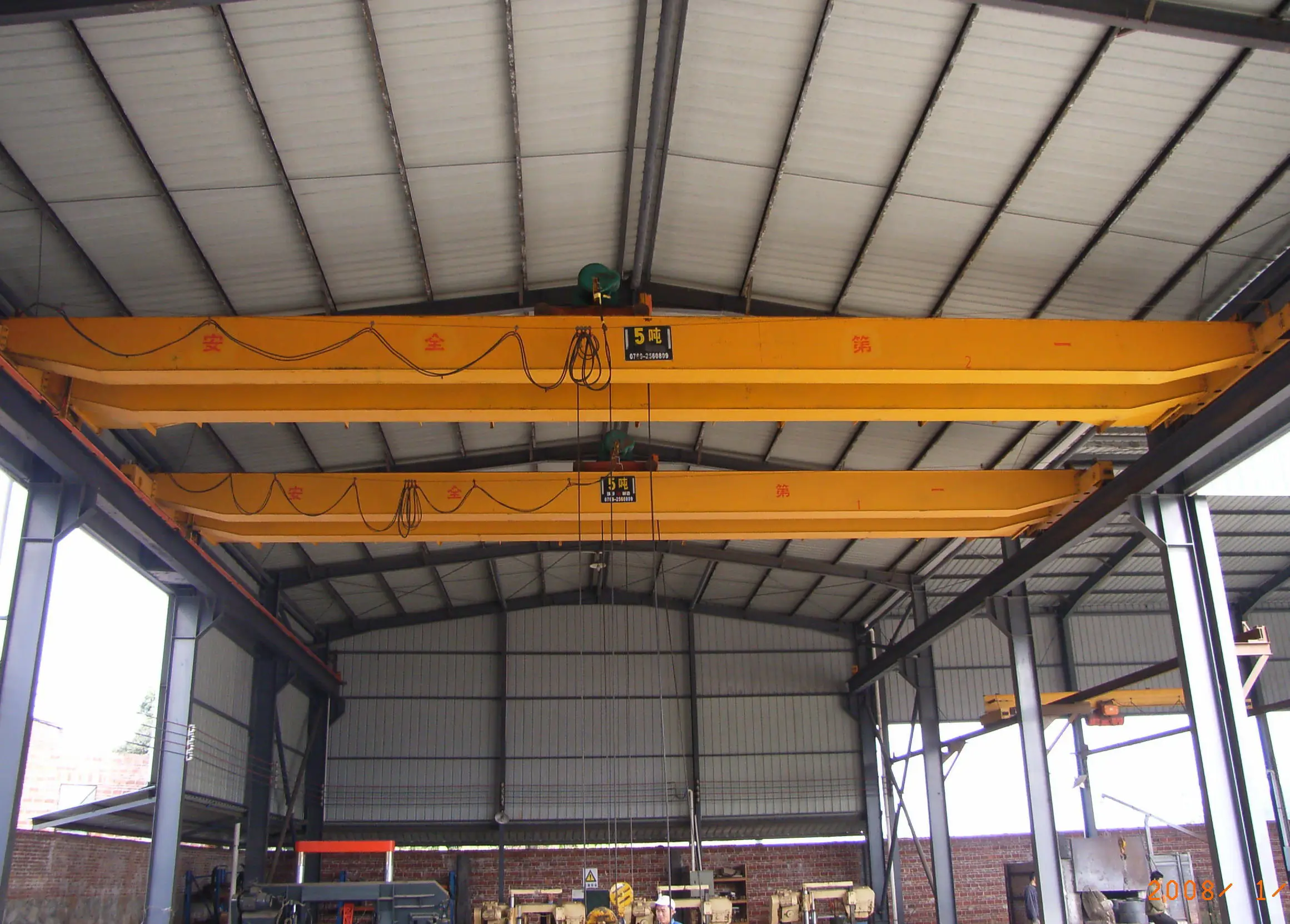

This type crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive to corrosives environment. The control method is ground remote control or control cabin control.
item | value |
Feature | Bridge Crane |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Other |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Motor |
Condition | New |
Max. Lifting Load | 32t |
Max. Lifting Height | 6m-30m, customization |
Span | 7.5-31.5/customization |
Place of Origin | Henan China |
Brand Name | LANTU |
Certification | CE/ISO |
Warranty | 1 Year |
Online support | |
Weight (KG) | 10000kg |
Tonnage (t) | 5T-32t |
Span (m) | 7.5-31.5/customization |
Running speed of cart (m/min) | 20/30/40 |
Trolley running speed (m/min) | 20/30/40 |
Motor power (KW) | Calculate according to tonnage and speed |
Electric hoist type | MD1type , CD1type |
Lifting speed (m/min) | MD(8/0.8 ,7/0.7,3.5/0.35)CD(8,7,3.5) |
Lifting height (m) | 6m-30m,customization |
Working level | A3 |
power supply | 380V 50HZ/customization |
Features:
1.It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
2.Compact structure, light weight and high lifting height;
3. high working effiency;
4. smooth movement &comfortable operation;
5. convenient maintenance & aesthetic painting;
6. especially suitable for shipping work;
7. customized: design and manufacture according to your request.
8.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.
2.Compact structure, light weight and high lifting height;
3. high working effiency;
4. smooth movement &comfortable operation;
5. convenient maintenance & aesthetic painting;
6. especially suitable for shipping work;
7. customized: design and manufacture according to your request.
8.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.
