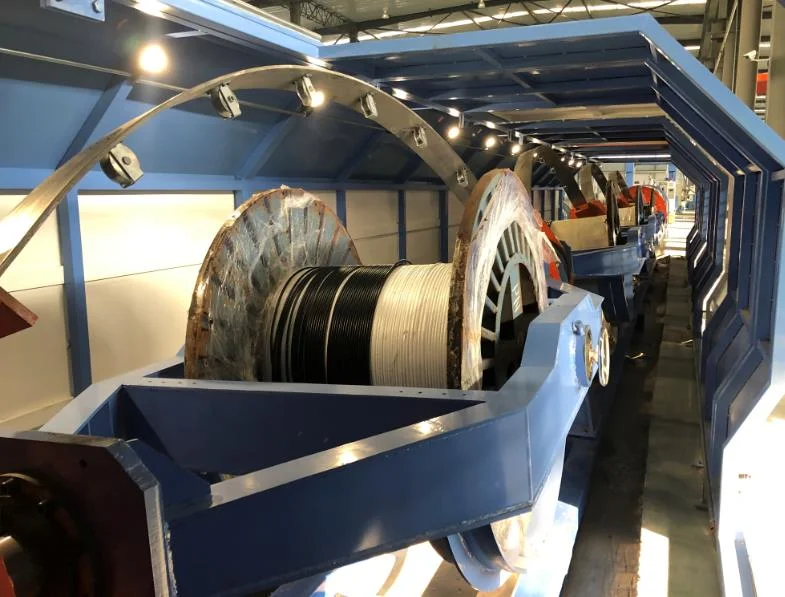

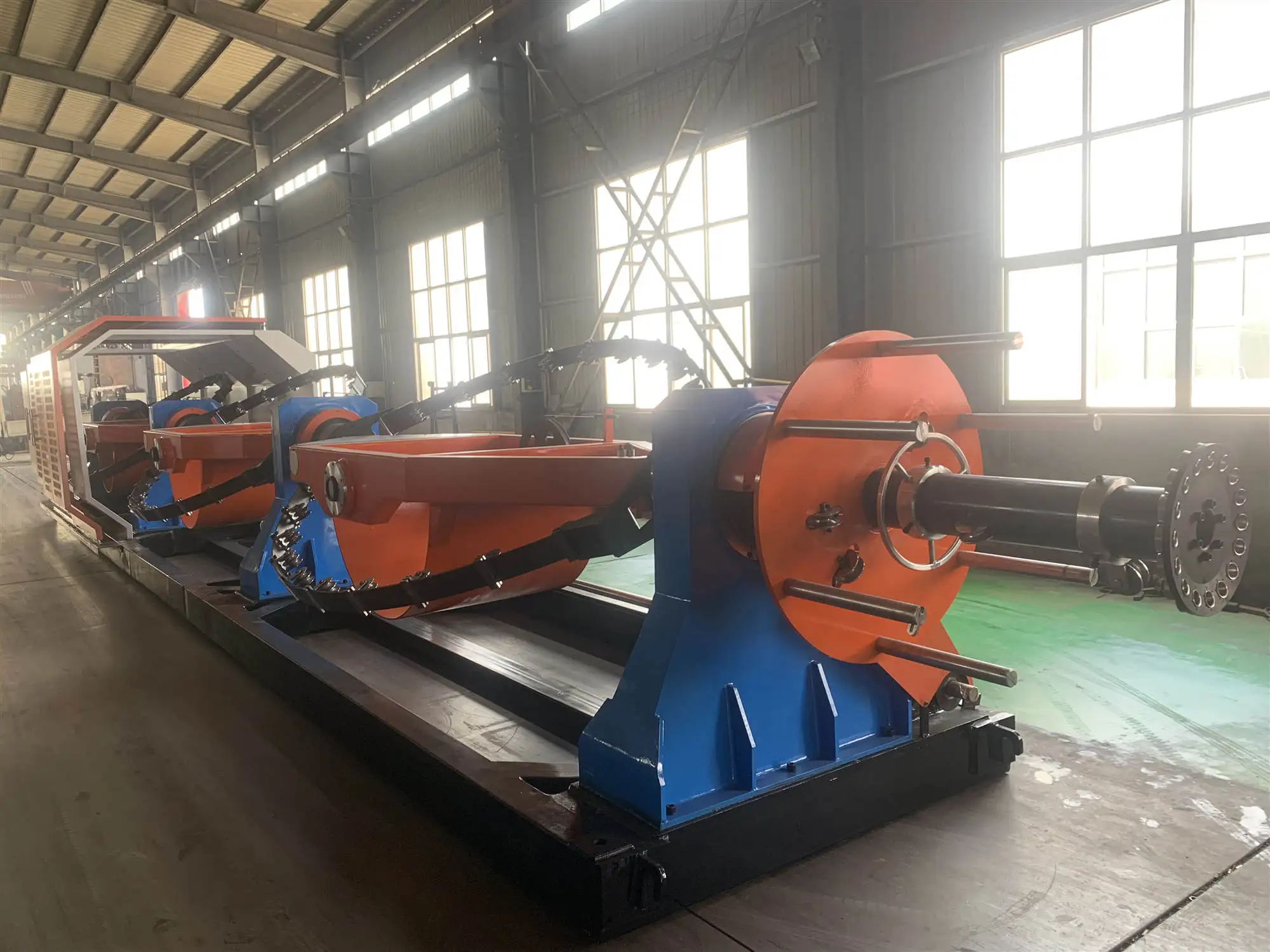

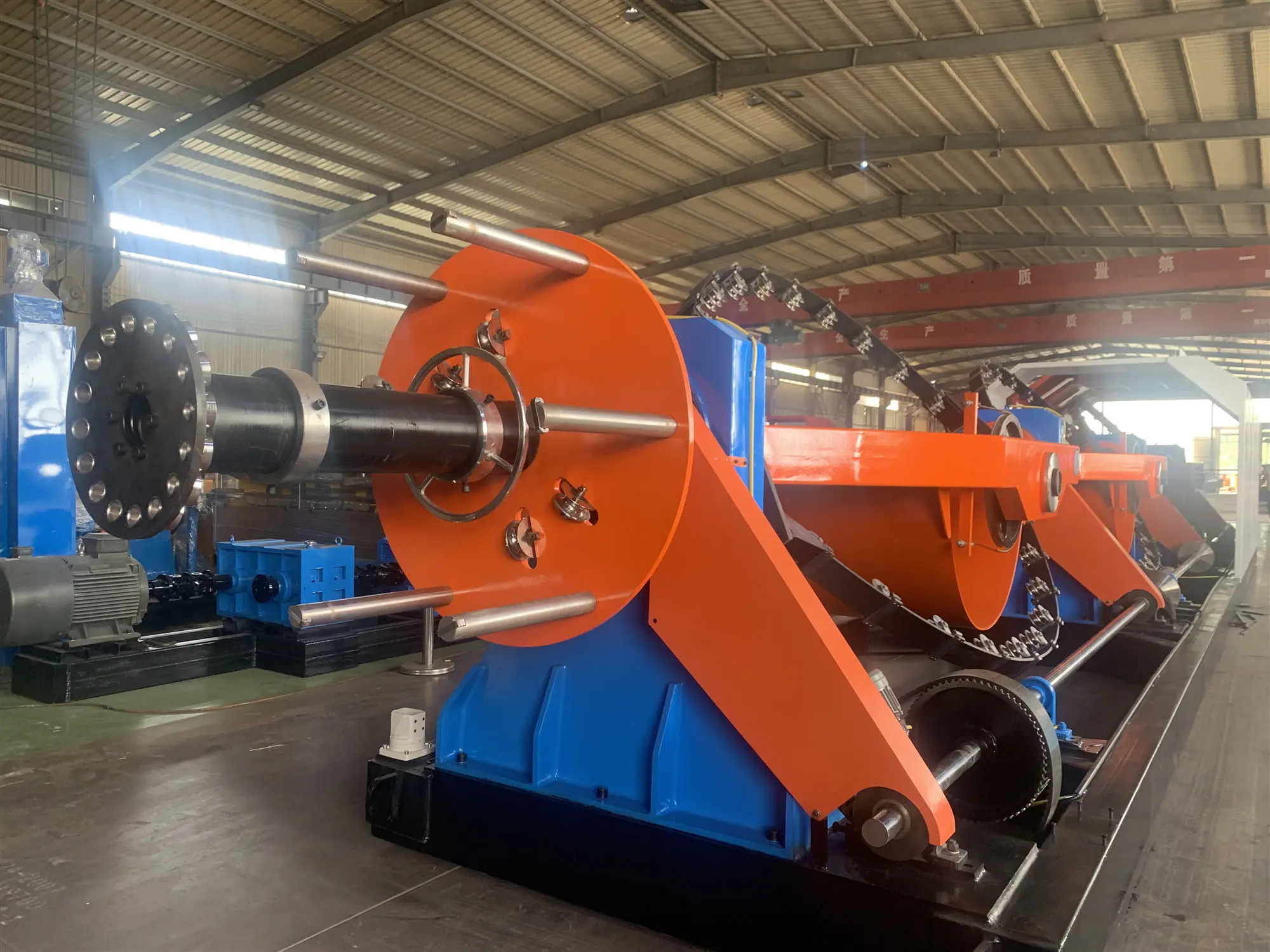

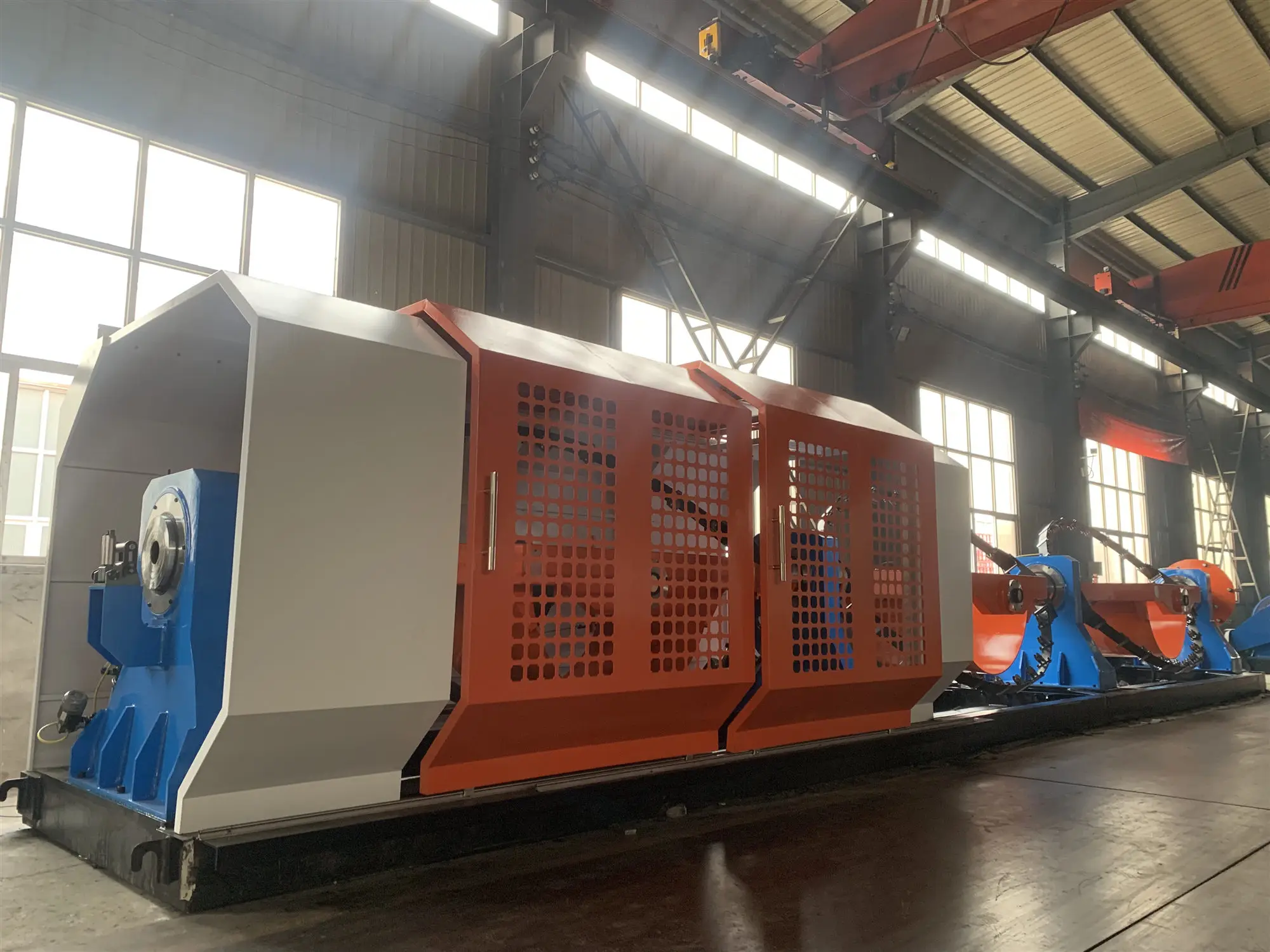

Wire and cable making equipment rotating bow type skip stranding machine of skip bow strander cable rope twist machine
- Category: >>>
- Supplier: Shanghai Zeno Industry Co. Ltd.
Share on (1600560910223):
Product Overview
Description
Automatic 1250/1+3 skip stranding machine high efficiency bow strander cable making machine bow type skip stranding machine
Application
This machine is mainly used for control cable,min cable,and ABC cable stranding process,and also conductor cores twisting.with the feature of high speed and low noise.
Main Component
Central pay-off strand, mail bow type stranding cage,assembling die holder,filling rope stand, non-metallic taping machine,traction device,take-up with traverse,electrical control system,and safety protection system.
This machine is mainly used for control cable,min cable,and ABC cable stranding process,and also conductor cores twisting.with the feature of high speed and low noise.
Main Component
Central pay-off strand, mail bow type stranding cage,assembling die holder,filling rope stand, non-metallic taping machine,traction device,take-up with traverse,electrical control system,and safety protection system.
Product Description
Specification
Bobbin size(mm) | max.rotating speed(rpm) | max.OD.of core(mm) | loading capactity(kg) | ||||||
3B | 4B | 5B | 6B | ||||||
Dia.600 | 800 | Dia.10 | 700 | ||||||
Dia.1000 | 450 | 450 | 450 | 450 | Dia.16 | 1000 | |||
Dia.1250 | 360 | 360 | 360 | 360 | Dia.20 | 2500 | |||
Dia.1600 | 300 | 300 | 300 | 300 | Dia.25 | 4500 | |||
Packing & Delivery
Standard export packing or as customers' requirement
Company Profile
Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company has two main products: wire drawing machine, wire insualtion production line, wire stranding machine and coppe rod related products. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sale. We are headquartered in Yangpu Area, Shanghai.
Now, our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and overseas industry associations. Our market covers American and European countries, the Middle East, Africa, Russia, Ukraine, Southeast Asia and so on. We have built some large projects abroad, even Turnkey projects.
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company has two main products: wire drawing machine, wire insualtion production line, wire stranding machine and coppe rod related products. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sale. We are headquartered in Yangpu Area, Shanghai.
Now, our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and overseas industry associations. Our market covers American and European countries, the Middle East, Africa, Russia, Ukraine, Southeast Asia and so on. We have built some large projects abroad, even Turnkey projects.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2012,sell to Domestic Market(73.00%),South Asia(6.00%),Mid East(5.00%),Southeast Asia(5.00%),Africa(4.00%),Eastern Europe(3.00%),Eastern Asia(3.00%),South America(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire and Cable Machinery,Rod Casting Machine,Wire Drawing Machine,Industrial Furnace,Plastic Extruding Machinery
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2012,sell to Domestic Market(73.00%),South Asia(6.00%),Mid East(5.00%),Southeast Asia(5.00%),Africa(4.00%),Eastern Europe(3.00%),Eastern Asia(3.00%),South America(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wire and Cable Machinery,Rod Casting Machine,Wire Drawing Machine,Industrial Furnace,Plastic Extruding Machinery
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
