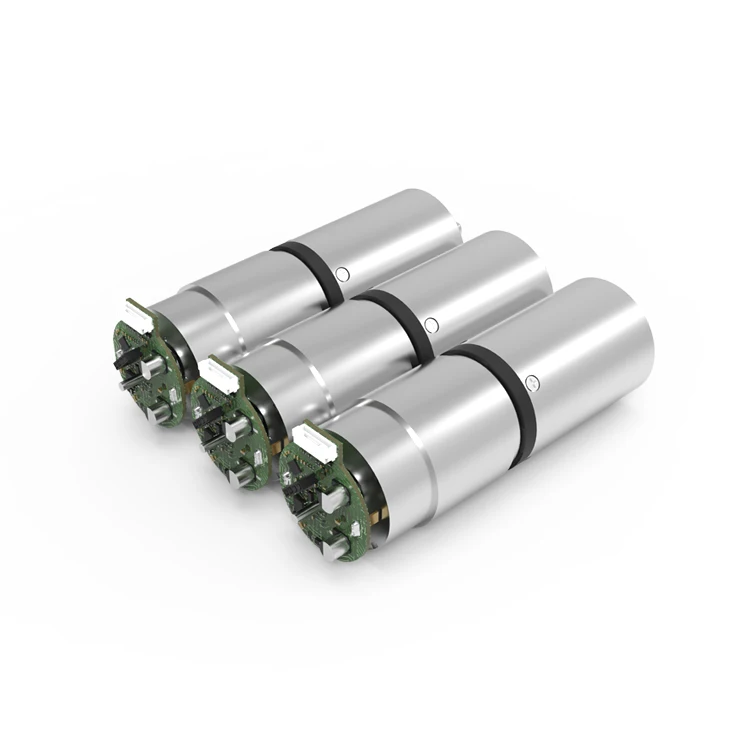

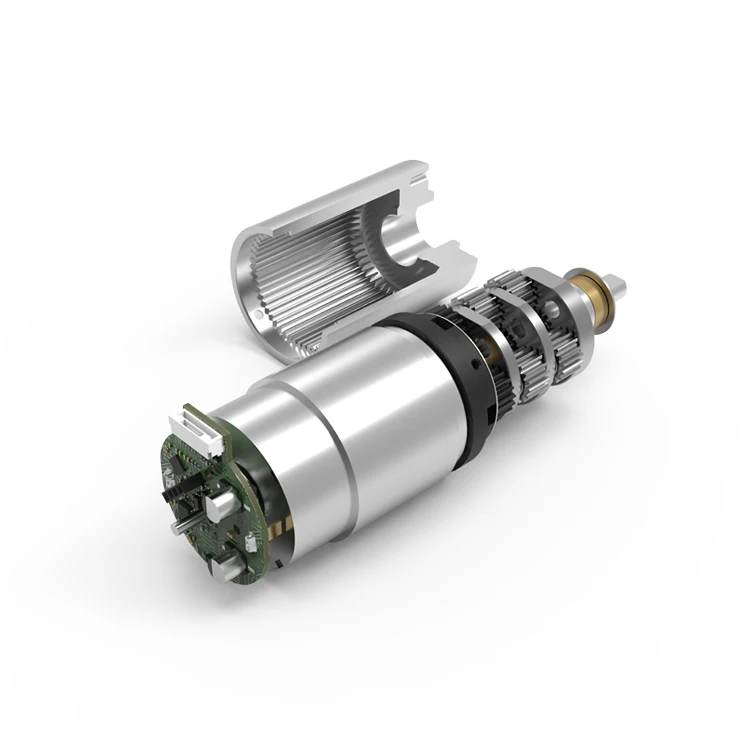

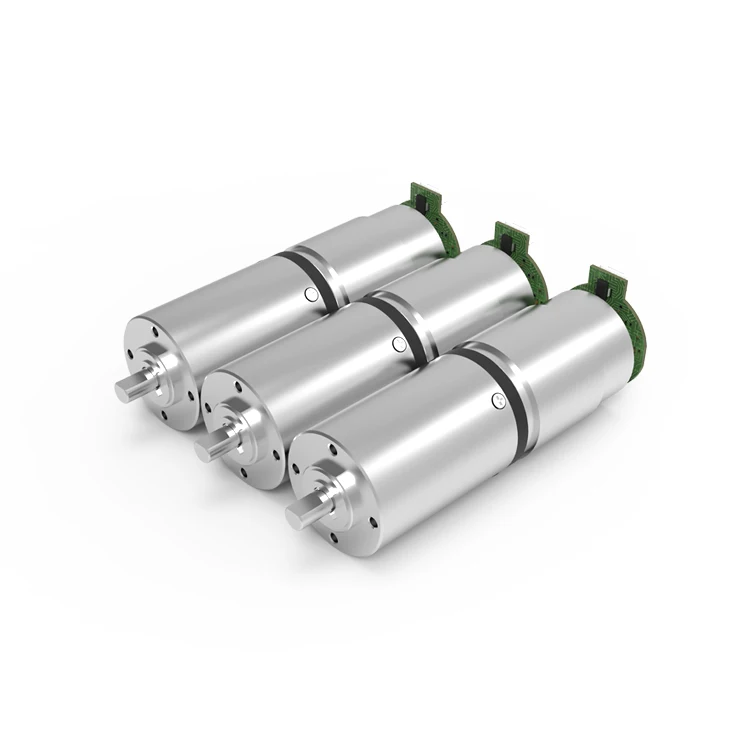

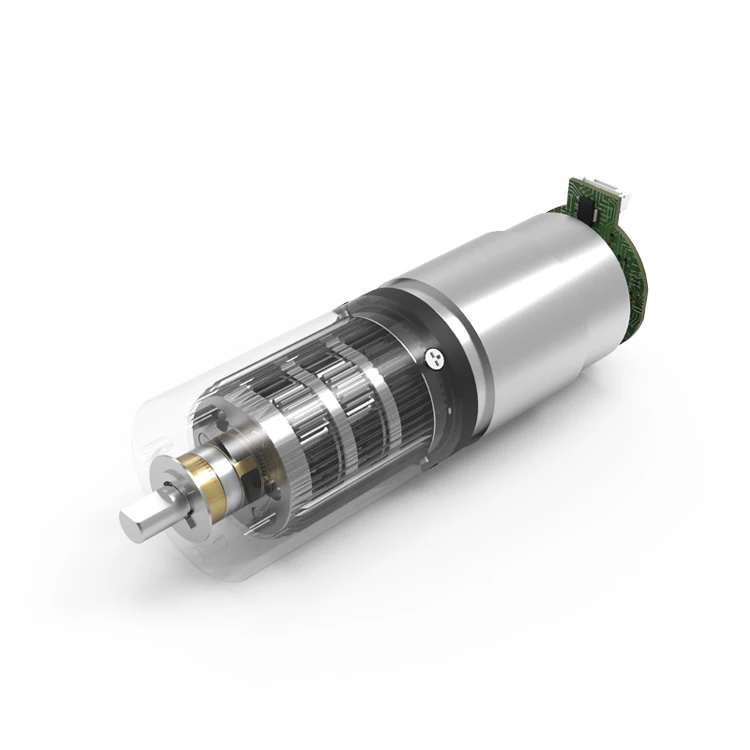

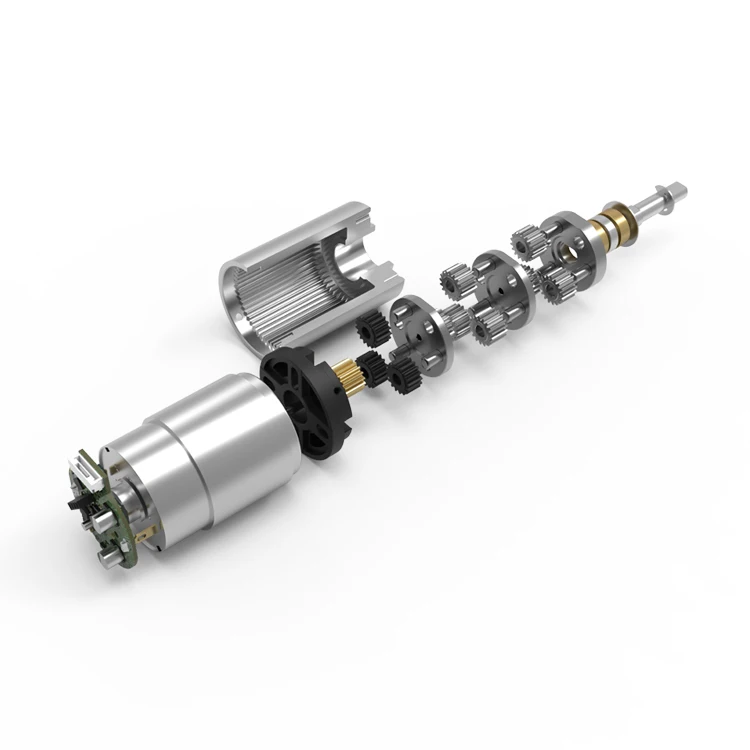

ZHAOWEI MD032032 94 32mm 12v 24v 50kg.cm 80rpm low rpm reducer Planetary gearbox brushless dc Gear Motor for Conveyor belt
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1600560925987):
Product Overview
Description
| Motor Specifications:32mm motor | |
| motors(optional) | brushless dc motor,brushed dc motor |
| voltage(optional) | DC 3-24v |
| input speed | <=12000rpm |
| current | 300mA max |
| Performance Data:32mm micro metal planetary gear motor | |||||||
| Model | Rated Speed | Max Speed | Max Rated Torque | Max Instant Torque | Reduction Ratio | gearbox Length | Overall Length |
| rpm | rpm | gf.cm | gf.cm | mm | mm | ||
| PD032032-16 | 469 | 1875 | 50000 | 150000 | 16 | 39.1 | 81.6 |
| PD032032-23 | 313 | 1250 | 50000 | 150000 | 23 | 39.1 | 81.6 |
| PD032032-33 | 227 | 909 | 50000 | 150000 | 33 | 39.1 | 81.6 |
| PD032032-67 | 112 | 448 | 50000 | 150000 | 67 | 49.1 | 91.6 |
| PD032032-94 | 80 | 319 | 50000 | 150000 | 94 | 49.1 | 91.6 |
| PD032032-133 | 56 | 226 | 50000 | 150000 | 133 | 49.1 | 91.6 |
| PD032032-188 | 40 | 160 | 50000 | 150000 | 188 | 49.1 | 91.6 |
| PD032032-272 | 28 | 110 | 50000 | 150000 | 272 | 59.1 | 101.6 |
| PD032032-383 | 20 | 78 | 50000 | 150000 | 383 | 59.1 | 101.6 |
| PD032032-541 | 14 | 56 | 50000 | 150000 | 541 | 59.1 | 101.6 |
| PD032032-764 | 10 | 39 | 50000 | 150000 | 764 | 59.1 | 101.6 |
| PD032032-1078 | 7 | 28 | 50000 | 150000 | 1078 | 59.1 | 101.6 |
| * The above specifications are subject to change without prior notice. They are for reference only and can be customized as required. | |||||||
