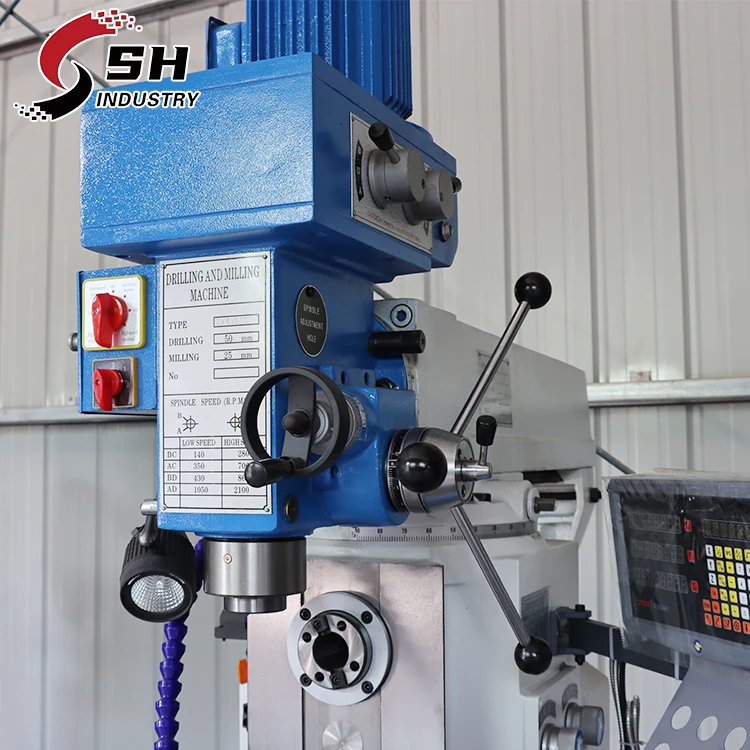

New Design Light Type Universal Vertical Milling Machine High Precision ZX6350C
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600560933301):
Product Overview
Description

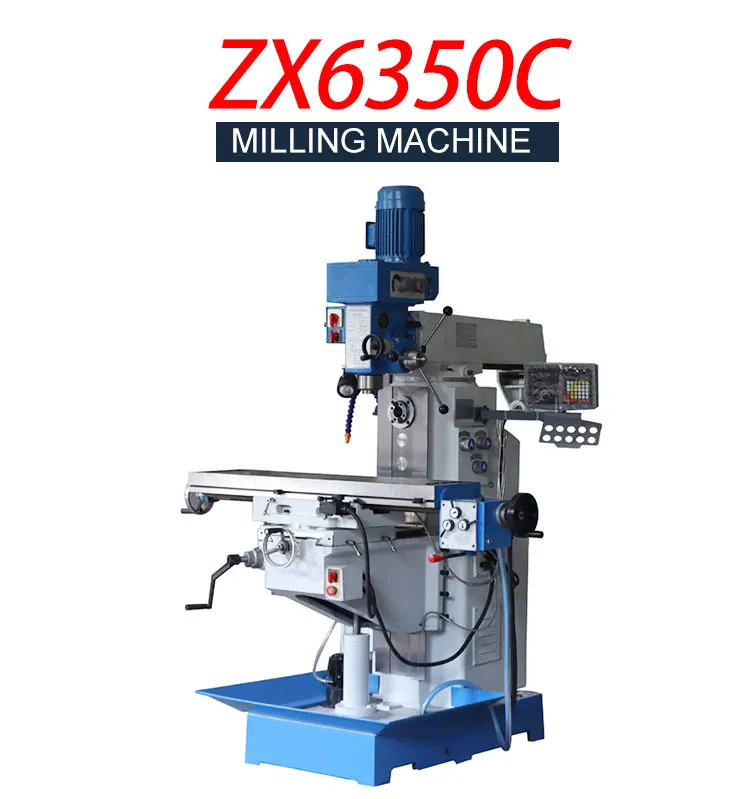

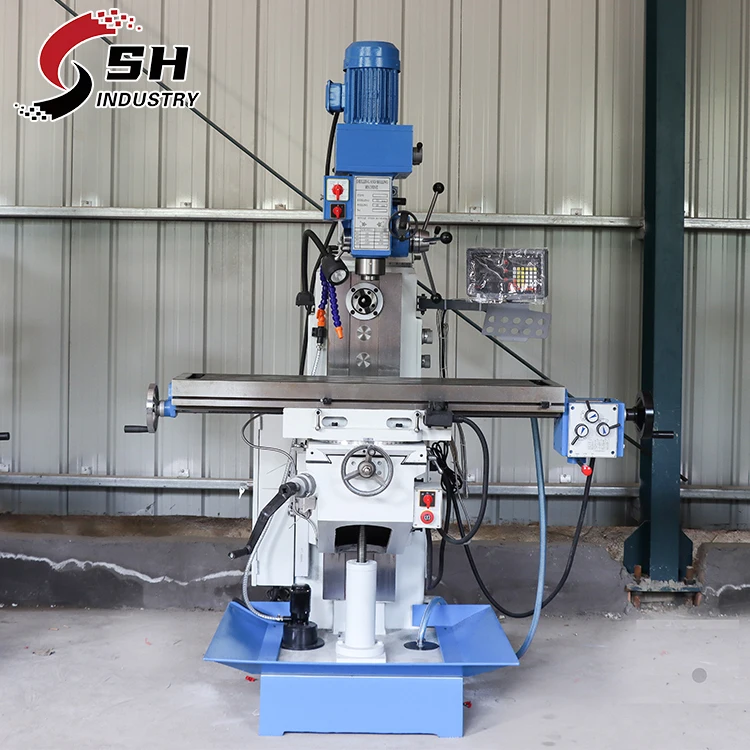

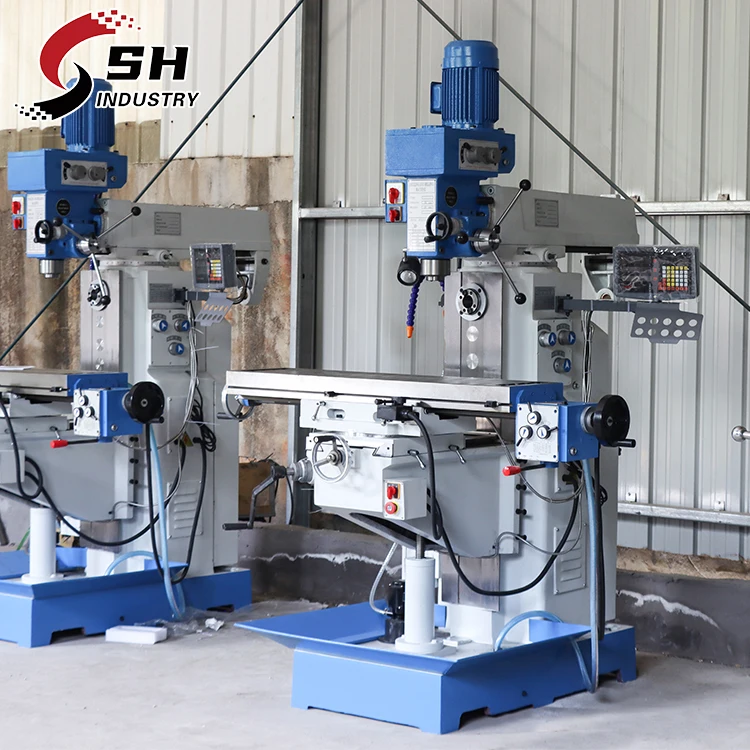

New Design Light Type Universal Vertical Milling Machine High Precision ZX6350C

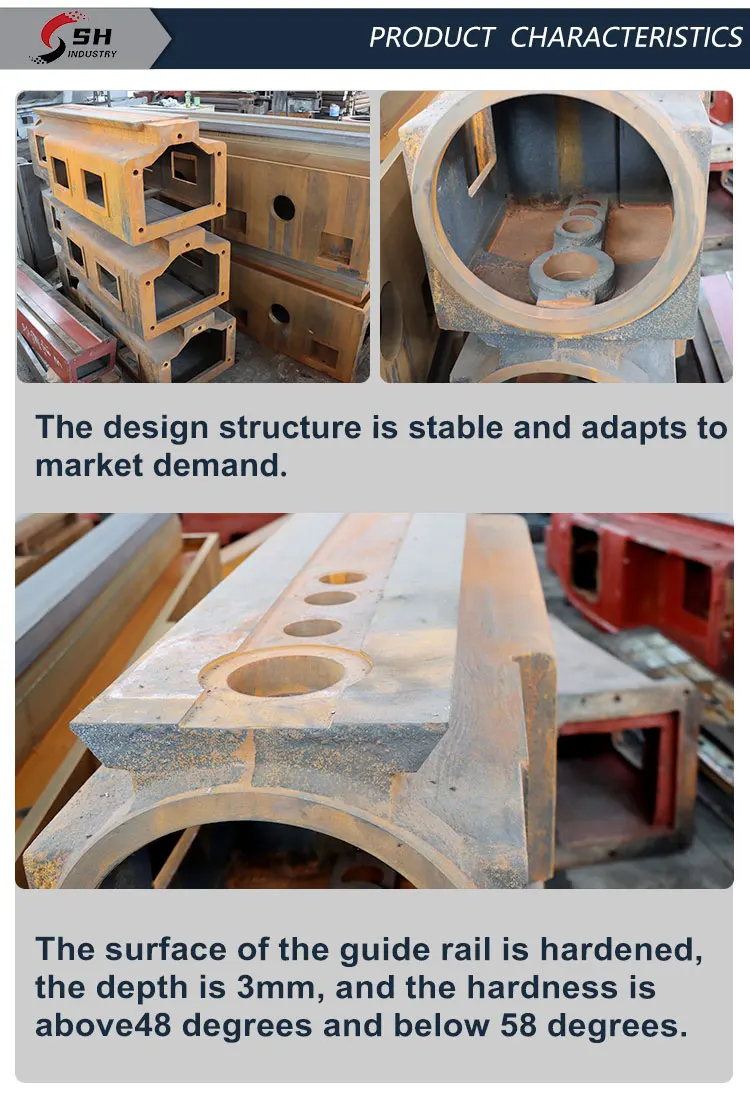

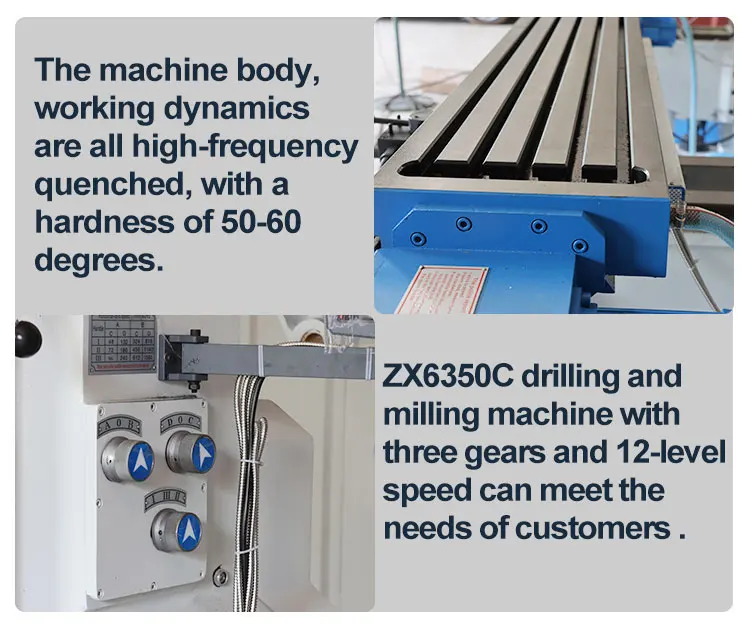

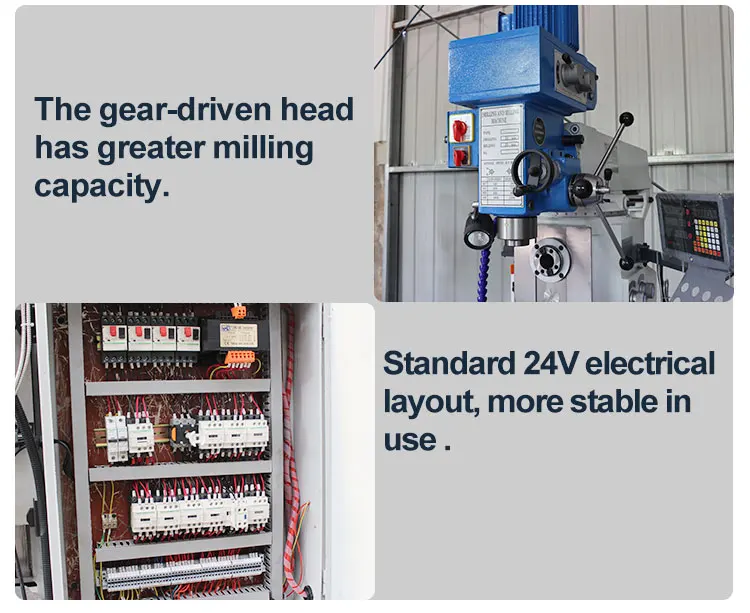

1.Work table and guide rail through the ultra audio spark quenching.

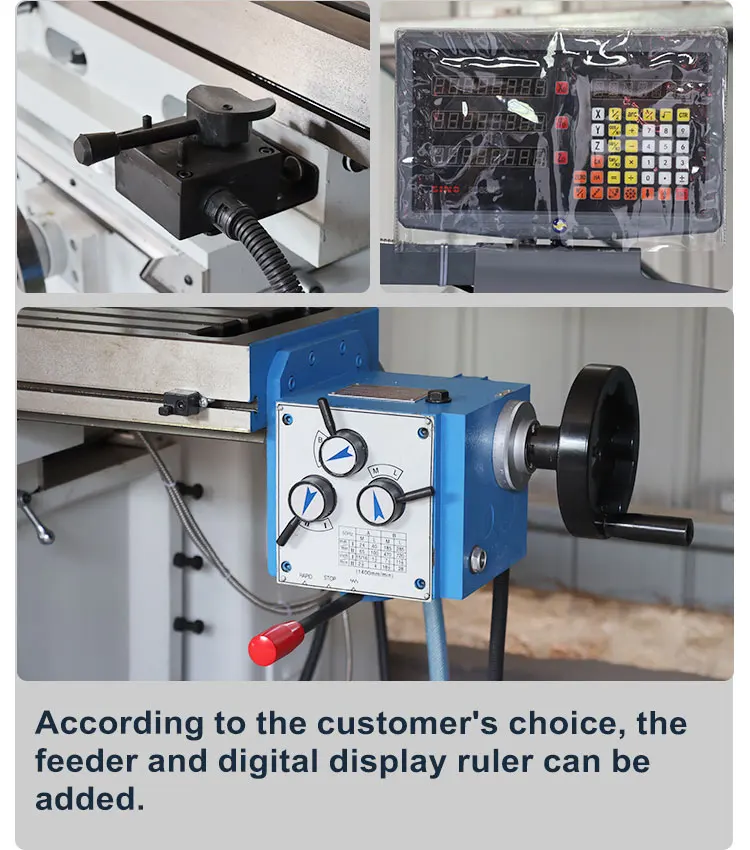

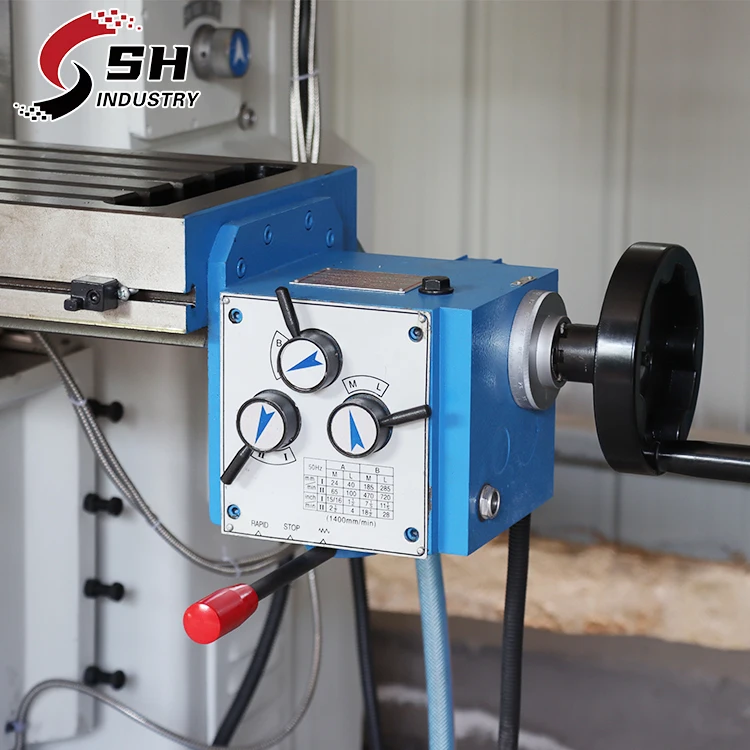

2.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

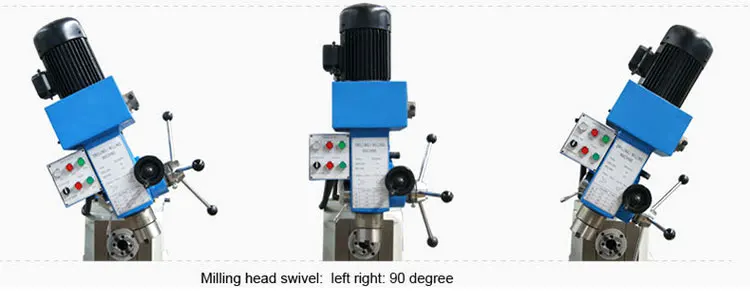

3.Milling head can be rotated 45 degrees,
4,Headstock swivels ±45°,
Specification | ZX6350C | ZX6350Z | ZX6350ZA |
Max.drilling dia | Φ50/Φ30mm | Φ50/Φ30mm | Φ50/Φ30mm |
Spindle taper | ISO30/ISO40/R8/MT4 | ||
Max.vertical milling dia | 25mm | ||
Max boring dia | 120mm | ||
Distance spindle to table surface | 100-480mm | 100-480mm | 80-460mm |
Spindle speeds range(V/H) | V:115-1750 H:48-1560 | V:90-2000 H:48-1560 | V:90-2000 H: 48-1560 |
Spindle travel | 120mm | ||
Table size (L×W) | 1120×280mm | 1120×280mm | 1250×320mm |
Table travel | 600×260mm | 600×260mm | 600×300×430mm |
Main motor power(V/H) | 0.85/1.5,2.2kw | 2.2,2.2kw | 1.5,2.2kw |
Packing size | 1400×1630×2350mm | 1400×1630×2350mm | 1680×1480×2250mm |
N.W/G.W | 1200/1350kgs | 1200k/1350kgs | 1450/1560kgs |
Company Information
The Exhibition
Certification
Packaging & Shipping
FAQ
1.What Is Your Minimum Order Quantity And Warranty?
A: Moq Is One Set, And Warranty Is One Year.
2 .How Can I Choose The Most Suitable Machines ?
A: Please Let Us Know Your Machining Demand Or Machine Size ,We Can Choose The Best Model For You , Or You Can Choose The Exact Model By Yourself. You Can Also Send Us The Products Drawing ,We Will Choose The Most Suitable Machines For You .
3.When Is The Delivery Time?
A: Conventional Machines,We Will Delivery Then Within 20 Working Days After Received Your Deposit,If Some Special Machines Will Be Longer.We Will Give You The Answer Accordingly.
4: What's The Payment Terms ?
A : T/T ,30% Initial Payment When Order ,70% Balance Payment Before Shipment ; Irrevocable Lc At
