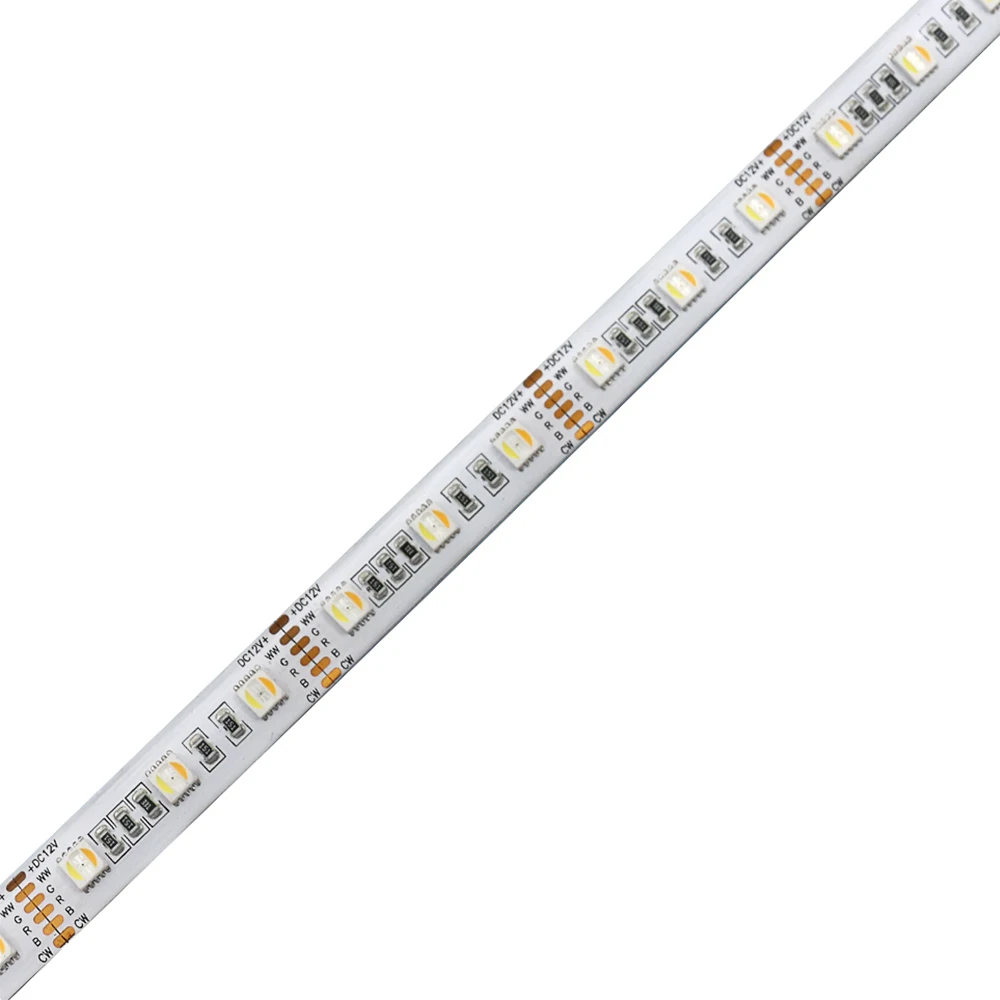

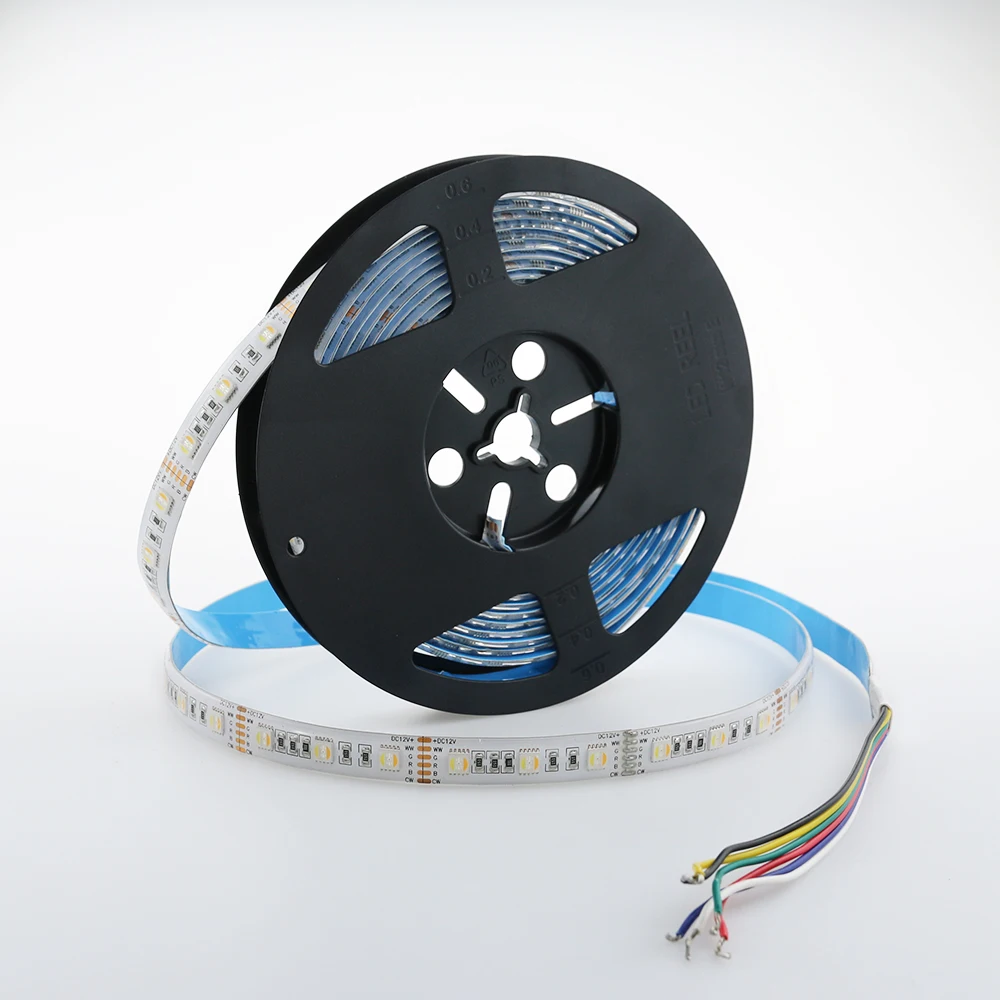

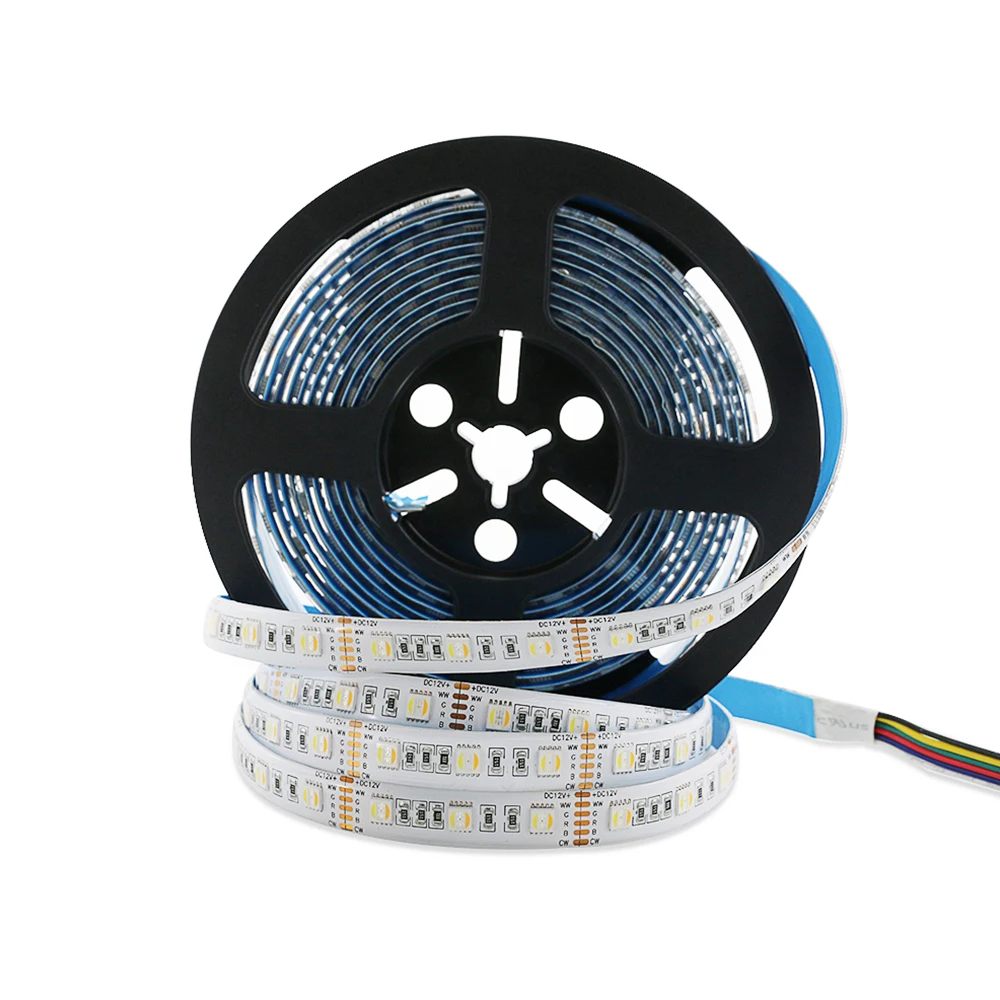

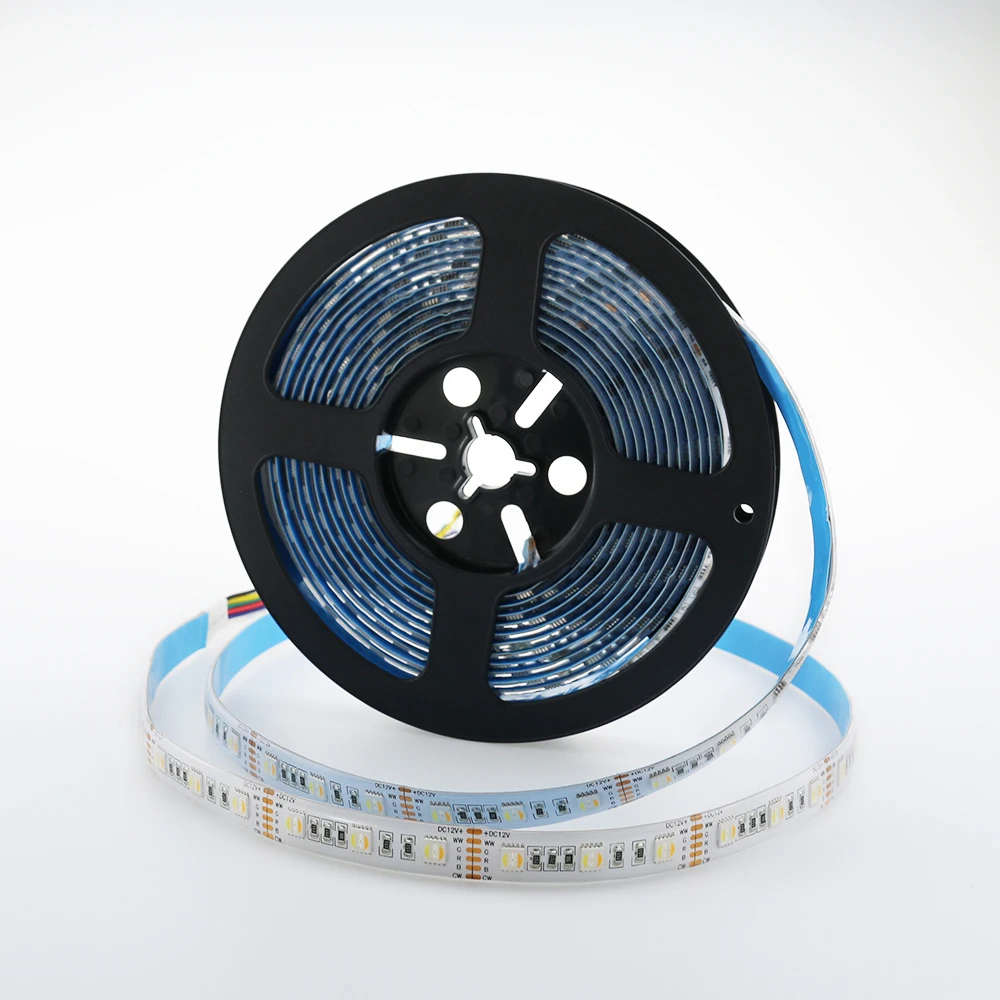

ODM factory RGB CCT5 color in 1 led chip 2400 6500K 3000 6500K 4000 6500K 60LEDS RGBWCW SMD5050 Flexible LED Strip Light
- Category: >>>
- Supplier: Shenzhen Hongtai World Lighting Co. Ltd.
Share on (1600560934379):
Product Overview
Description
Product Description
HTD-RGT-RGBWCW-60
*Constitute by FPC,SMD5050 RGBWCW 60LEDs per meter and UV resistant silicone resin.
*The LED beam is 125-135° flood lighting,without the shadow,high brightness in 18-24lm/LED,low therm resistance,low Light failure,in a poor environment can good work.
*23W/1M,the working voltage is DC24V.

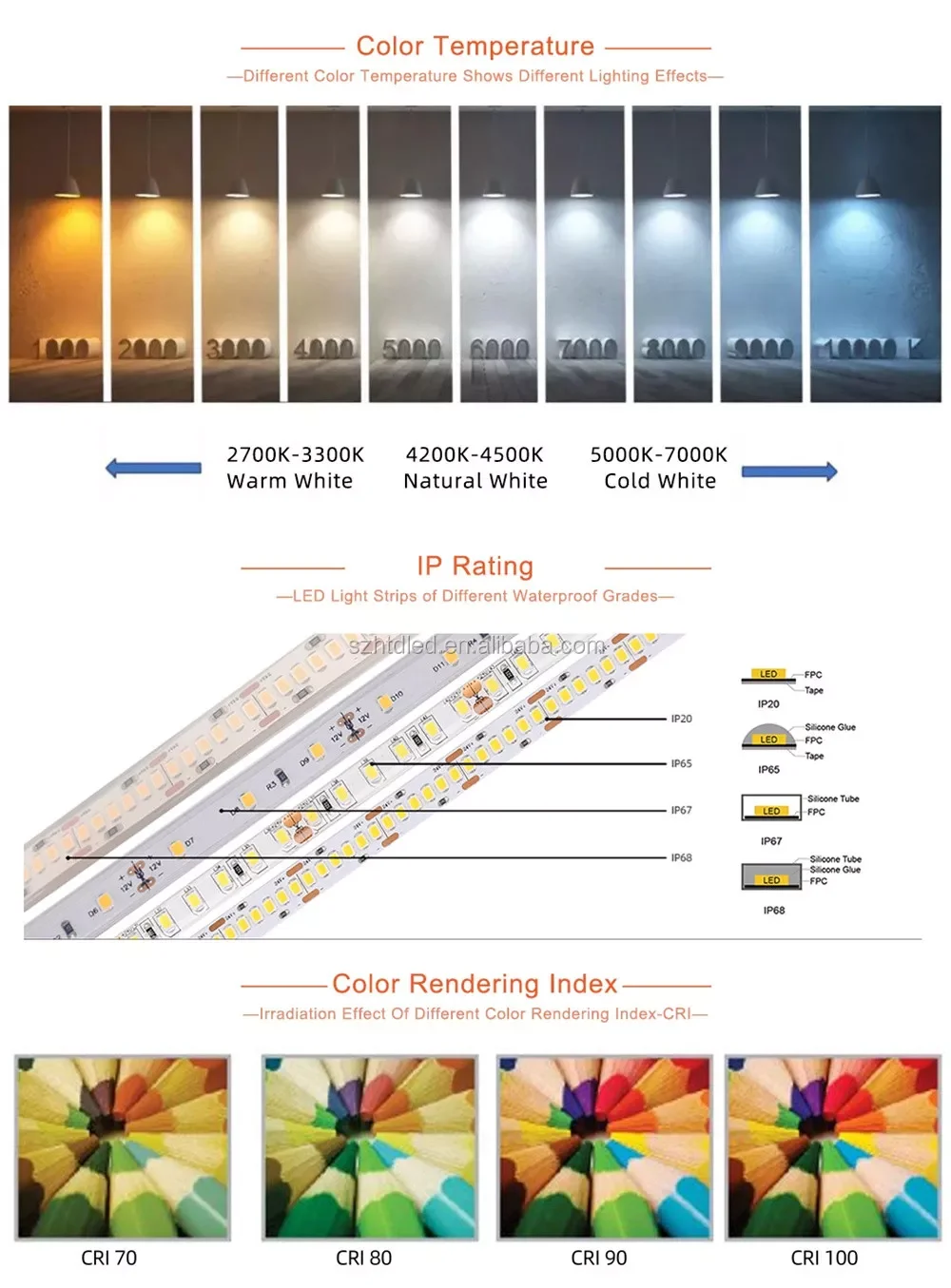

*Optional:IP20/IP65/IP68 waterproof level.Warranty optinal 1/2/3/5 years.
*Constitute by FPC,SMD5050 RGBWCW 60LEDs per meter and UV resistant silicone resin.
*The LED beam is 125-135° flood lighting,without the shadow,high brightness in 18-24lm/LED,low therm resistance,low Light failure,in a poor environment can good work.
*23W/1M,the working voltage is DC24V.
*Optional:IP20/IP65/IP68 waterproof level.Warranty optinal 1/2/3/5 years.
Detailed Images &Application

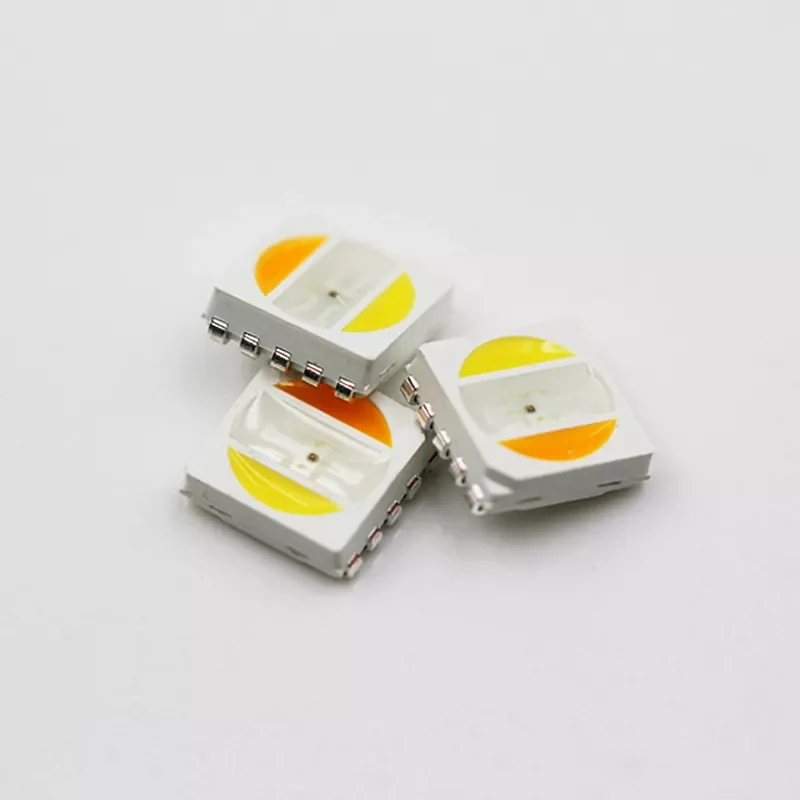

RGB+CCT LED Product Detailed
Forward Voltage：R:1.8-2.4V, G:2.8-3.5V, B:2.8-3.5V, W:2.8-3.5V, CW:2.8-3.5V Forward current：5*20MA
Wavelength color temperature：R：620-630nm G：515-530nm B：460--475nm W：2300-2500 6000-6500K
Luminous flux：R：500-700mcd G：1500-2000mcd B：500-800mcd W:2000-4000mcd.
This light strip is made of high-brightness, low light attenuation, long life, and good light color consistency. The color gamut is strictly based on ANSI standards, and the BIN is divided into NM bands to ensure the light color consistency of the light strip.
Wavelength color temperature：R：620-630nm G：515-530nm B：460--475nm W：2300-2500 6000-6500K
Luminous flux：R：500-700mcd G：1500-2000mcd B：500-800mcd W:2000-4000mcd.
This light strip is made of high-brightness, low light attenuation, long life, and good light color consistency. The color gamut is strictly based on ANSI standards, and the BIN is divided into NM bands to ensure the light color consistency of the light strip.
Product Application
* Commercial and residential decoration • Under-counter lighting
* Media illumination • Large area backlighting
* Small to medium channel letters • Point-of-sale displays
* Used for Neon or tubes replacement,etc.
*Used with neon casing, it can replace the traditional neon light strip, with better light effect and easy maintenance.
* Small to medium channel letters • Point-of-sale displays
* Used for Neon or tubes replacement,etc.
*Used with neon casing, it can replace the traditional neon light strip, with better light effect and easy maintenance.
We are an ODM factory as well as an OEM factory, with good product development capabilities and foundry capabilities. If you have a need to update the light strip, please contact us.
How to use
Specification
LED Type | SMD5050 | SMD5050 | SMD5050 |
LED Chip | Sanan/Epistar | Sanan/Epistar | Sanan/Epistar |
LED QTY | 60leds/m | 84leds/m | 96leds/m |
Voltage | 12V/24V | 24V | 24V |
Lm | 18-20lm/led | 18-20lm/led | 18-20lm/led |
Color Temp | RGBWCW | RGBWCW | RGBWCW |
IP Grade | IP20/IP65//IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
Power | 19.2w/m | 26.8w/m | 30.6w/m |
Warranty | 3 years/ 2 years/ 1 year | 3 years/ 2 years/ 1 year | 3 years/ 2 years/ 1 years |
Recommend Products
Company Profile
Shenzhen HongTai World Lighting Co.,Ltd was established in May 2011.
HTD Lighting specialized in the reseach, production and sale of LED product, including advertising light source, landscape
lighting and commercial lighting, etc. HTD Lighting is a modern enterprise which can complete landscape lighting, lighting source,lighting projects, 3D plane effect and animation design and electrical wiring and construction evaluation independently.
We have advanced equipment, humanized management, a strong reseach and design team, unique technology, timely and fast production and stable supply chain, which wins praise and trust from our customer at home and aboard.
HTD Lighting specialized in the reseach, production and sale of LED product, including advertising light source, landscape
lighting and commercial lighting, etc. HTD Lighting is a modern enterprise which can complete landscape lighting, lighting source,lighting projects, 3D plane effect and animation design and electrical wiring and construction evaluation independently.
We have advanced equipment, humanized management, a strong reseach and design team, unique technology, timely and fast production and stable supply chain, which wins praise and trust from our customer at home and aboard.

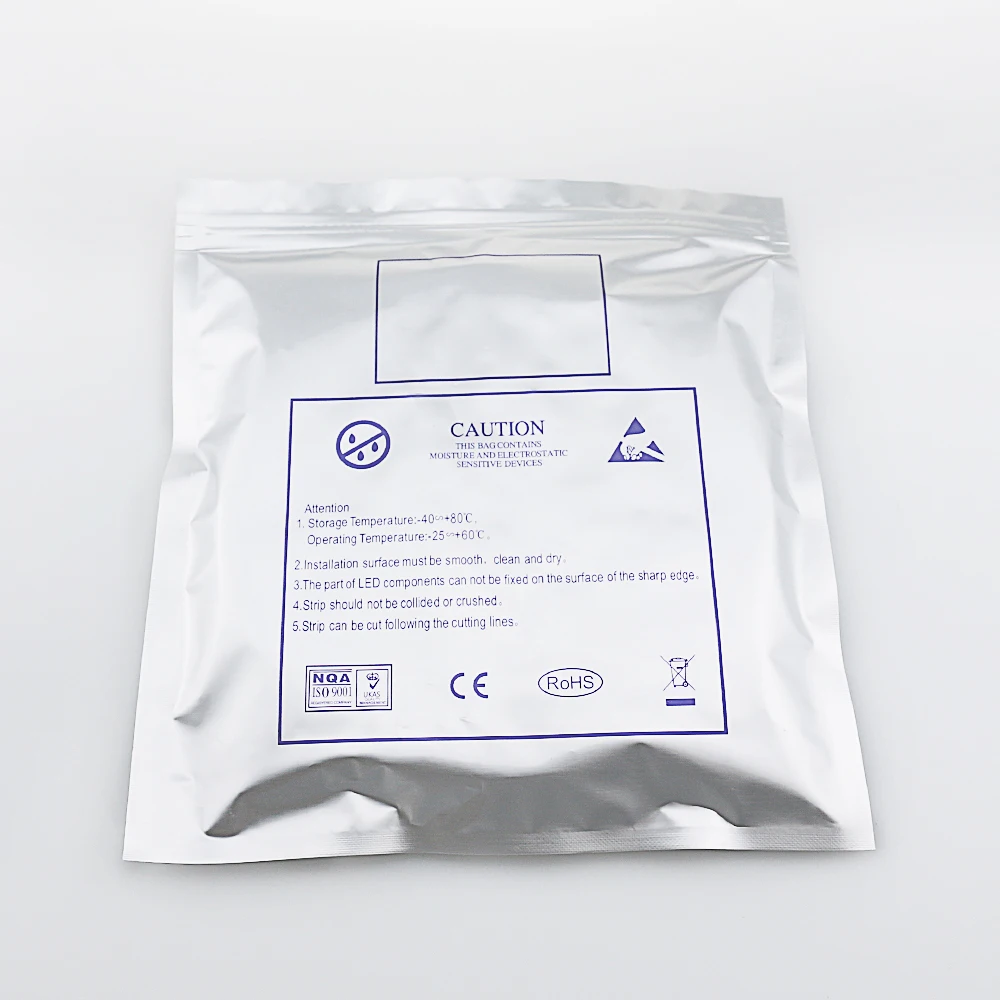

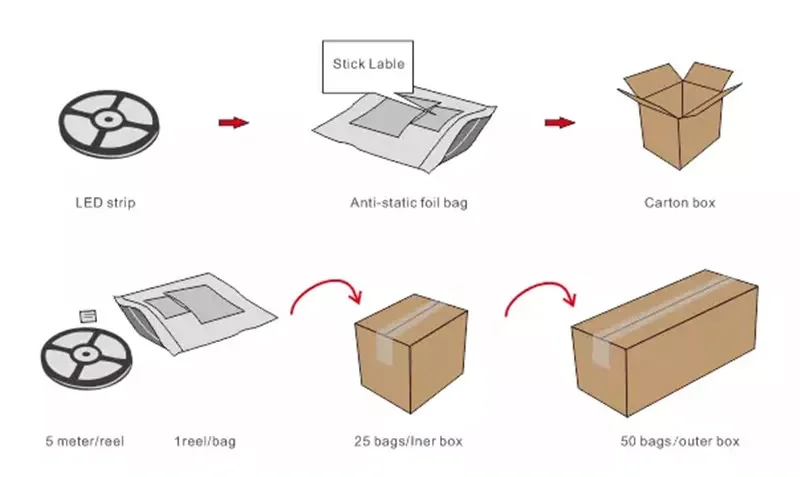

Packing & Delivery
