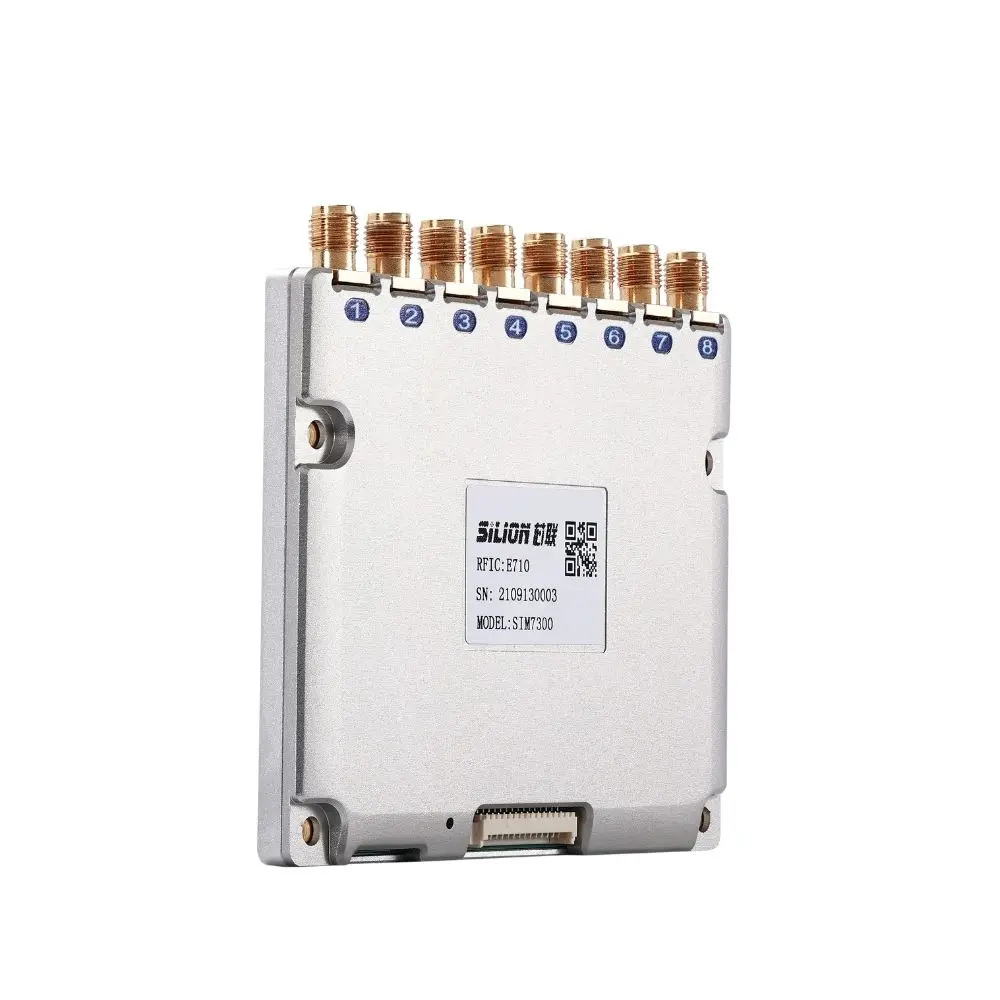

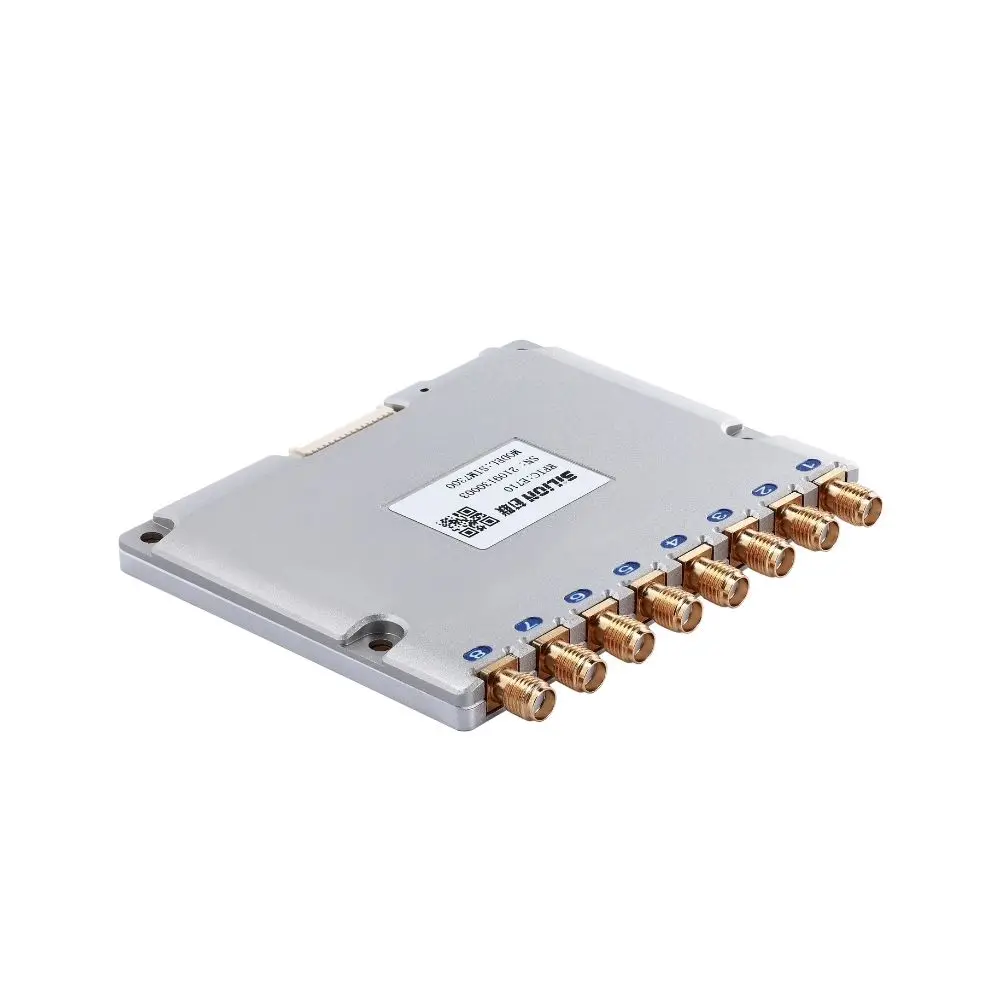

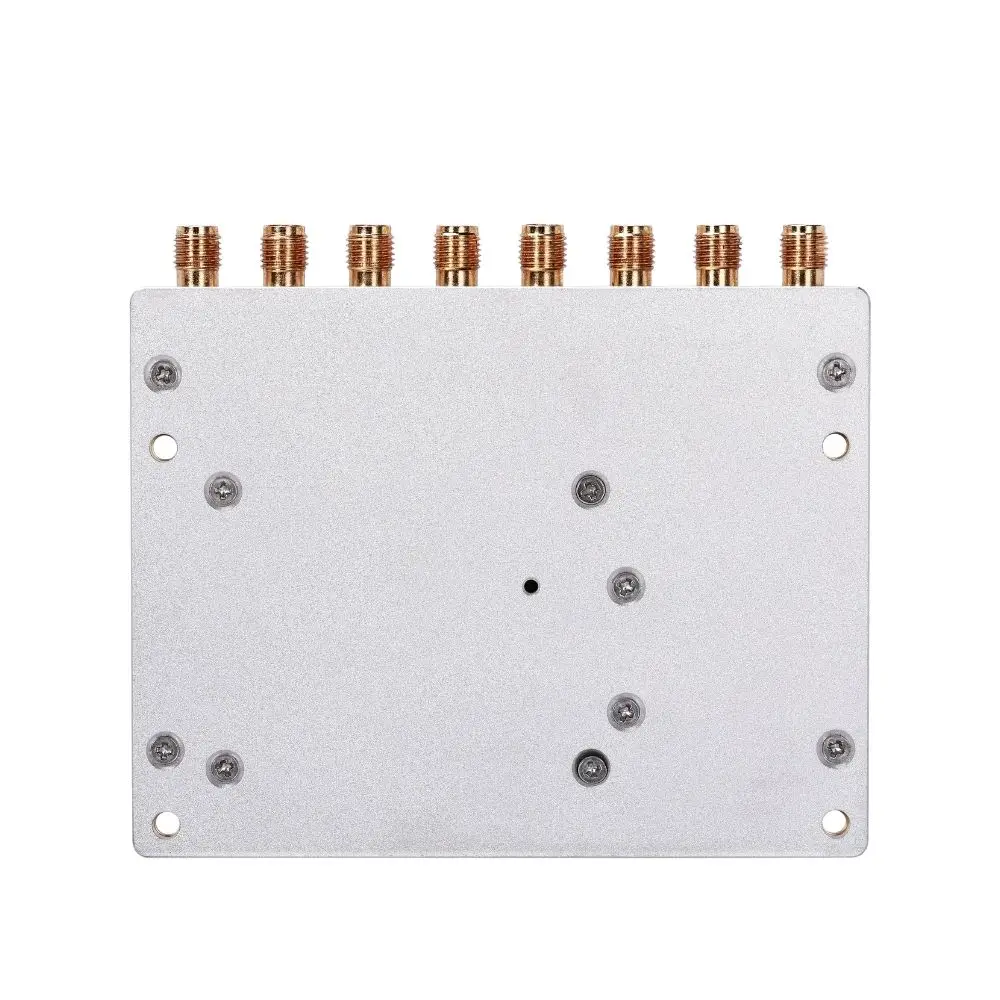

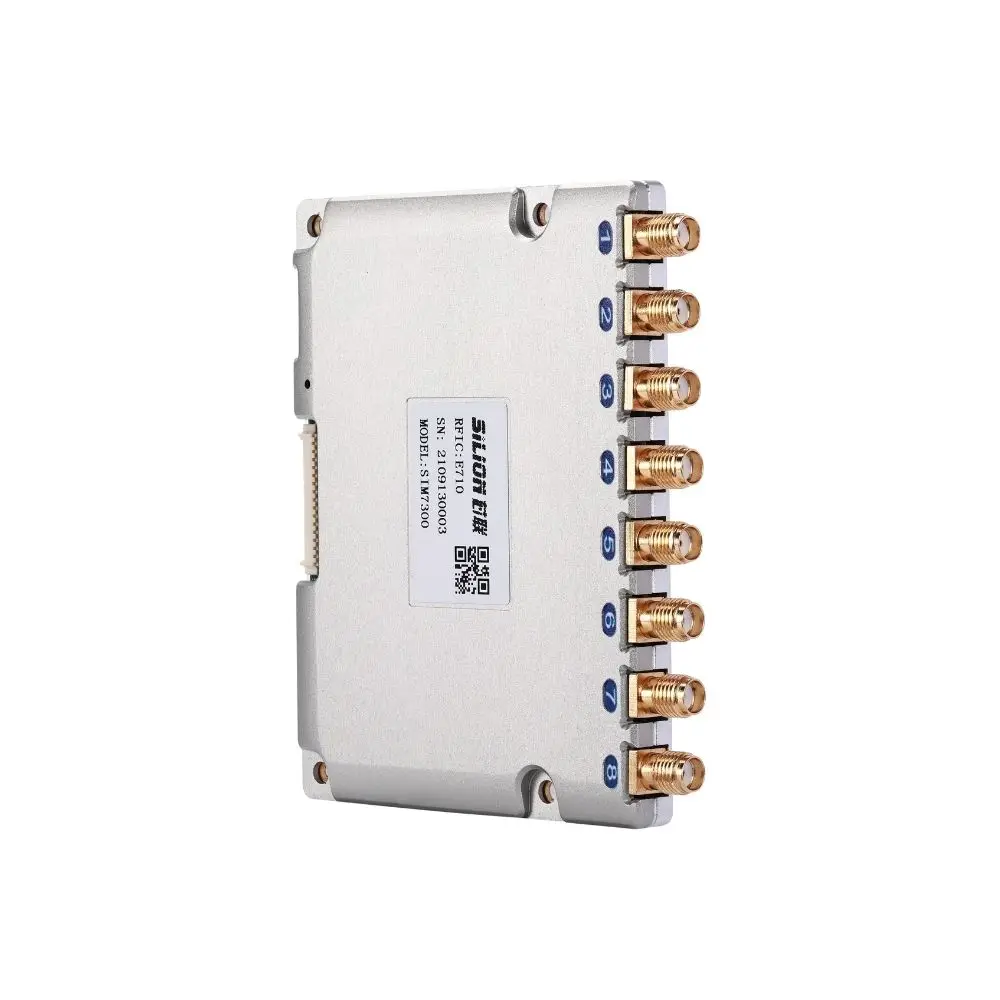

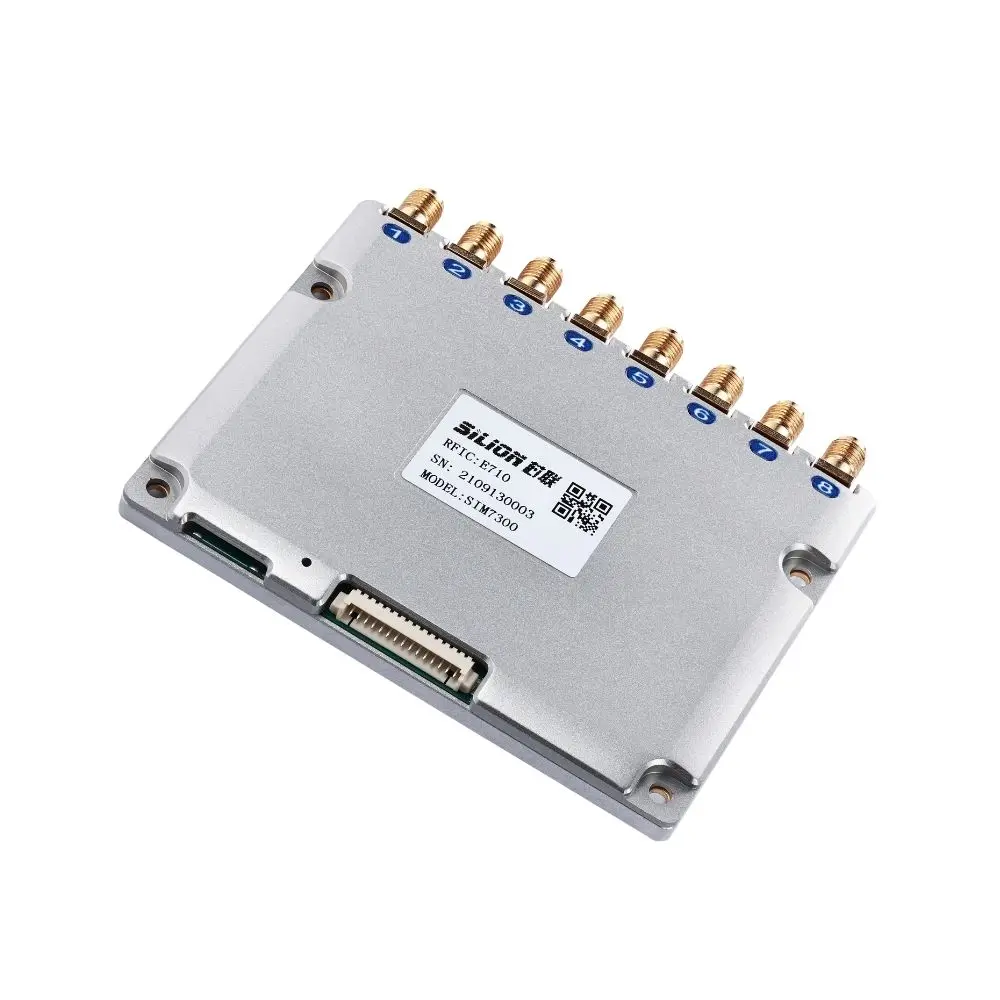

Long Reading Distance SIM7300 8 Port UHF RFID Reader Module IMPINJ E710 Chipset for PDA retail UHF lector RFID Module
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen Silion Technology Co. Ltd.
Share on (1600560940426):
Product Overview
Description
Product Description
Product Parameters
Features
* Based on the New Generation Impinj E710 reader chip.
* Support EPC global Gen2 (ISO 18000-6C).
* 33dBm RF power output.
* 8 SMA connectors supporting 8 antennas.
* High performance of anti-collision recognition algorithm.
* Real-time monitoring of on-board temperature.
* Metal housing, helpful in heat dissipation.
* Small size and fully packaged, can be easily integrated into different types of
RFID devices, such as retail RFID vending machine, RFID smart shelf.
warranty
1. 13months warranty;2. Free SDK and technical support;
3. Available API document;
4. Warranty Service will be provided if the damage is not caused by man-made.
* Support EPC global Gen2 (ISO 18000-6C).
* 33dBm RF power output.
* 8 SMA connectors supporting 8 antennas.
* High performance of anti-collision recognition algorithm.
* Real-time monitoring of on-board temperature.
* Metal housing, helpful in heat dissipation.
* Small size and fully packaged, can be easily integrated into different types of
RFID devices, such as retail RFID vending machine, RFID smart shelf.
warranty
1. 13months warranty;2. Free SDK and technical support;
3. Available API document;
4. Warranty Service will be provided if the damage is not caused by man-made.
Physical Characteristics | ||

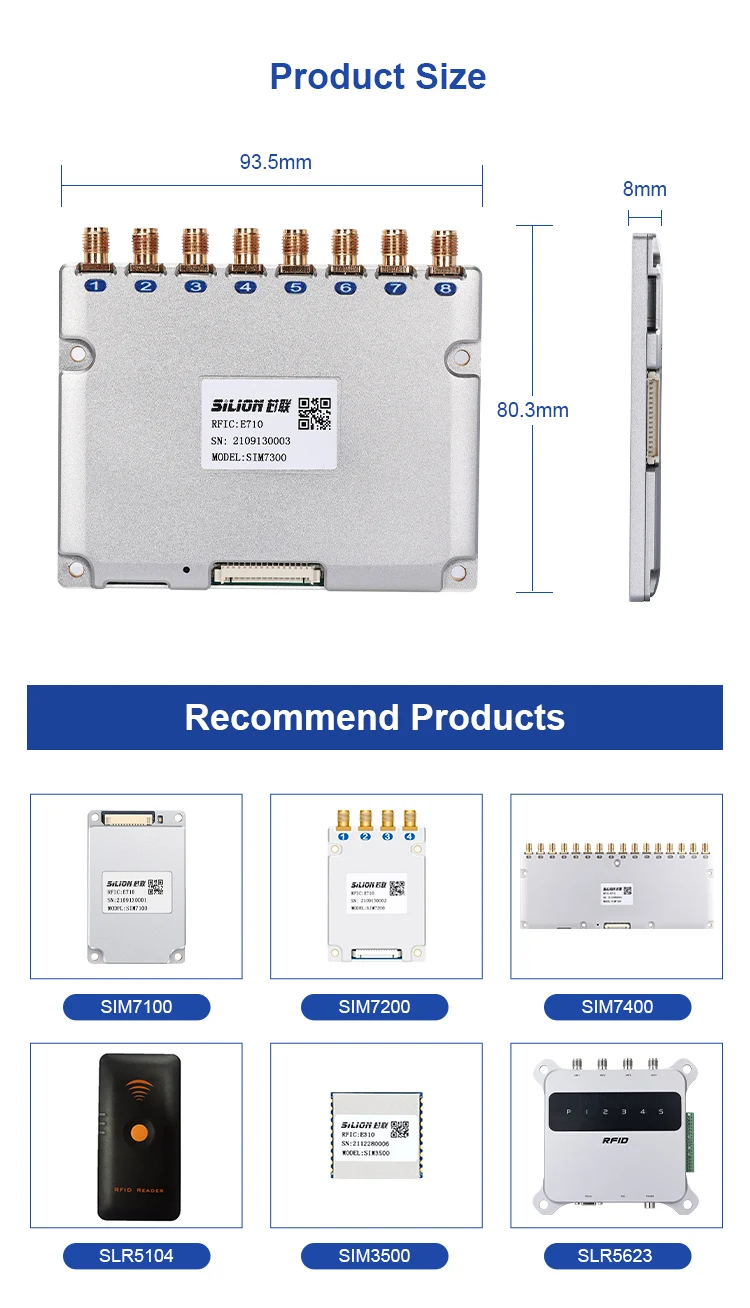

Dimensions | 93.5mm × 80.3mm × 8mm | |
RFID Characteristics | ||
Air Protocols | EPC Class 1Gen 2(ISO 18000-6C) | |
Chipset | lmpinj E710 | |
Frequency | 860-960MHz Open frequency, US, CN, EU options | |
Sensitivity | -85dBm | |
Antenna Port | 8 ports, 50Ω SMA Connectors | |
Output Power | 5dBm-33dBm (±1dBm) adjustable | |
Tag RSS | Support | |
Antenna Detector | Support | |
Temperature Detector | Support | |
Application Interface | ||
Host API | C, C#/.NET, Java | |
RFID Pertormance | ||
Max Read Rate | 900 tags/s | |
Max 1ag Nead Dbistance | ≥12m with 8dBi antenna | |
Note: For more parameter details pls feel free to contact us. | ||
Recommend Products
Company Introduction
Application Fields
Certifications
FAQ
1. Are you manufacturer?
Yes, Silionis one of the pioneering manufacturer focusing on UHF RFID hardware design and manufacture since from 2005.
2. What are your mainly products?
Our products mainly include UHF RFID reader, UHF RFID tag, UHF RFID module R2000 series, UHF RFID module E710 series and RFID
antennas.
3. What is your advantage?
We have served many customers in many application fields, with a wide and rich experience.
we have strong technical team for technical support.
We often provide customized service for special needs.
We have hundreds of UHF RFID modules, the most complete.
4. How to place order to Silion?
You can place order to us through Alibaba trade assurance order online or you can contact our sales for other ways.
We also can accept payment by TT, West Union, credit card or PayPal and other payment methods.
5. How to be your partner or distributor?
Pls contact our oversea sales team for details: sales@silion.com.cn
6. What is the MOQ?
We don’t have MOQ limit, you can buy one sample for testing.
7. Do you have test evaluation board?
Yes, our test evaluation board, also named as DEVKIT, develop kit, which supports all Silion’s UHF RFID module’s testing.
8. Do you have certifications?
Yes, Silion products have applied FCC, CE, SRRC, RoHS and other related certifications.
9. What’s your lead time?
For small orders, we normally have goods in stock, delivery time is very fast, around 2-3 working days after order confirmed; If need to produce, it depends on quantity, pls feel free to contact us to know more.
10. Are you Impinj Gold Partner?
Yes, as our main products are based on Impinj R2000, new E710, E510 and E310, we are authorized by Impinj as Gold partner long time ago.
11. Do you provide after sale service?
Yes, Silion has a professional technical support team, with rich experience in developing and application, we provide full services as customers need. For detailed technical documents, you can directly download from our website, and if any problems, you can feel free to contact us, we can support you by email, voice talk, or fly to your country to support (to be discussed).
