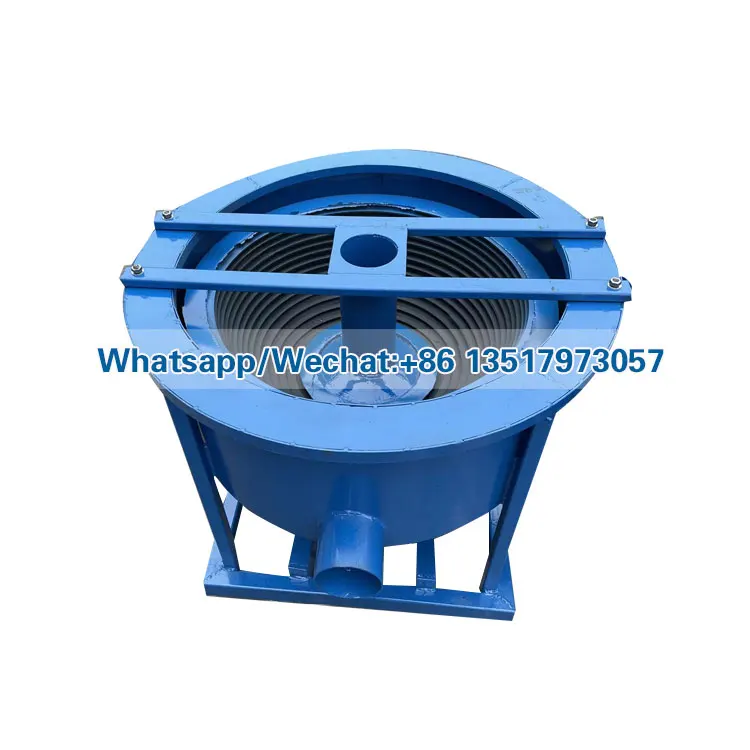

Gravity Gold Separator Centrifugal Concentrator Knudsen Bowl Gold Concentrator
- Category: >>>
- Supplier: Jiangxi Gandong Mining Equipment Machinery Manufacturer
Share on (1600560941366):
Product Overview
Description
Product Description
High performance gold mining equipment centrifugal concentrator

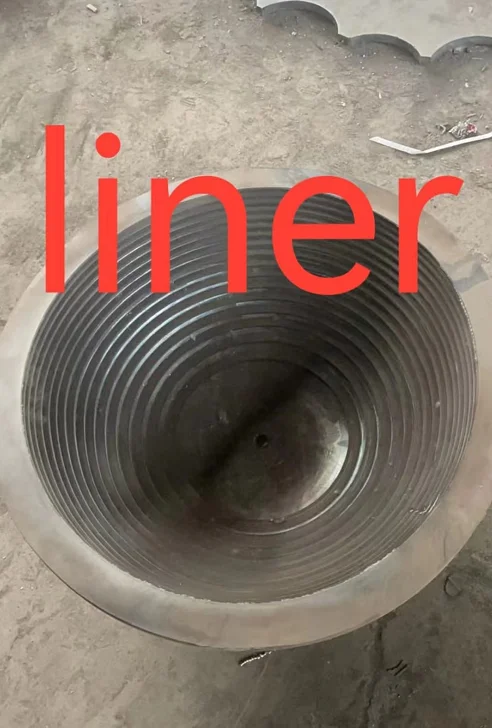

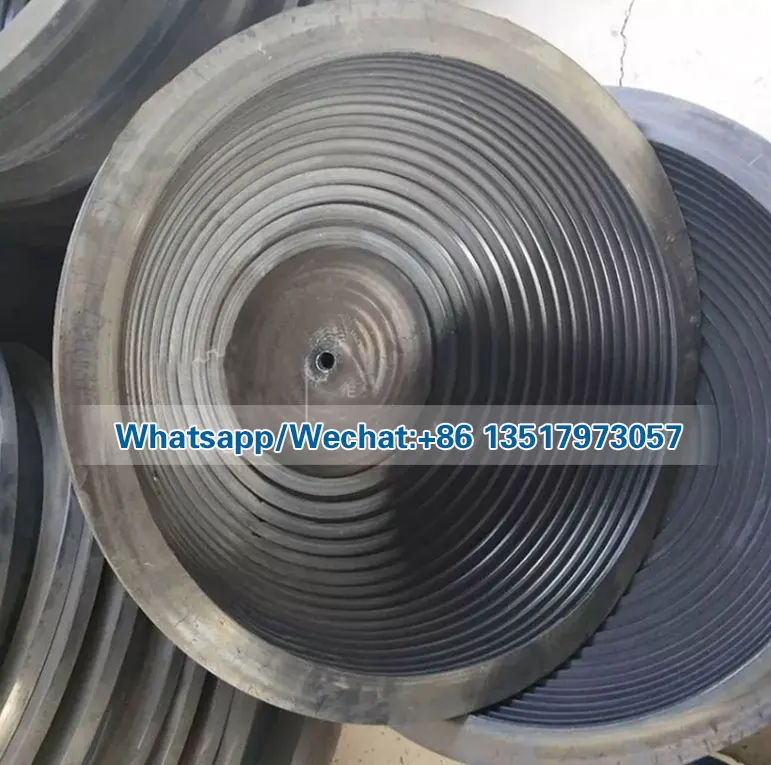

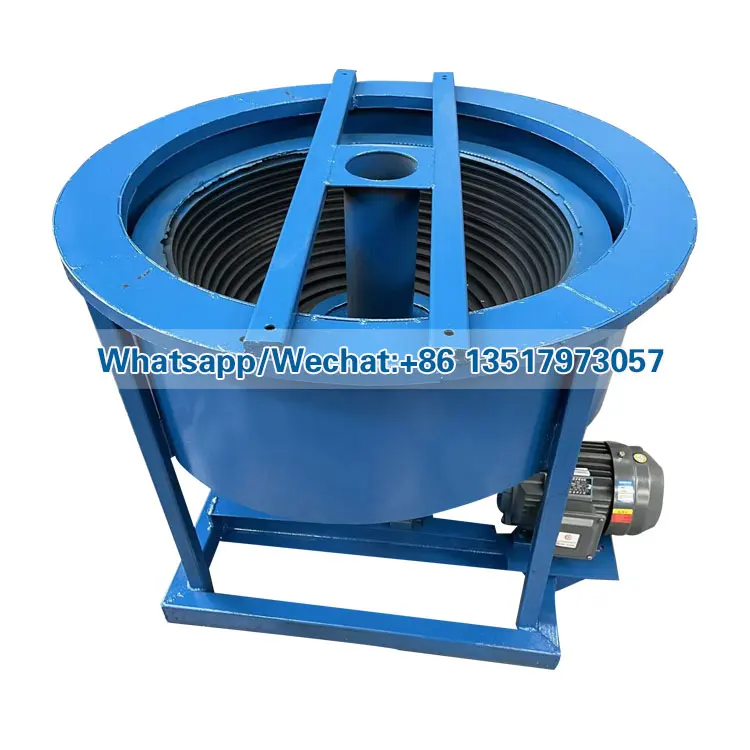

Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus. The machines utilise the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density. The key components of the unit are a cone shaped "concentrate" bowl, rotated at high speed by an electric motor and a pressurized water jacket encompassing the bowl. Feed material, typically from a ball mill discharge or cyclone underflow bleed, is fed as a slurry toward the centre of the bowl from above. The feed slurry contacts the base plate of the vessel and due to its rotation, is thrust outward. The outer extremities of the concentrate bowl house a series of ribs and between each pair of ribs is a groove. During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them. Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0. 074mm, the gold is up to 98%, For 0.04mm in particle size, the gold recovery is 97%.
Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus. The machines utilise the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density. The key components of the unit are a cone shaped "concentrate" bowl, rotated at high speed by an electric motor and a pressurized water jacket encompassing the bowl. Feed material, typically from a ball mill discharge or cyclone underflow bleed, is fed as a slurry toward the centre of the bowl from above. The feed slurry contacts the base plate of the vessel and due to its rotation, is thrust outward. The outer extremities of the concentrate bowl house a series of ribs and between each pair of ribs is a groove. During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them. Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0. 074mm, the gold is up to 98%, For 0.04mm in particle size, the gold recovery is 97%.

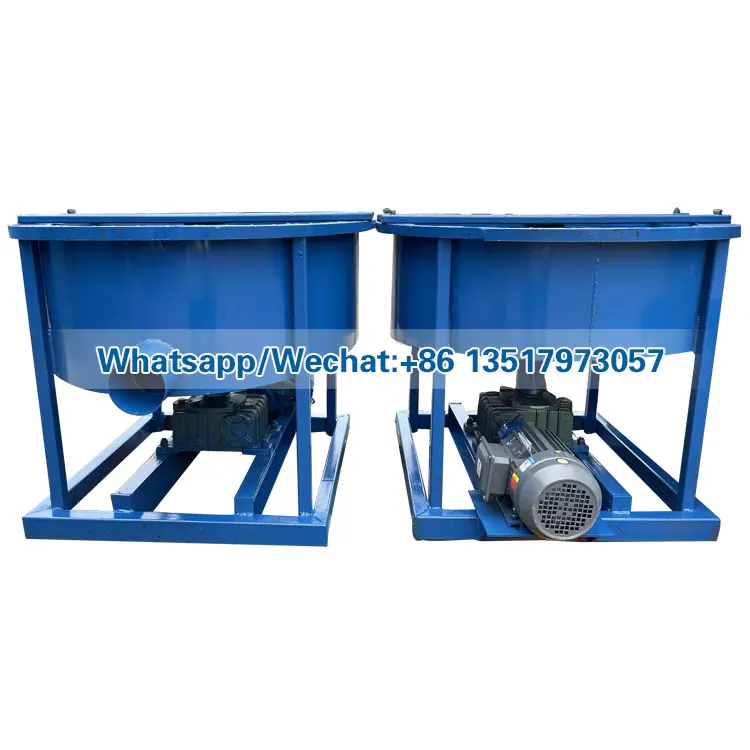

Products Show
Customer Photo

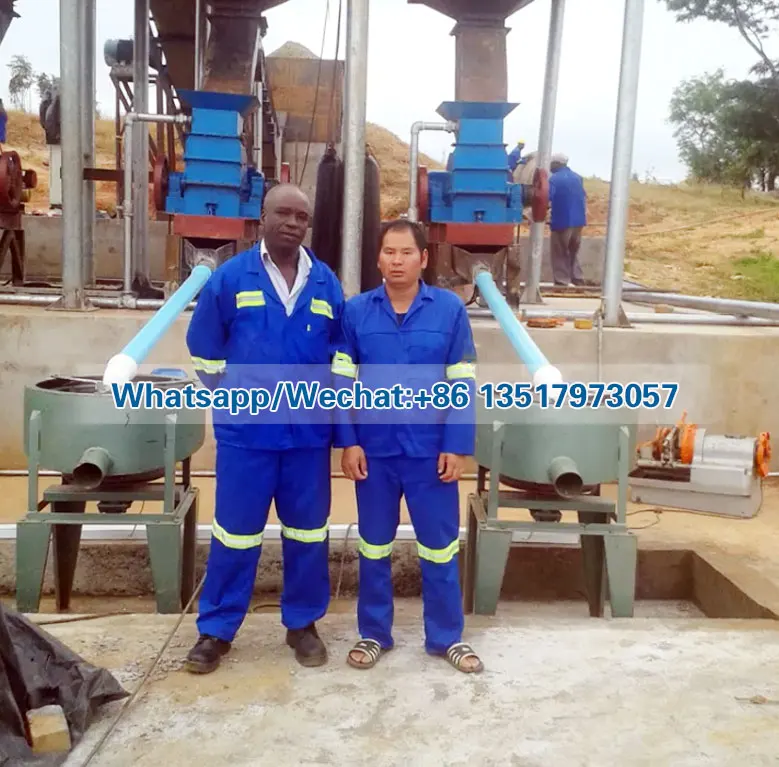

Application site

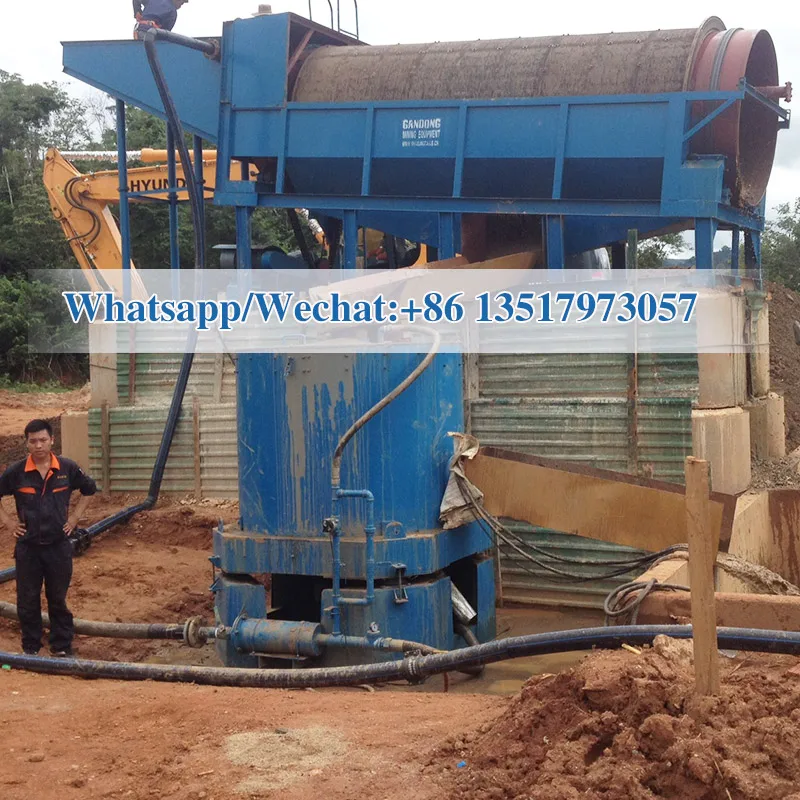

Application in production of alluvial gold ore in Laos.

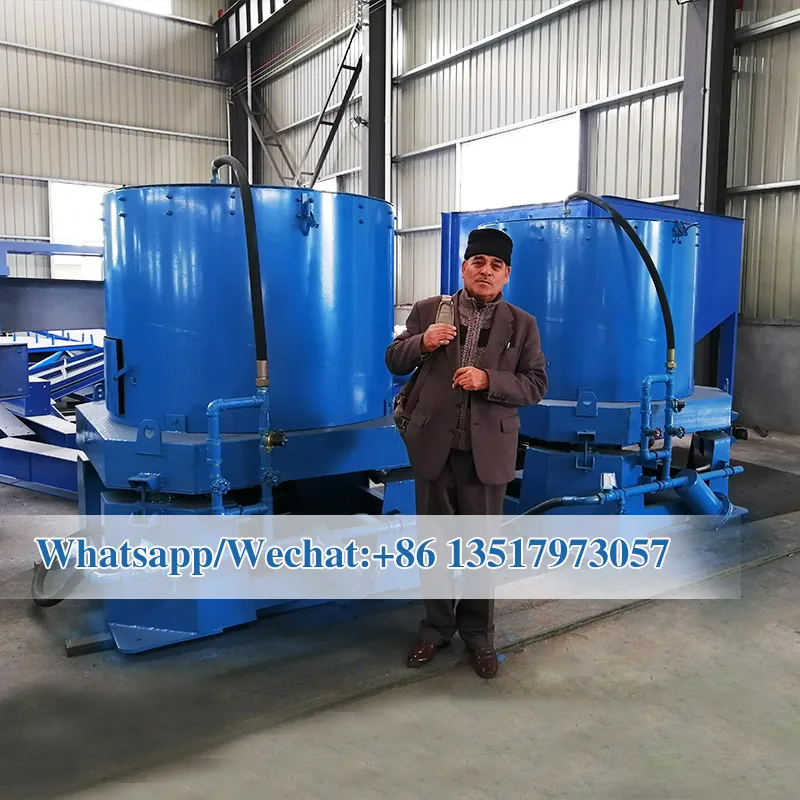

Products inspection
Pakistan customer inspected our centrifugal concentrator at our factory, he buy two set STLB100 centrifugal concentrator applied in their alluvial gold ore in Pakistan
Packing & Delivery
Packing Details : Non-packed because its large size.
Delivery Details : 7-30 days after down payment.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Office
Our Office
Our Service
Mineral test service
Seek truth from facts, the effect speaks, dispel your misgivings. Save your money.
Layout design service
According to processing flow chart and site condition to design professional reasonable layout by direct-view 3D. Save your time.
Installation service
Our professional technicians will come to customer's site to install and debug the machines, and train the workers. Save your money and time.
FAQ
1. Q: Can you provide production flow chart?
A: Yes we can. Our experienced and professional engineers can design scientific and reasonable flow chart for various ores, such as iron ore, tin ore, manganese ore, gold ore, tungsten ore, tantalum ore, etc.
2. Q: Can you test our sample ore to see what result can we get?
A: Yes we can. We have professional laboratory to offer ore test for customers by free charge.
3. Q: How do you provide after-sales service?
A: We can send our professional technicians to the working site for equipment installation, adjustment, and operation training. All of our technicians have rich overseas installation experiences. Anything you need in future we have professional person to follow up.
4. Q: What is your terms of payment?
A: T/T 30% paid in advance, and 70% before the shipment. You come personally or assign SGS for products inspection or we show product photos before you pay the balance.
5. Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we supply spare parts also.
7. Q: Can I visit your factory?
A: Of course welcome. Many domestic and overseas customers visited our factory every year.
8. Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Warmly welcome you come to visit our factory! Our factory located at Ganzhou city, Jiangxi province, China. Please take flight from your country to Guangzhou or Shanghai or Beijing airport in China, then transfer to Ganzhou airport, and then we will send our car to pick you up at Ganzhou airport.
