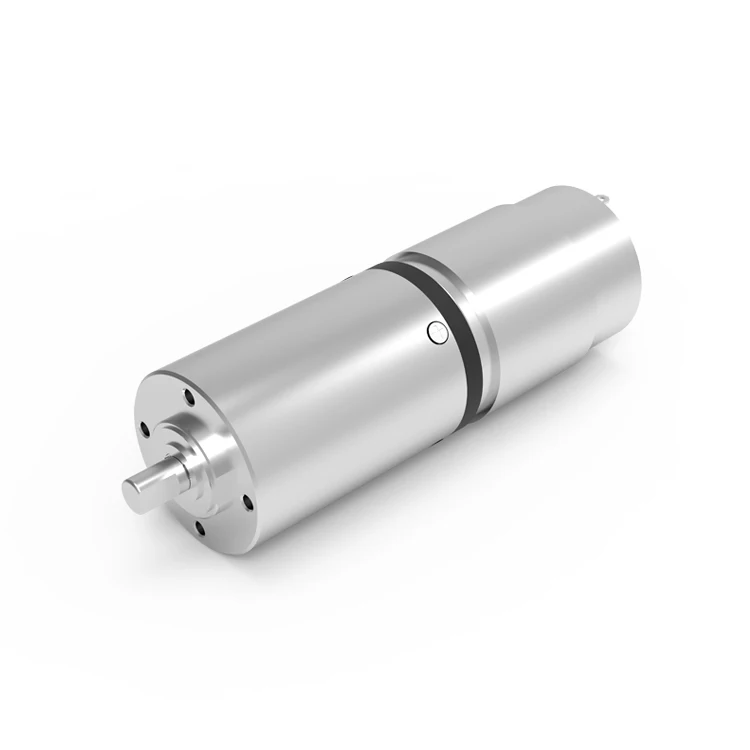

ZHAOWEI MD032032 541 32mm 12v 24v 50kg.cm 14rpm low rpm high torque bldc Planetary Gear Motor for Back row sucking screen
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1600560964904):
Product Overview
Description
| Motor Specifications:32mm motor | |
| motors(optional) | brushless dc motor,brushed dc motor |
| voltage(optional) | DC 3-24v |
| input speed | <=12000rpm |
| current | 300mA max |
| 32mm micro metal BLDC planetary gear motor | |||||||
| Model | Rated Speed | Max Speed | Max Rated Torque | Max Instant Torque | Reduction Ratio | gearbox Length | Overall Length |
| rpm | rpm | gf.cm | gf.cm | mm | mm | ||
| MD032032-16 | 469 | 1875 | 50 | 150 | 16 | 39.1 | 81.6 |
| MD032032-23 | 313 | 1250 | 50 | 150 | 23 | 39.1 | 81.6 |
| MD032032-33 | 227 | 909 | 50 | 150 | 33 | 39.1 | 81.6 |
| MD032032-67 | 112 | 448 | 50 | 150 | 67 | 49.1 | 91.6 |
| MD032032-94 | 80 | 319 | 50 | 150 | 94 | 49.1 | 91.6 |
| MD032032-133 | 56 | 226 | 50 | 150 | 133 | 49.1 | 91.6 |
| MD032032-188 | 40 | 160 | 50 | 150 | 188 | 49.1 | 91.6 |
| MD032032-272 | 28 | 110 | 50 | 150 | 272 | 59.1 | 101.6 |
| MD032032-383 | 20 | 78 | 50 | 150 | 383 | 59.1 | 101.6 |
| MD032032-541 | 14 | 56 | 50 | 150 | 541 | 59.1 | 101.6 |
| MD032032-764 | 10 | 39 | 50 | 150 | 764 | 59.1 | 101.6 |
| MD032032-1078 | 7 | 28 | 50 | 150 | 1078 | 59.1 | 101.6 |
Main Products: 1. Precision plastic/metal gear motors and planetary gearboxes; Diameter: 3.4mm-38mm, Voltage: 1.5-24V; Power: 0.01-100W; Output speed: 5-2000rpm, Output torque: 1.0 gf.cm-100kgf.cm; | |||||||
