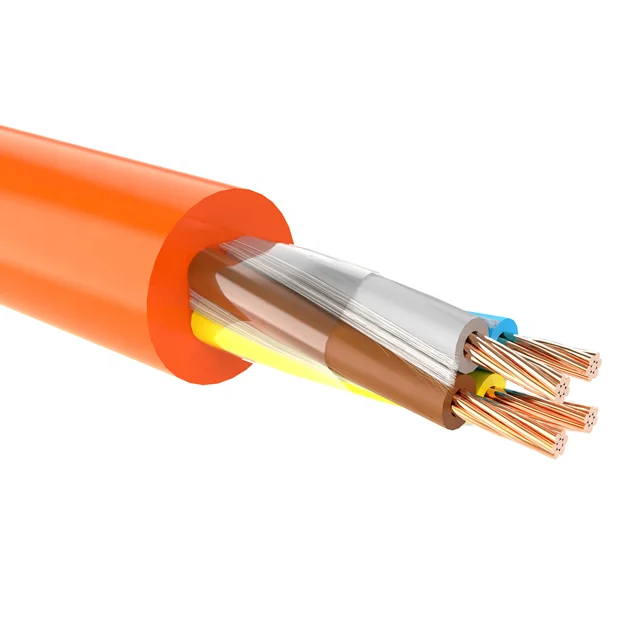

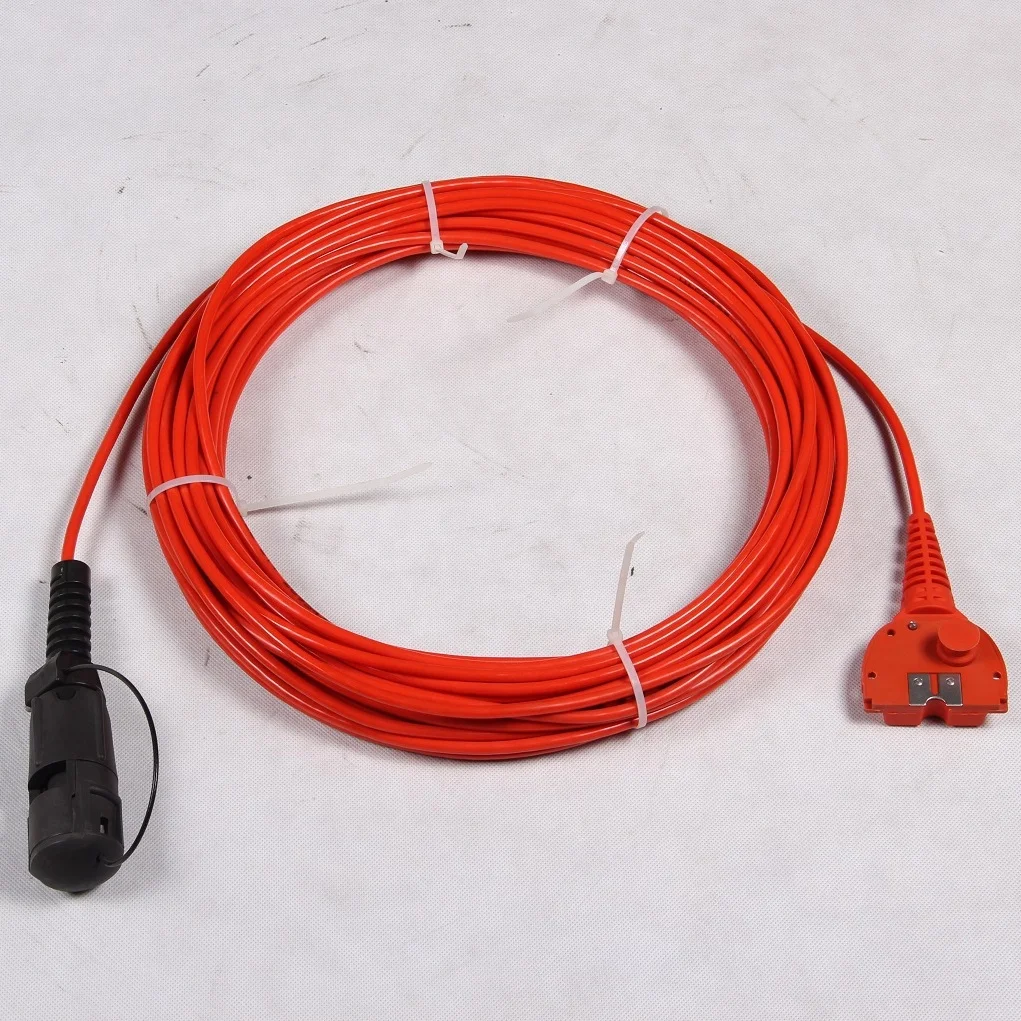

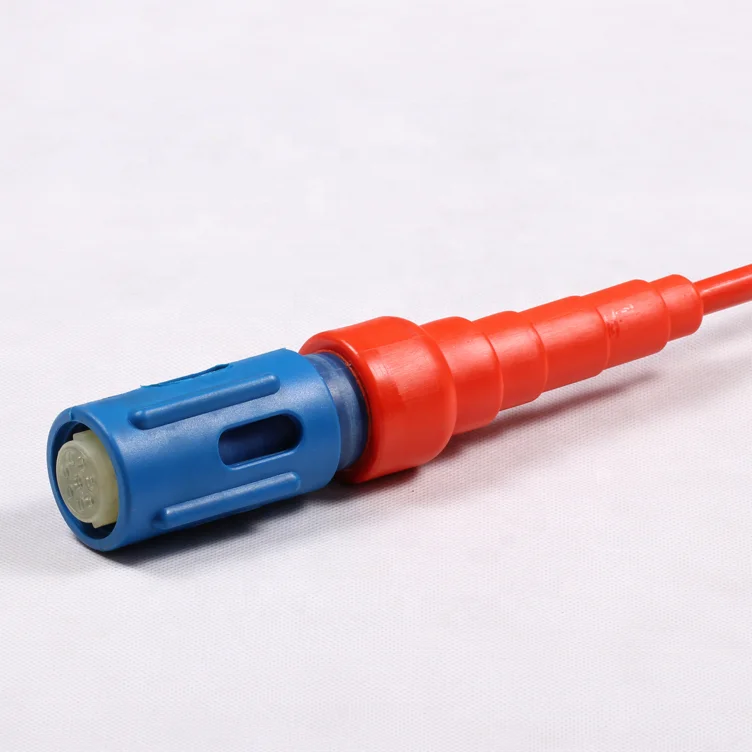

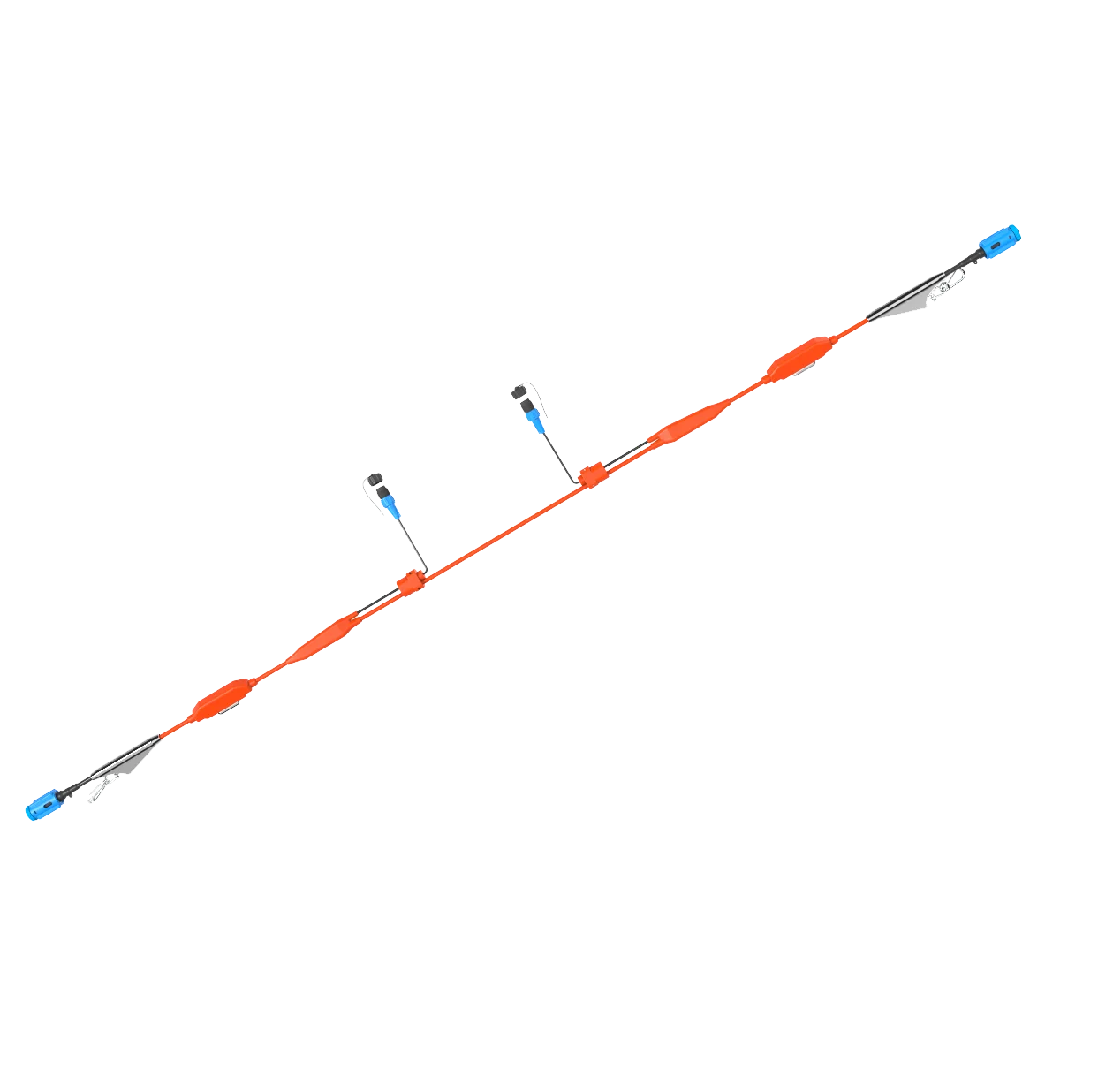

Seismic recording system seismic cable for geoscientific detection application
- Category: >>>
- Supplier: SmartSolo(Beijing)Inc.
Share on (1600560968993):
Product Overview
Description
Product Features
For the most popular land seismic system
Its excellent properties and reliable are approved by the field deployments.
Apply largely, and it can generate all kinds of geophones (analog or digital; 1-C or 3-C)working Environment: Land, Mountain,Jungle, desert etc.
The color of cable is orange, the outside diameter Φ6.5 mm@ ST+/Φ9.5 mm @ WPSR The numbers of FDU/LINK can be any more, maybe 4 or 5 as you need
Its excellent properties and reliable are approved by the field deployments.
Apply largely, and it can generate all kinds of geophones (analog or digital; 1-C or 3-C)working Environment: Land, Mountain,Jungle, desert etc.
The color of cable is orange, the outside diameter Φ6.5 mm@ ST+/Φ9.5 mm @ WPSR The numbers of FDU/LINK can be any more, maybe 4 or 5 as you need
PRODUCT SPECIFICATIONS
Item | ST+ | STSR | WPSR | WPSRLR |
Type of field | Dry | Dry | Dive | Dive |
Water blocking material | No | No | Yes | Yes |
Maximal operational depth in water | Rainy | Rainy | 15m | 15m |
Outside diameter | 6.5mm | 9.5mm | 9.5mm | 9.5mm |
Kevlar | Yes | Yes | Yes | Yes |
Jacket material | TPU | TPU+TPU | TPU+TPU | PE+TPU+TPU |
Jacket color | Orange | Orange +Orange | Orange +Orange | Nature+Orange +Orange |
Operating temperature range | -40℃～+70℃ | -40℃～+70℃ | -40℃～+70℃ | -40℃～+70℃ |
Storage temperature range | -55℃～+85℃ | -55℃～+85℃ | -55℃～+85℃ | -55℃～+85℃ |
Number of flexing | ≥30000 | ≥30000 | ≥30000 | ≥30000 |
Weight | 50kg/km | 95kg/km | 95kg/km | 93kg/km |
Pull(with connectors) | 700N | 3000N | 3000N | 3000N |
Why Choose Us
Good material,factory price,professional test
1.Factory price

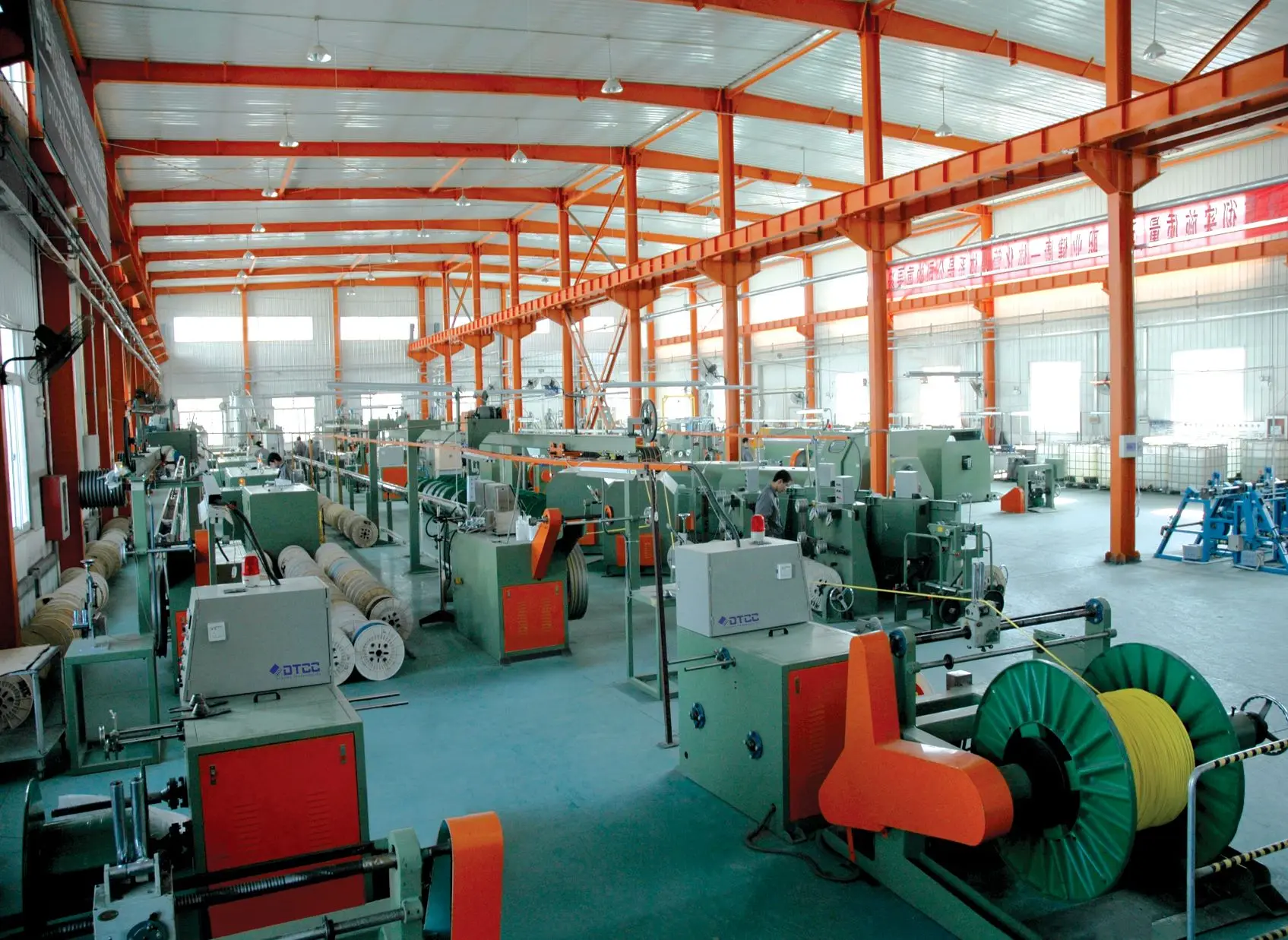

We can manufacture 9 million meters of digital cable for harsh environment
2.Supper good material
pins are coated with gold,cores are Oxygen-free copper,Jacket is TPU
3.Professional test

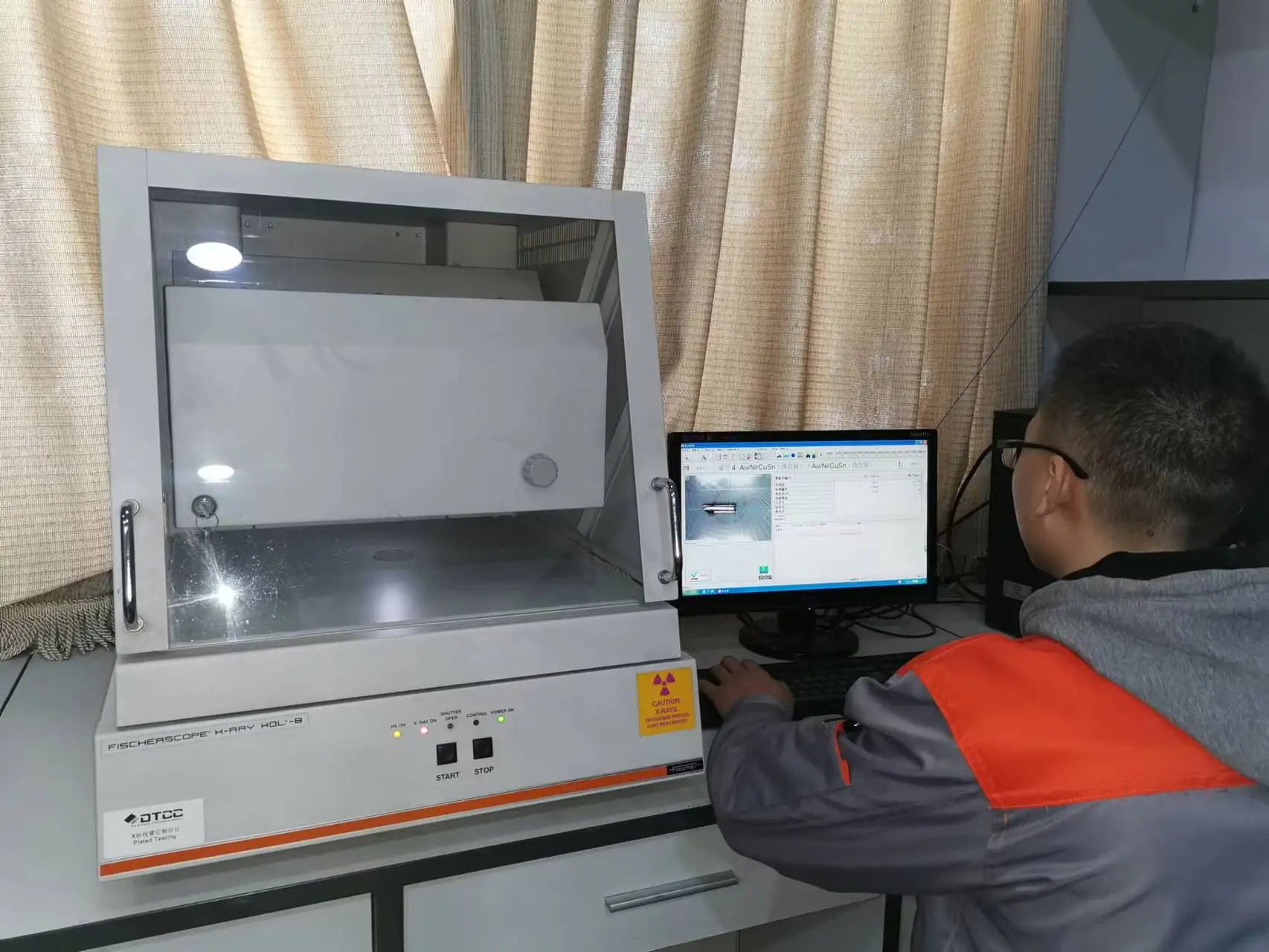

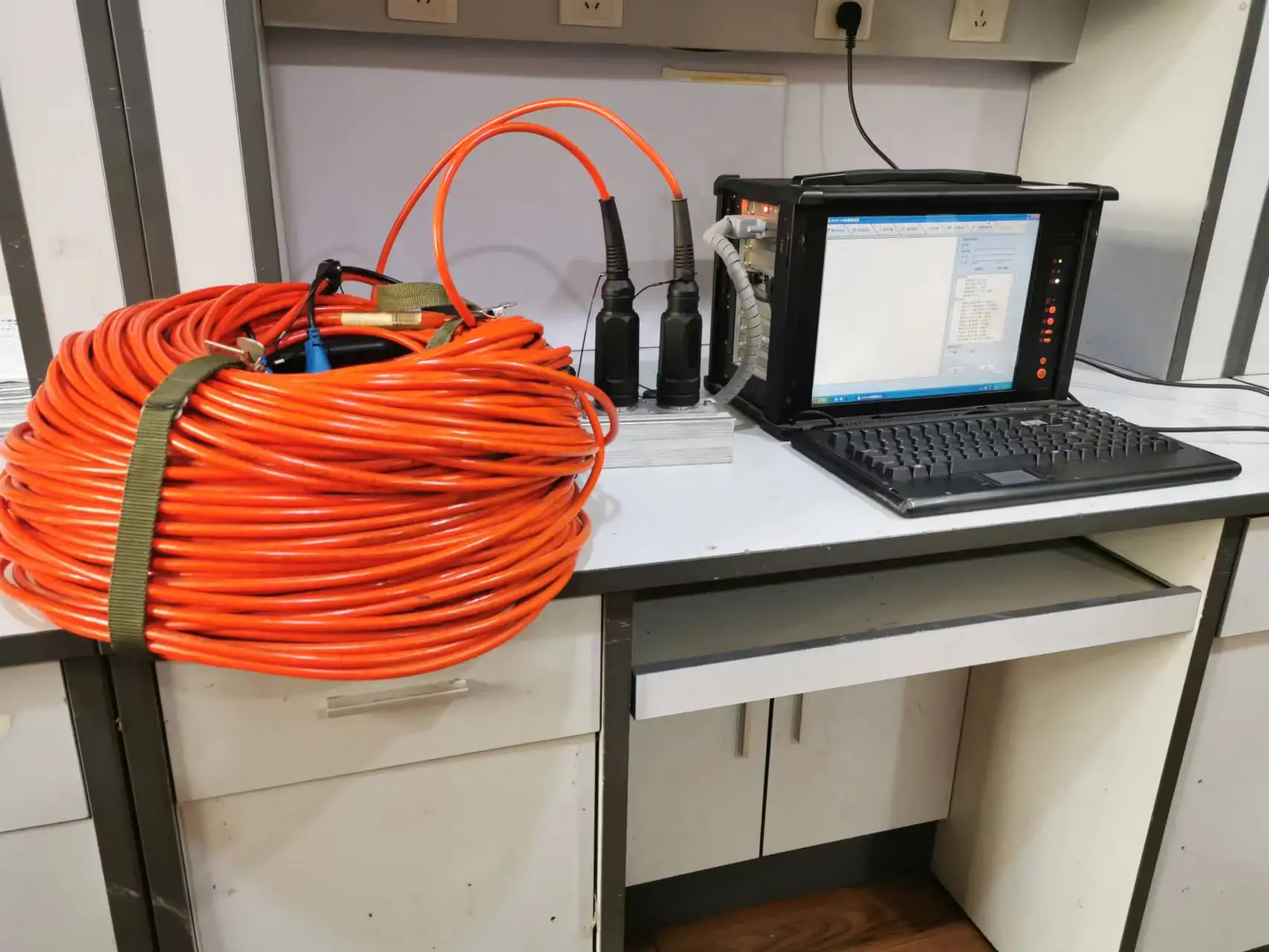

Our laboratory test mechanical，electrical，physical characteristic

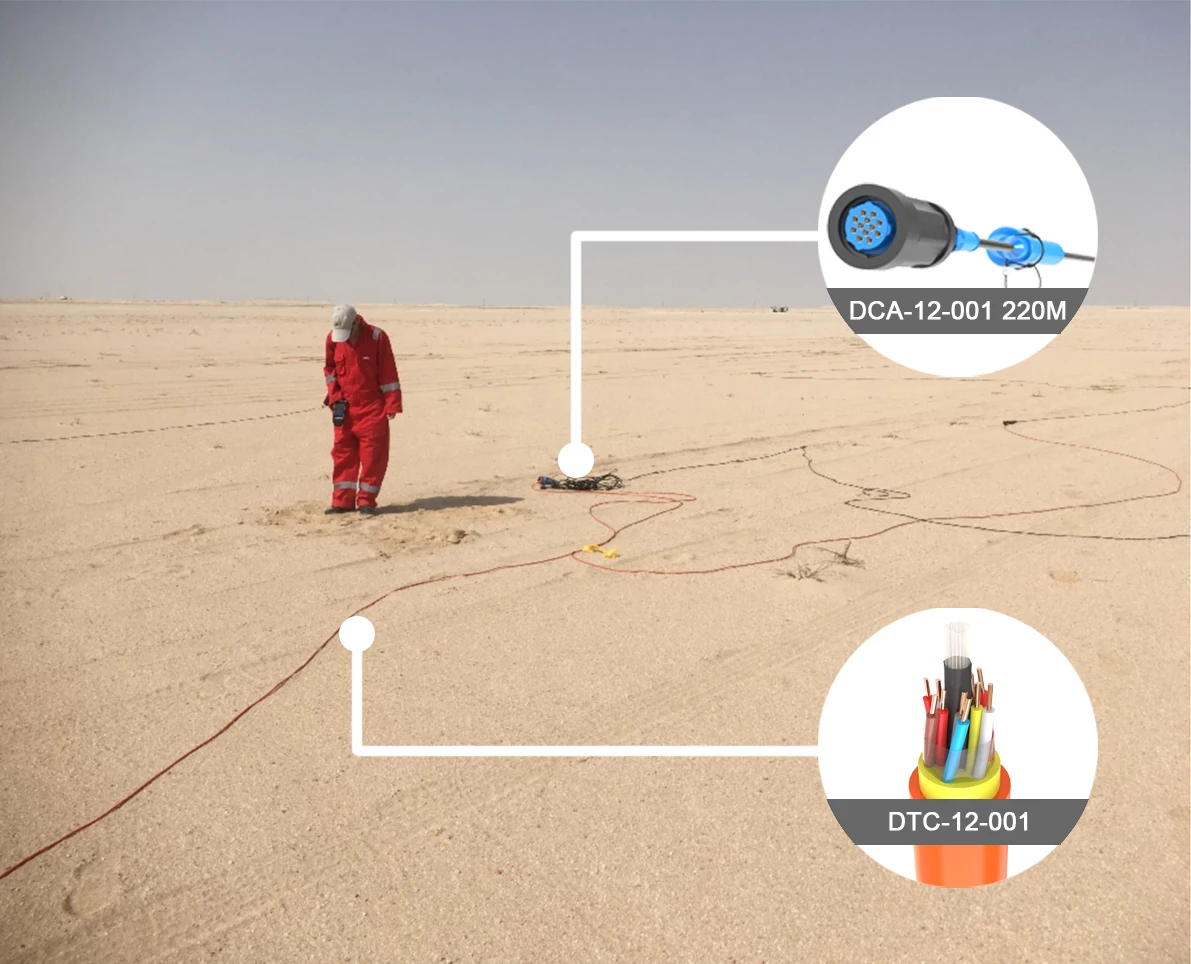

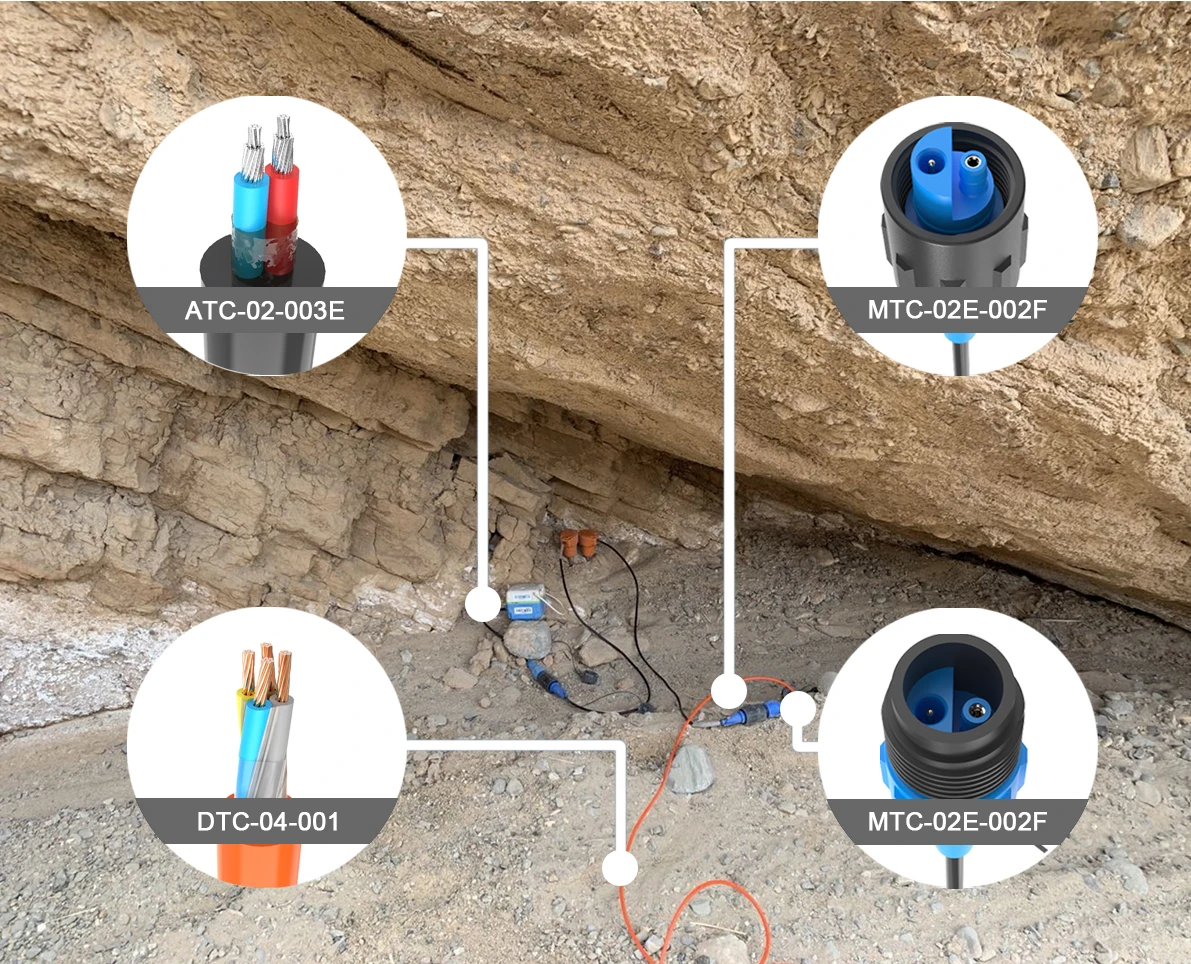

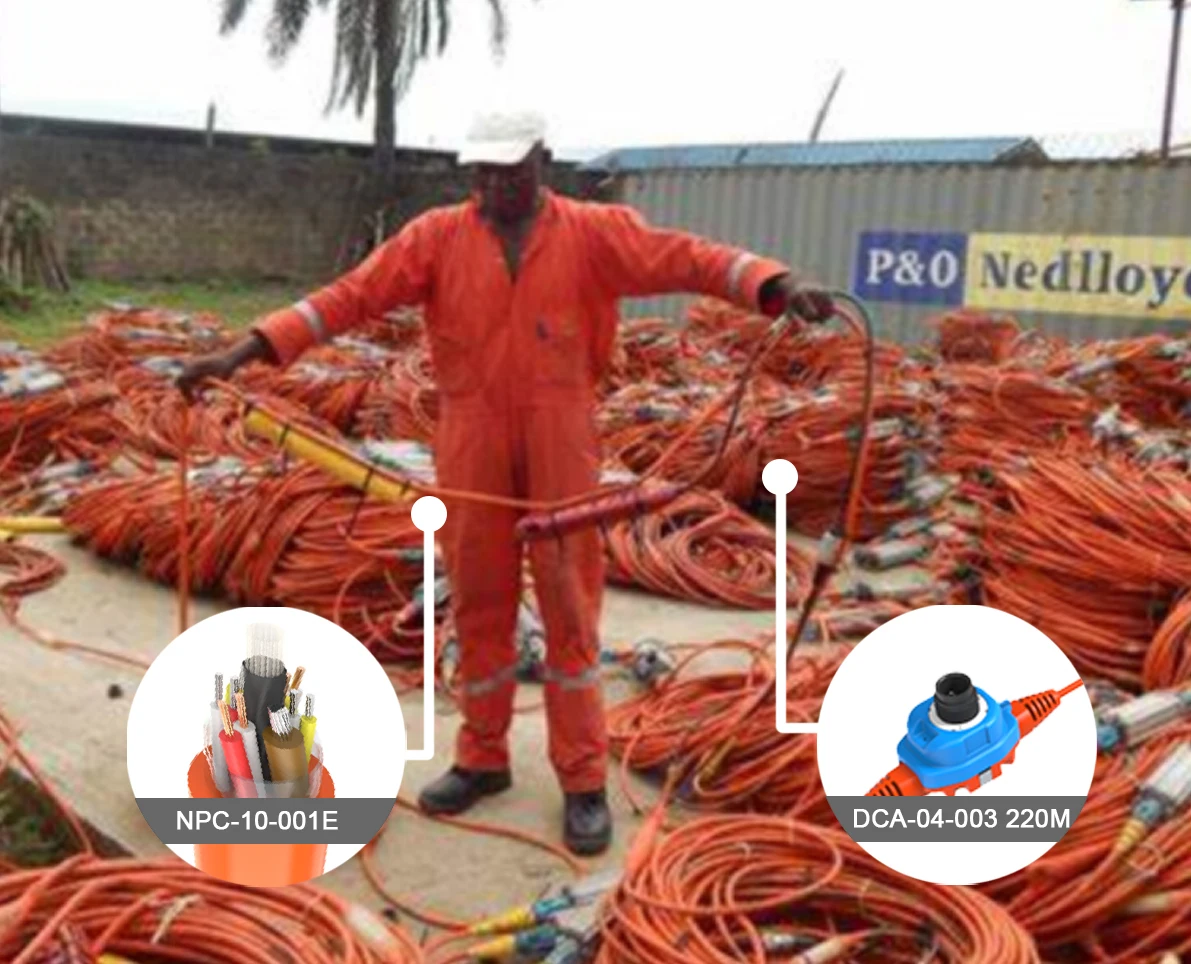

Application
Recommend Products

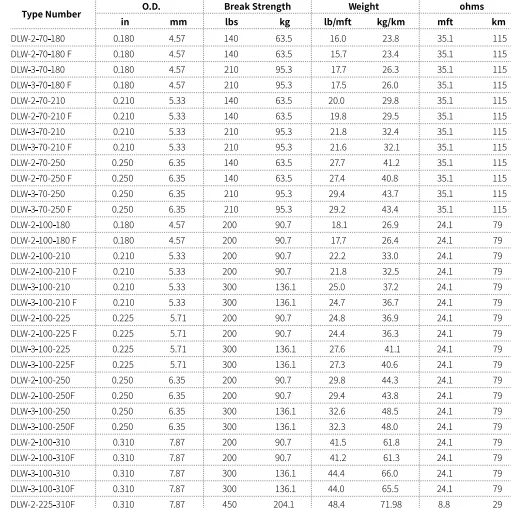

DTCC LEADER WIRES (DLW) model selection
1.Manufacturer brand:DTCC LEADER WIRES(DLW)
2.Number of conductors
Typical number of conductor: 2,3.
Typical number of conductor: 2,3.
3.Break strength per conductor lbs
Typical break strength of each conductor.70lbs,100lbs, 225Ibs
4.Wire OD
wire outside diameter in inches(Typically)l.E 0.18”,0.210”,0.250",0.310”.
5.lndicates gel filled
“F” indicates the Wire is filled with water blocking gel
Typical break strength of each conductor.70lbs,100lbs, 225Ibs
4.Wire OD
wire outside diameter in inches(Typically)l.E 0.18”,0.210”,0.250",0.310”.
5.lndicates gel filled
“F” indicates the Wire is filled with water blocking gel

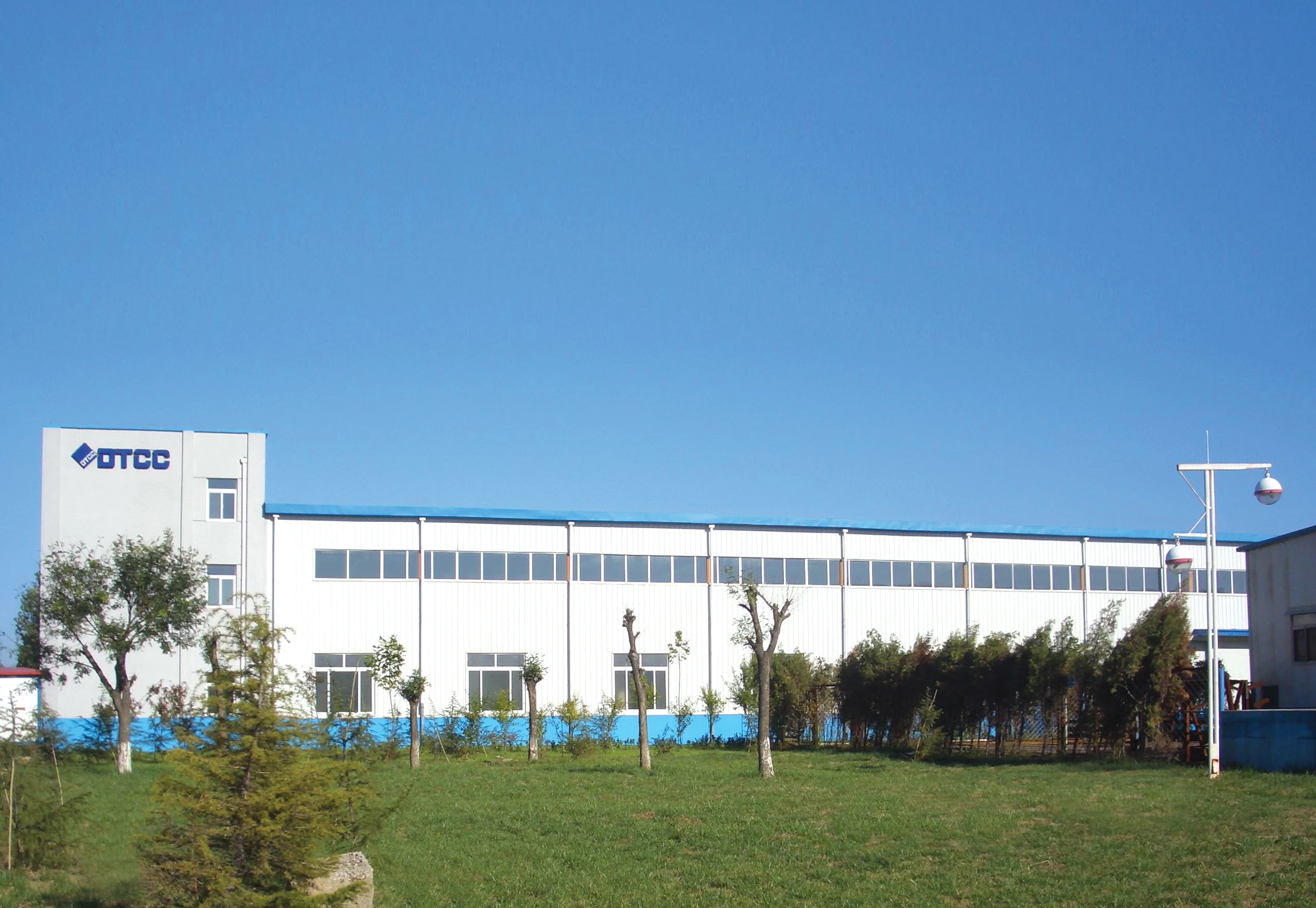

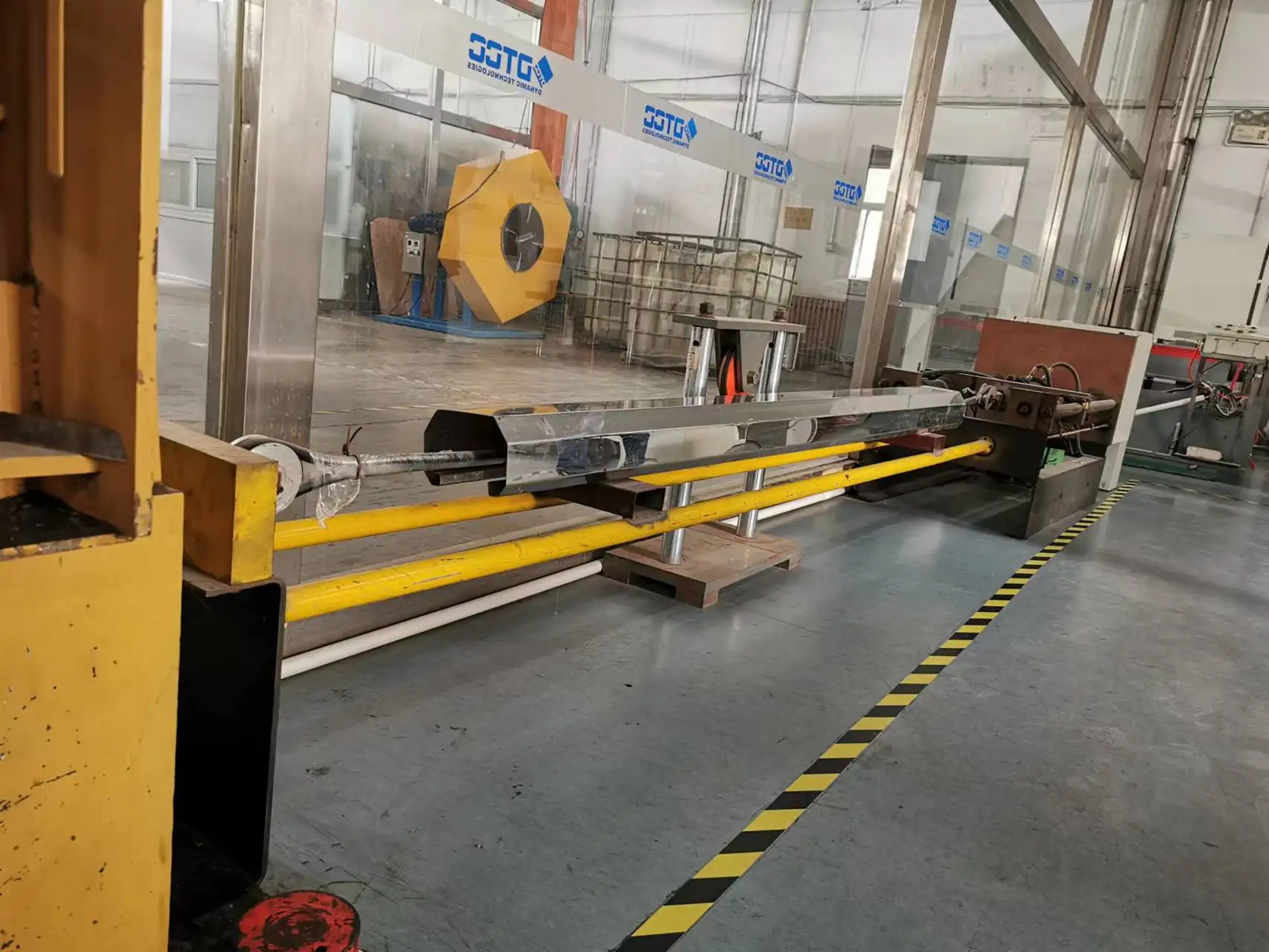

Company Profile
About Us
DTCC offers a wide range of data transmission cables for harsh field, subsea or aquatic applications. Its high reliability and convenience of connection ensure that customers can easily connect various devices for stable data transmission. It is the most popular digital signal transmission cable, and its excellent performance and reliability have been proved by a large number of field applications.
DTCC digital cable series of high-reliability is composed of 2-core to 60-core products. According to different use environments,some digital cables with armored protective layer, acid and alkali corrosion resistant protective sleeve, water resistant coating are provided to achieve the low transmission loss ensuring the further and more accurate effective stable transmission.
With our strong cable manufacturing capability,we can design and manufacture bulk cables for your finished product assembly.
With our strong cable manufacturing capability,we can design and manufacture bulk cables for your finished product assembly.
Certifications
FAQ
Q1- Is the MOQ negotiable?
A1- Yes, MOQ is negotiable, while the unit price is different according to the order quantity.
Q2- How long is the lead time?
A2- Lead time depends on the order quantity. Normally 5-15 days and special case 30-40 days in sales peak season. Please contact us for details.
Q3- Can you make the according to my design?
A3- Yes, we can. Please contact us with your requirement or drawing.
Q4- Can I arrange third party inspection?
A4- Yes, we welcome QC from customers and third-party inspection.
Q5- Can I ask for samples?
A5- Yes, we can supply you free sample 50-100 cm cable,not whole set.
A5- Yes, we can supply you free sample 50-100 cm cable,not whole set.
