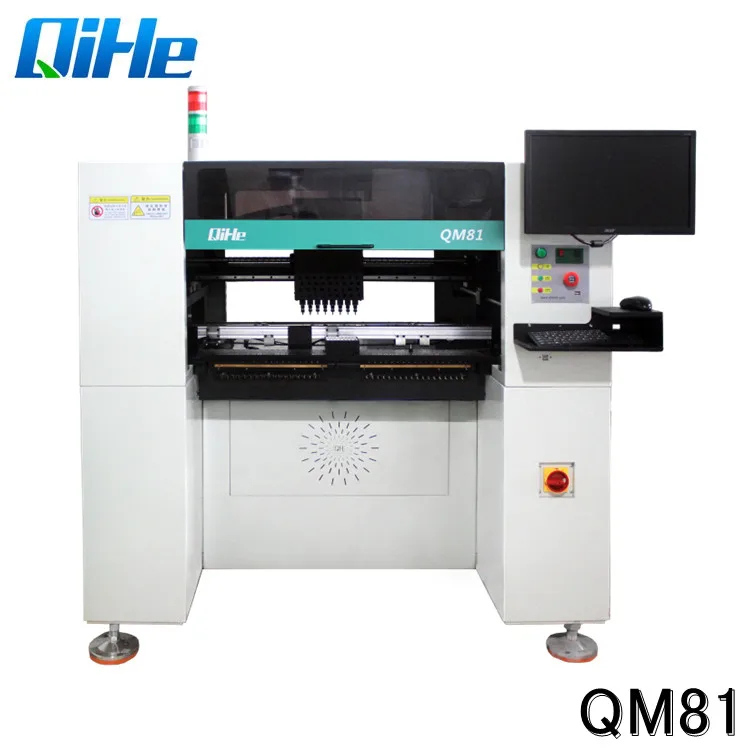

Qihe 8 Placement Head Full Automatic SMT Production Line QM81 LED Assembly Machine Price Pick and Place Machine
- Category: >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (1600560990729):
Product Overview
Description
Qihe 8 Placement Head Full Automatic SMT Production Line QM81 LED Assembly Machine Price Pick and Place Machine
Website: www.qhsmt.com

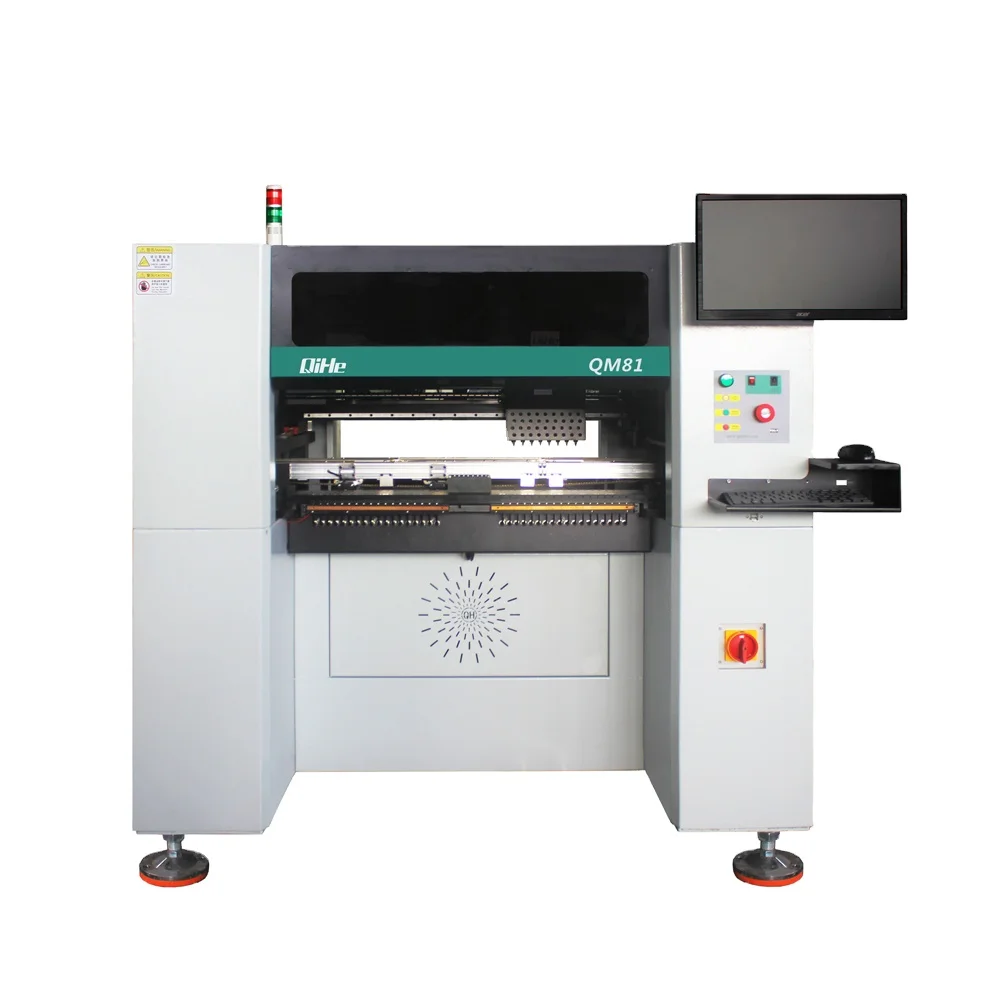

Qihe QM81
| Model | QM81 |
| Max applicable PCB size | 450*350mm |
| Max xy moving range | 760*720mm |
| Max z moving range | 20mm |
| Placementhead quantity | 8 |
| Max mounting capability | Vision on: 13000pcs/h |
| Vision off: 16000pcs/h | |
| Feeder Capacity | 80 (YAMAHA Feeder is available) |

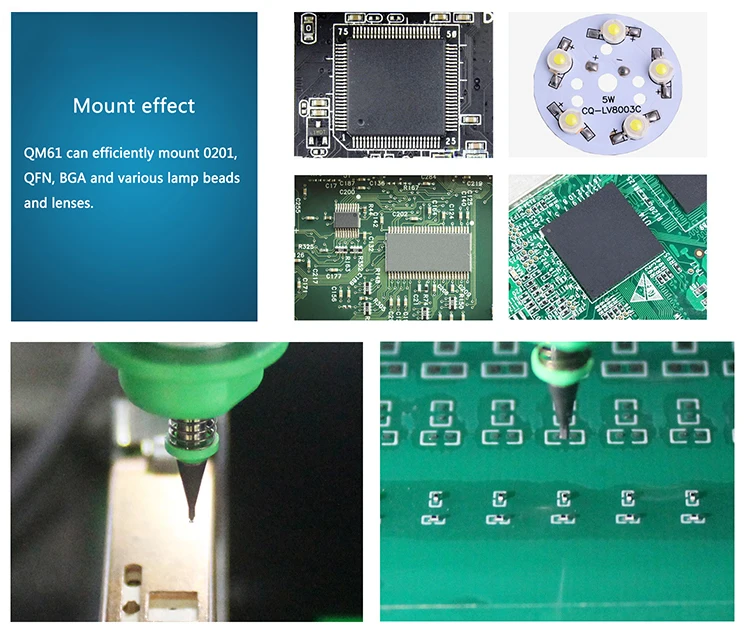

| Applicable component | Smallest size: 0201 |
| Largest size: 22*22mm | |
| Visual camera | HD CCD camera flying camera |
| Power supply | 220V |
| Net weight | 854kg |
| Gross Weight | 935kg |
| Machine Dimension | 1310*1440*1390mm |
| Volume | 3.55CBM |
Main Features

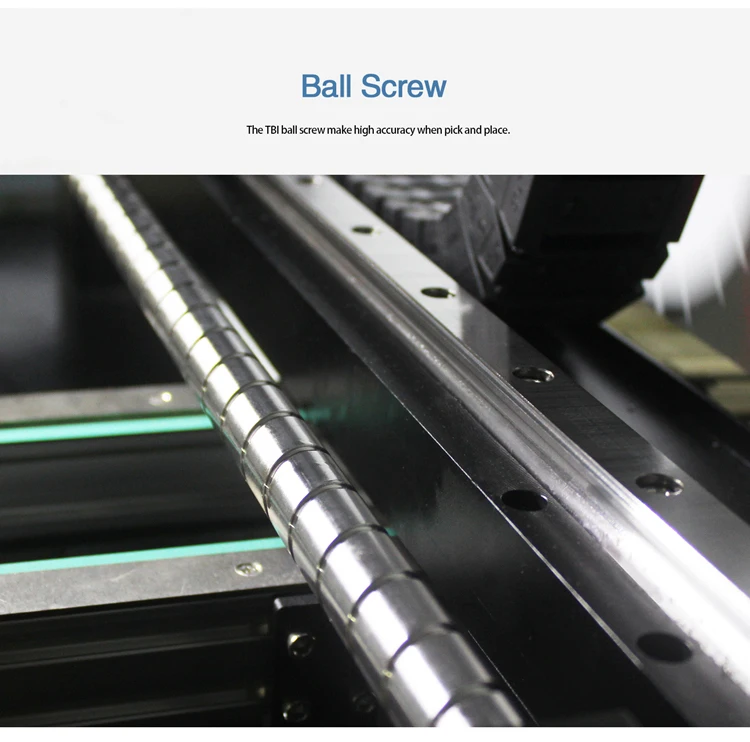

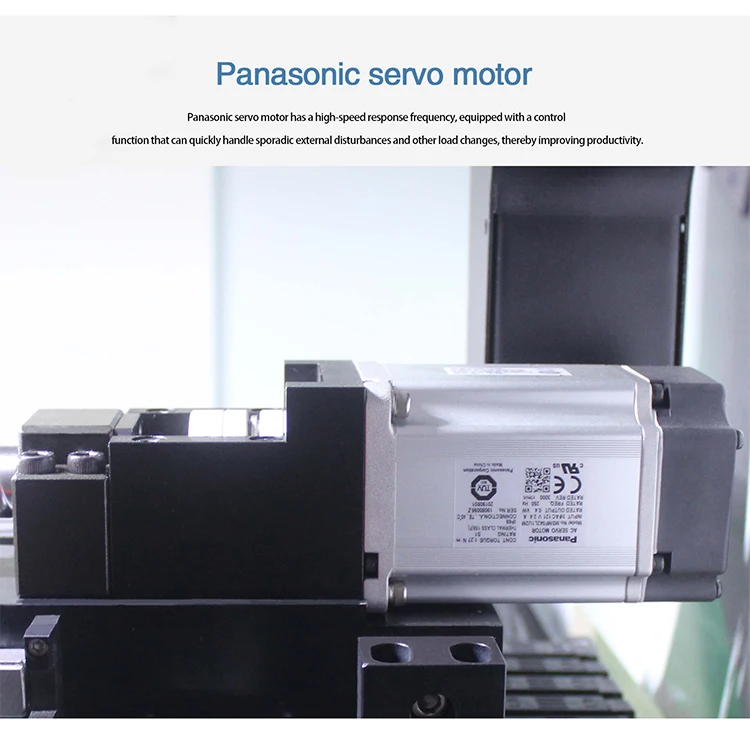

1. Control Syetem: Ball screw and Panasonic servo motors
2. Vision system: Flying vision camera.
3. Six placement heads can pick up and calibrate components at one time.
4. Up to 80 feeder slots, Yamaha standard feeder is available.
5. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
6. Video tutorials make you operate machine easily
7. Free to upgrade software and provide technology support for life.
Company Information
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM61 has 6 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service. |
4. Q: Can we customize the machine? |
| A: Of course. All of our machines can be customized. |
5. How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
