MESH DISCS

Highest level of cleanliness

Stainless Steel：304 304L 316 316L

Mesh discs/Leaf disc filters/Filter discs/Formed filters

5-heddle atlas weave, Sintered wire mesh, Plain dutch weave, Reversed dutch twilled weave, Dutch twilled weave, Reversed optimized
dutch weave, Optimized dutch weave, Reversed plain dutch weave, Porometric weave, Square Weave, Volumetric weave

GKD

Exhaust gas filtration， Beverage filtration， Coolant filtration ，Vegetable oil filtration ，Process water filtration，Sugar
filtration，Stirling technology，Polymer filtration

Filter Finess：＞5μm

High-grade，DIN 9044 Germany

China

2 mm to 5,000 mm

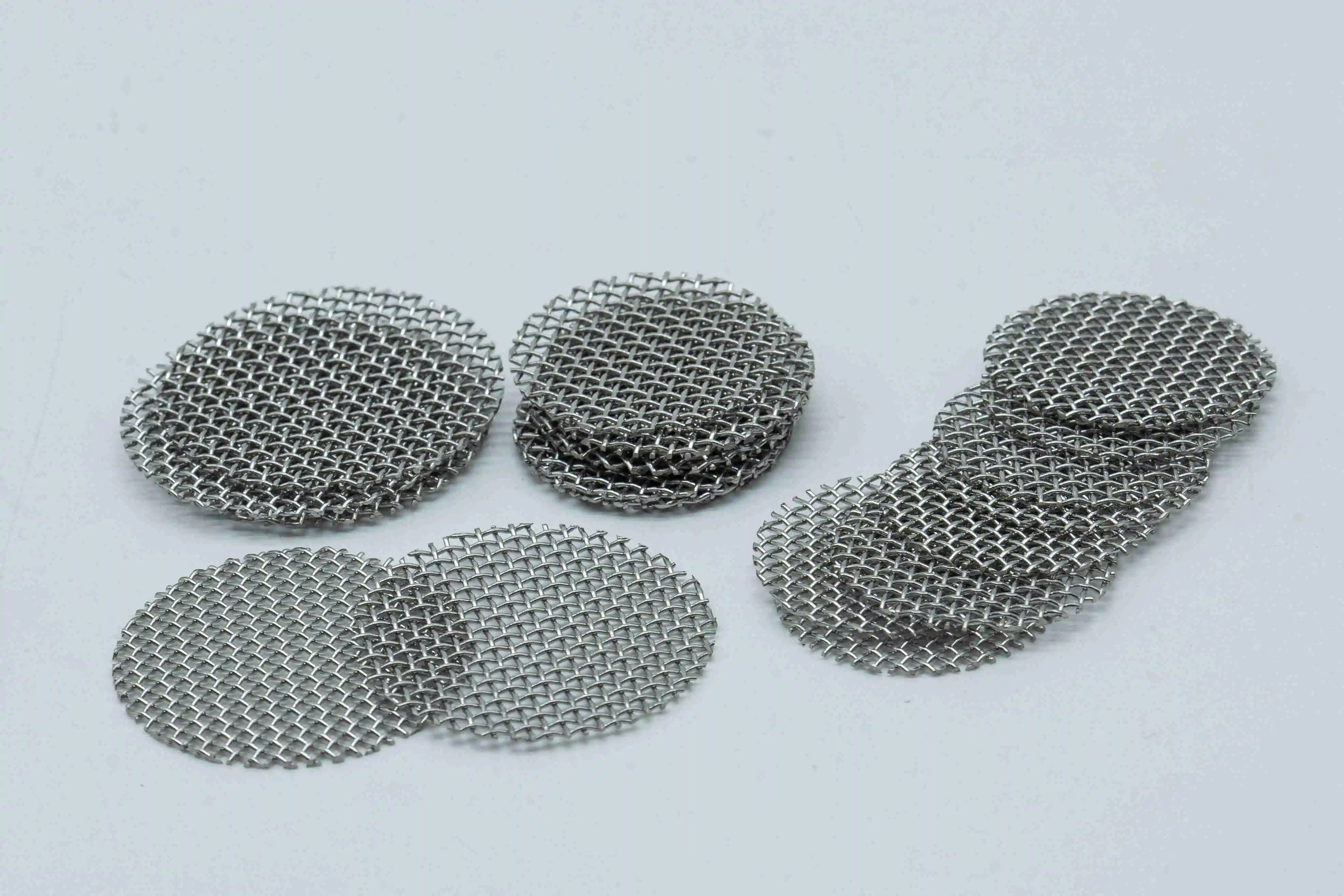

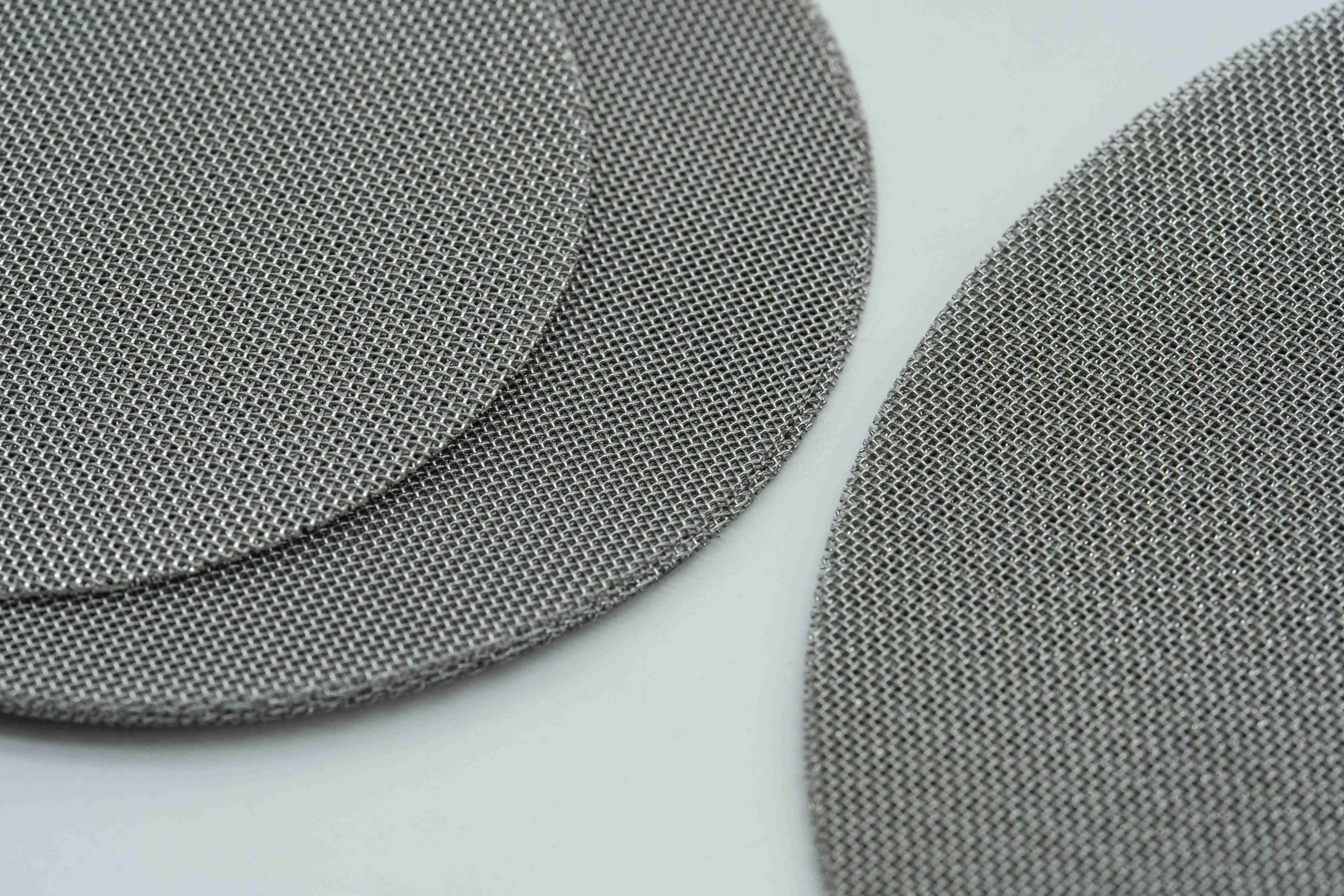

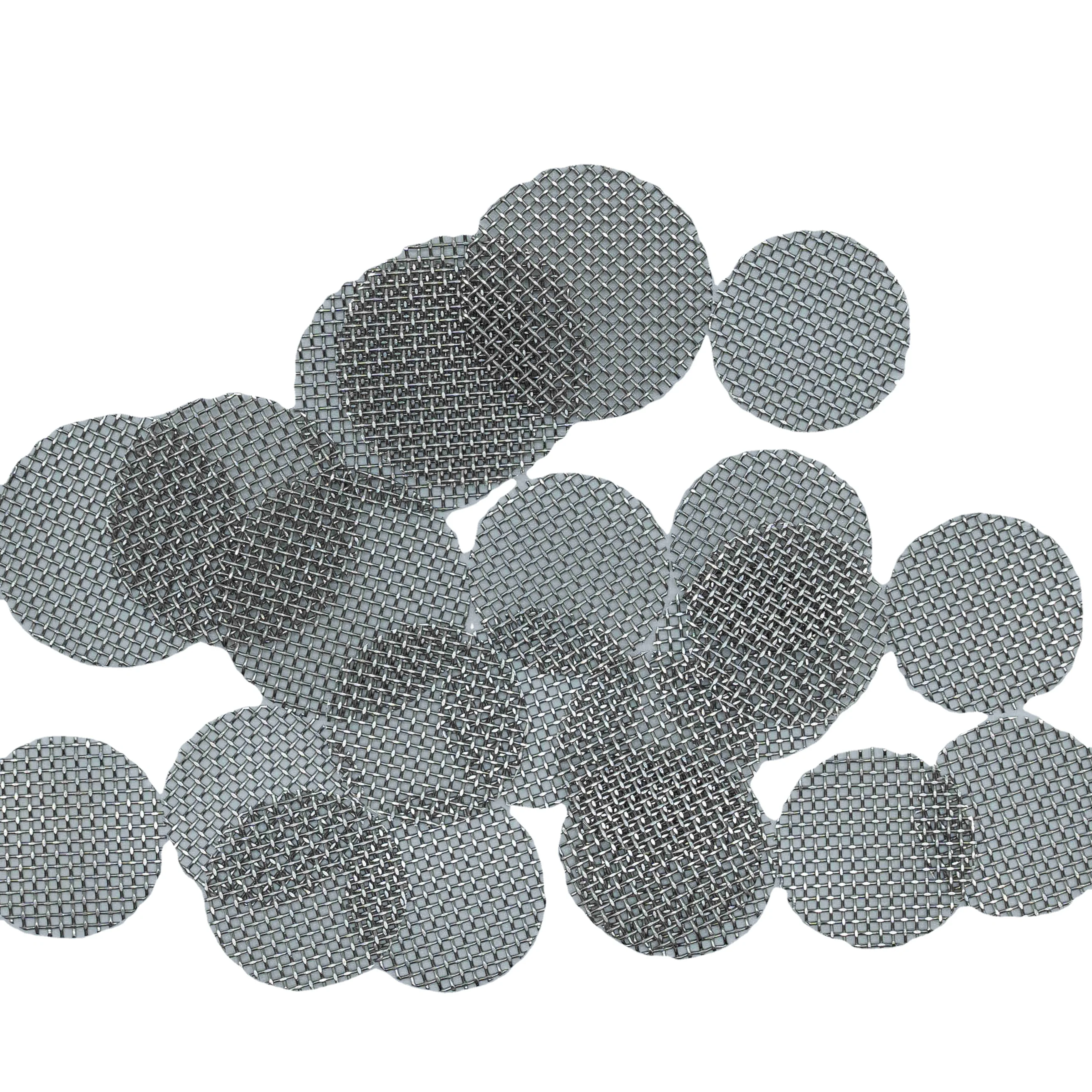

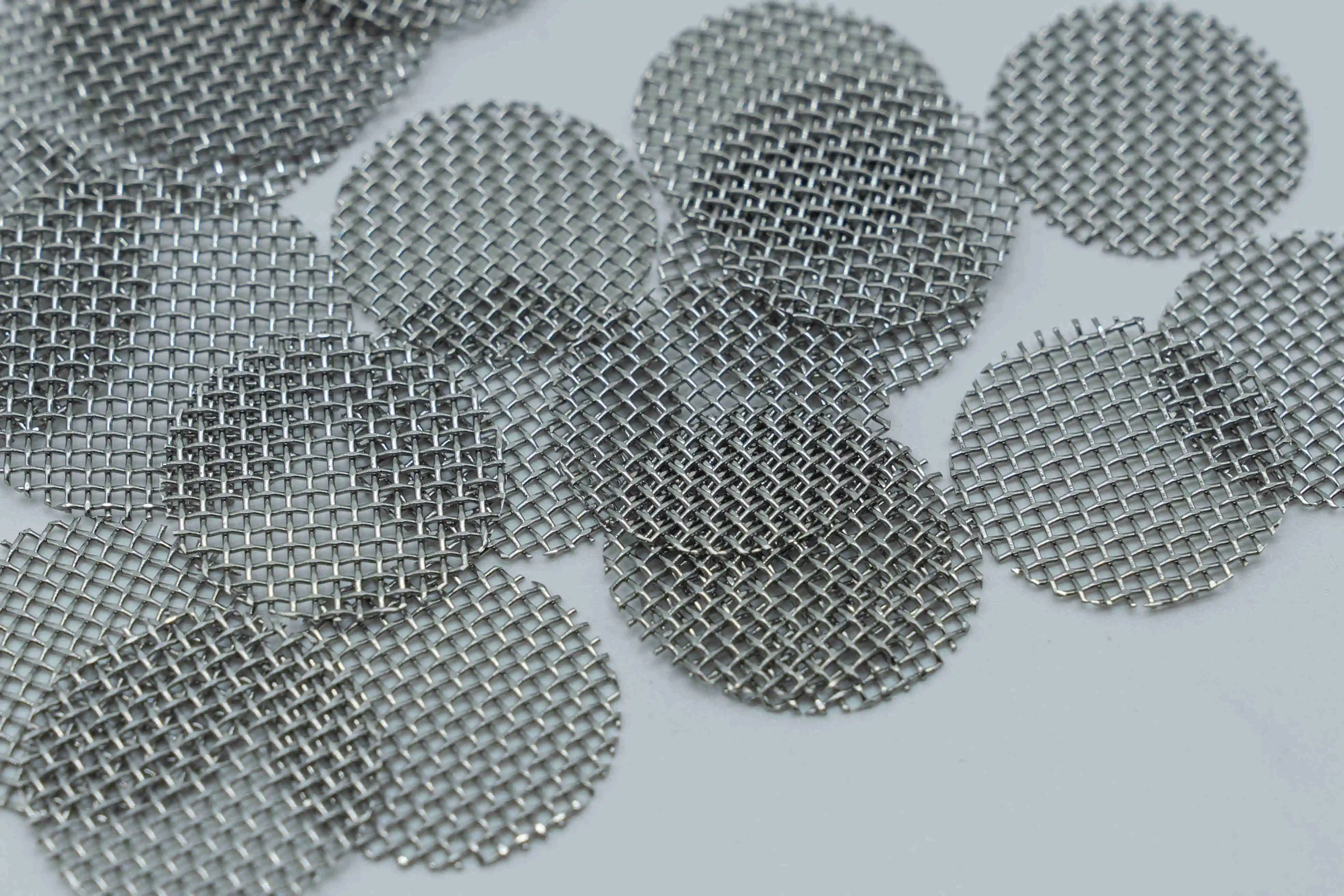

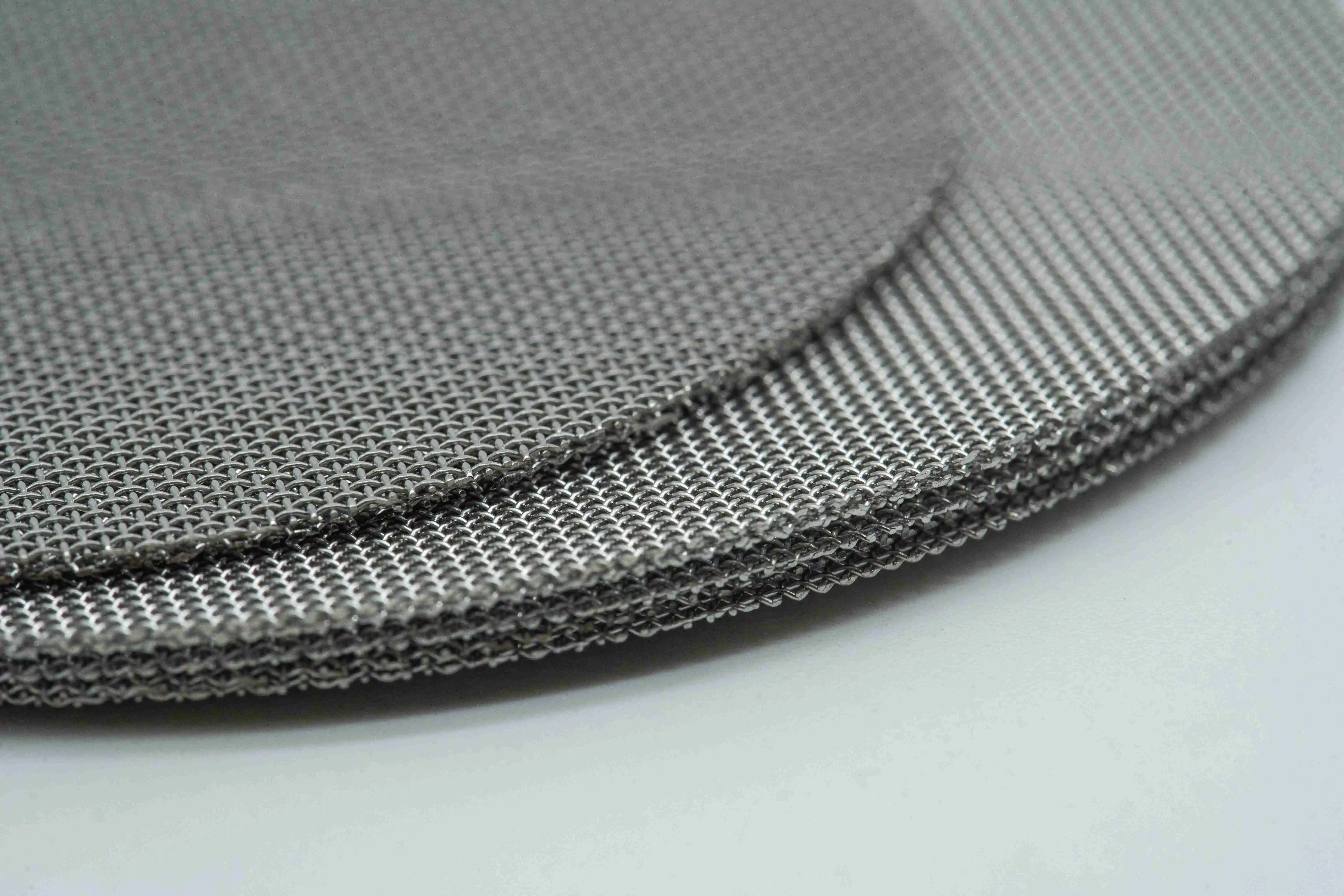

Mesh discs are ready-for-installation flat discs made of metal mesh. Mesh discs serve as spare parts for rescreening filter plates
in horizontal centrifugal filters or as fitted components in filters for polymer filtration. In large sizes, they are used as
fittings in air separation systems and chemical equipment. They are manufactured to specified dimensions using plasma/laser
cutting or punching technology. Besides dimensional accuracy, the cleanliness of the mesh discs is a particularly important
quality criterion. Depending on customer requirements, the meshes are cleaned with ultrasound and degreased prior to processing.
The flatness of the mesh discs is guaranteed by special pretreatment of the mesh prior to cutting. Clean and safe edges are
ensured by adapting the cutting system settings and tools accordingly. Leaf disc filters are used as filter or screen elements in
the most diverse of applications. Typical areas of application include the filtration of extruded polymers and use as elements in
solid-liquid or air filtration applications. Filter discs are generally used as filter elements in static filters or in
centrifugal filters. Formed filters are used as semi-finished products in the production of complete filter inserts or filter
elements.

Production through laser/plasma cutting, punching or cutting to size Safe edges Processing of all available fabrics Framed,
spot-welded and sintered multi-ply leaf disc filters Highest level of cleanliness thanks to pre-cleaning and post-cleaning
Single-direction and bi-directional filtration Frame and plate designs Punching, forming, embossing and welding technology
