Serial Device Servers RS232/RS485/RS422 Serial port to TCP/IP Ethernet network communication converter





Introduction

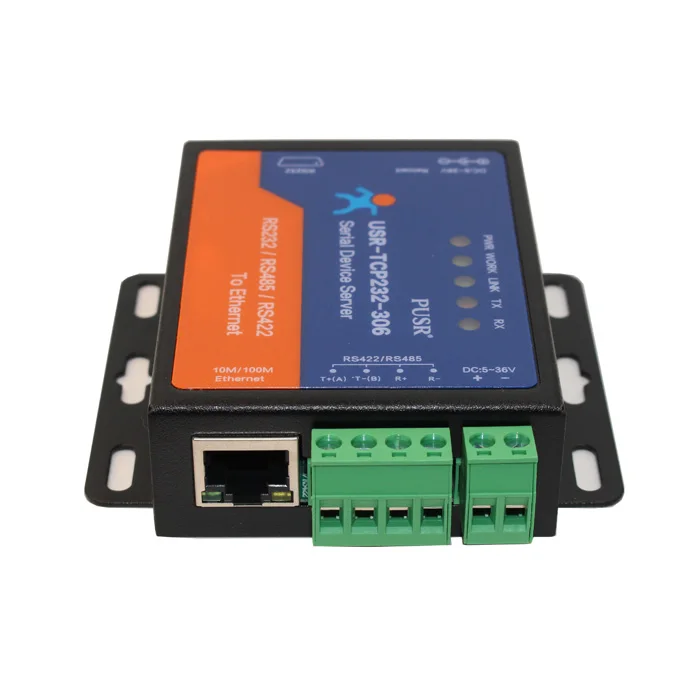

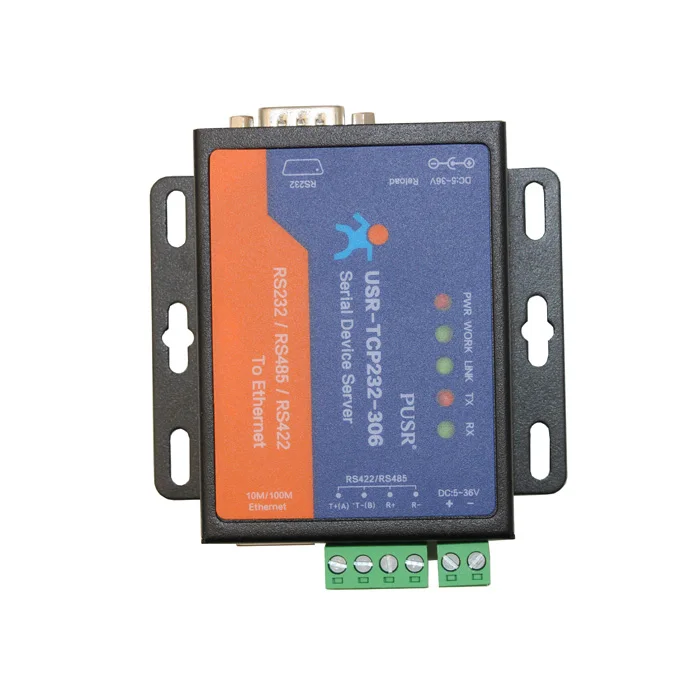

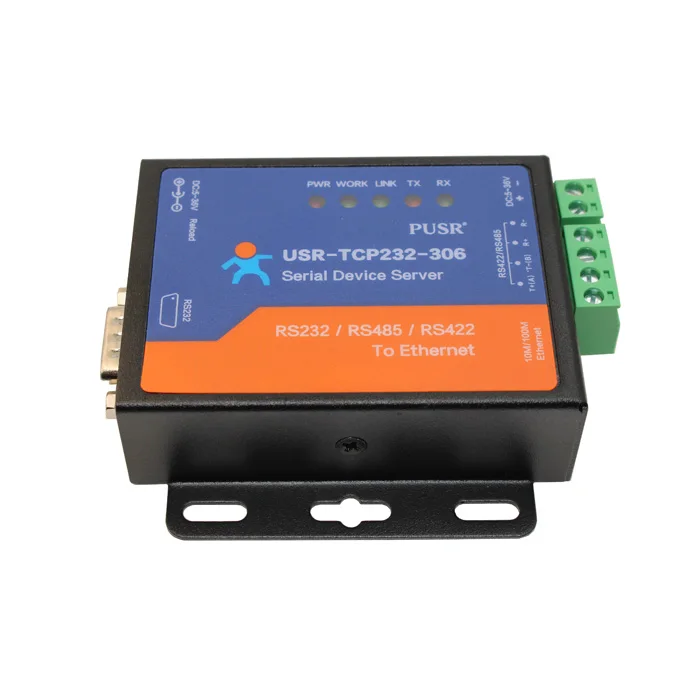

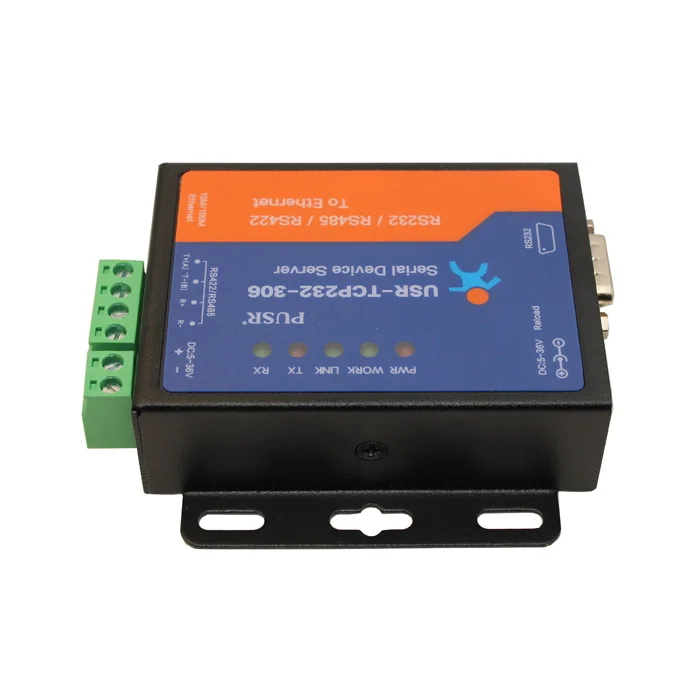

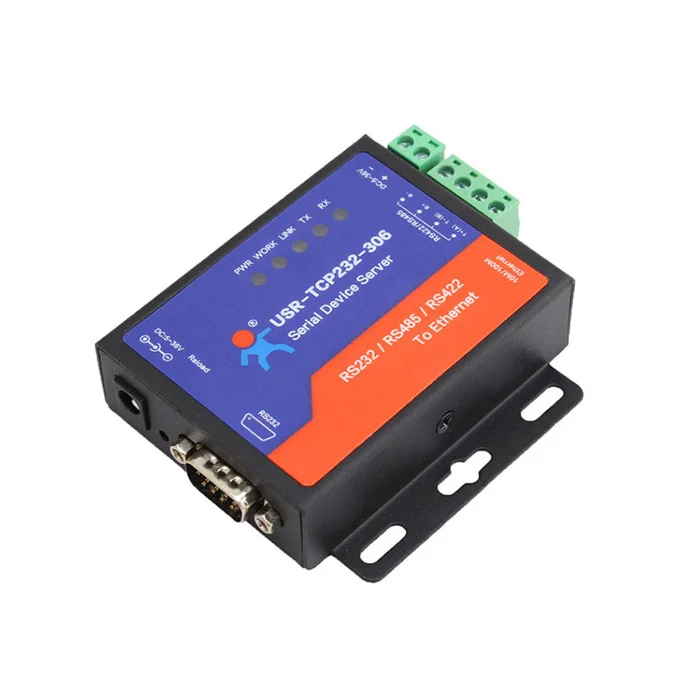

WST-TCP232-306 is a serial RS232, RS485 or RS422 to Ethernet server, used for data transparent transmission. It’s a low-cost serial device server, whose function is to realize bidirectional transparent transmission between RS232, RS485 or RS422 and Ethernet. It’s internally integrated with TCP/IP protocol. User can apply it to device networking communication.
RS232/RS485/RS422 (not use simultaneously)
Wide power supply 5-36v DC
httpsD client mode, sends serial data in https format
Support TCP server/client, UDP server/client,Virtual COM



Feature

Chip solution	Atmel, work temp at -20~75C
Power Supply	DC/Terminal type 5V~36V
Serial Port	Supports RS232/RS485/RS422, can't be worked at one time
Work Mode	TCP Client/TCP Server/UDP client/ UDP server/HTTPD client
Basic Function	DHCP/DNS/Webpage
Baud rate	600~230.4K bps
Certification	CE/FCC/RoHs/WEEE

Point 1

1.Can work in LAN, also across the Internet by router
2.Restore factory defaults by hardware and software
3.TCP Server mode, max 16 TCP Clients can connect with it

4. Support firmware upgrade via network

Point 2

1.Heartbeat packet, ensure connection reliable
2.Register packet, check connection status and use as custom packet header

3.Query IP address through serial setting protocol



Characters

Serial Port	RS-232 / RS-485 / RS422

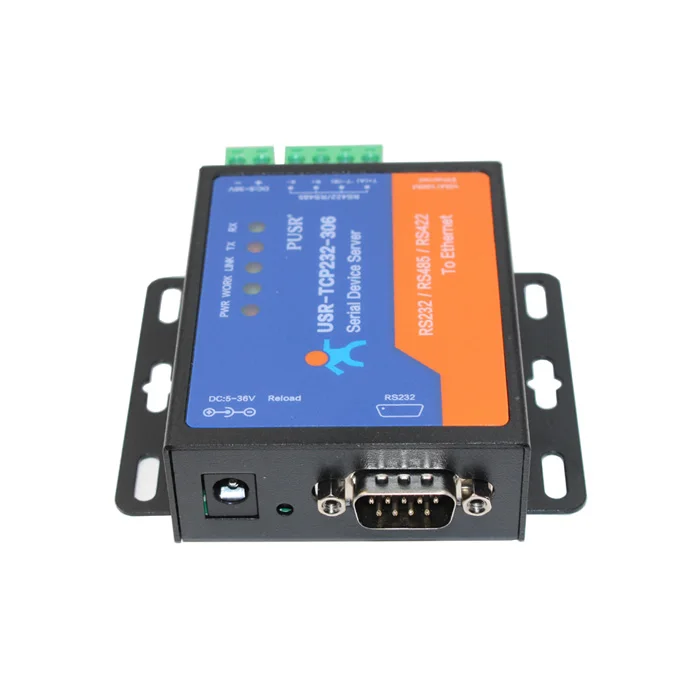

Port Type	RS-232: DB9 male port; RS-485: A+/B; RS422: TX+/TX-/RX+/RX-
Baud Rate	600 bps ~230.4K bps
Data Bit	5/6/7/8
Stop Bit	1/2
Buffer	Receive: 2K bytes;
Flow Control	Not this function
Protect	RS-485: ESD/lightning protection/ 2KV electric static protection



Ethernet	1 Port
Speed Rate	10/100 Mbps, MDI/MDIX
Buffer	Receive: 4K byte / Send: 6K byte
Protection	2 KV Electromagnetic isolation for Ethernet port
Network Protocol	IP/TCP/UDP/DHCP/DNS/HTTPD client
Power Supply	DC 5-36 V (ESD/ Surge prevention)
Work Temp	-25~75C
Software	Setup/Virtual COM

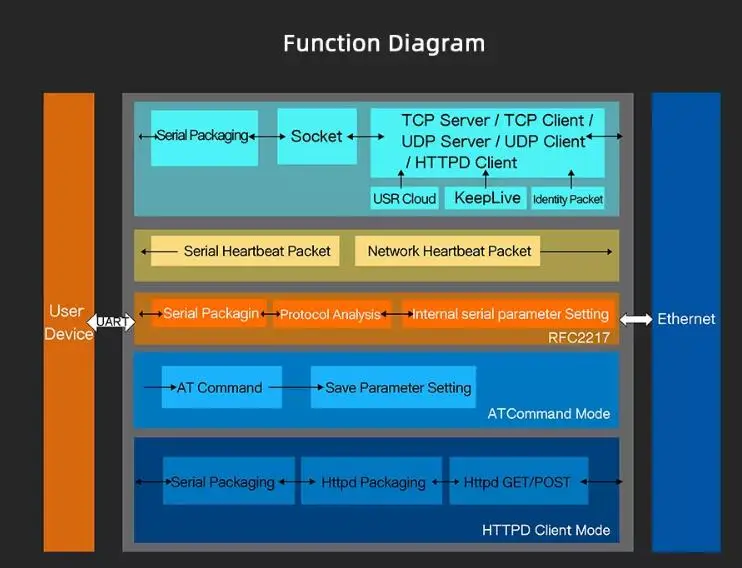

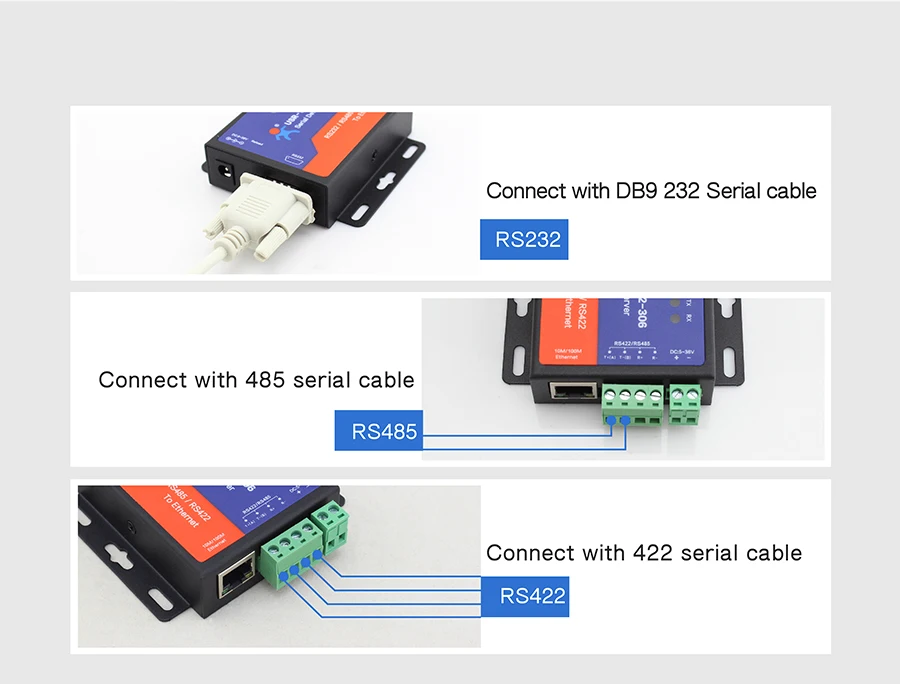

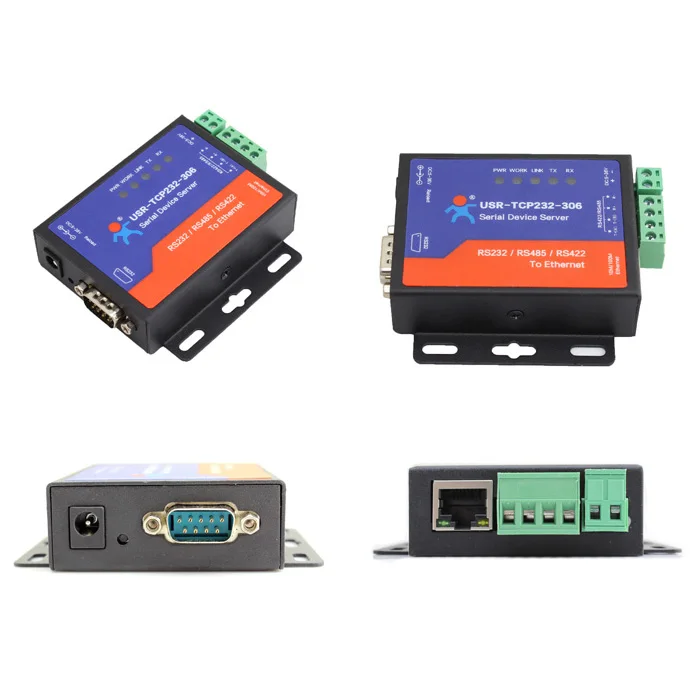

RS232/RS485/RS422 Optional
