Product Overview
Description
Product Description

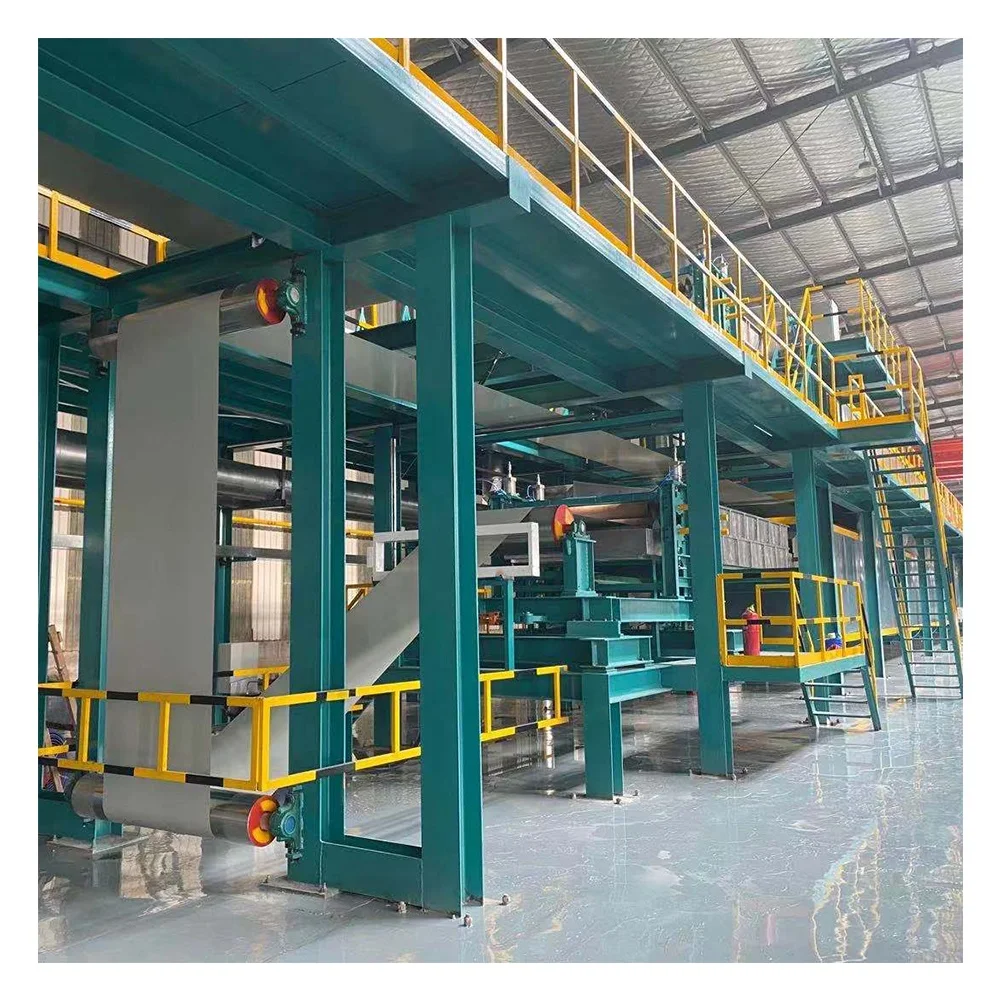

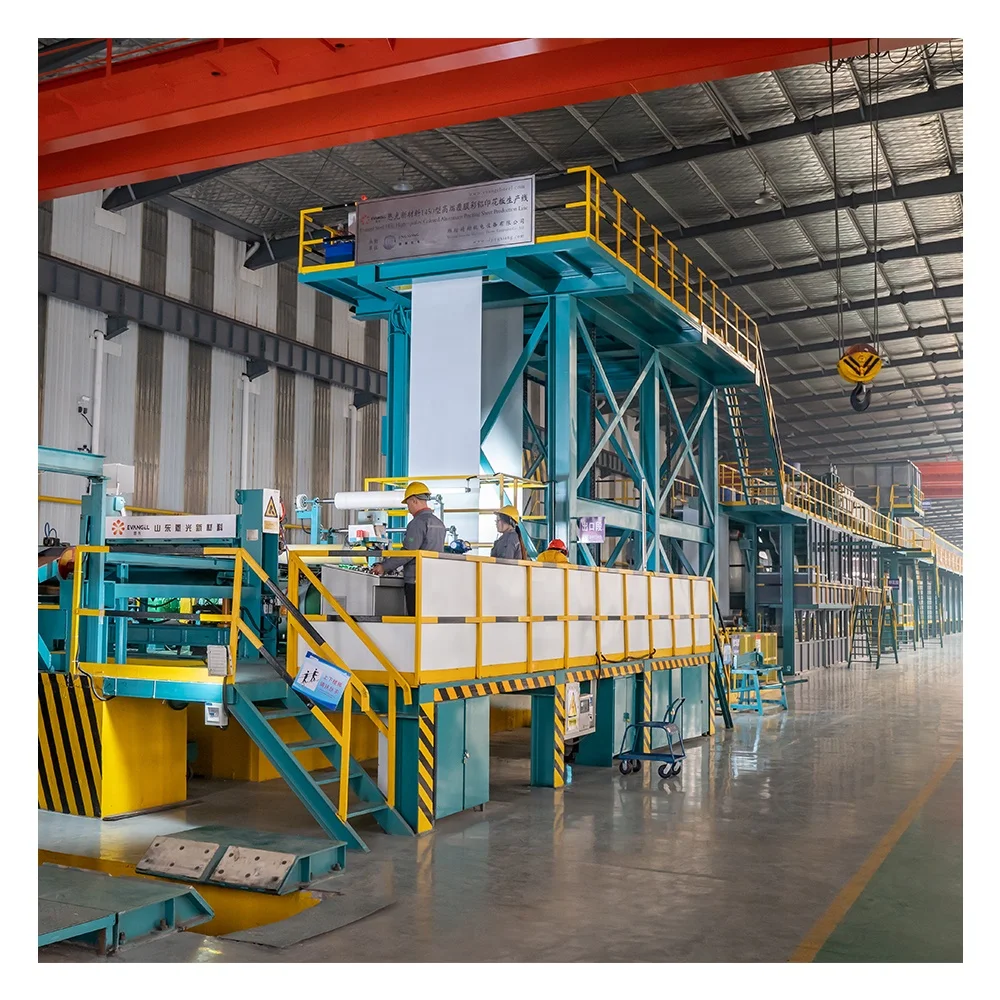

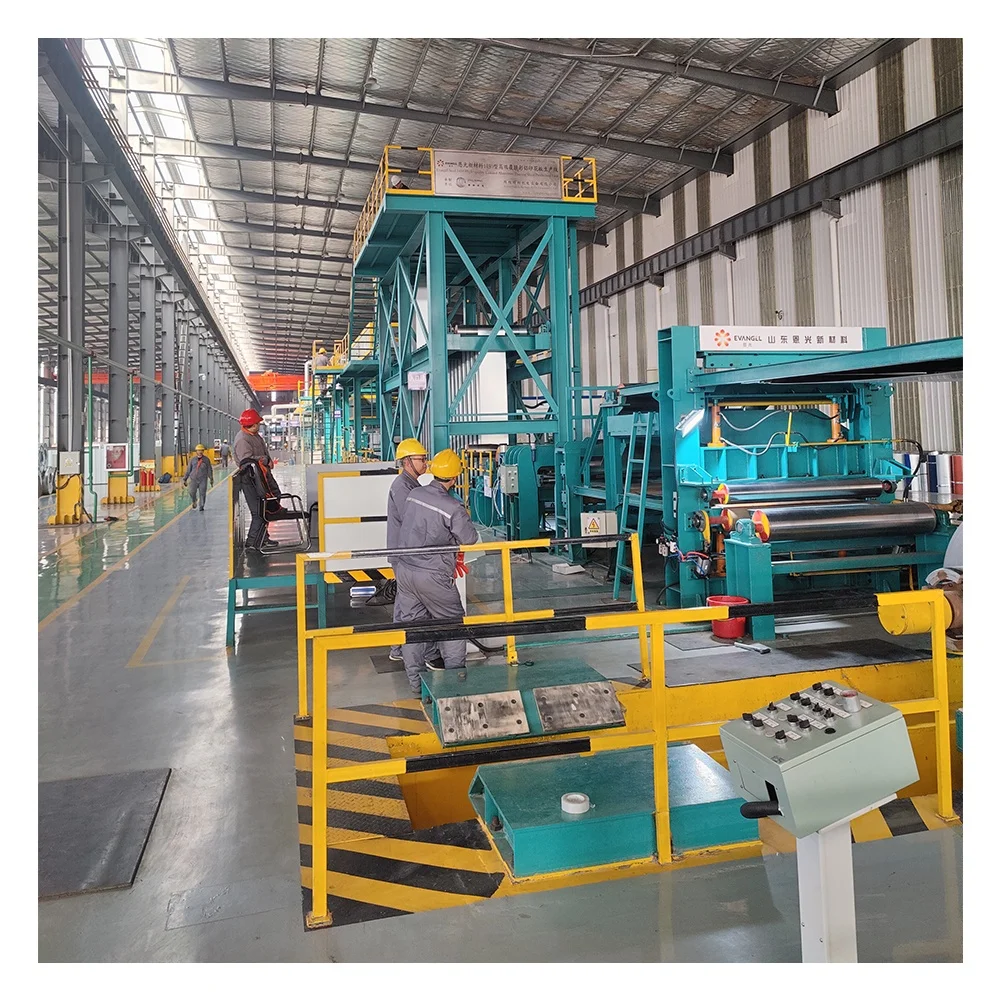

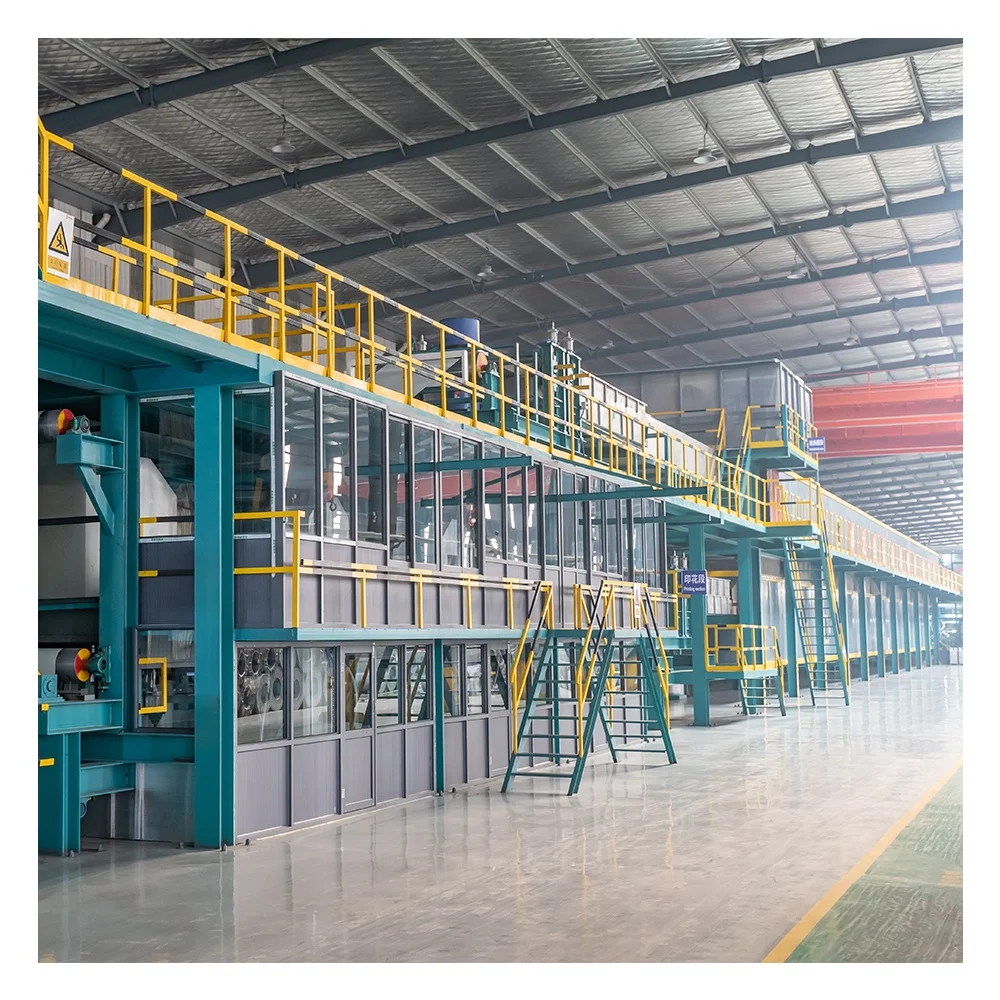

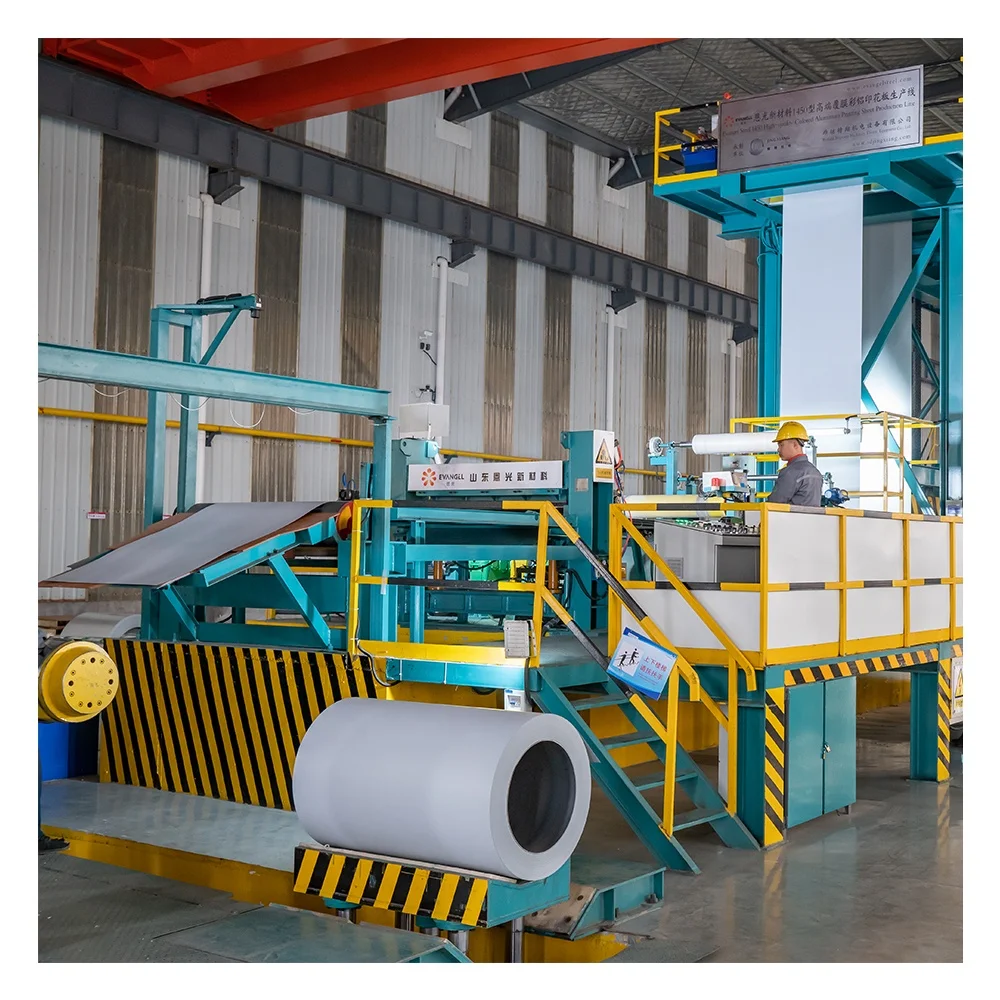

Color coating machine manufacturer equipment for continuous coating of metal sheet
This production line is used to produce color coating coil, which is mainly based on cold rolled plate, galvanized steel plate and aluminum alloy plate.
This kind of plate has advantages of corrosion resistance and decoration, as well as directly providing raw material for construction industry, automobile manufacturing, electric and others.
It is practical, reliable and mature, client can produce stably and run in the long term, production capacity from 30,000 to 250,000 tons per year.
This kind of plate has advantages of corrosion resistance and decoration, as well as directly providing raw material for construction industry, automobile manufacturing, electric and others.
It is practical, reliable and mature, client can produce stably and run in the long term, production capacity from 30,000 to 250,000 tons per year.
Product Specification
Raw Material | Electro-galvanized plate, hot-dip galvanized plate, hot dip AL-ZN plate, cold-rolled steel plate, Aluminum Coils etc. |
Thickness | 0.1~2.0mm |
Width | 600~1650mm |
Process Speed | Max 220m/min |
Production Capacity | Max 250,000tons/year |
Coating Thickness | 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required) |
Energy Type | Natural Gas, LPG, Electricity |
Product Grade | Construction plate, decoration plate and household appliance plate |
Processing Procedure
Hand-feeding---uncoiler unit---shear---sewing machine---front looper---alkaline washing unit---water washing unit---hot-air blowing device---chemical roller-coating machine---chemical-coating drying furnace---prime-coat roller-coating machine---prime-coat curing furnace---air cooling---water cooling---drying---top-coating roller-coating machine---top-coating curing furnace---air cooling---water cooling---drying---printing machine unit(preserved location)---over-coat roller coating machine---over-coat curing furnace---hot film laminating machine---over coat(laminated film)forced cooling room---drying---cold
film laminating machine---rear looper---shear servo coiler unit---hand blanking
film laminating machine---rear looper---shear servo coiler unit---hand blanking
Detail Image
Color Coating Machine
To guarantee precise coating, the coating machine can coat the steel plate by means of direct coating, reverse coating or whole reverse coating.
The front face and the back face of the steel plate can be coated simultaneously, and the heads of the two coating machines for the front face and back face all have drive equipment.
The front face and the back face of the steel plate can be coated simultaneously, and the heads of the two coating machines for the front face and back face all have drive equipment.
Plate Shear
The plate shear is used on the uncoiling and leveling line of plates and it is a high-speed plate shear designed to match the fast speed and shearing requirements of the production line. The thick plate lines most have hydraulic high-speed shears and the thin plate line most have electric and pneumatic plate shears.
Sewing Machine
The machine is dedicated equipment applicable to the head-tail connection of plates and strips in the production line of coating and galvanizing of steel plate, copper plate, aluminum plate, galvanized plate and various plate strips, and is composed of steel-structure body, mold, synchronization system.
Tension Bridle
The tension bridle device is a kind of equipment used to implement tension regulation on the continuous production line of strips.
The principle is as follows: the strip steel is winded on the tension bridle and generates friction on the winding contact, making the outlet tension and inlet tension change according to some rules for this reason, and the tension value is thus changed to implement tension control of the unit.
The principle is as follows: the strip steel is winded on the tension bridle and generates friction on the winding contact, making the outlet tension and inlet tension change according to some rules for this reason, and the tension value is thus changed to implement tension control of the unit.
Packing & Delivery
PE film wooden box or as clients requirements.
Company Profile
Qingzhou Reachfly Environment Technology Co., Ltd.
Our company covers over 36,000 square meters, has more than 150 designers, manufacturing and installation personnels and owns all kinds of clipping, cutting, grinding, and drilling machines. More than 15 production lines can be designed, manufactured and installed every year by us.
Why Choose Us
√We are the leading manufacture of metal coating machines in China, and we can give you the best price. We warmly welcome you to visit our factory at any time.
√We have professional design engineers who can design and customize production lines according to your requirements.
√Professional installation, good after-sales service and rich installation experience.
Pre Sales Service:
1) The Machine Layout will be designed according to your factory conditions.
2) Providing a Sample Project for customer to visit.
3) Machine Manufacturing progress (with some photos).
3) Machine Manufacturing progress (with some photos).
After Sales Service:
1) Tracking the running condition of machine.
2) Provide 12 months guarantee as well as full spare parts for free.
3) Life long technical support.
4) Installation and training service.
3) Life long technical support.
4) Installation and training service.
FAQ
1. Do you offer custom service?
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
