GENZO заводской инвентарь Android 11 4G RFID водонепроницаемый мобильный терминал данных промышленный ручной прочный PDAS
- Category: PDAs >>>
- Supplier: Shenzhen,Genzo,Technology,Co.,Ltd
Share on:
Product Overview
Description
10 Years Old Store Upgraded & Reopened
Product Description
Hardware | ||
CPU | MT6762 (8core) 4*A53 2.0GHz + 4*A53 1.5GHz | |
GPU | IMG GE8320 650MHz | |
RAM/ROM | LPDDR4X up to 4GB (dual channels with 16-bit data bus width)/ 64GB Emmc | |
External Memory | Support TF*1,MAX 128GB | |

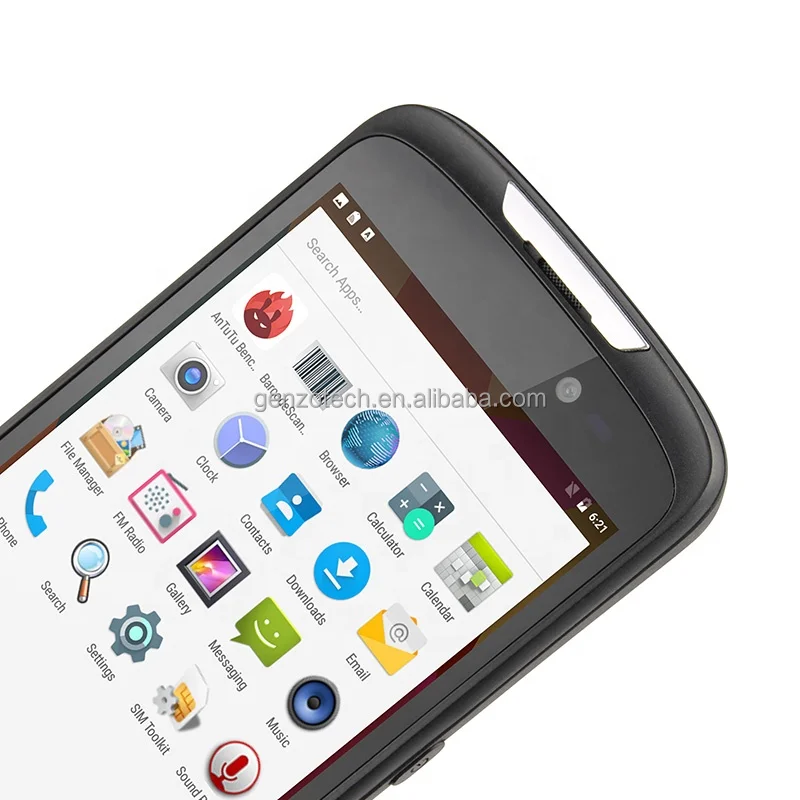

LCD Display | 5“ 16:9,720*1280 IPS LCD,300 nits | |
Touch Panel | 5 point G+F capacitive touch screen,Corning® Gorilla® Glass | |
Camera | Front:5.0MP, Rear13.0MP automatic focusing with astigmatism， PDAF support | |
Battery | 3.7V/4000mAh. Removeable polymer lithium ion battery | |
Speaker | Embedded 8Ω/0.8W waterproof speakerx 1 | |
Audio amplifier | Built-in Class K power amplifier | |
Real Time Clock(RTC) | Built-in | |
Sensor | light Sensor *1,Geomagnetic sensor *1,Ggyroscope *1,G_sensor *1 | |
Data Collection & Networking | ||
Barcode Scanner | Built-in 2D Zebra4710 | |
NFC | Built-in 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092 | |
BT | BT5.0(BLE) transmission distance：10m | |
WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI,Support AP seamless roaming | |
4G | GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/7/8/13/17/20/28AB)+TDD(B38/39/40/41) | |
GPS | Support GPS+Glonass+Beidou(G+G+B) | |
OS | Android 10/11 with GMS | |
I/O Port & Appearance & Package | ||

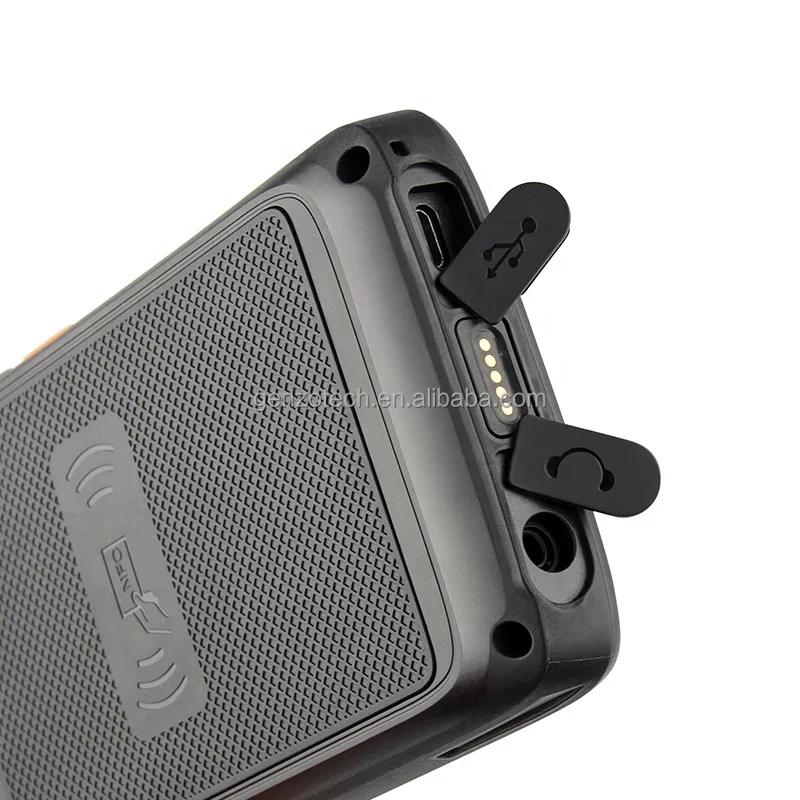

I/O Port | USB Type-C x 1, SIM Card x 1, TF Card x 1, 4Pin machine buttom x 1 Φ3.5mm standard earphone jack x 1 | |
Dimension | 157.4*74.6*24.2mm | |
Weight | Device unit: 260g. | |
Package | USB Type-c cable/Hand-strap/Charger 5V 3A/Packing box（Can be customized logo) | |
Certificate System & Reliability Design | ||
IP67/IP65 | IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X a.nozzle inner diameter：6.3mm； b.water-carrying capacity：12.5±0.625L/min； c.water pressure：adjust according to specified water-carrying capacity； d.central part of main water flow Away from the nozzle 2.5 m diameter about 40mm circle； e.water spray time for outter shell per a square meter：about 1min； f. test time：at least 3min; g.distance from nozzle to outter shell surface：2.5～3m. after tested,check sample and no water inside situation | |
CE NB | YES | |
MIL-STD-810G | YES | |
Battery | UN38.3，MSDS, IEC62133 | |
Drop Height | MIL-STD-810G 1.22m drop | |
Operate Temperature | ‘-10 °C to 50 °C | |
Store Temperature | ‘-20 °C to 60 °C | |
Humidity | Humidity: 95% Non-Condensing | |
Details Images
Optional Accessories

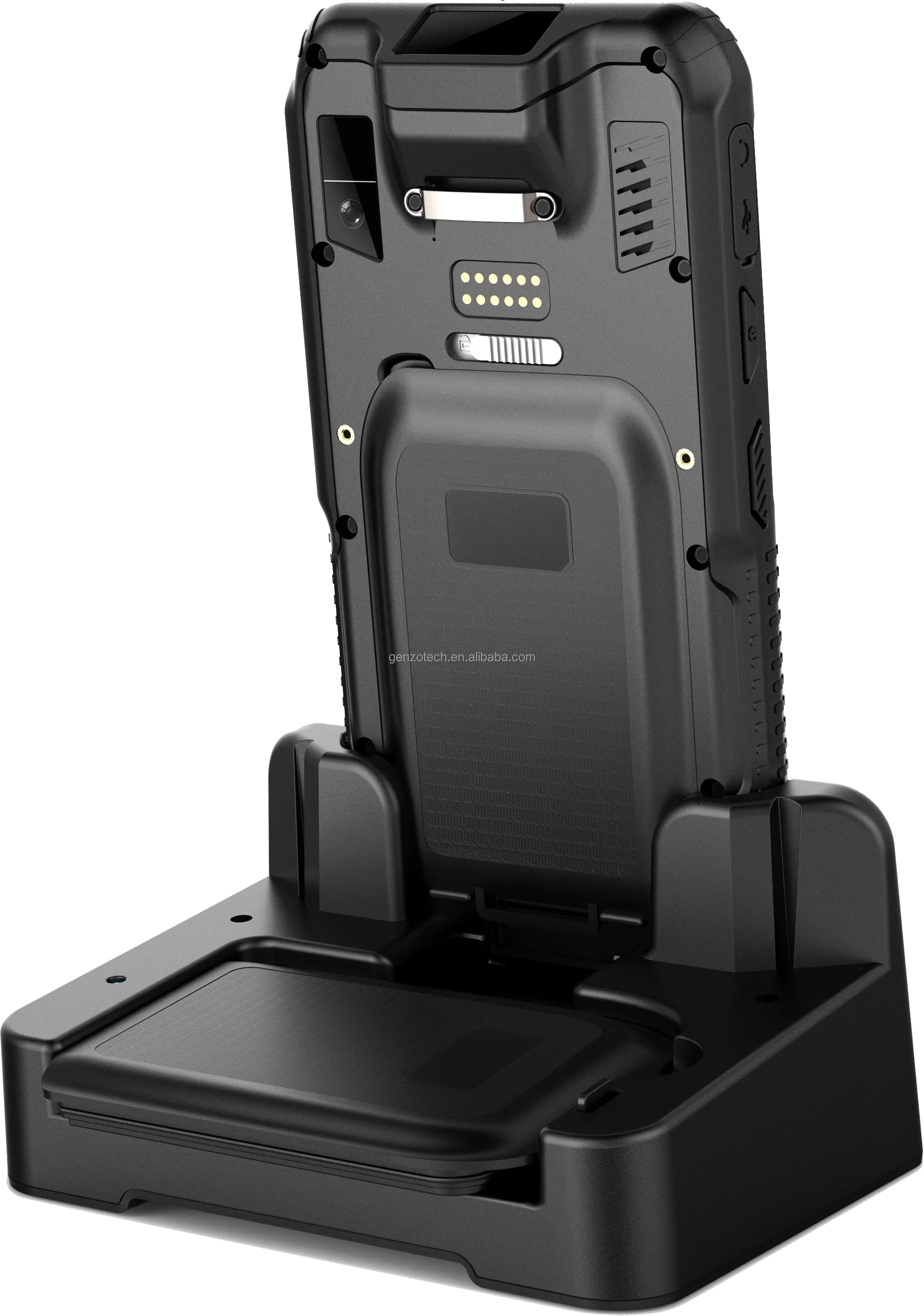

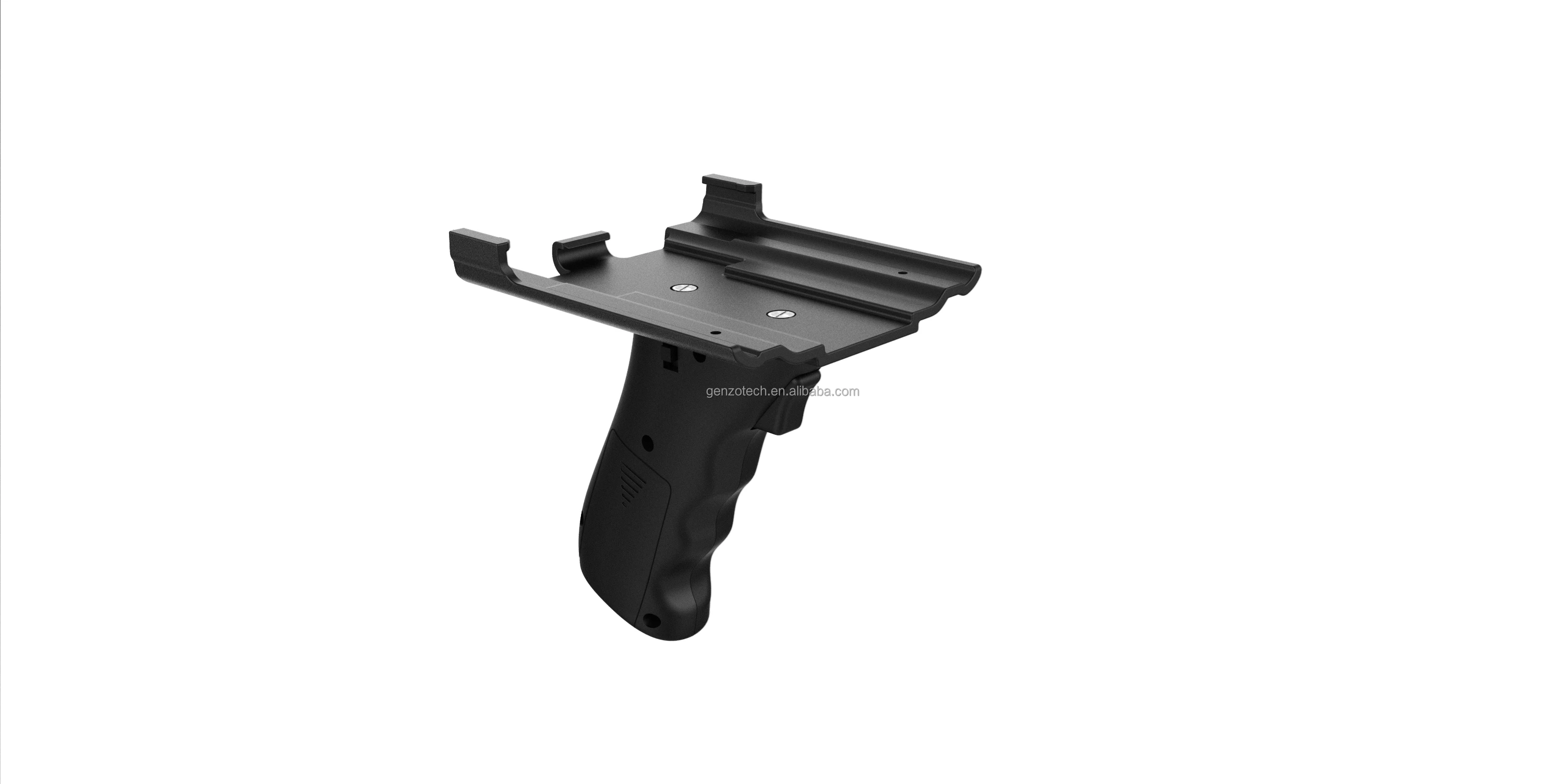

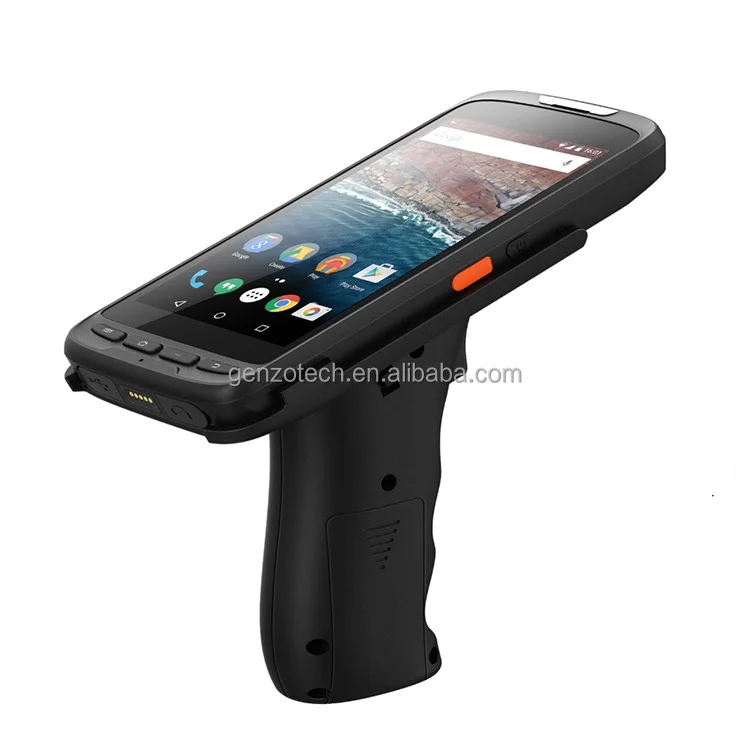

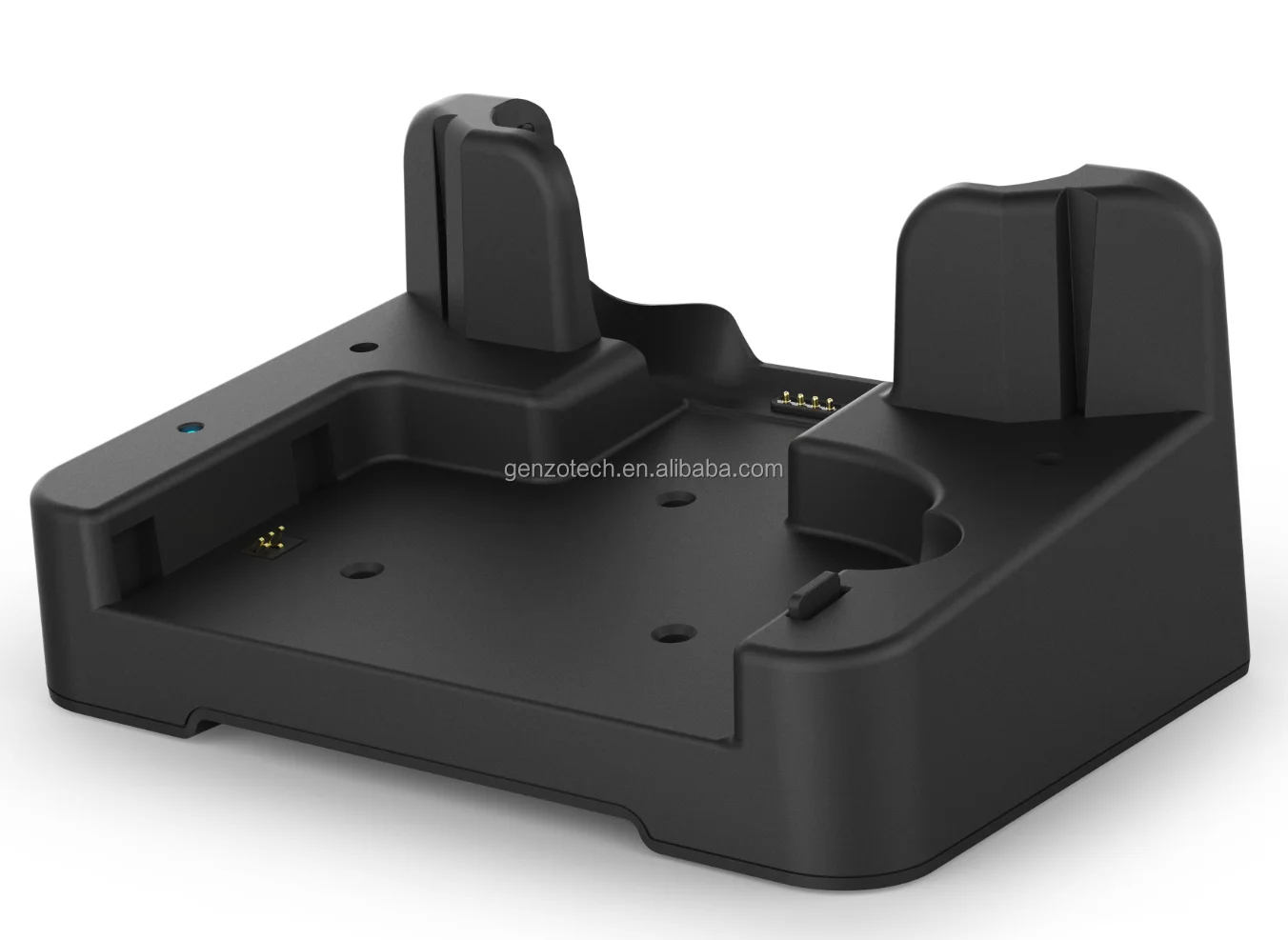

Docking Charger, Scanner Trigger, Vehicle Mount, Battery
Vehicle Mount
Car Charger

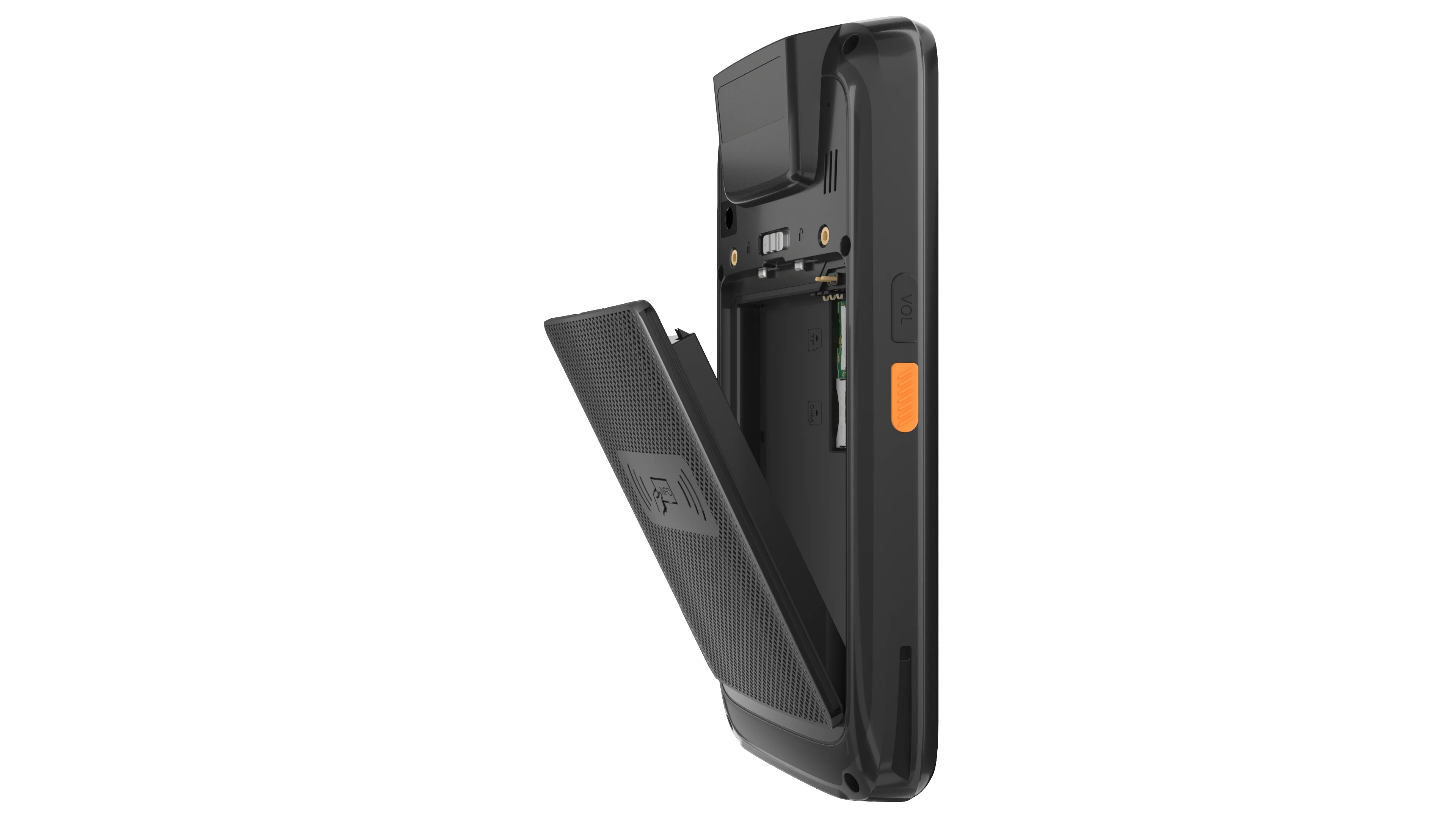

Removeable Battery
Payment & Packing &Shipping

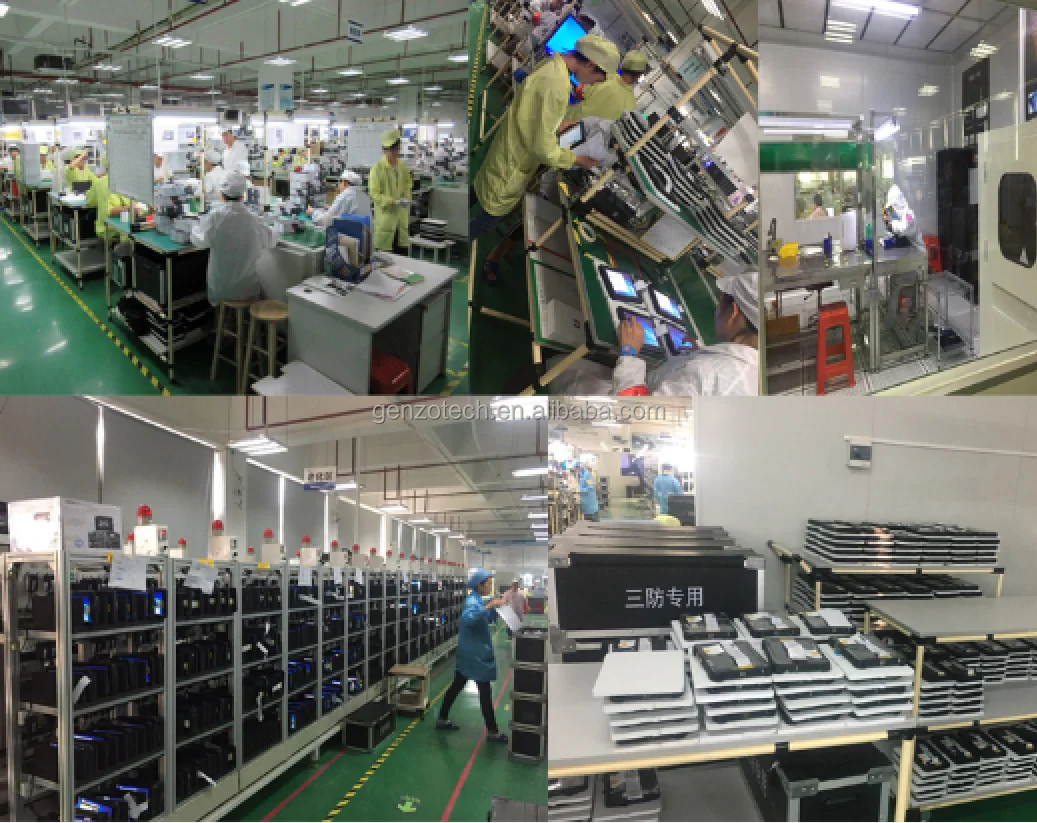

Company Introduction
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alipay online for 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alipay online for 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
