Product Overview

Description



N95 Cup Face Mask Making Machine



Machine Introduction:

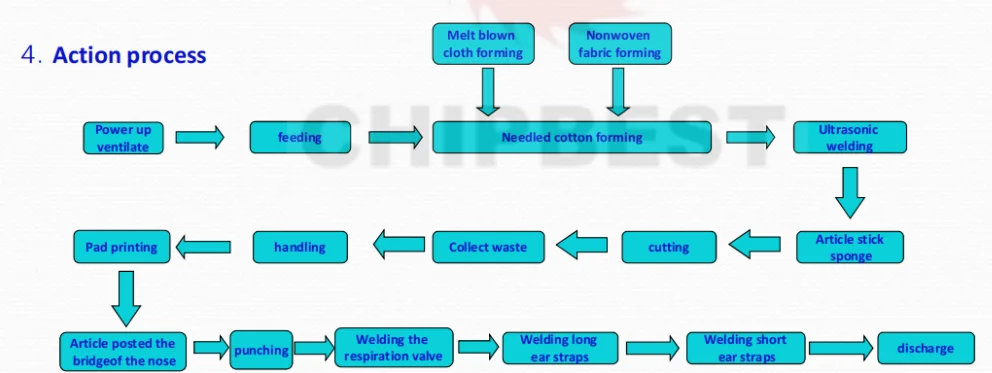

N95 Cup Face Mask Automatic Making Machine is used for automatic cup mask production line (typical model, such as N95 mask). The equipment is used for feeding the whole roll, multi-layer spunlace cloth, dissolving spray cloth and non- woven cloth roll through hot pressing molding, overlapping cold pressing, ultrasonic welding and fusion, automatic pasting foam, final mask cutting and forming, automatic hot pressing nose bridge, welding breathing valve, automatic weldingear to take out the finished product.This mask is comfortable to wear, no sense of pressure, good filtering effect, fit the shape of human face, can be applied to medical, electronics, mining, construction and other industries.



Main Features:

1.This machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2.The whole line is fully automated, with a production speed of 15-20PCS per minute, and can be produced without shutdown during feeding.
3.Melt spray can be cold pressed, the product quality can reach FPP3 grade
4.Automatic paste sponge strip, accurate and beautiful position.
5.The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
6.The equipment size is small, 3300*2200*2200/4800*1800*2200mm covers less area, convenient for air transportation.
7.Each module can be used separately, free combination
8.the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
9.PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
10.Adopt imported servo motor, imported pneumatic components, high precision.
11.The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
12.The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.

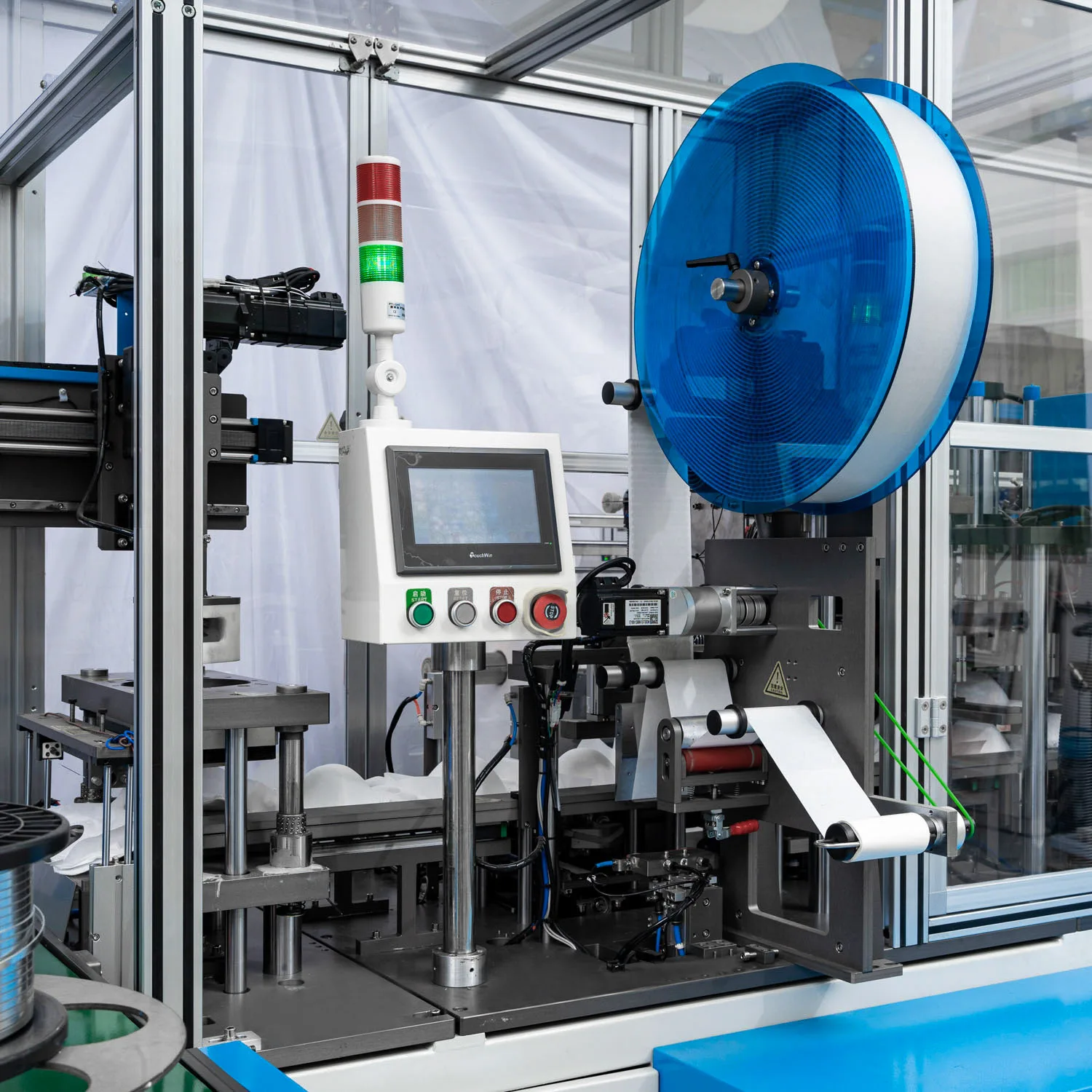

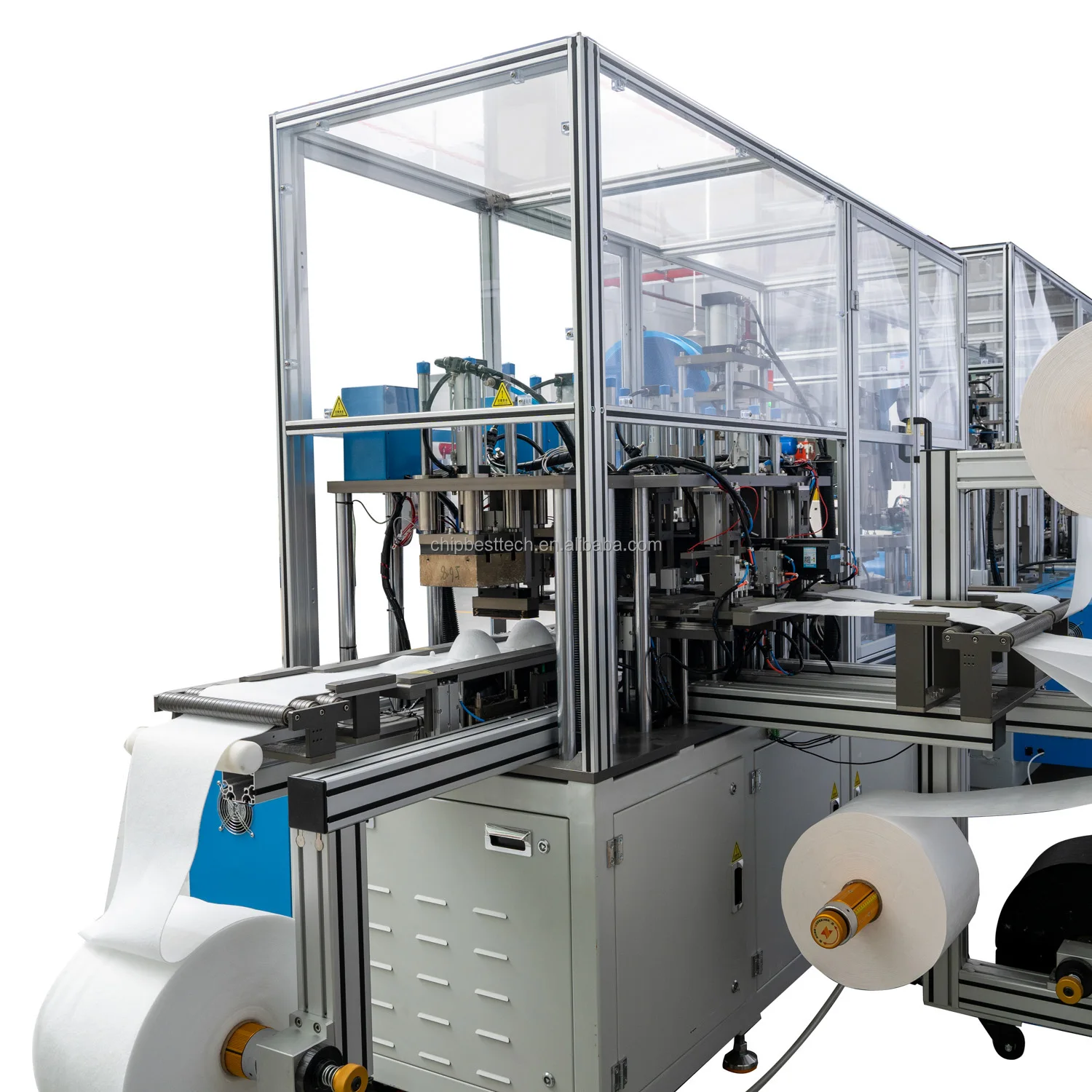

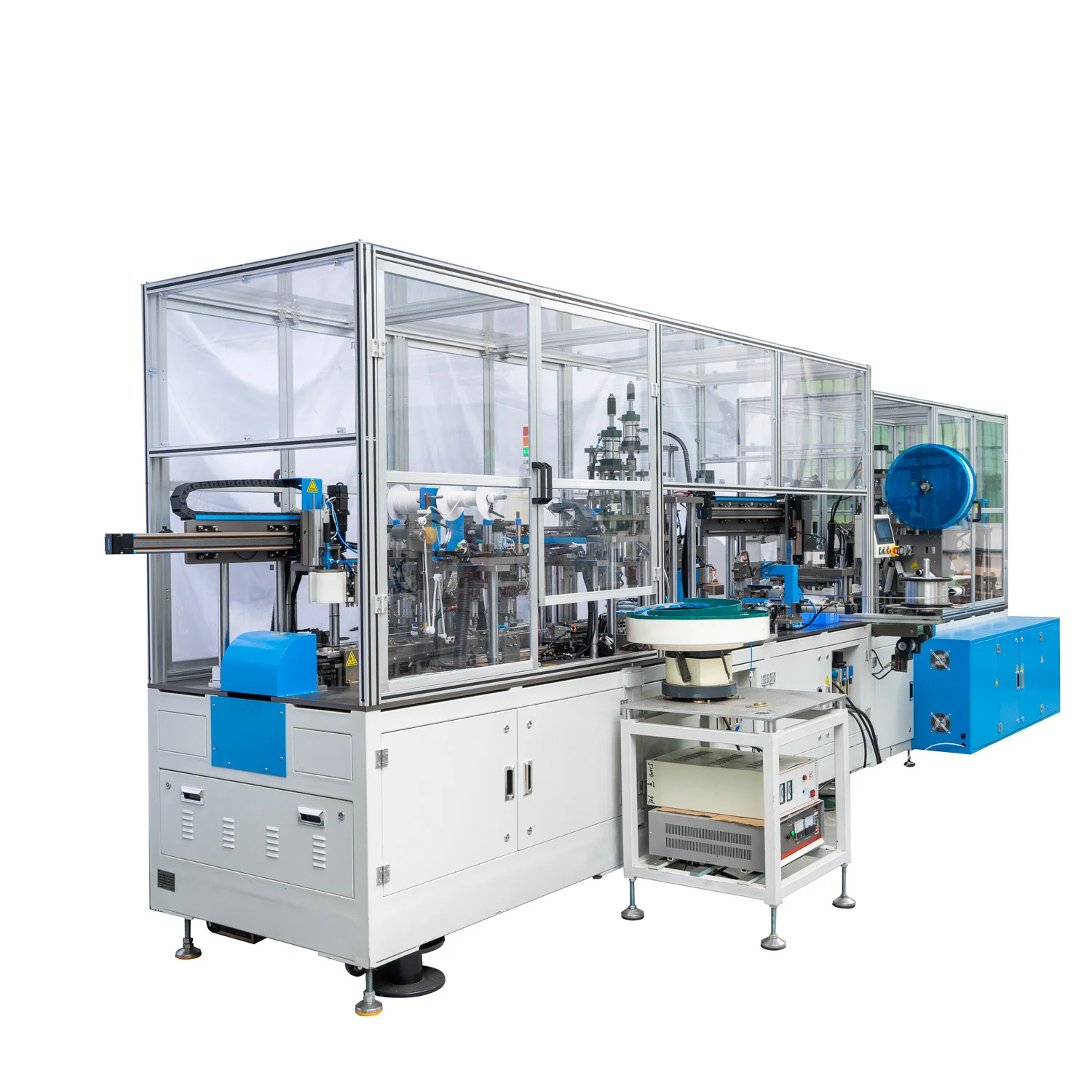

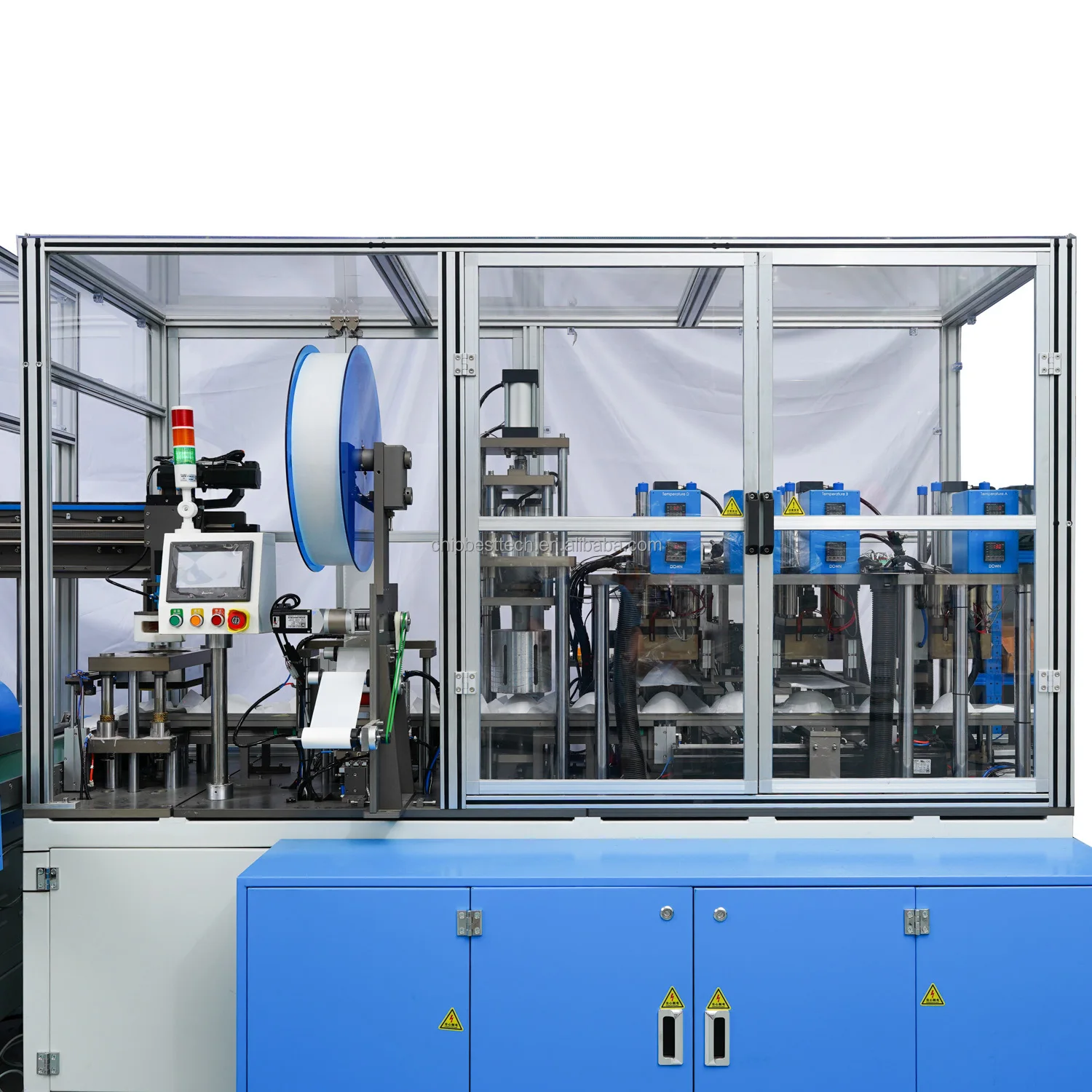

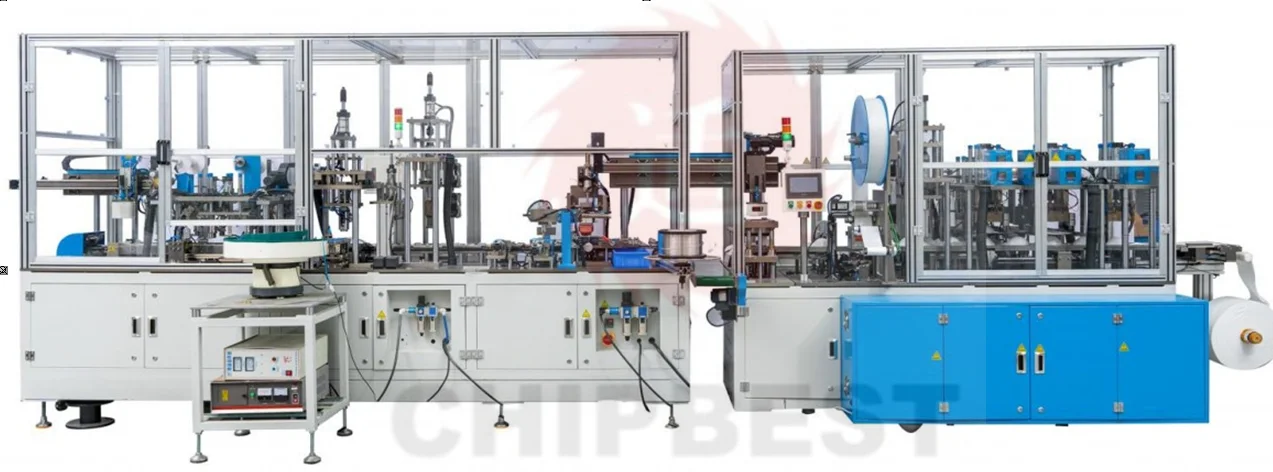

Machine Picture:

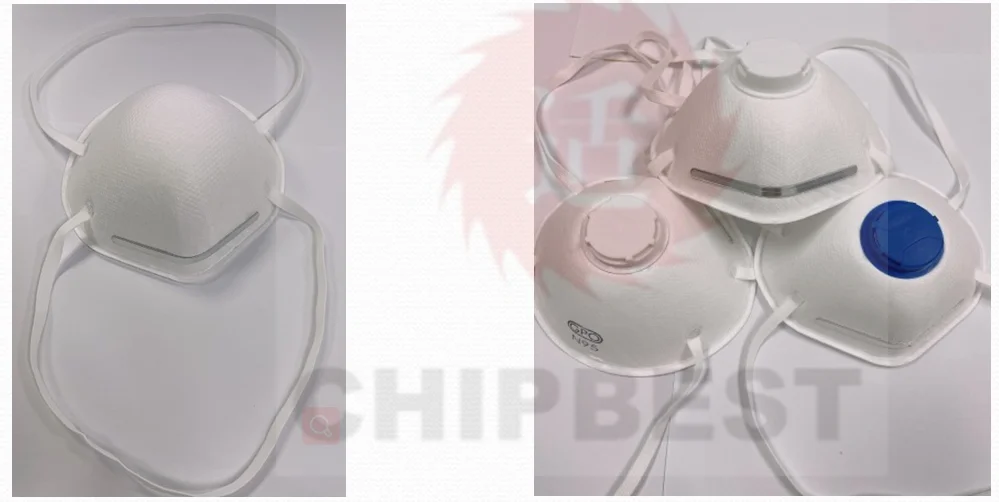

For Cup Mask Shape :



Technical Parameters :
1.Machine size length width height: 7400mm*2400mm*2200mm can be split into

2. 3300*2200*2200/4800*1800*2200mm two parts
3. Weight: Total weight 2.8T ,1.3T/1.5T after splitting
4. Voltage: AC380V 50-60Hz
5. Production efficiency: 15-20 pieces/min
6. Power: 20KW
7. Air consumption: 3.5m³/min Air pressure 0.6Mpa (suitable for 22KW air compressor)

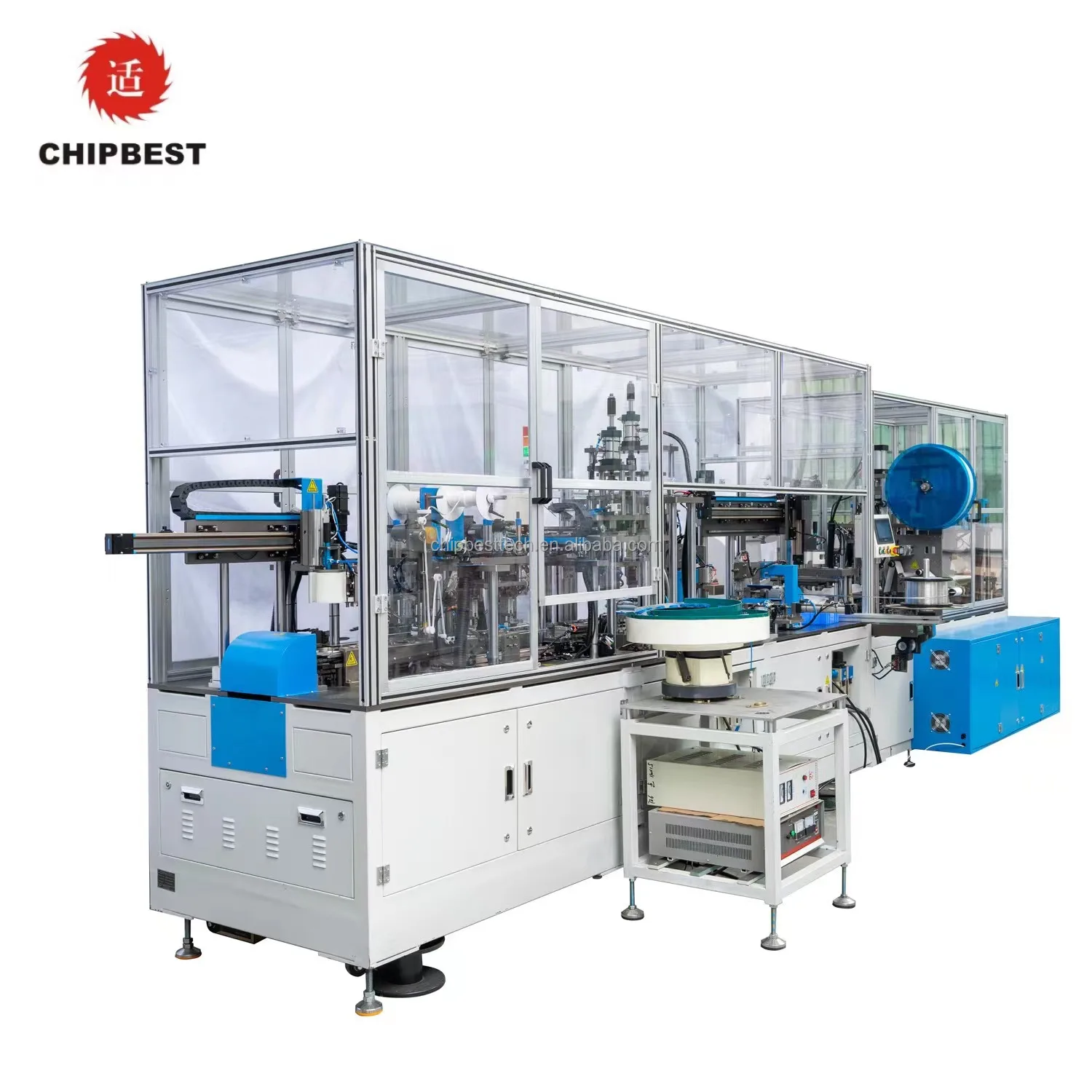

Overall Appearance Dimension :

Length×Width×Height: 7400mm×2400mm×2200mm

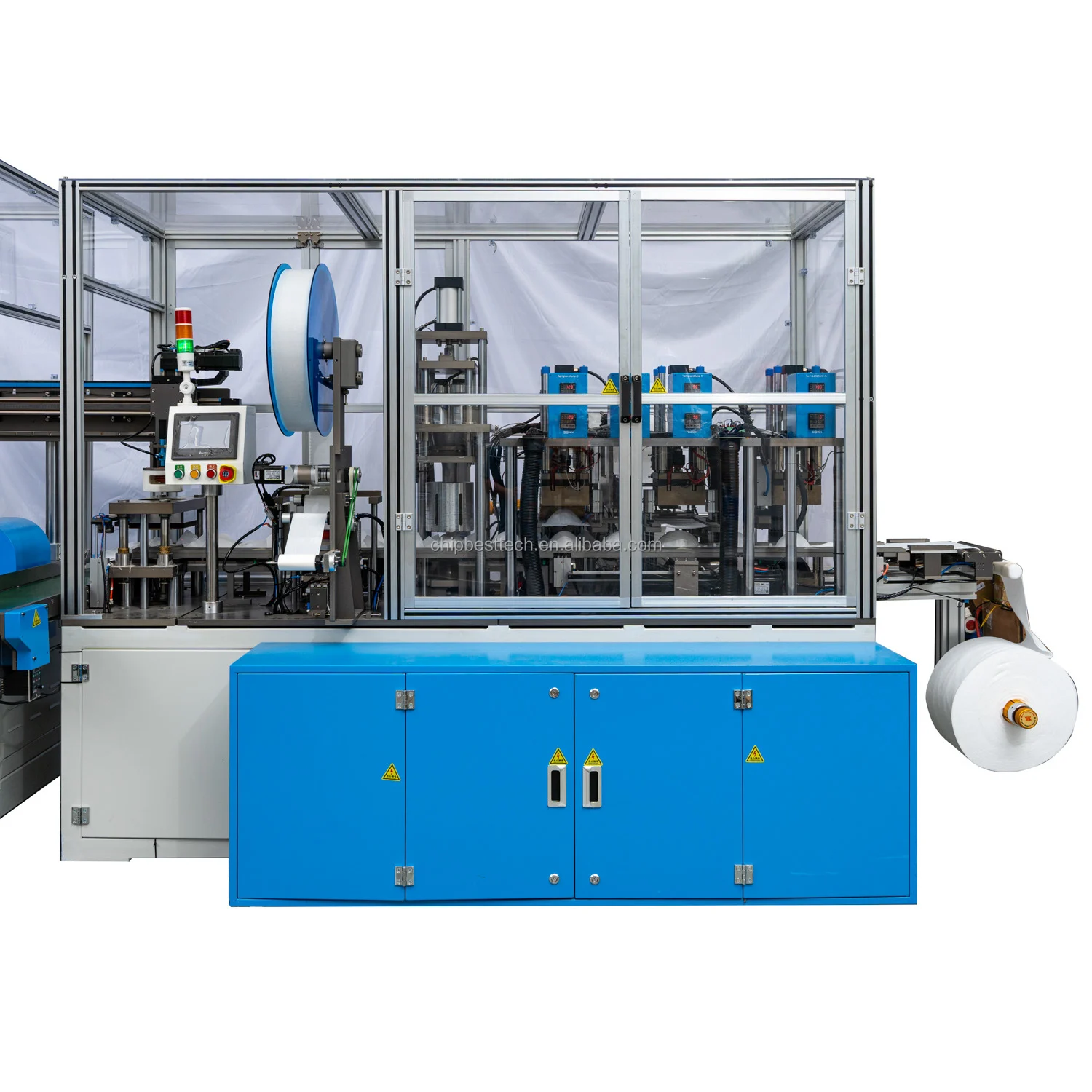

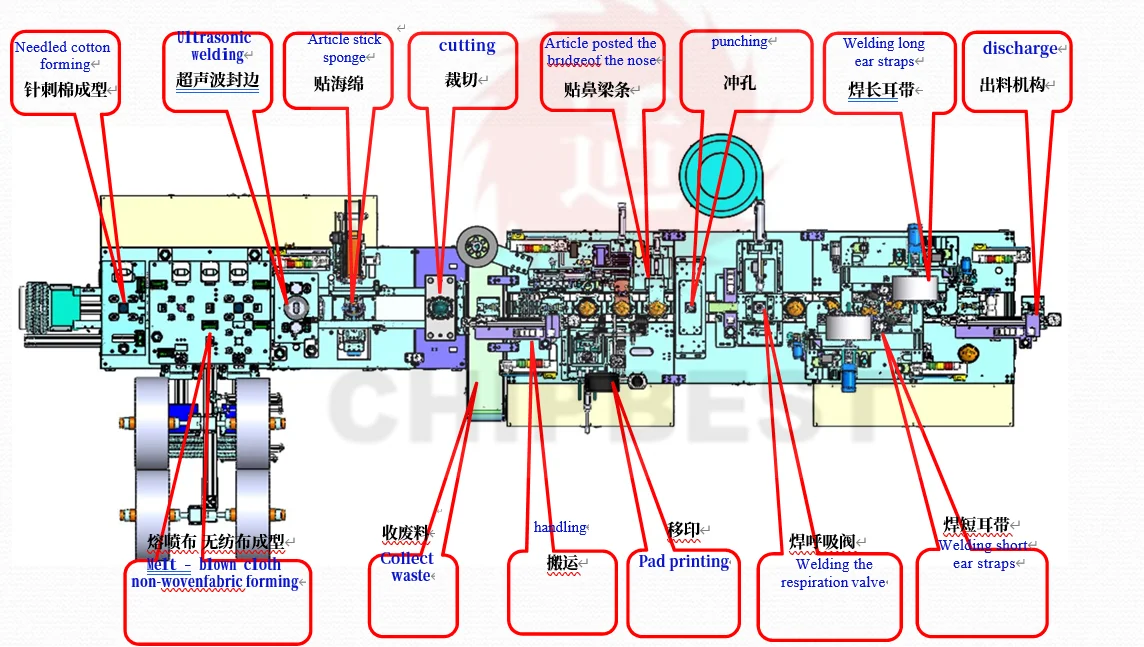

The Overall Layout :

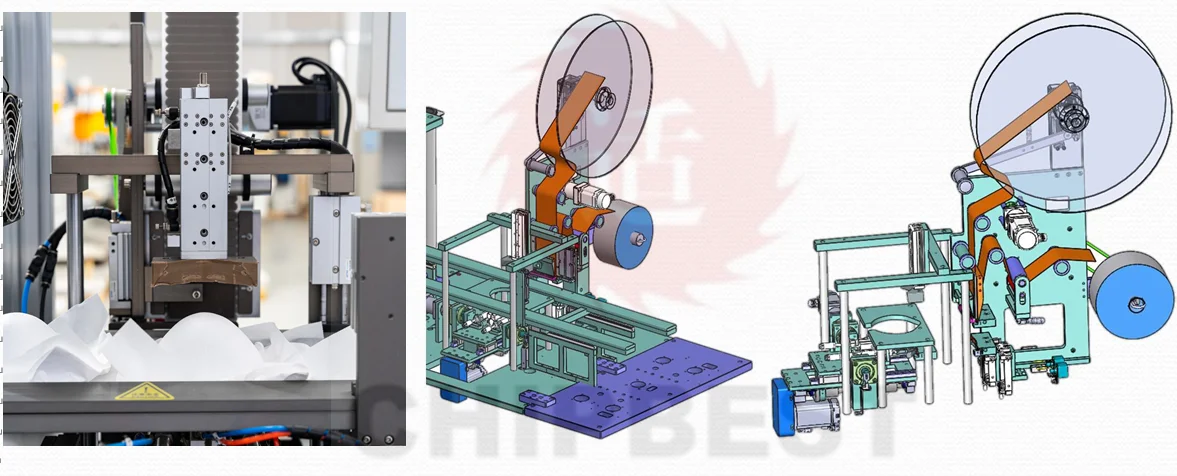

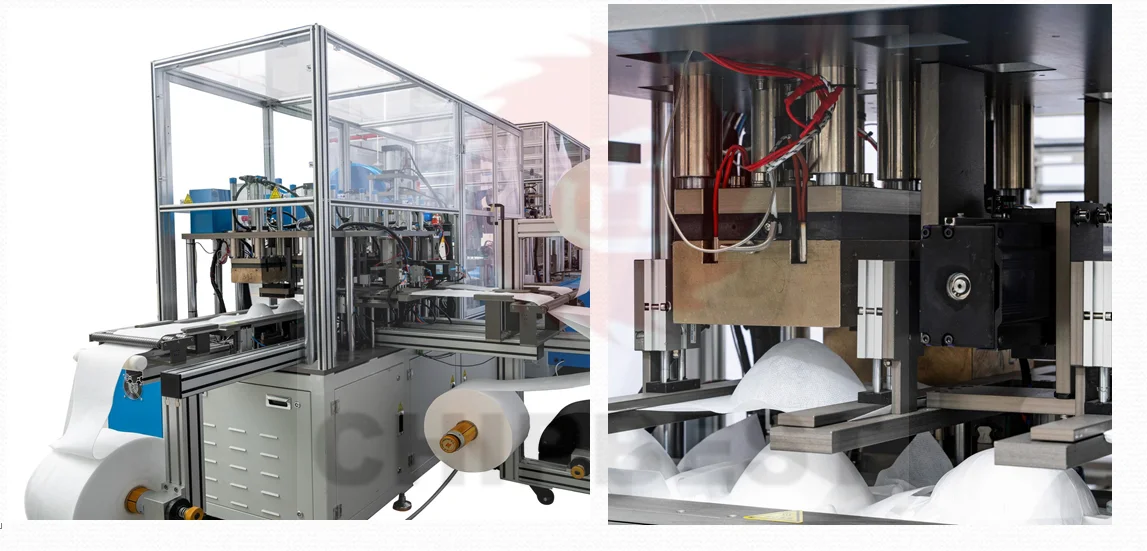

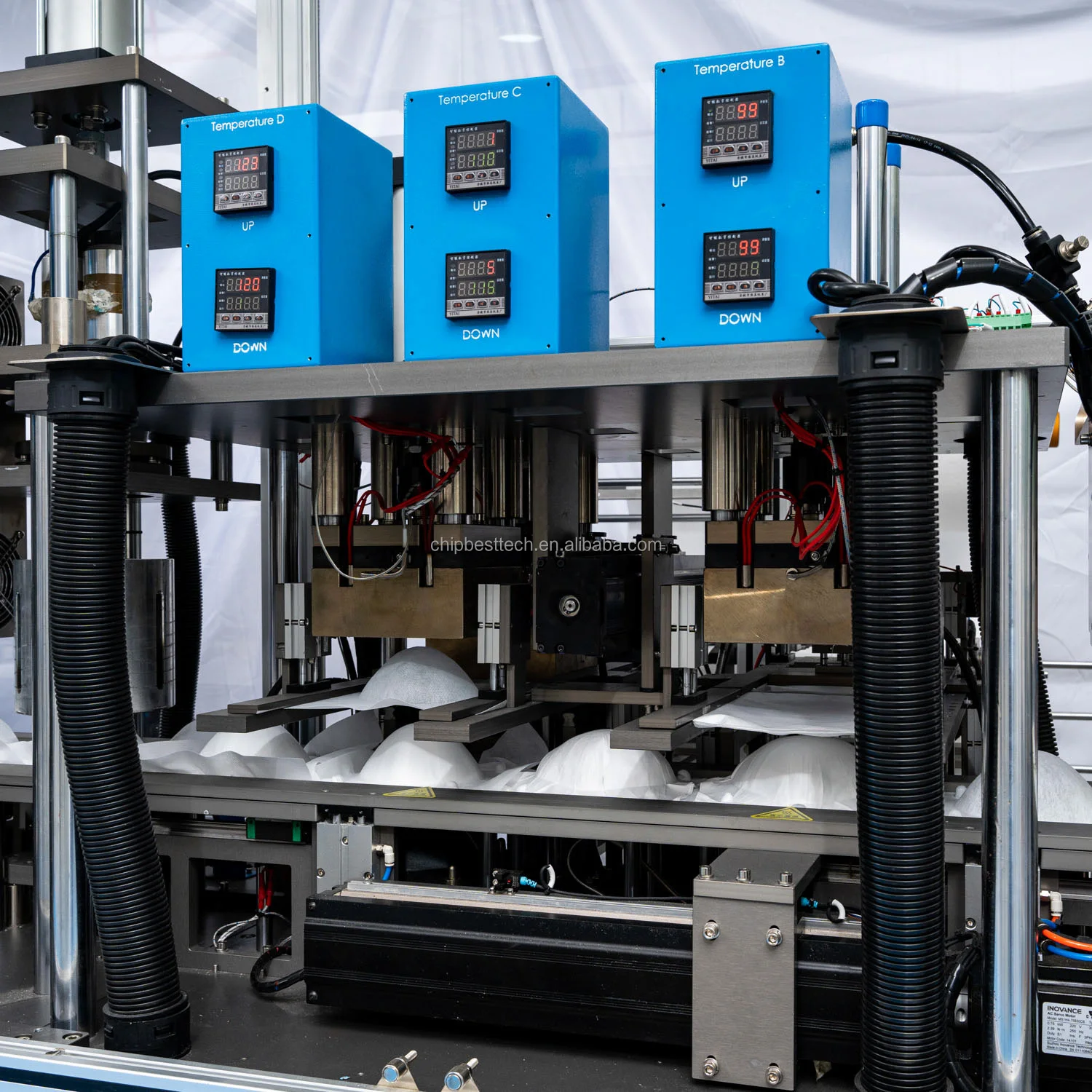

Forming  Part :
