Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings
Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings

Building Construction Materials Metal Plank Concrete Ring Lock Scaffolding System Q235 Steel Scaffoldings

Share on:


Price:$12.00 - $18.00
Price in USD:Details

Quantity:


Product Overview

Description

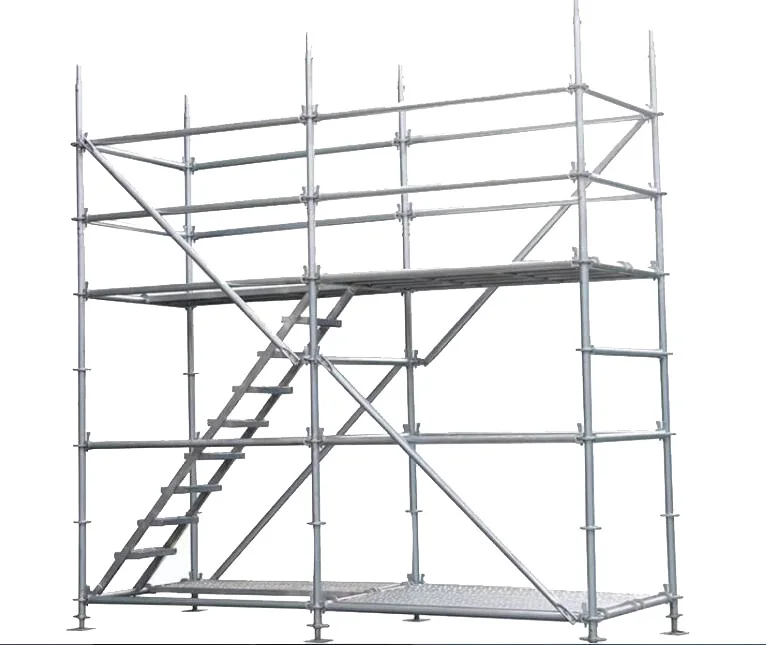

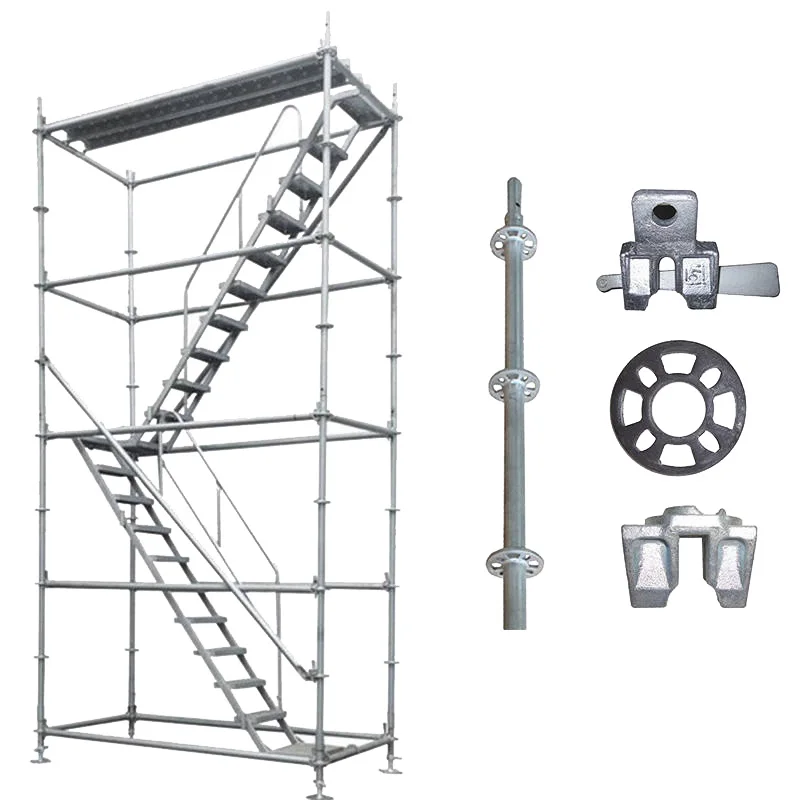

The rosette plate at the joint point is a round plate with φ 122mm and 10mm thick, and 8 holes are pressed out in total, and then connected by 4 platforms and 4 diagonal supports. In addition, it can be assembled with steel plates and beams to form a fully functional ring locking scaffold system.




Product Name
Ringlock Scaffolding
Advantage
High Bearing Support Capability
MOQ
1*20GP
Certificate:
ISO9001:2015
Warranty
More than 5 years
Project Solution Capability
NONE, graphic design
Design Style
Industrial
Surface treatment
Powder Coated
Material
Q235 Steel
Item
Interior decoration
Product delivered Quantity
500
Colour
Red, Blue, Green, Yellow,Customizable


Pan Buckle Scaffolding Cross Bar
Ledger(P.G.)(H.D.G.)mm
Size(mm)
KG（H.D.G）
KG（P.C）
φ48.3*3.25
200
1.73
1.68
φ48.3*3.25
300
2.79
2.74
φ48.3*3.25
350
1.87
1.82
φ48.3*3.25
500
3.52
3.47
φ48.3*3.25
1000
5.89
5.84
φ48.3*3.25
1500
8.3
8.25
φ48.3*3.25
200
10.71
10.66
φ48.3*3.25
2500
13.14
13.09
φ48.3*3.25
3000
15.31
15.26


Pan Buckle Scaffolding Cross Bar
Ledger(P.G.)(H.D.G.)mm
Size(mm)
KG（H.D.G）
KG（P.C）
φ48*3
300
1.36
1.32
φ48*3
600
2.36
2.32
φ48*3
900
3.33
3.29
φ48*3
1200
4.3
4.26
φ48*3
1500
5.21
5.17
φ48*3
1800
6.17
6.13


Scaffold Diagonal Rod
Ledger(P.G.)(H.D.G.)mm
Size(mm)
KG（H.D.G）
KG（P.C）
φ48*3
600*1500-1.61
5.28
5.24
φ48*3
900*1500-1.71
5.61
5.57
φ48*3
1200*1500-1.86
5.98
5.94
φ48*3
1500*1500-2.04
6.39
6.35
φ48*3
1800*1500-2.24
7.02
6.98
























Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes, we can provide good after-sale and fast delivery.
