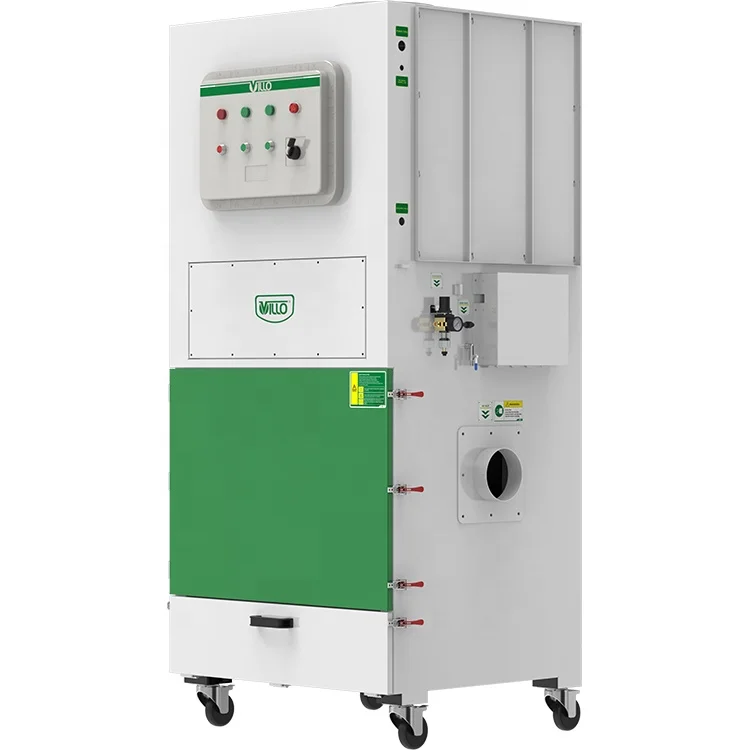

VJFGB Series Moderate High Negative Pressure Explosion Proof Dust
Collector (Vertical Type)


Product description
VJFGB Series is an explosion-proof industrial dust collector with high negative pressure, pulse jet cleaning, stable structure and small footprint. It meets the explosion-proof requirements in the environment with inflammable and explosive dust.

Applications
It is suitable for process such as mixing, cutting, bagging, grinding, sandblasting, plexiglass processing, vibrating screen, air transportation, packaging operation, etc.


Features


* Conductive material coated on the filter cartridge.
* Safety explosion venting membrane.
* Explosion proof motor and electrical control cabinet guarantees the safe running of the machine.
* Pulse jet cleaning method for the filter makes machine to work continuously, user can set the pulse frequency depending upon the requirements.
* Real-time monitoring of machine pressure changes can quickly detect whether the filter needs to be cleaned.
* Vertical filter cartridge installation mechanism.



Right elevation
Left elevation

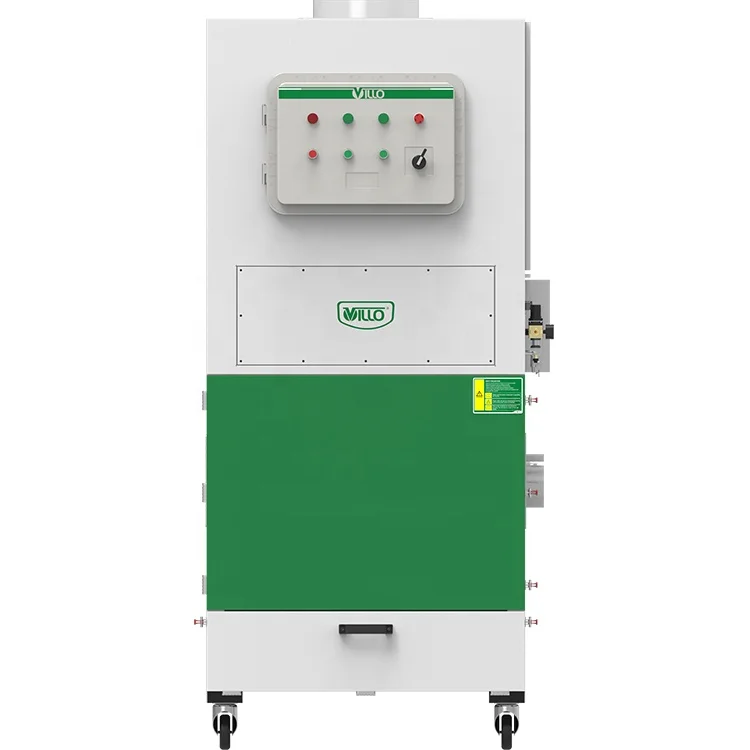

Front elevation




Technology Parameters


Model
VJFGB-1.5
VJFGB-2.2
VJFGB -3.7
VJFGB -5.5
VJFGB -7.5
VJFGB-11W
VJFGB-15W
Voltage (V/Hz)
380 / 50
Power
(kW) / (HP)
1.5 / 2.0
2.2 / 3.0
3.7 / 5.5
5.5 / 7.5
7.5 / 10
11 / 15
15 / 20
Starting current (A)
25
40
54
65
95
120
150
Rated current
(A)
3.5
5
7.5
11.5
15.5
21.5
29.5
Max air flow
(m³/h) / (CFM)
1200 / 706
1980 / 1165
2880 / 1694
3000 / 1765
3600 / 2118
3900 / 2294
5400 / 3176
Filter efficiency
99%
Filter area
(m²) / (sq.ft)
11 / 118.5
22 / 237
22 / 237
44 / 474
44 / 474
44 / 474
66 / 710
Filter cleaning method
Pulse jet
Dia. air inlet
(mm) / (in)
Ø 100 / 4
Ø 150 / 6
Ø 200 / 8
Ø 200 / 8
Ø 200 / 8
Ø 250 / 10
Ø 250 / 10
Dimension
[L*W*H]
(mm) / (in)
750*700*1750 /
29.5*27.6*68.9
900*800*1850 /
35.5*31.5*72.9
900*800*1850 /
35.5*31.5*72.9
1000*900*1950 /
39.4*35.5*76.8
1000*900*1950 /
39.4*35.5*76.8
2460*1405*2610 /
96.9*55.3*102.8
2730*1870*2890 /
107.5*73.7*113.8
Anti-explosive level
ExdIIBT4
It is normal that the current value may fluctuate in a small range
Voltage and frequency will affect the current value


Product Configuration


Antistatic cartridge filter
Explosion Proof Motor
Explosion Proof Electrical Box




Optional Configuration


Siemens Inverter
Flameless quench device
Soft Starter

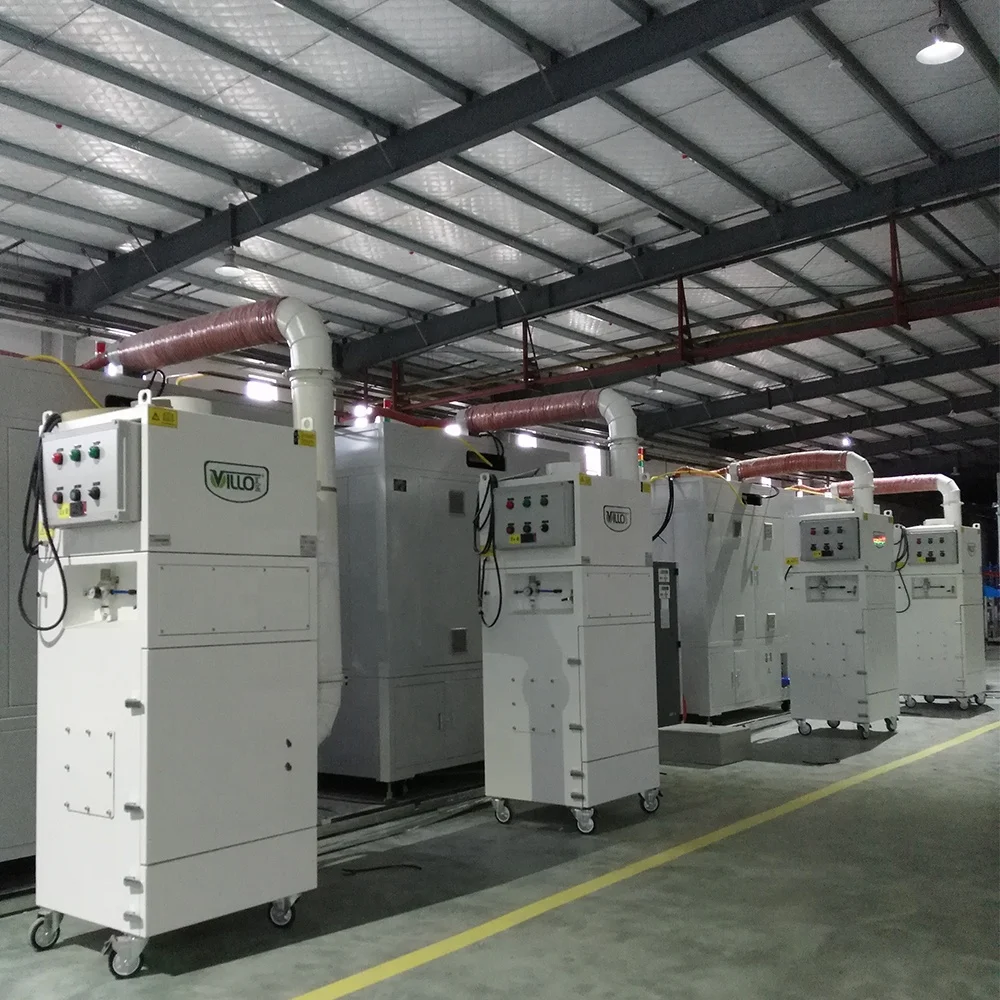

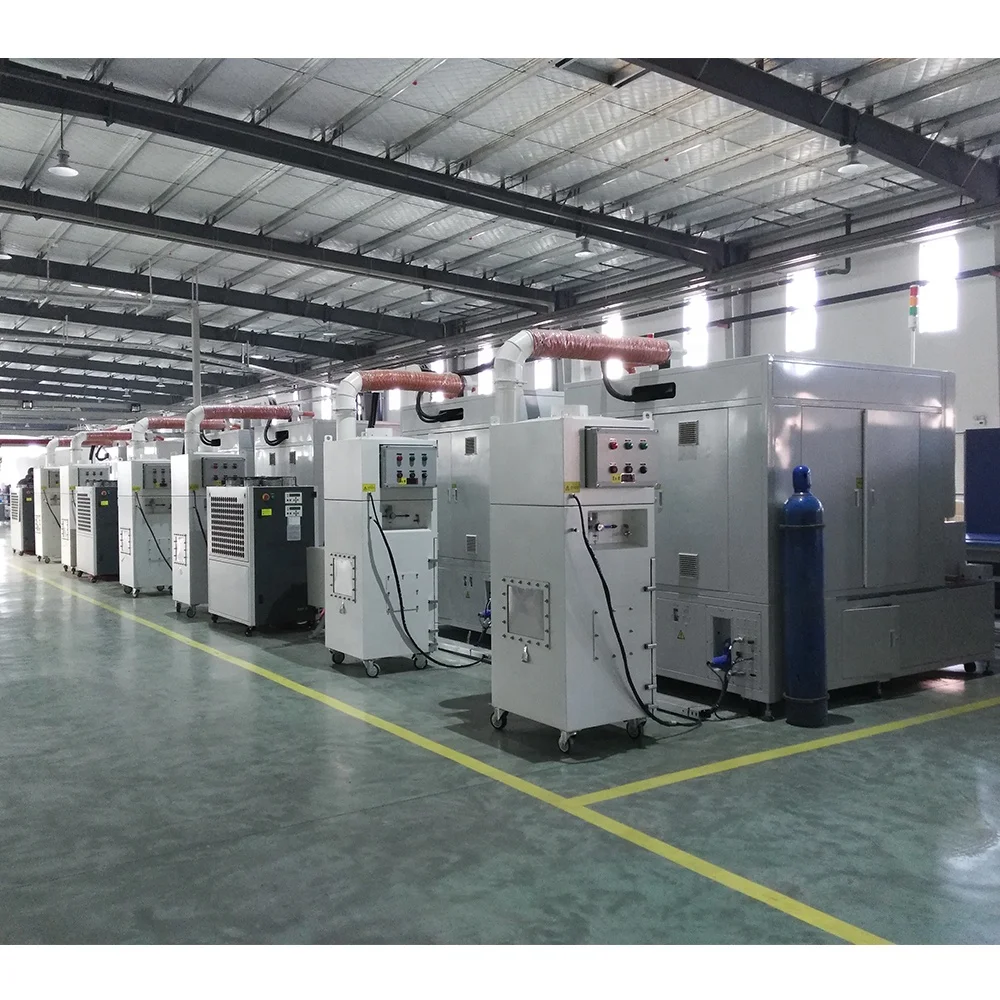

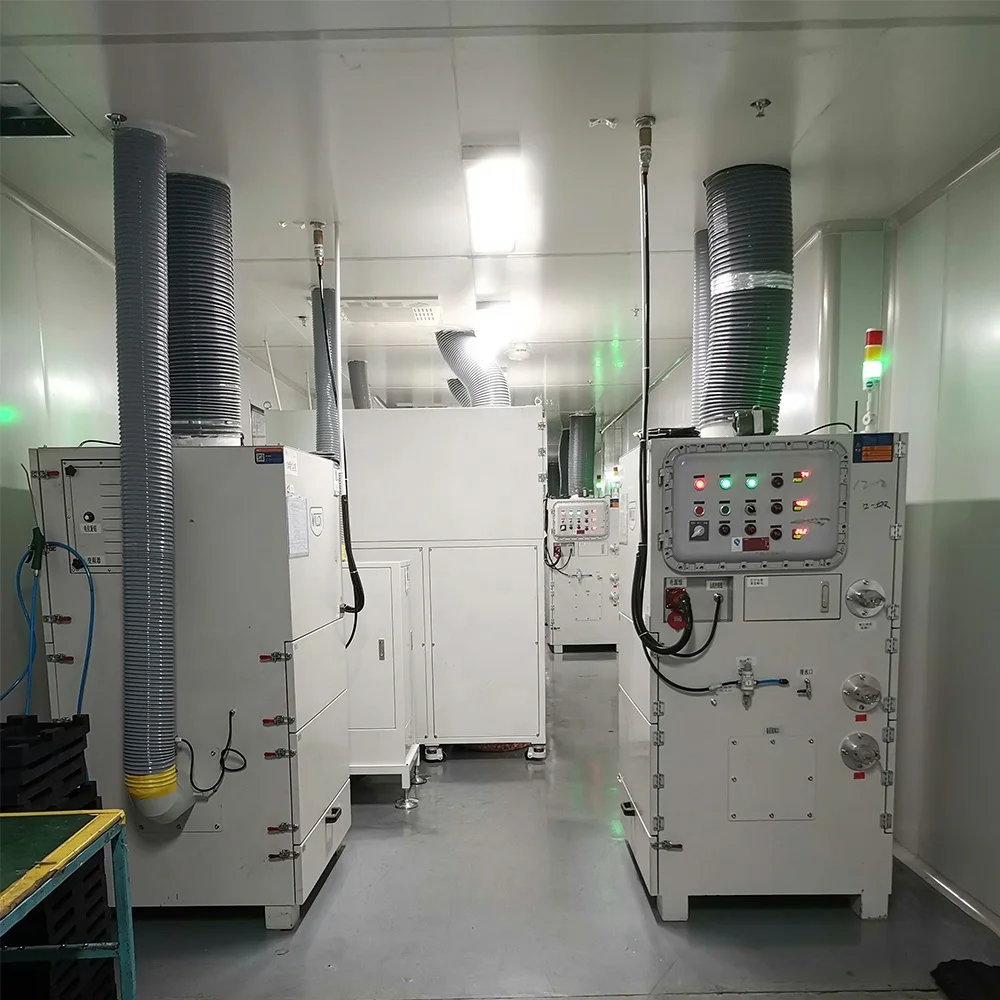

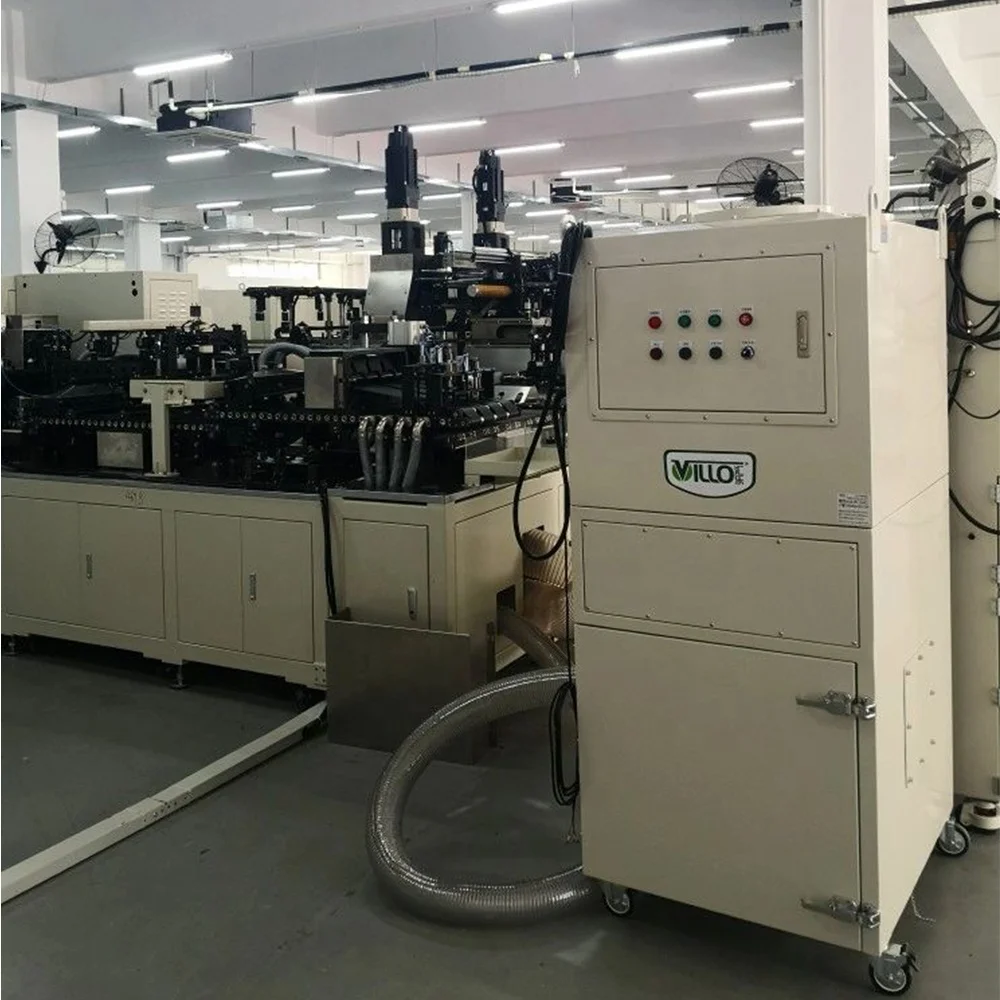

Successful Project
