Good quality automatic trimming machine for aluminum tube making line
- Category: >>>
- Supplier: Wuxi Yingrun Machinery Technology Co. Ltd.
Share on (1600561986112):
Product Overview
Description
Product Description

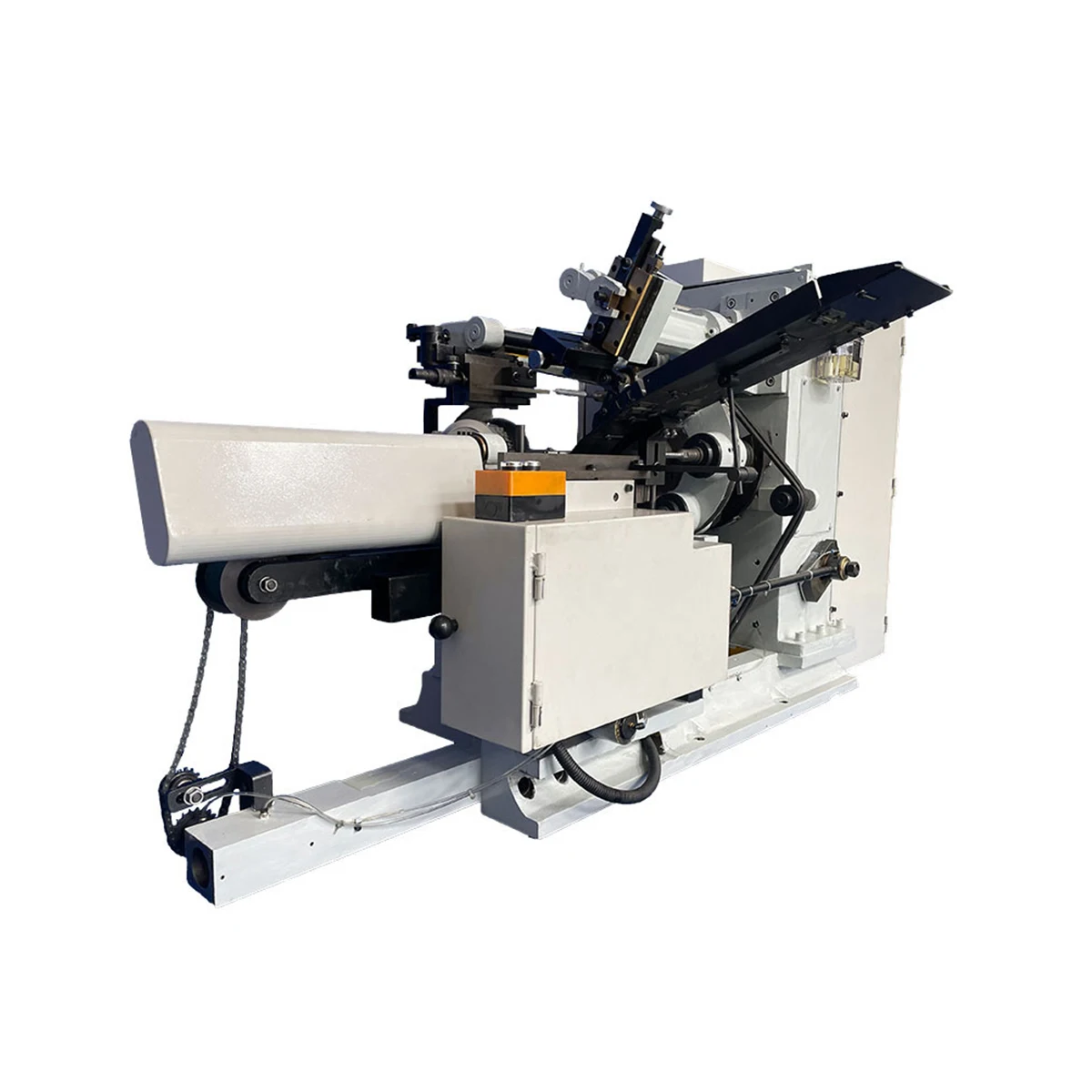

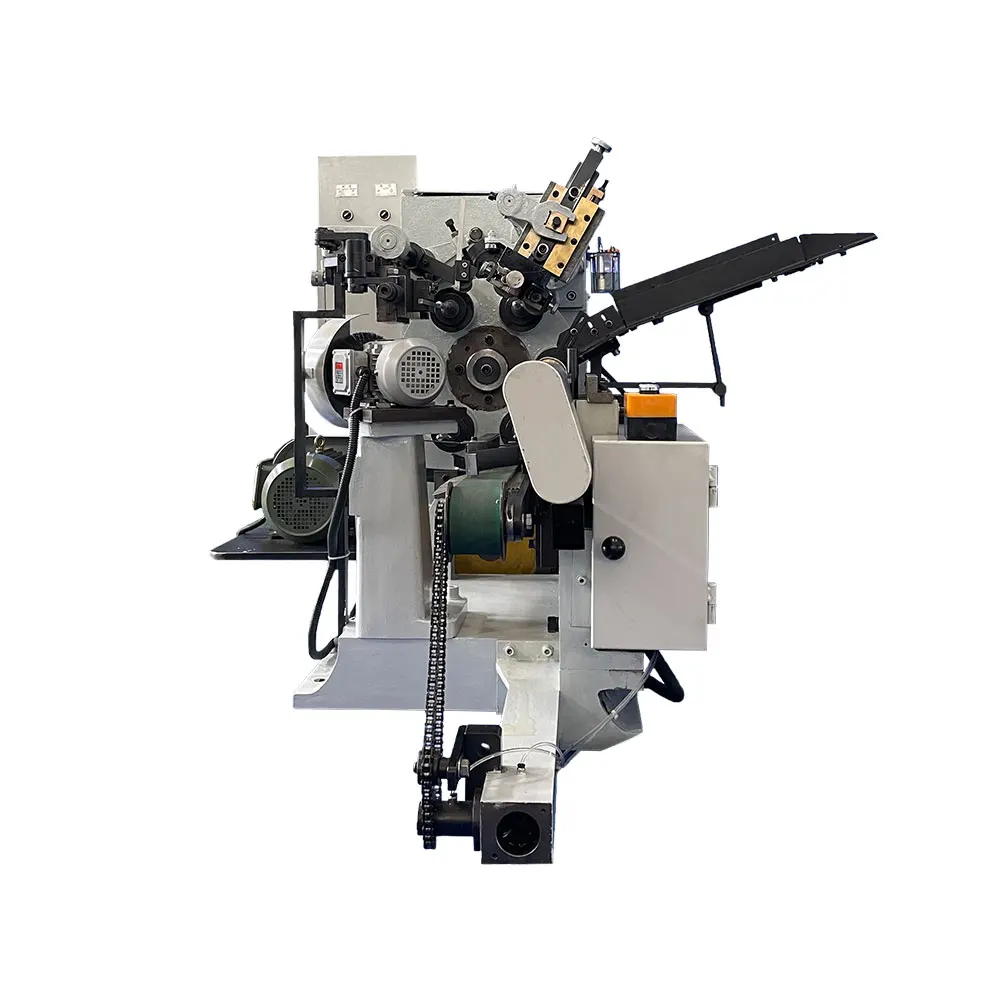

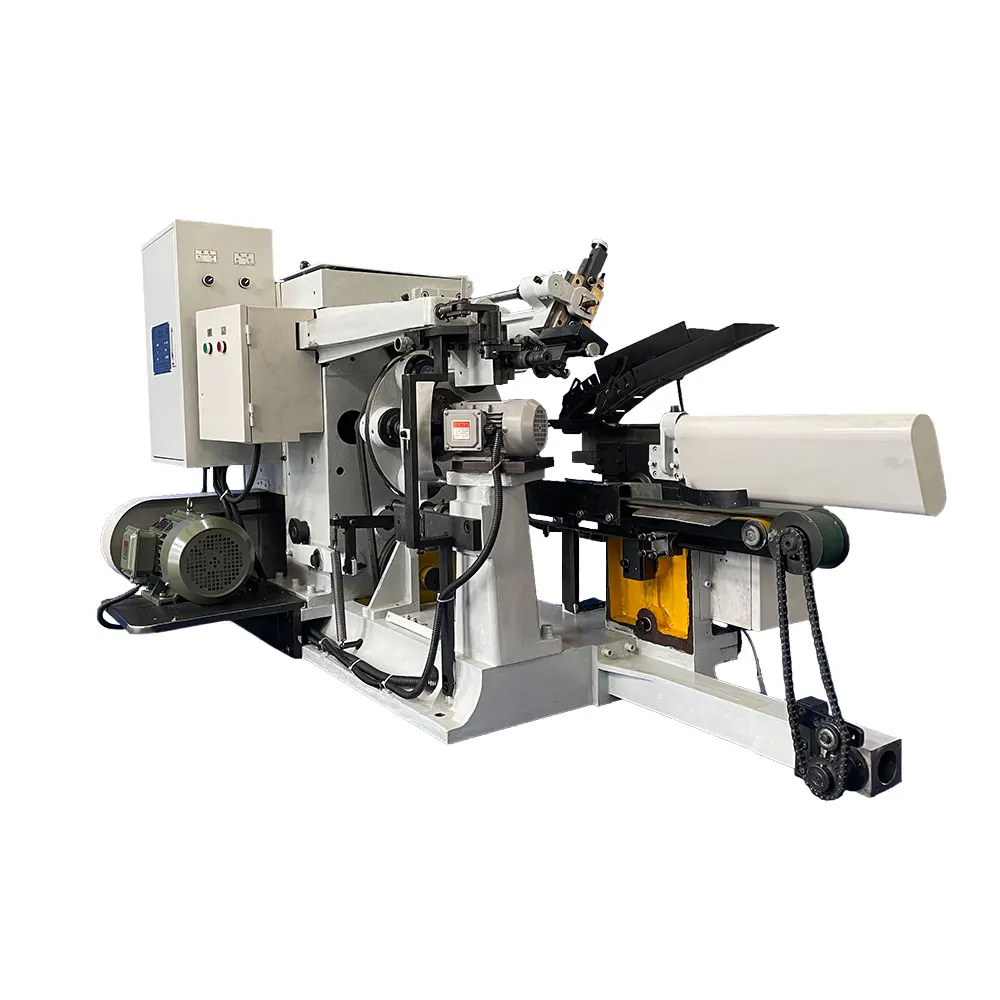

LWD01 is the aluminum tube thread and length trimming machine. It is the specialized equipment of the aluminum tube production line. It is the necessary part of metal collapsible tube line for consumer goods and medicine products. It can work alone or forma production line by connecting with other machines. The main working procedures include trimming the tube nozzle, processing nozzle thread, polishing tube shoulder and length trimming to required length.Germ tubes from charging conduit are pushed and inserted over mandrel, the expand mandrel expand to fasten the tubes on the
mandrel, and revolves at high speed with the tubes. During the procedure, the tube end is trimmed by the knife to the required length. The tube nozzle is trimmed and form thread formed with chaser rolls,as per specifications. Next, the brush driven by motor polishes the head and shoulder of the tubes and the body of tubes is made smooth and straight, which is helpful for unloading tubes.The last working station is for unloading materials. The unloading board controlled by cam pushes the processed tubes out from the mandrel. Following the flat belt, the tubes come to the charging conduit which can connect with conveyor chain of annealing oven.
mandrel, and revolves at high speed with the tubes. During the procedure, the tube end is trimmed by the knife to the required length. The tube nozzle is trimmed and form thread formed with chaser rolls,as per specifications. Next, the brush driven by motor polishes the head and shoulder of the tubes and the body of tubes is made smooth and straight, which is helpful for unloading tubes.The last working station is for unloading materials. The unloading board controlled by cam pushes the processed tubes out from the mandrel. Following the flat belt, the tubes come to the charging conduit which can connect with conveyor chain of annealing oven.
Specification
item | value |
Warranty | 1 Year |
Type | Other（tube） |
Applicable Industries | Manufacturing Plant, Other |
After Warranty Service | Video technical support, Online support |
Local Service Location | Provide |
Video outgoing-inspection | Provide |
Machinery Test Report | Provide |
Marketing Type | Hot Product 2021 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Condition | New |
Application | Chemical, Machinery & Hardware |
Packaging Type | CANS, tubes |
Packaging Material | Glass, wood |
Automatic Grade | Automatic |
Driven Type | Electric |
Voltage | 380V/50HZ CUSTOMIZED |
Power | 5.5kw |
Place of Origin | China |
Jiangsu | |
Brand Name | YR |
Weight | 1300kg |
Dimension(L*W*H) | 2100*1750*1100mm |
Certification | CE |
After-sales Service Provided | Online support |
Key Selling Points | Easy to Operate |
Tube diameter | 13.5mm-35mm |
Mandrel rotating speed | 1934R/min |

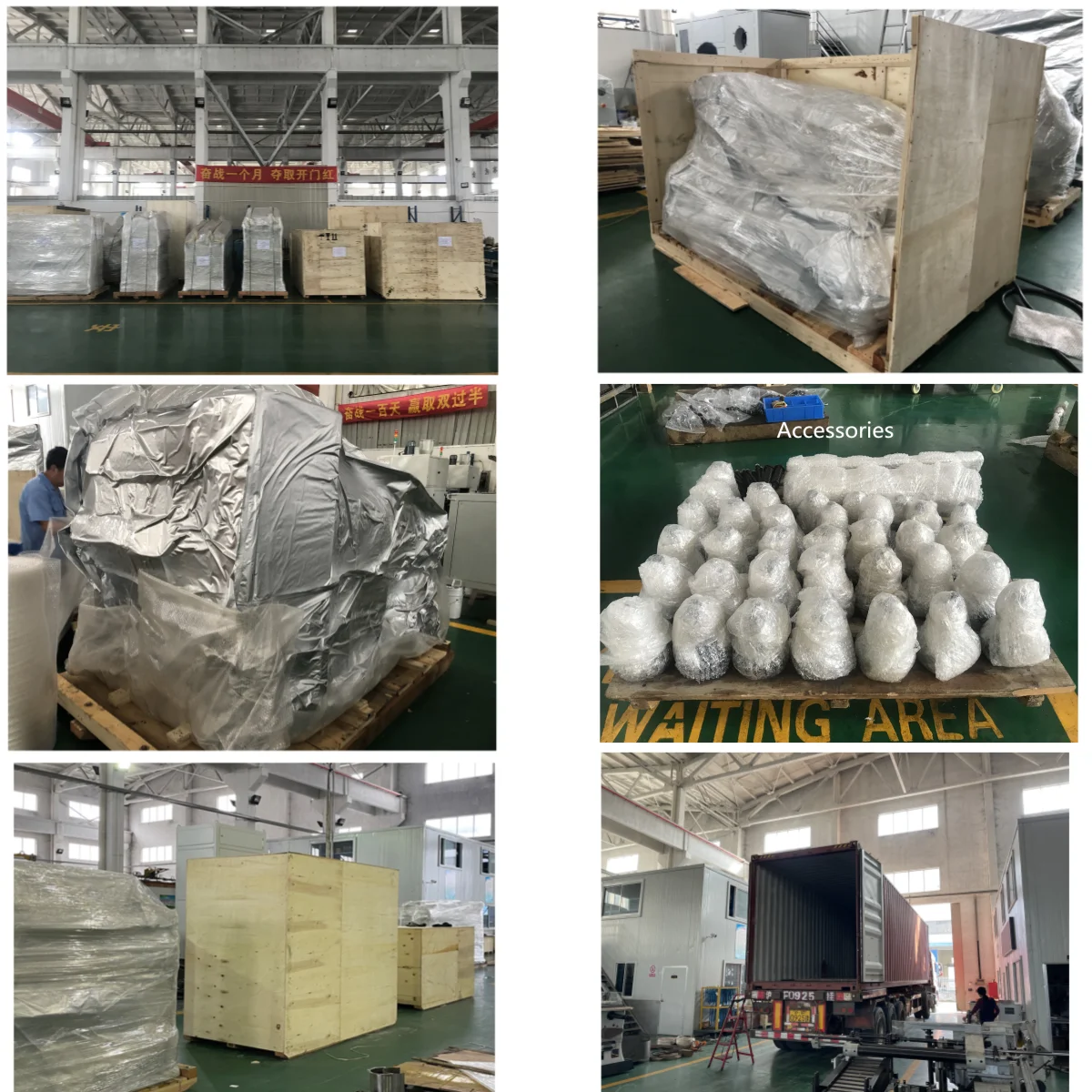

Product packaging

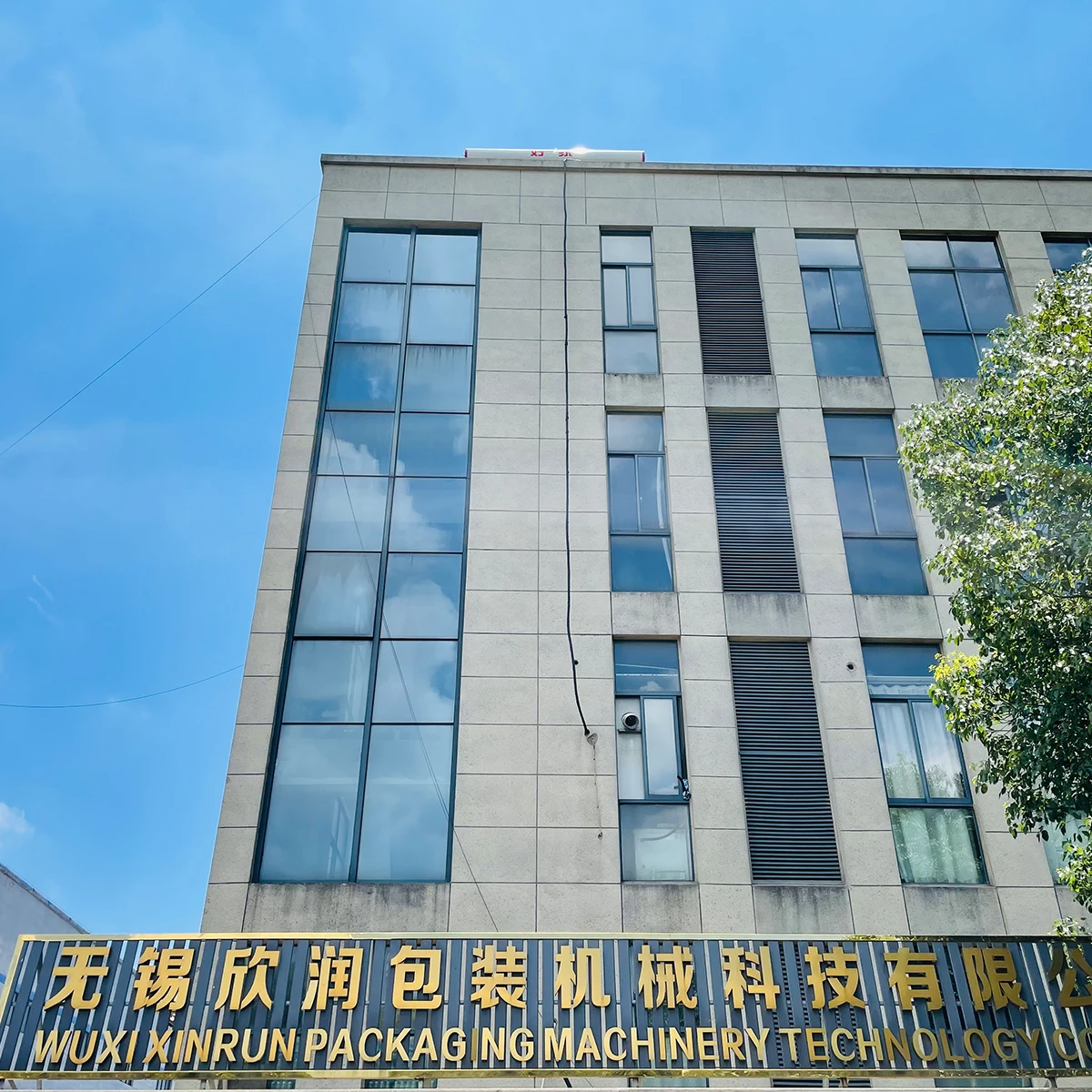

Company Profile
Wuxi Yingrun Machinery Technology Co.,Ltd was founded in 2016. As one of the biggest manufacturers of the aluminum collapsible tube production line.The company has two other brother companies: Wuxi Xinrun Packaging Machinery Technology Co.,Ltd, Wuxi Packaging Technology Co., Ltd., three companies division of labor and cooperation, set industry and trade in one, with independent import and export rights.
The company is mainly focus on producing and selling machines for aluminum collapsible tubes line,core technicians have more than 20 years of experience. Our machines have passed the European CE certification. The standard of conduct is to provide better products and service for our clients. We also provide professional consultation and service for clients.
Aluminum collapsible tubes line includes extrusion press machine, trimming machine, annealing oven, internal coating machine, lacquer curing oven, accumulator, base-coating machine, 4/5/6-color printing machine,drying oven, latexing machine and capping machine.

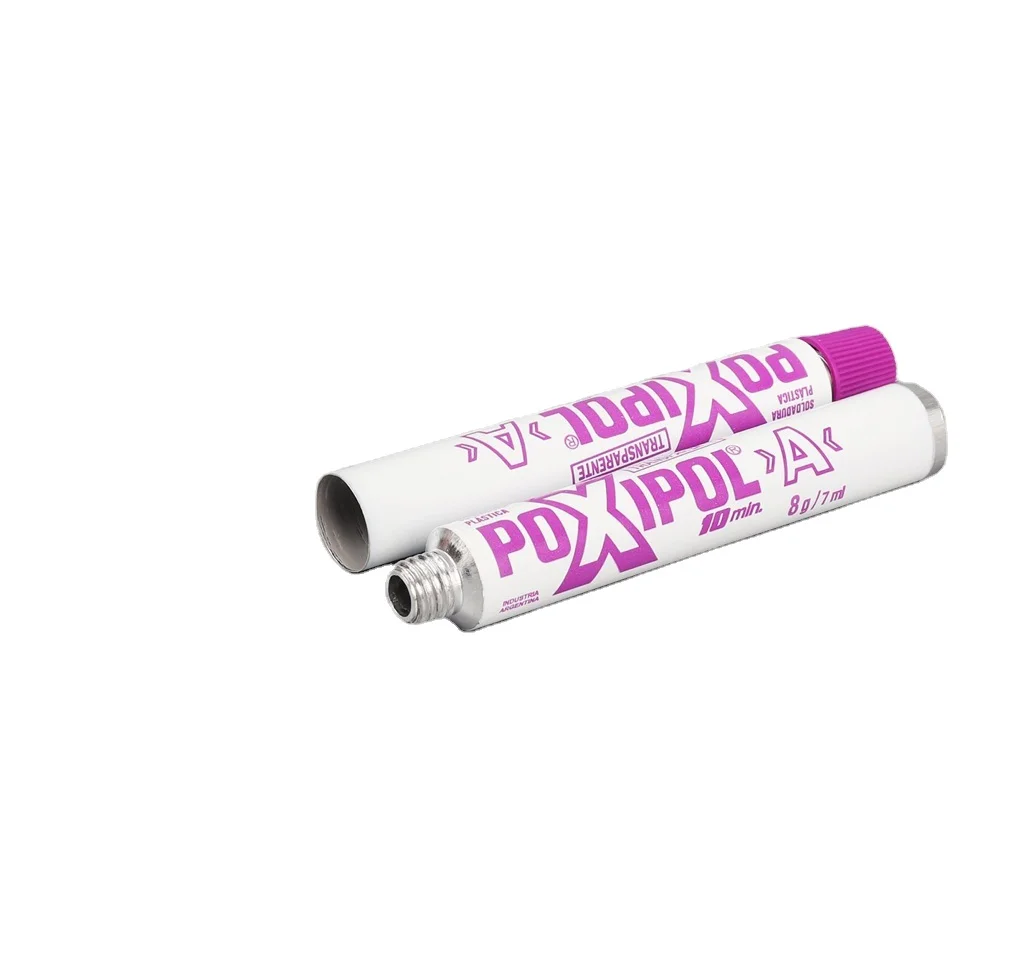

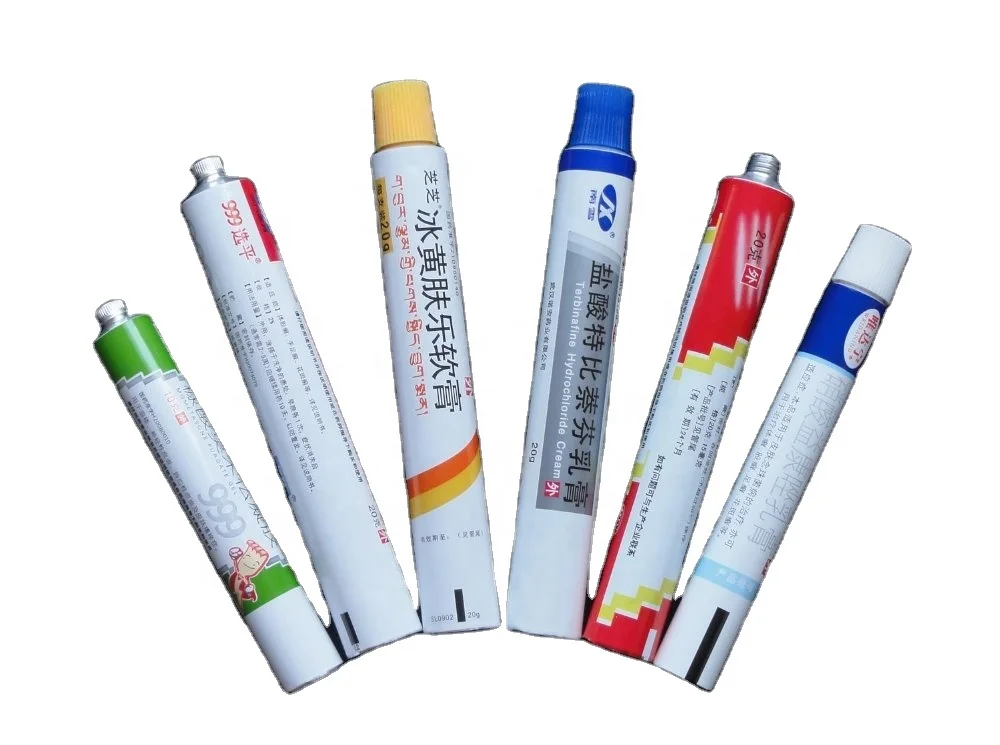

The aluminum tubes are widely used in filling ointment, art pigments, skin care products, sealants, shoe polish, AB glue, hair dye, ketchup, chocolate paste, pen tubes, cigars and other products.
Our machines has been exported to 30 countries and regions like France, Spain,Turkey, Argentina, India, Pakistan,Bangladesh, Burma, Vietnam, Malaysia, Thailand, Indonesia, Syria, Saudi Arabia, Egypt, Iran, Mexico, Peru, Algeria and Nigeria etc. Our machines are deeply welcomed by customers.
‘Create value for clients by professional service’ is our forever company tenet. We are looking forward to cooperating with friends from different countries and creating the brilliancy together.
The company is mainly focus on producing and selling machines for aluminum collapsible tubes line,core technicians have more than 20 years of experience. Our machines have passed the European CE certification. The standard of conduct is to provide better products and service for our clients. We also provide professional consultation and service for clients.
Aluminum collapsible tubes line includes extrusion press machine, trimming machine, annealing oven, internal coating machine, lacquer curing oven, accumulator, base-coating machine, 4/5/6-color printing machine,drying oven, latexing machine and capping machine.
The aluminum tubes are widely used in filling ointment, art pigments, skin care products, sealants, shoe polish, AB glue, hair dye, ketchup, chocolate paste, pen tubes, cigars and other products.
Our machines has been exported to 30 countries and regions like France, Spain,Turkey, Argentina, India, Pakistan,Bangladesh, Burma, Vietnam, Malaysia, Thailand, Indonesia, Syria, Saudi Arabia, Egypt, Iran, Mexico, Peru, Algeria and Nigeria etc. Our machines are deeply welcomed by customers.
‘Create value for clients by professional service’ is our forever company tenet. We are looking forward to cooperating with friends from different countries and creating the brilliancy together.

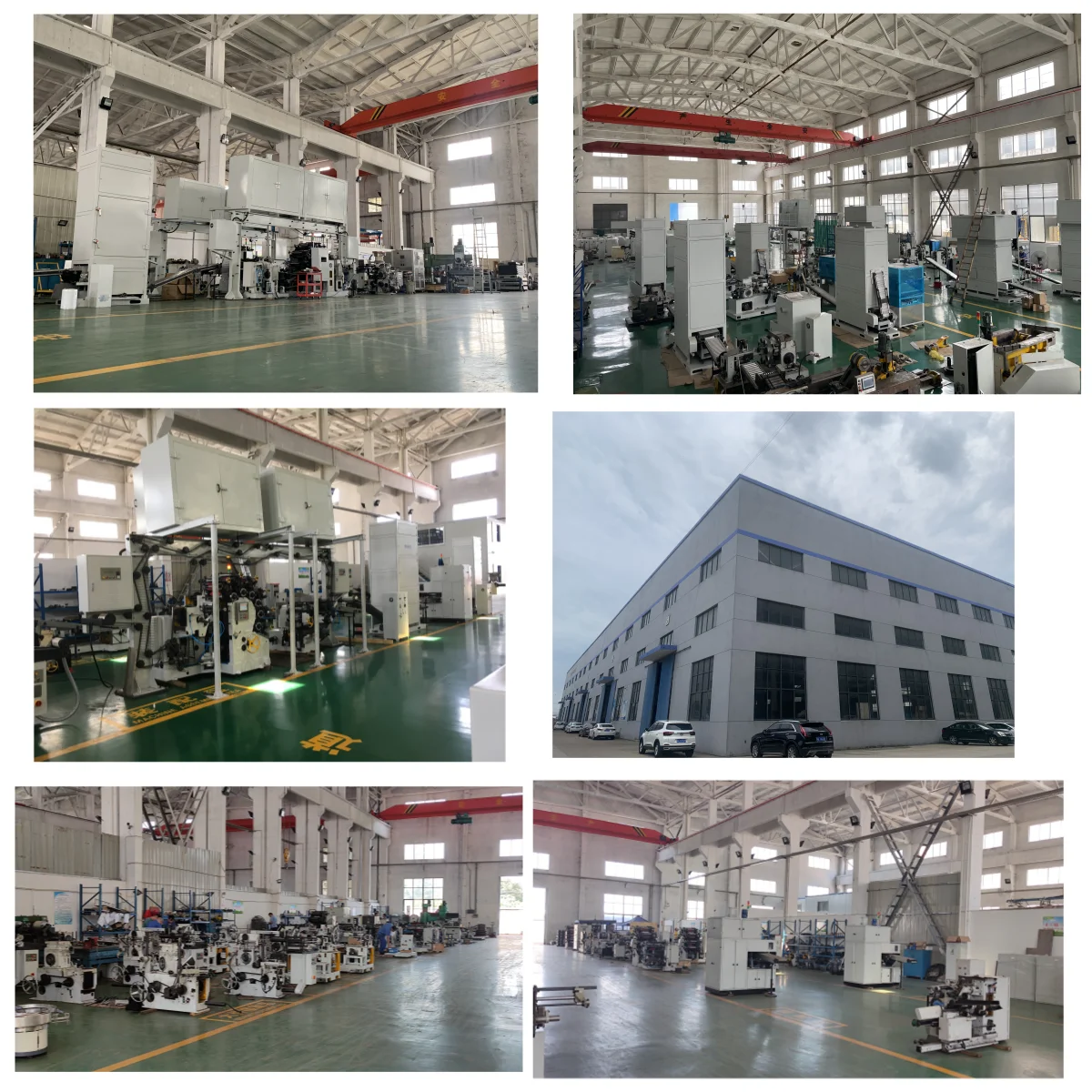

Workshop display
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(00.00%),South America(00.00%),Mid East(00.00%),South Asia(00.00%),Eastern Europe(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Aluminum Tubes Machines,Aluminum Aerosol Cans Machines,Toothpaste Machines
4. why should you buy from us not from other suppliers?
1. Over 20 years experience
2. CE Certificate
3. One supplier from A to Z
4. Cost-effective
5. Arrangements to visit production plants
6. Overseas installation and commissioning team
7. Fully stocked spare parts
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2016,sell to Southeast Asia(00.00%),South America(00.00%),Mid East(00.00%),South Asia(00.00%),Eastern Europe(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Aluminum Tubes Machines,Aluminum Aerosol Cans Machines,Toothpaste Machines
4. why should you buy from us not from other suppliers?
1. Over 20 years experience
2. CE Certificate
3. One supplier from A to Z
4. Cost-effective
5. Arrangements to visit production plants
6. Overseas installation and commissioning team
7. Fully stocked spare parts
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
If you have any questions, please feel free to contact us.
