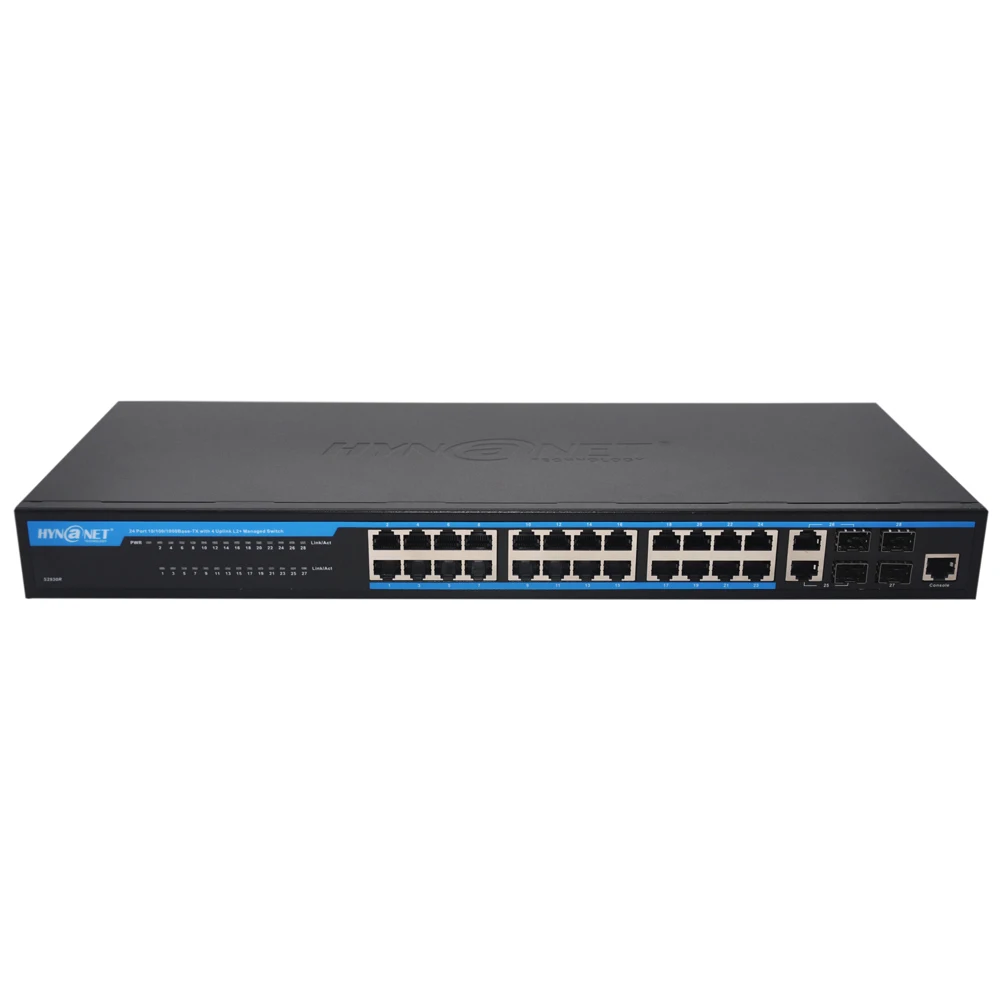

24 port gigabit L3 managed 10gb Uplink Ethernet switch
Description:
The S5028 is a 24G+4*10G Ethernet intelligent access switch which is designed by Shenzhen Hi-Net Technology Company. It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carry various Ethernet services and accessing the Ethernet.
The S5028 is a case-shaped device with a chassis of 1U high. It provides 24 10/100/1000Base-TX ports and 4 10G SFP+.
Features:
- Conforms to IEEE802.3, 802.3u, 802.3ab, 802.3z
- Provides 24 10/100/1000 Base-TX ports and 4 10G SFP+
- High back-plane bandwidth 128Gbps
- Support standardIP/ ExtendIP / MAC IP / ARP ACL
- IGMP snooping and IGMP Query mode for Multi-media application
- Port mirror and bandwidth control
- Supports GVRP function
- IEEE802.3x Flow control
- Support Port Based VLAN /802 .1Q Tag VLAN
- Support IEEE802.3ad Port trunk with LACP
- Support Spanning tree protocol IEEE 802.1d
- Supports IEEE 802.1p class of service
- Support IEEE 802.1x user authentication
- Support Broadcast storm filter
- Support DHCP server and client
- Support System event log
- Support command line interface management
- Management by Web/SNMP/Telnet/Console
- Surge protectionfor power port and data ports
- EMI standards complies with FCC, CE class B
Product Specifications:
Item | Description |
Summarize | |
Fixed port | 24 10/100/1000Base-TX ports. 4 10G SFP+. 1 Console port. |
LED Indicators | PWR, PoE, 1000M and Link/Act LED. |
Input voltage | 100V～240V AC，50/60Hz |
Power consumption | 20W |
Operating temperature | 0℃～40℃. |
Storage temperature | -10℃～70℃. |
Relative humidity | 20%～85% (non-condensing). |
Thermal methods | Built-in Noiseless FAN. |
Layer 2 Switching | |
Switching capacity | 128G |
MAC address table | 16K, Support MAC address table management. |
MAC Address Binding | Support. |
MAC Address Filtering | Support. |
MAC Address Learning control | Control number of port-based MAC address learning. |
Jumbo Frame | Jumbo packets up to 16 Kbytes. |
Port Feature | Port Control. Port Isolation. Port Self-loop Detection. |
Port Mirroring | Support. |
VLAN | 4K 802.1q VLANs, Support Ingress filter. |
Link Aggregation | Up to 32 maximum aggregation groups, each containing up to 8 GE ports. |
Traffic control | IEEE 802.3x full-duplex flow control. |
Rate Limit | Unit: 64kbps. |
Spanning Tree | IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
Ring Protocol | Support EAPS. |
Multicast | Support 1K Multicast groups. Support IGMP Snooping. |
Layer 3 Switching | |
Static ARP | Support. |
Static Routing | Support. |
L3 VLAN interface | Up to 32 L3 VLAN Interface (support 128 MAC). |
Convergence | |
QoS | 4 output queues on each port. Support flexible queue scheduling algorithms: WRR，SP，DRR，RR. Support MAC-based / 802.1p / DiffServ classification. |
Security | |
ACL | Support Standard IP / Extend IP / MAC IP / ARP Support 1024 entries |
Security Features | Support MAC-based 802.1X authentication. Support AAA/RADIUS authentication. Support WEB/Telnet password protection. Support Accessing privilege mode password protection. |
Self-protection | Support CPU Self-protection. |
Management | |
CLI | Support CLI (Commend Line Interface) configuration mode. |
Console | Support Configuration via the console port. |
Telnet | Support Local/remote configuration via Telnet. |
WEB | Support WEB management system. |
SNMP | Support System configuration with SNMP v1/v2/v3. |
User Management | Support Multi-user management. |
System Log | Support. |
Configuration File Download/Upload | Support Download/Upload configuration File via WEB/TFTP. |
Upgrade Firmware | Support Upgrade Firmware via WEB/TFTP/Console. |
Debug | |
PING | Support. |
TRACEROUTE | Support. |
Telnet client | Support. |
Process View | Support. |
Order Information:
S5028 | 24G+4x10G Managed Gigabit Switch |
