Product Overview

Description



Products Description

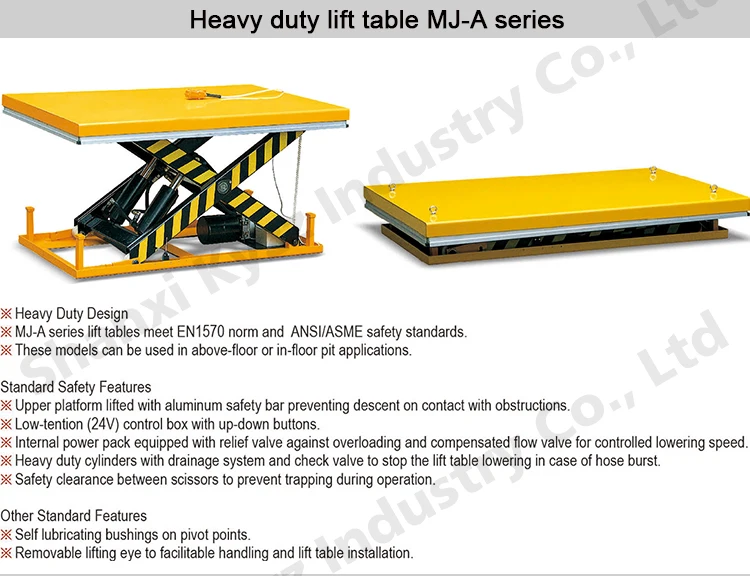

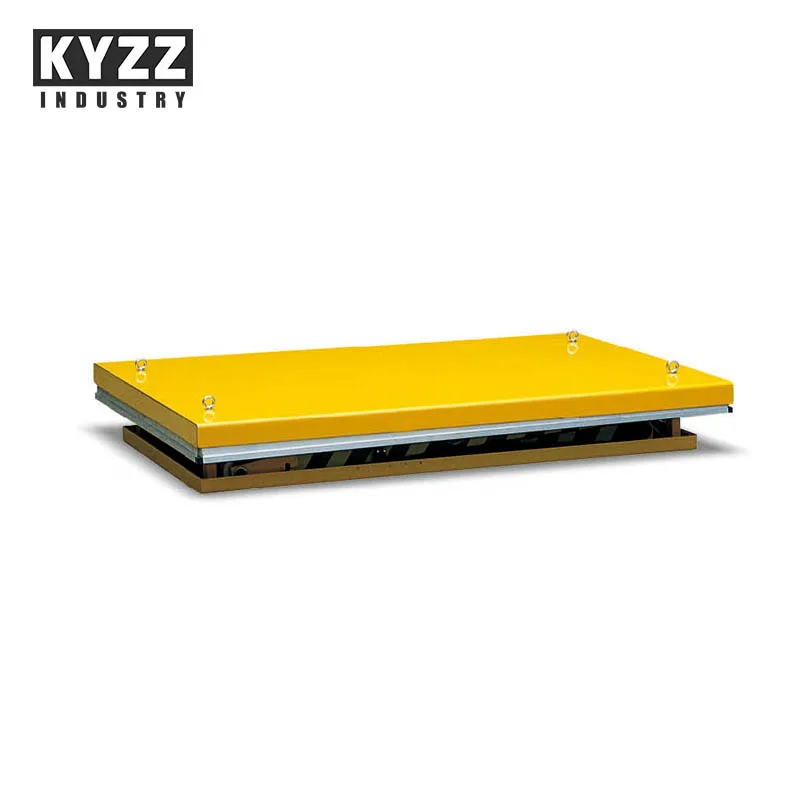

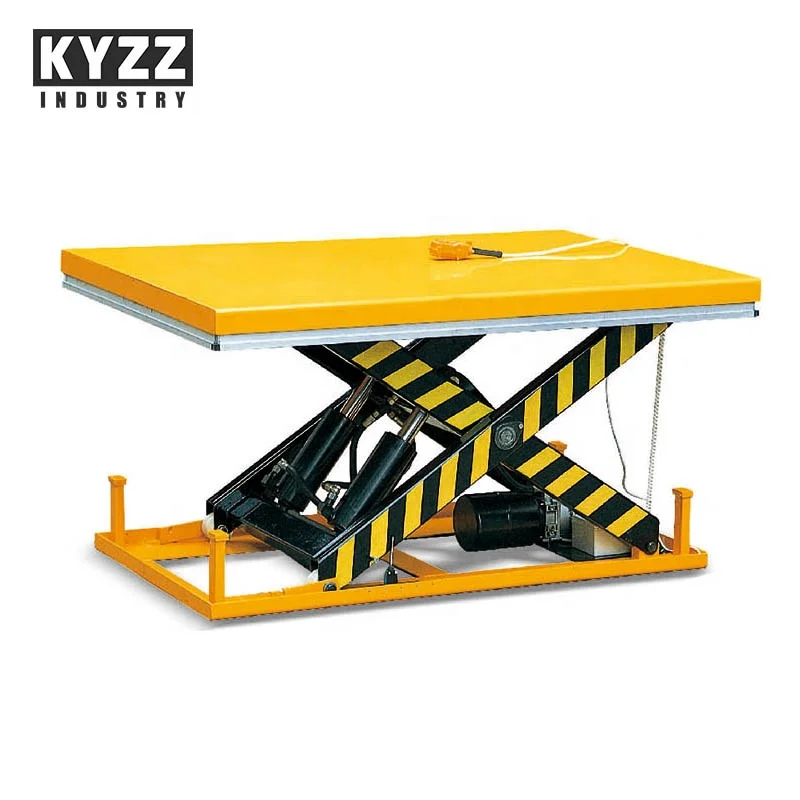

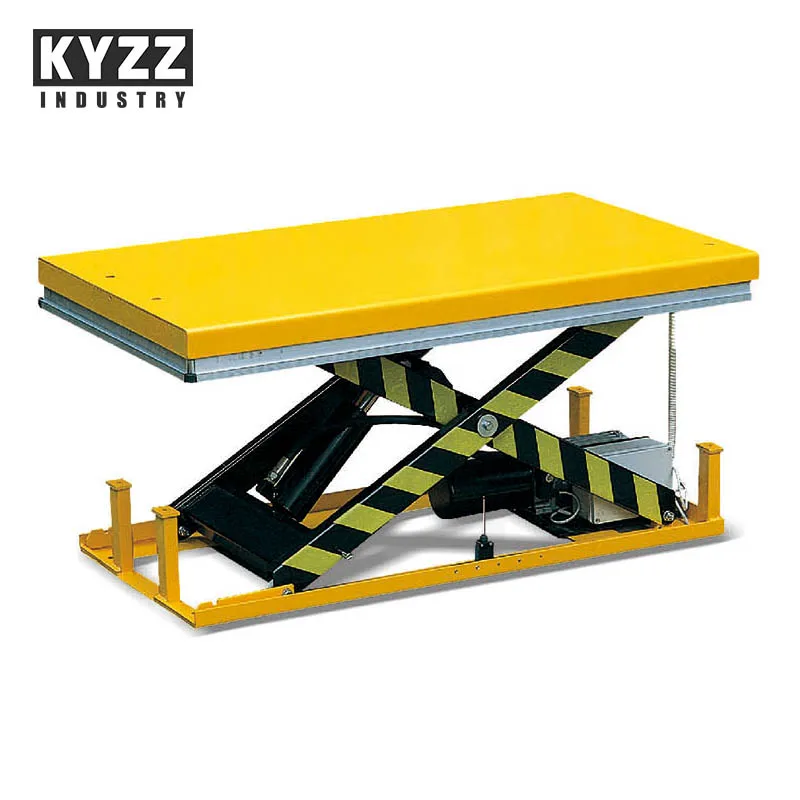

Heavy duty electric hydraulic stationary scissor lift table


Lift Table【MJ-A series】
Heavy Duty Design
MJ-A series lift tables meet EN1570 norm and ANSI/ASME safety standards.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
- Removable lifting eye to facilitable handling and lift table installation.


Product Paramenters




Model
Capacity (kg)
Lowered Height (mm)
Raised Height (mm)
Power Pack
MJ-A1001
1000
205
990
380V/50HZ, AC 1.1kw
MJ-A1002
1000
205
990
380V/50HZ, AC 1.1kw
MJ-A1003
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A1004
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A1005
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A1006
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A1007
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A1008
1000
240
1300
380V/50HZ, AC 1.1kw
MJ-A2001
2000
230
1000
380V/50HZ, AC 2.2kw
MJ-A2002
2000
230
1000
380V/50HZ, AC 2.2kw
MJ-A2003
2000
250
1300
380V/50HZ, AC 2.2kw
MJ-A2004
2000
250
1300
380V/50HZ, AC 2.2kw
MJ-A2005
2000
250
1300
380V/50HZ, AC 2.2kw
MJ-A2006
2000
250
1300
380V/50HZ, AC 2.2kw
MJ-A2007
2000
250
1400
380V/50HZ, AC 2.2kw
MJ-A2008
2000
250
1400
380V/50HZ, AC 2.2kw
MJ-A4001
4000
240
1050
380V/50HZ, AC 2.2kw
MJ-A4002
4000
240
1050
380V/50HZ, AC 2.2kw
MJ-A4003
4000
300
1400
380V/50HZ, AC 2.2kw
MJ-A4004
4000
300
1400
380V/50HZ, AC 2.2kw
MJ-A4005
4000
300
1400
380V/50HZ, AC 2.2kw
MJ-A4006
4000
300
1400
380V/50HZ, AC 2.2kw
MJ-A4007
4000
350
1300
380V/50HZ, AC 2.2kw
MJ-A4008
4000
350
1300
380V/50HZ, AC 2.2kw

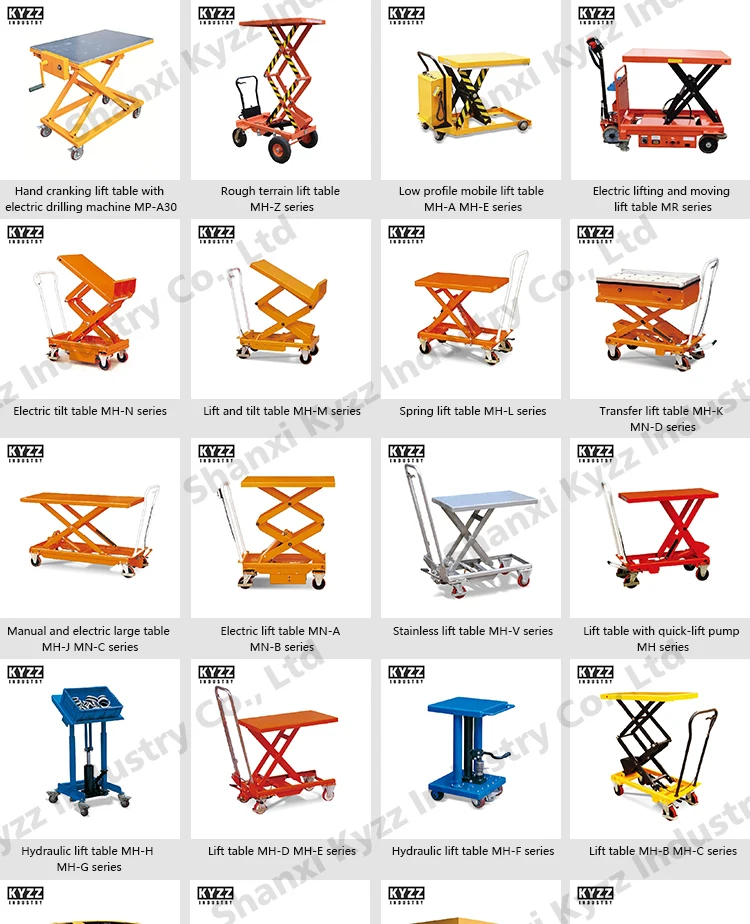

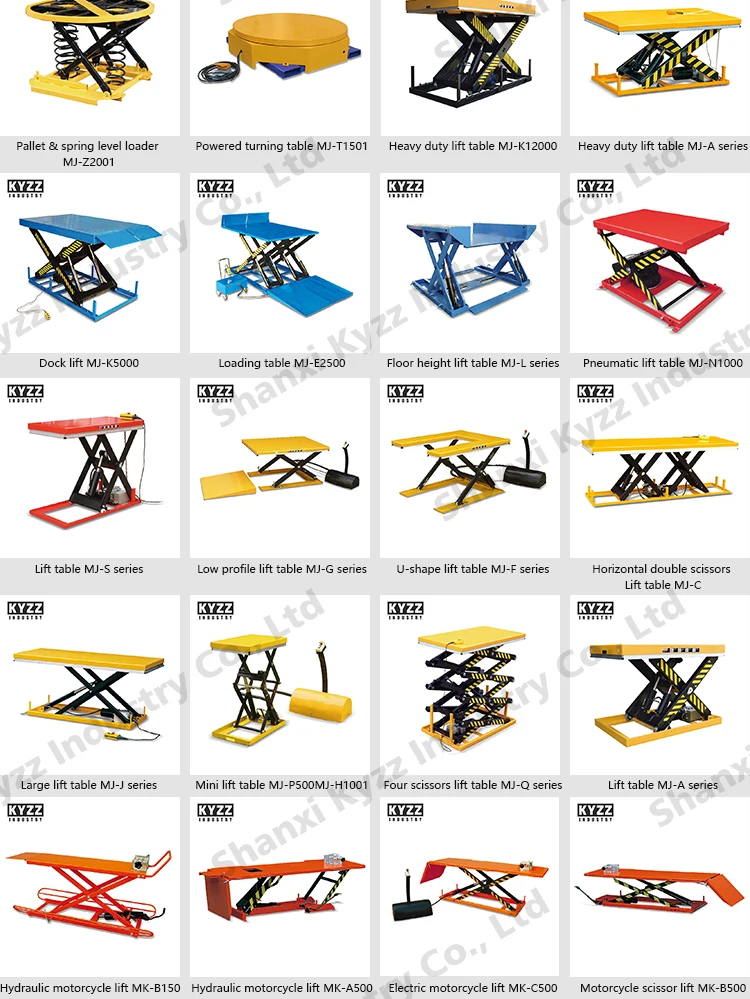

Recommend Products

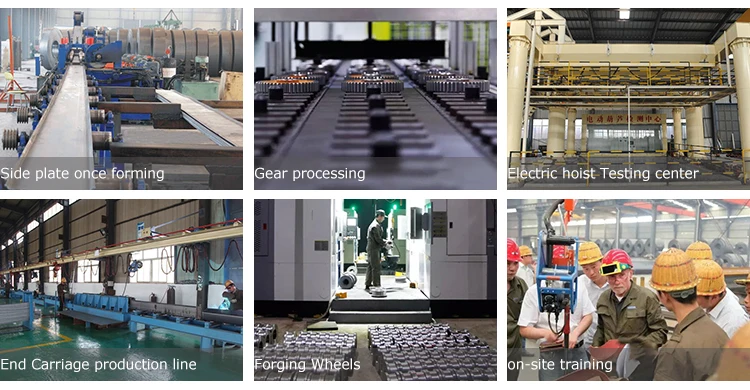

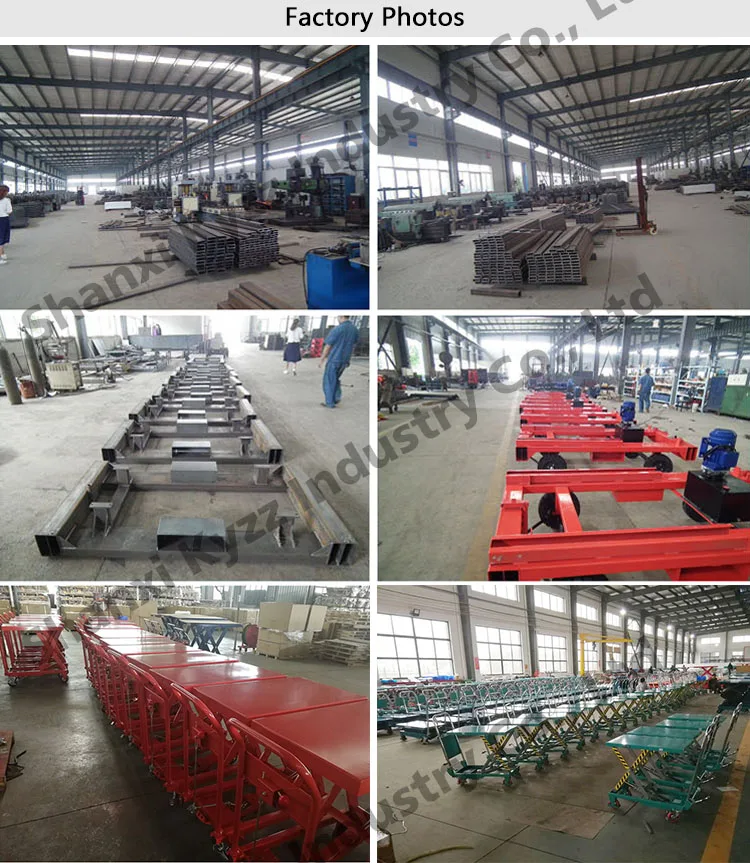

Exhibition




Company Profile




Shanxi Kyzz Industry Co., Ltd is located in Taiyuan,Shanxi, China, which has more than 20 years experiences in the lifting machinery industry . Our products is mobile gantry crane、chain hoist 、pallet truck 、pallet lifter、 winch、lifting riggings、 some lifting machineries and so on. Specifically ,Our company focus on new type lifting machinery and handling equipments designing、researching & developing, own many patents, and approved the CE and other certificates. We has 20 scientific technicians, standard testing equipment. We can provide satisfied solutions and drawings according your working environment, customize your own machinery. Our products had been exported to Southeast Asia, Europe, the United States, Australia, South America and many other countries, and got much satisfied feedback from our clients.
