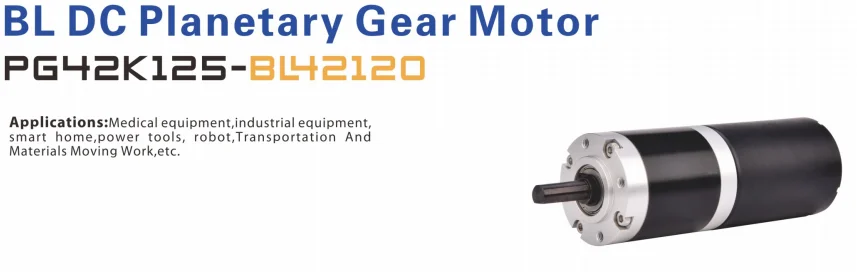

42mm 24VDC planetary reducer for Medical equipment,industrial equipment etc.

Type

Rated  Voltage

VDC

NO-load

Current

A

NO-load

Speed

r/min

Rated

Current

A

Rated

Speed

r/min

Rated

Torque

N.m

Output

Power

W

PG42K125-BL42120

48

0.8

142

5

115

10

120

Number of gear  trains

Reduction

ratio

Gearbox

Length

(L:mm)

processing technology of ring

processing technology of sun gear and planet gear

processing technology of planet carrier

processing technology of flange

1

4/5/7

30.3

gear broaching

hobbing

CNC

CNC

2

16/25/28/35

37.5

3

64/80/100/125/175

44.7

4

256/320/400/500/560/625/700/875

52
