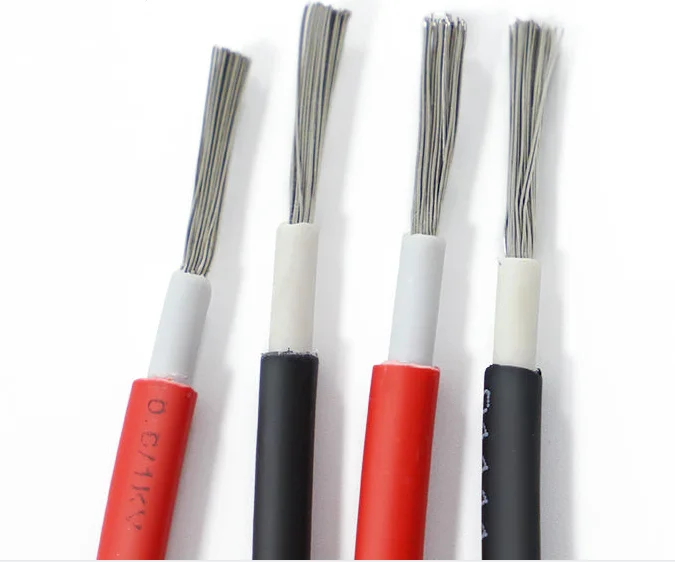

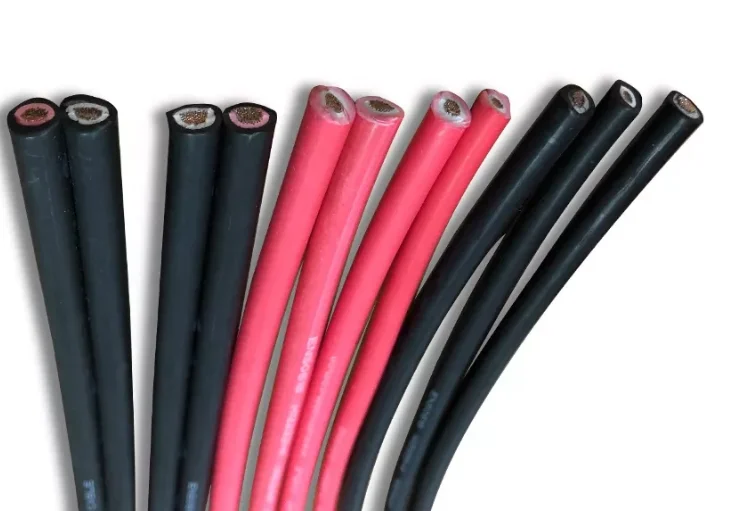

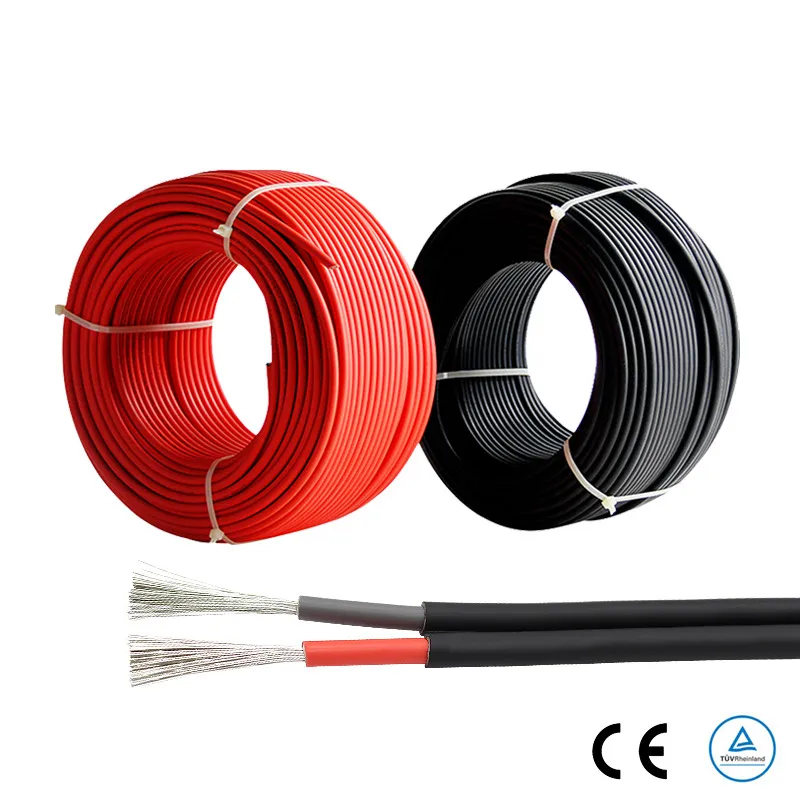

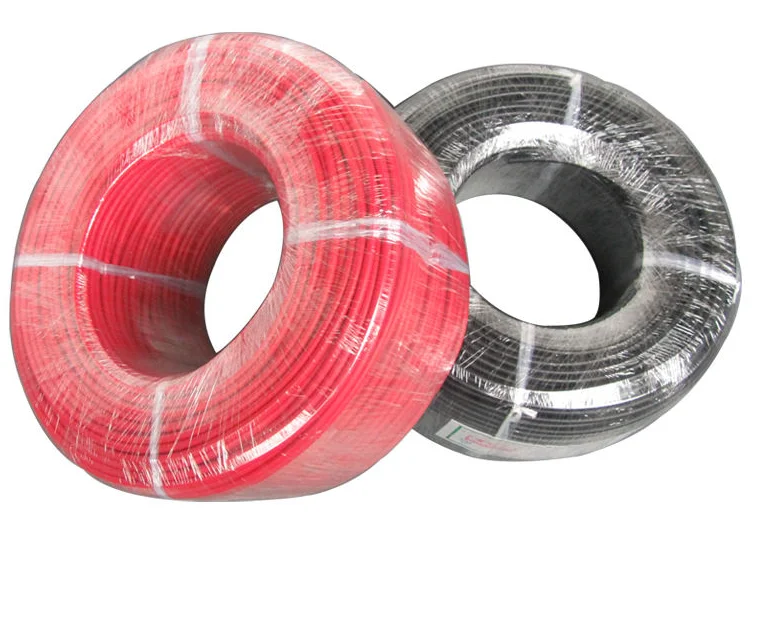

Heat Resistant UV resistance solar wire 6mm 10AWG DC cable for solar panel
- Category: >>>
- Supplier: Shenzhen Brother Young Development Co. Ltd.
Share on (1600562371691):
Product Overview
Description

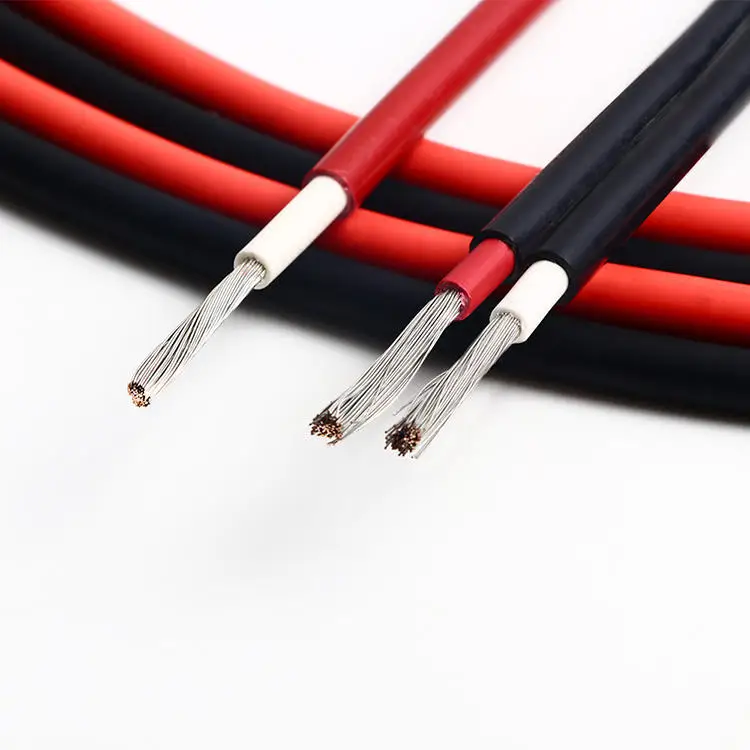

Heat Resistant UV resistance solar wire 6mm 10WG PV DC cable
Product Description
Specification
No. Of cores x Construction （mm2） | Conductor Construction （n / mm） | Conductor No./mm | Insul. Thick. (mm) | Current Aarring Capacity (A) |
1x1.5 | 30/0.25 | 1.58 | 4.9 | 30 |
1x2.5 | 50/0.256 | 2.06 | 5.45 | 41 |
1x4.0 | 56/0.3 | 2.58 | 6.15 | 55 |
1x6 | 84/0.3 | 3.15 | 7.15 | 70 |
1x10 | 142/0.3 | 4.0 | 9.05 | 98 |
1x16 | 228/0.3 | 5.7 | 10.2 | 132 |
1x25 | 361/0.3 | 6.8 | 12.0 | 176 |
1x35 | 494/0.3 | 8.8 | 13.8 | 218 |
1x50 | 418/0.39 | 10.0 | 16 | 280 |
1x70 | 589/0.39 | 11.8 | 18.4 | 350 |
1x95 | 798/0.39 | 13.8 | 21.3 | 410 |
1x120 | 1007/0.39 | 15.6 | 21.7 | 480 |
Title goes here.
Product Features

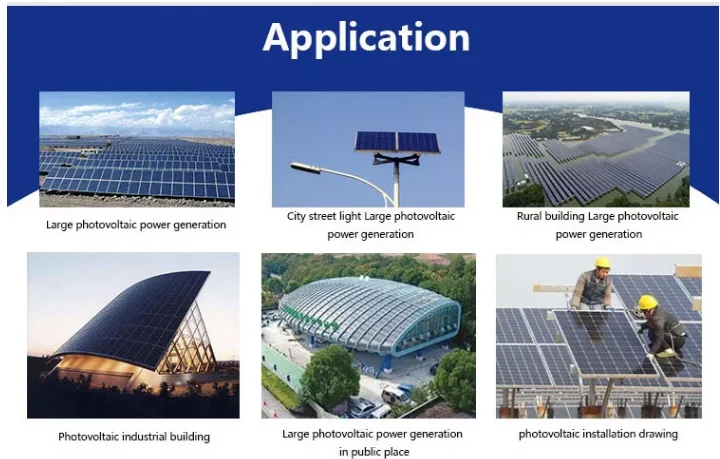

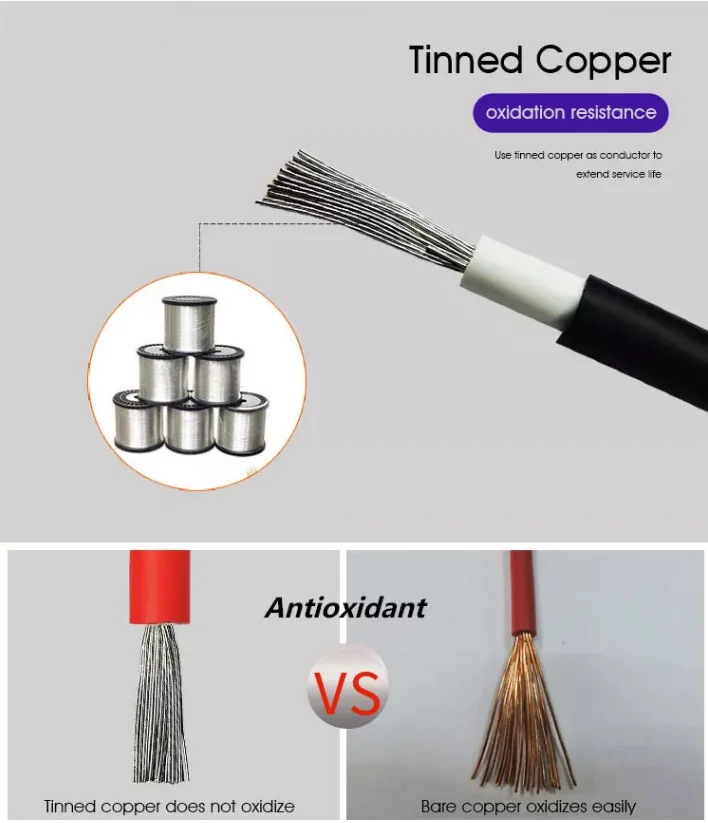

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting
photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather
conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than25 years.
The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting
photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather
conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than25 years.

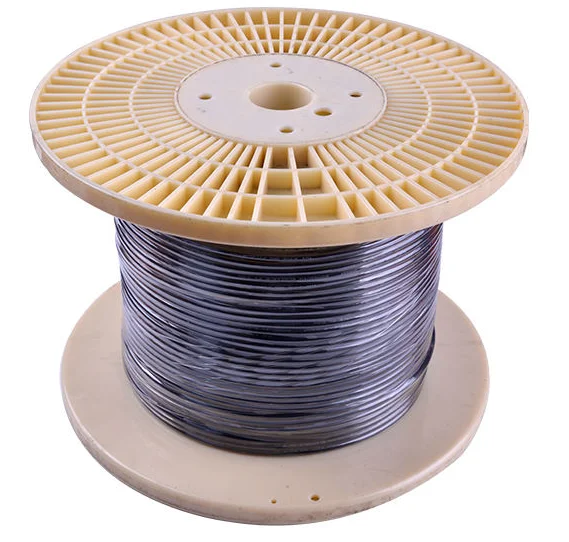

Packing & Delivery
