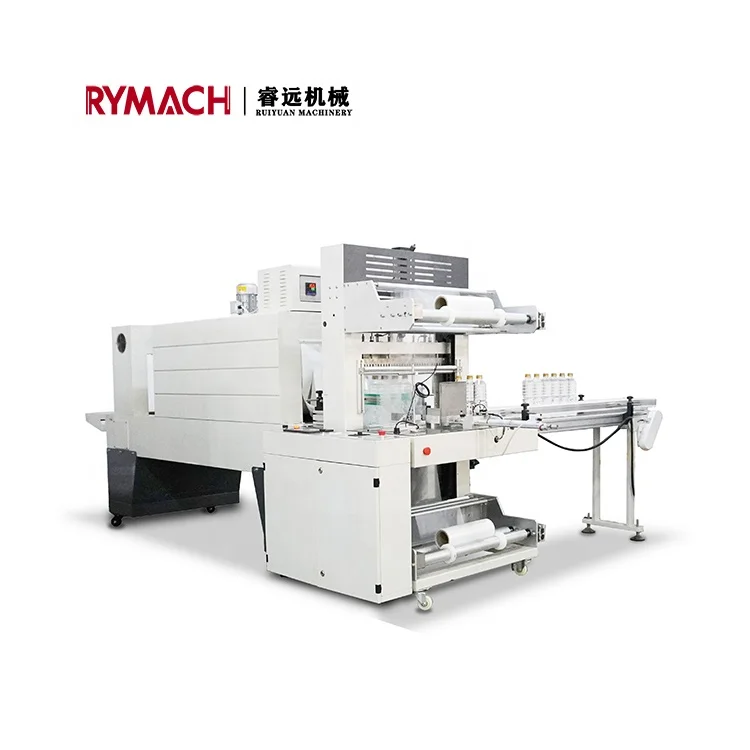

Heat shrinkable packaging machine that can meet the single or collective packaging of bottles and cans

Product Overview

Description

Cartons and big bottles with trays such as drinking bottles, pure waters bottles, beer bottles, etc. It can be connected and work with auto filling machine and labeling machine.

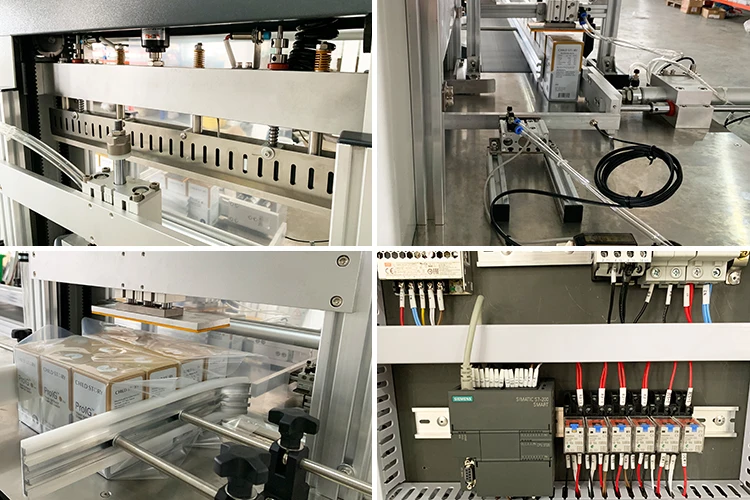

1. This machine can collate bottles (round or square), cans, gable cartons, and tetra cartons automatically. it can connect filling machine or labelling machine to make production line unmanned.

2. Bottles can be collated faster by a special faster and stable collating device and never fall down.

3. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker pe film for heavy products.

4. Rows can be set on the touch screen. when product size changes only adjust packing size on the machine within a short time without changing any molds.

5. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.

6. Optional output roller table or conveyors are available.

7. Optional safety cover is available.

MODEL	RX-750
Sealing Type	Sleeve Sealer (90 Degree Infeed Conveyor)
Sealing Height	200MM
Packing Width	300MM
Packing Size	Width + Height < 500MM
Max Film Roll Size	500mm (Width) X 280mm (Outer Diameter)
Power Consumption	1.8 KW
Sealing Machine Dimensions	2100 X 970 X 1600 MM
Packing Capacity	Max. 20 Packs per Minute (Depends on Product Size)
Installed Power	380V/50-60HZ/3Phase
Film Thickness	30-100 Micron (Minimum-Maximum)
Film Type	PE Film
Working Height	780-850 MM
Air Pressure	0.5MPA (5 BAR)
Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material	Carbon Steel / Stainless Steel
MODEL	RYT-5030
Oven Size	1200MM (L), Entrance 400(W) X 300(H) MM
Tunnel Machine Dimensions	2200 X 750 X 1470 MM
Rated Power Consumption	Max. 16 KW
Power Supply	380V/50-60HZ/3Phase
Conveyor	Chains with Rotating Silicon Coated Rods
Weight(Net/ Gross)	1010KGS/ 1100KGS  (For Reference Only, Including Sealer and Tunnel)

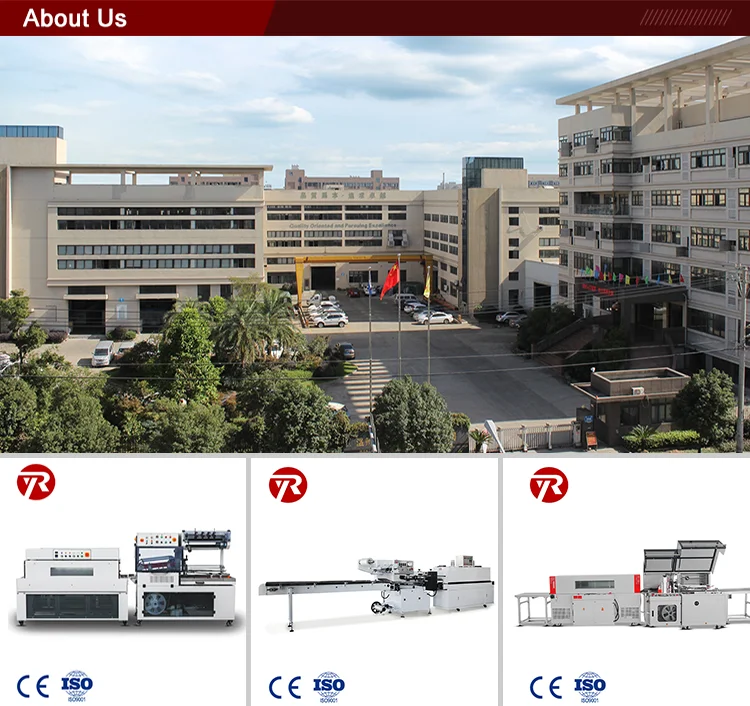

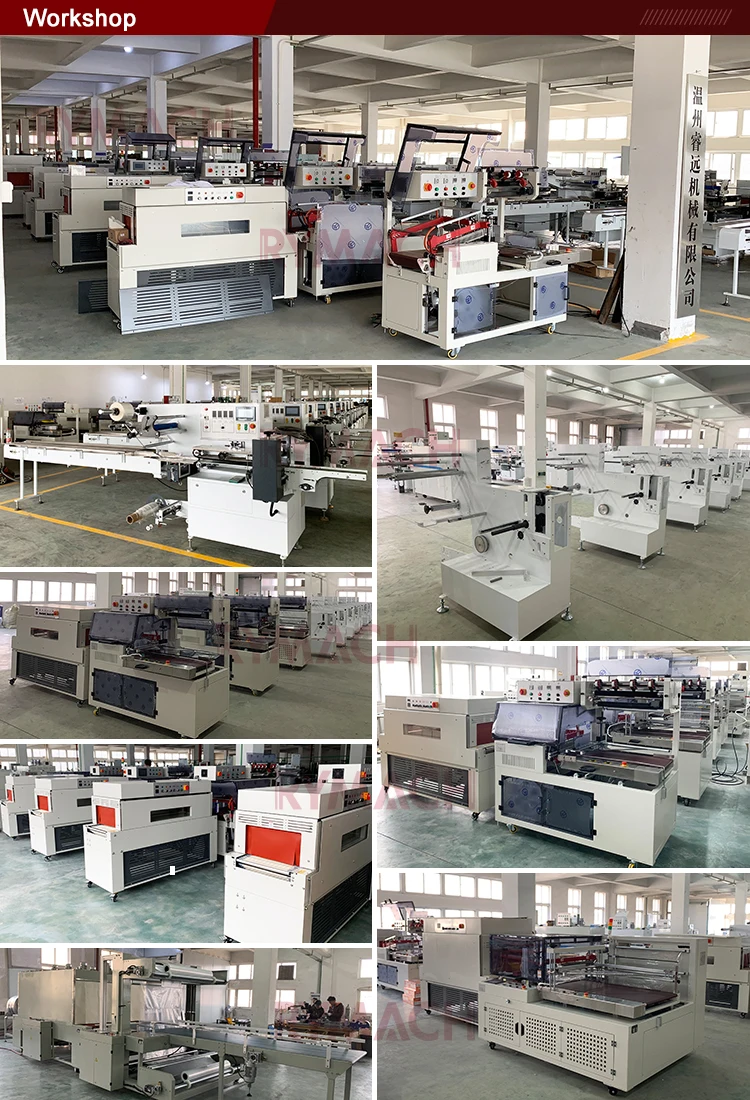

Ruiyuan is a technology-based enterprise, a professional manufacturer of automatic heat shrink packing machinery. In shrink wrapping industry, we have always been a pioneer in the improvements, always targeted high-quality packaging machines without compromise in quality.



We are well known for providing the highest quality in packaging appearance, machine availability and efficiency. Many machines from Ruiyuan often accompany our customers throughout their working life. Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, etc.



The broad scope of expertise of Ruiyuan engineers have led the company to develop an equally wide range of machinery, capable of solving virtually any shrink packaging problem. Besides the complete shrink wrapping systems, Ruiyuan also produces customized projects on infeed and discharge automation such as products package grouping, automatic feeding, paper inserting, product aligning, rotating and labeling etc. No matter where you are we have a suitable shrink packaging solution for your products!
