Silicon photo diode with V () filter
0.01~199900lux / 0.001 fc~19,990 fc

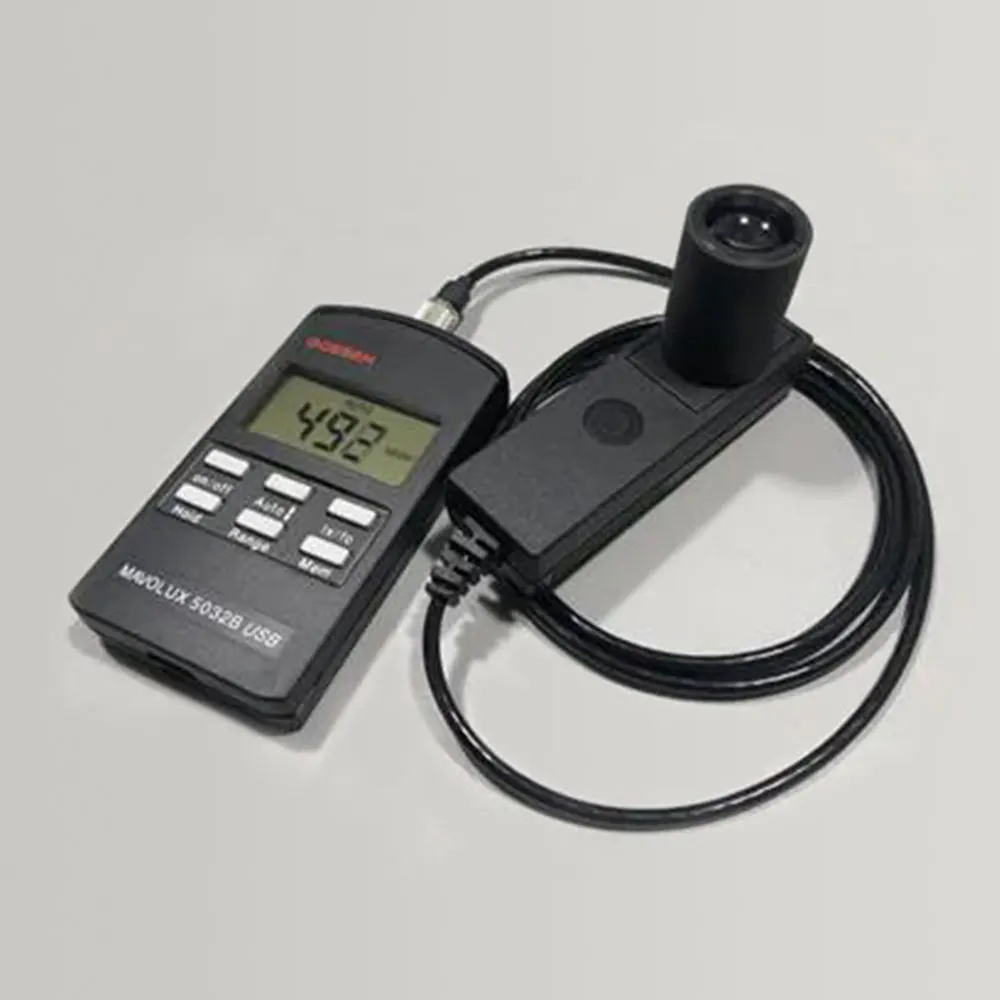

MAVOLUX 5032 B USB – Class B according to DIN 5032, Part 7 (CIE 69)
2 measurements per second
LCD display Size
50 mm x 25 mm
7 segments, 13 mm
OL“ in the display
100 memory space (measured values), display indication „FLL“ = memory full
USB 1.1 Port
one 1.5 V AA alkaline manganese cell Size AA (IEC LR 6) or suitable rechargeable battery
approx. 45 hour continuous operation with alkaline manganese battery
Automatic display of „ „ symbol, when battery voltage drops below 1.0 Volt
When the MAVOLUX is connected to a PC, power will be supplied by the PC via the USB cable.
Display Unit Size
65 x 120 x 19 mm
2.56 x 4.73 x 0.75“
Photometer Head Size
31 x 105 x 30 mm
1.22 x 4.13 x 1.18”
tripod socket ¼ “ on bottom side
Display unit and photometer head approx. 200 g without battery
Light sensitive surface of the diffuser: approx. 10 mm with circular orifice.
Location of the reference plane is on the surface of the light collector.
Approx. 1.5 m. Available on special order available 3 m, 5 m and 10 m.
