30N 6.6Lb Digital Push Pull Force Gauge With Clamp Manufacturer
US $15000-$155000
Цифровой Высокоточный Измеритель силы, измеритель силы нажимного давления, пружинный динамометр, испытательная машина, тестер диапазона 5N 500N, тестер силы
- Category: Force Measuring Instruments >>>
- Supplier: Mikrometry,instruments,limited
Share on:
Product Overview
Description
Features
Mikrometry digital force gauge. The main features are: high accracy, automatic reversible display, curve or digital display modes.
Features:
Durable metal case
Automatic reversible display
Touch key for minimized disturbance
Mechanical overload protection
Curve or digital display modes
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.2% FS
Sampling Rate: 2KHz
Durable metal case
Automatic reversible display
Touch key for minimized disturbance
Mechanical overload protection
Curve or digital display modes
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.2% FS
Sampling Rate: 2KHz
Product Description
Accuracy | ± 0.2% F.S. |
Selectable Units | N,mN,gf, kgf, ozf and lbf |
Display | 160 * 128 dot matrix LCD(2.8 inch) with LED Backlight |
Overload Capacity | 150% of F.S. (LCD blinks beyond 110%) |
Overload Protection | Overload Protection Mechanism to prevent to be damaged |
Measurement Mode | Track, Peak, Auto-Peak, First Peak |
Display Mode | Curve/ digital |
Data Sampling Rate | 2KHz |
Display Update Rate | 10 times/second |
Memory | 1000 data |
Set Point | Programmable high and low limits |
Battery Indicator | Display flashed battry icon when battery is low |
Power | 3.6 VDC 800 mAh Ni-Mh rechargeable batteries |
Battery Life | Approx. 14 hours per charge |
Charger / Adapter | Universal USB / BM charger, input: 110~240 VAC |
Temperature Effects | <0.03% FS per °C |
Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output, "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
Dimension | 160*73*34mm |
Weight: | 0.7 kg (1.5 lb) |

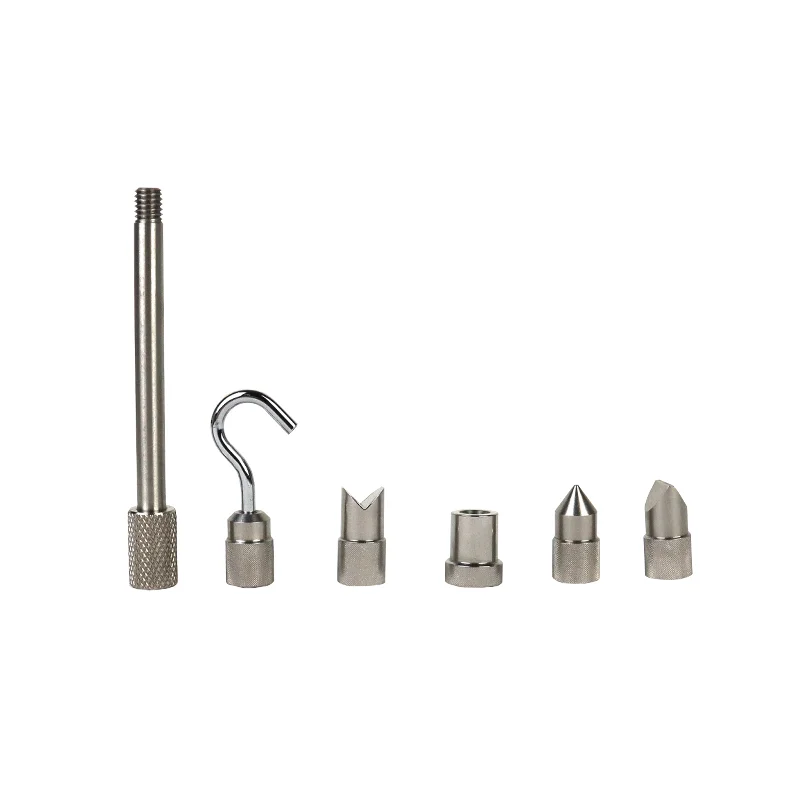

Accessories | AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft |
Options | Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit. |
Our Advantage
Company Profile
Founded in 2007 and located in Shenzhen,a special economic zone,Mikrometry is a professional- altimeter,Leeb hardness tester,precision digital dynamometer,precision torque tester,coating thickness gauge , Shore hardness tester and other instruments. Have the ability of independent research and development and independent production.
The company has a R&D team with rich experience,comprehensive knowledge and efficient work.The products are developed and designed by R&D personnel with many years of industry application and design experience.The integration of rich practical experience and professional technology has won the widespread trust and support of a large number of customers.
Payment & Shipping
FAQ
Q1. You are manufacturer or trading company?
A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service.
Q2. Do you provide OEM/ODM services?
A: We can do OEM/ODM.
Q3. How does your factory do regarding quality control?
A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
