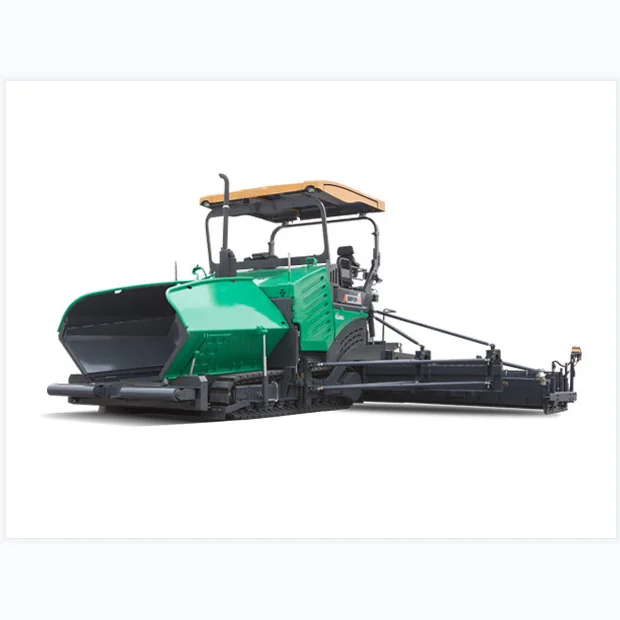

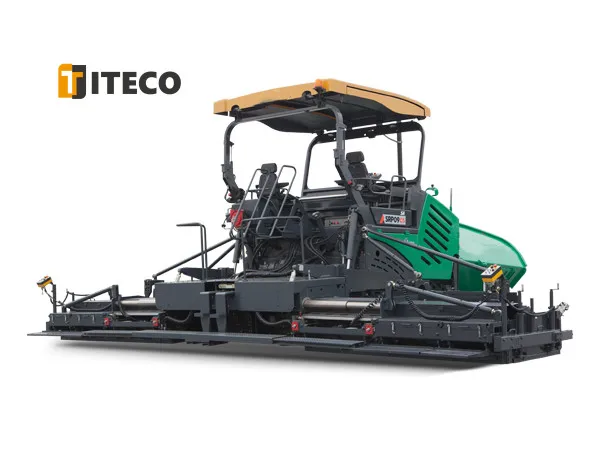

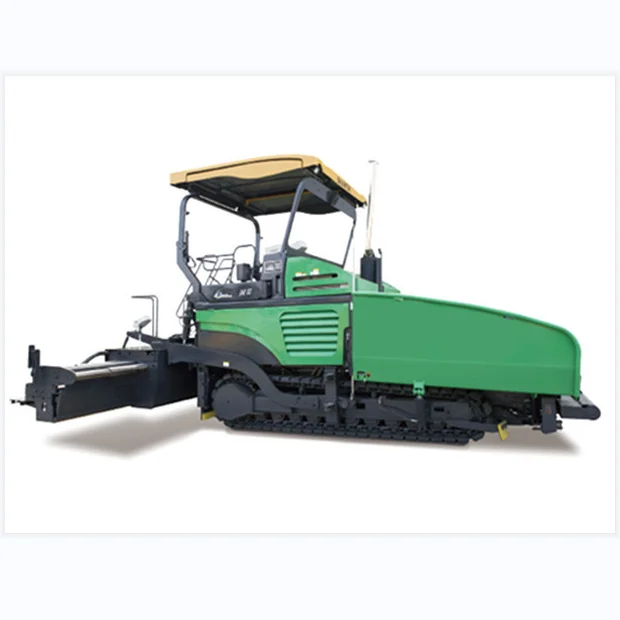

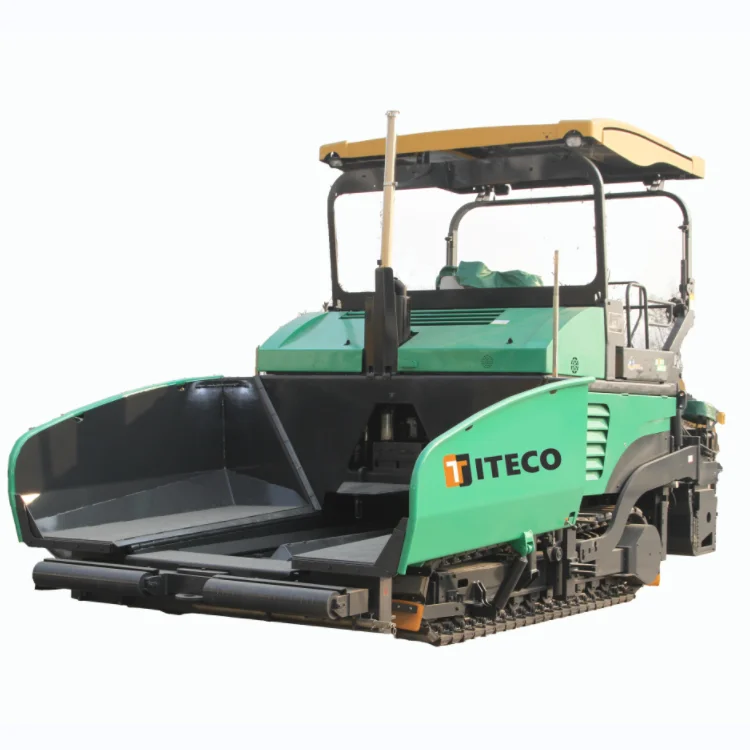

TITECO 4.5m Small Mini Road Machine Asphalt Paver
- Category: >>>
- Supplier: Titeco Industry Technology Inc.
Share on (1600563169604):
Product Overview
Description
Products Description
Parameter name | SRP90S PLUS (Standard version） |
Operating weight (Kg) | 29000 |
Basic paving width (m) | 3-5.7 |
Maximum paving width (m) | 9 |
Maximum paving thickness (mm) | 350 |
Maximum productivity (t/h) | 850 |
Engine model | SC9D/BF6M |
Rated power/rated speed (kW/rpm) | 162/2000;159/2000 |
Overall dimensions of machine (mm) | 7800*9000*3800 |
Traveling speed (km/h) | 0～2.4 |
Paving speed (m/min) | 0～18 |
Hopper capacity (t) | 15 |
Screed | AVS9030D |
Parameter name | SRP95M PLUS (Standard version） |
Operating weight (Kg) | 30000 |
Basic paving width (m) | 2.5 |
Maximum paving width (m) | 9.5 |
Maximum paving thickness (mm) | 350 |
Maximum productivity (t/h) | 850 |
Engine model | SC9D/BF6M |
Rated power/rated speed (kW/rpm) | 162/2000;159/2000 |
Overall dimensions of machine (mm) | 7300*9500*3800 |
Traveling speed (km/h) | 0～2.4 |
Paving speed (m/min) | 0～18 |
Hopper capacity (t) | 15 |
Screed | DM9525Q |
CHARACTERISTIC
Power System
● SRP95M PLUS paver is powered by China-III compliant Deutz BF6M or SDEC SC9D turbocharged diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.
Repairs and maintenances
● The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
● The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral distributor.
Driving/Riding Environment
● The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.
● The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.
● The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding environment.
● The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.
Feeding device
● The lengthened and widened high-capacity hopper achieves high productivity.
● The spring-cushioned push roller can remarkably reduce the impact of feeder onto the paver and achieve higher operating quality.
Conveyance/distribution system
● Four sets of independent full-hydraulic left and right material conveyance/distribution systems are adopted and the ultrasonic sensing control technology is adopted for the material level control to ensure the uniform material supply in completely proportional manner.
● The large diameter and large pitch spiral distribution structure features power distribution capability, low distribution speed, and low segregation.
● The left and right spiral distributors can be driven separately and the ground clearance of distributors is steplessly adjustable to adapt to paving needs of different thicknesses.
Screed
● SRP95M PLUS paver is equipped with mechanically-assembled screed, with double-tamper, steplessly adjustable frequency, and high pre-compactness.
● The high strength framework structure and the large wear-resistant baseplate achieve high paving stability and good operating quality.
Control system
● Shantui's latest generation paver intelligent operation management system achieves constant-speed paving and automatic changeover among diversified working conditions and incorporates the automatic malfunction diagnostic system to real-time monitor the machine.
● The intelligent leveling system features high leveling accuracy and strong anti-interference performance.
● The excellent ergonomic control system features high reliability and maneuverability.
● The control parts and switches are arranged as per functional logic to achieve simple operations and good human-machine interfaces.
Traveling system
● The hydraulic system is controlled by independent left and right micro-computers to achieve good low-speed stability and linear driving performance.
● The drive sprockets, idlers, track rollers, carrier rollers, and tracks of domestic renowned brands are applied and the extended tracks are independently driven to achieve high drive torque and uniform speed and guarantee the paving flatness and uniform compactness.
Power System
● SRP95M PLUS paver is powered by China-III compliant Deutz BF6M or SDEC SC9D turbocharged diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.
Repairs and maintenances
● The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
● The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral distributor.
Driving/Riding Environment
● The control console can be laterally slide and vertically adjusted to meet the actual needs of different operators.
● The left and right seats can be rotated to the outer side of machine body and the streamline cab structure provides a good vision.
● The large glass fiber reinforced plastic canopy is easily telescopic in both sides to provide a comfortable driving/riding environment.
● The canopy and the exhaust tail pipe can be lifted and lowered simultaneously by the manually-operated hydraulic pump to improve the maneuverability and comfort of the operator.
Feeding device
● The lengthened and widened high-capacity hopper achieves high productivity.
● The spring-cushioned push roller can remarkably reduce the impact of feeder onto the paver and achieve higher operating quality.
Conveyance/distribution system
● Four sets of independent full-hydraulic left and right material conveyance/distribution systems are adopted and the ultrasonic sensing control technology is adopted for the material level control to ensure the uniform material supply in completely proportional manner.
● The large diameter and large pitch spiral distribution structure features power distribution capability, low distribution speed, and low segregation.
● The left and right spiral distributors can be driven separately and the ground clearance of distributors is steplessly adjustable to adapt to paving needs of different thicknesses.
Screed
● SRP95M PLUS paver is equipped with mechanically-assembled screed, with double-tamper, steplessly adjustable frequency, and high pre-compactness.
● The high strength framework structure and the large wear-resistant baseplate achieve high paving stability and good operating quality.
Control system
● Shantui's latest generation paver intelligent operation management system achieves constant-speed paving and automatic changeover among diversified working conditions and incorporates the automatic malfunction diagnostic system to real-time monitor the machine.
● The intelligent leveling system features high leveling accuracy and strong anti-interference performance.
● The excellent ergonomic control system features high reliability and maneuverability.
● The control parts and switches are arranged as per functional logic to achieve simple operations and good human-machine interfaces.
Traveling system
● The hydraulic system is controlled by independent left and right micro-computers to achieve good low-speed stability and linear driving performance.
● The drive sprockets, idlers, track rollers, carrier rollers, and tracks of domestic renowned brands are applied and the extended tracks are independently driven to achieve high drive torque and uniform speed and guarantee the paving flatness and uniform compactness.
Production Process
Partner
Company Profile
TITECO is a global producer of construction equipment and vehicles, which is specialist in road building, repair and maintenance machinery equipment and vehicles. We offer our customers technologically first-class quality products, creative design services and sound service for optimum, economic production processes. With over 20 years experience in concrete & asphalt road building and maintenance, TITECO's applied technology service will help you to improve your performance. All our products are synonymous of power and stability, always provide the innovative solutions for complex issues.
Our Advantages
1. More than 20 years of cutting edge innovation and expertise help us to provide you all the best solutions of your projects.
2. With all kinds of our products commissioned for the concrete and asphalt industry projects,we believed that we know the cares and concerns of our customers well.
3. TITECO manufactures all equipment in our own factory under the strick quaility control system, makes the equipment much more reliable.
Product Packaging
FAQ
Could you guarantee the quality of your products?
Quality control system certified with ISO 9001, All equipments under the strick quaility control system.
Quality control system certified with ISO 9001, All equipments under the strick quaility control system.
What is the MOQ?
In order to help our clients have a good understanding of the product, we can start order from 1 Unit.
In order to help our clients have a good understanding of the product, we can start order from 1 Unit.
I cannot find the suitable model, can I ask for a special model I need?
Sure. Kindly please advising the detail specification you need, we will make it according to your request.
Do you offer guarantee for the products?
Yes, we offer 1-years warranty for all equipment dated from the delivery.
Yes, we offer 1-years warranty for all equipment dated from the delivery.
What are your payment terms?
30% TT as deposit,70% TT before Shipment.
30% TT as deposit,70% TT before Shipment.
What about the lead-time?
Normally 15-30 working days after receiving the down payment.
Normally 15-30 working days after receiving the down payment.
Is it all right to make customer's own brand name?
We can be your OEM manufacture with your authorization of brand.
We can be your OEM manufacture with your authorization of brand.
