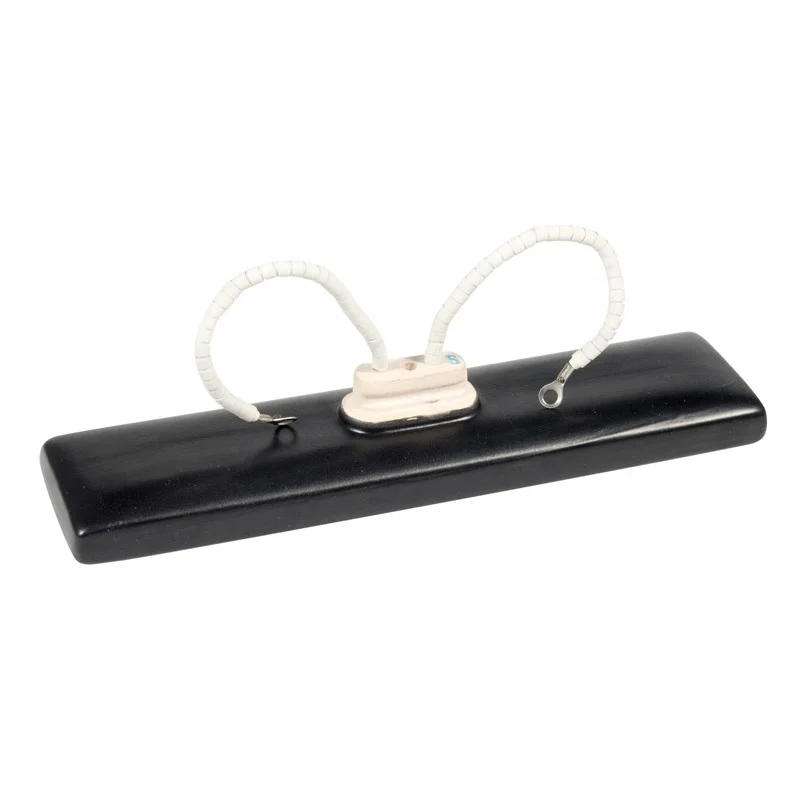

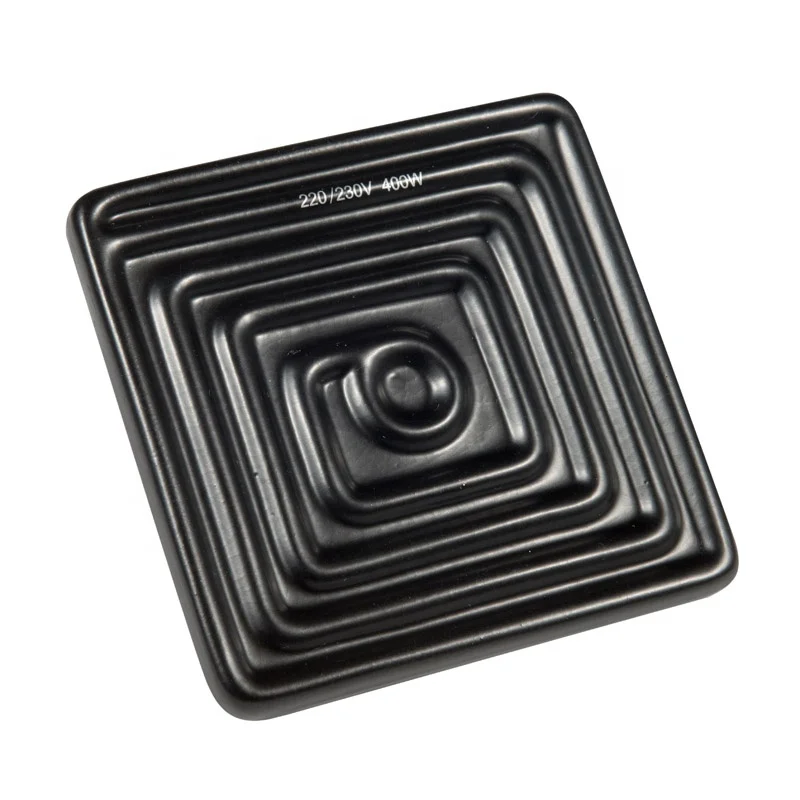

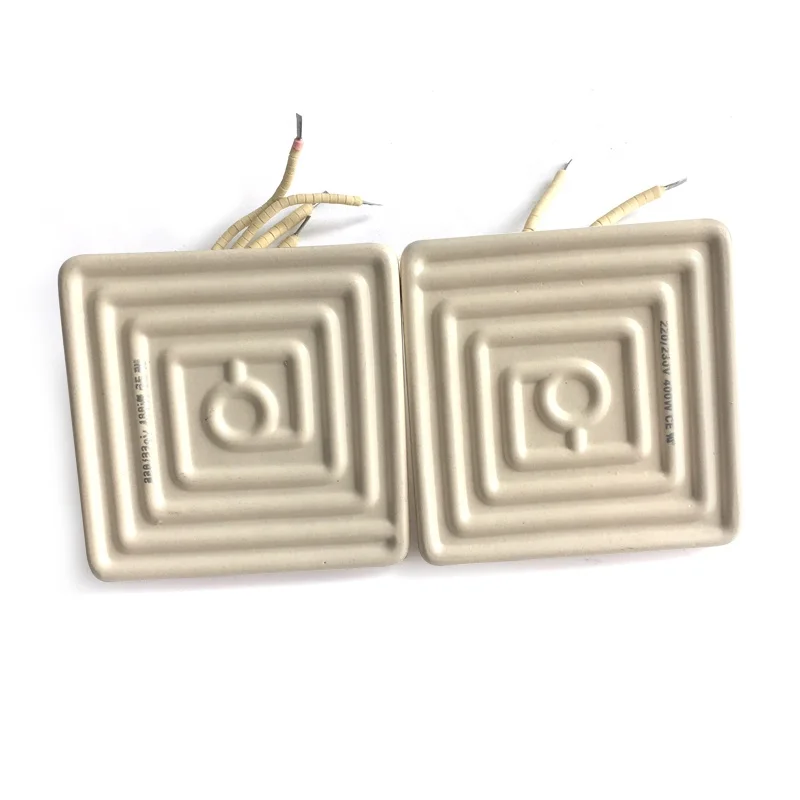

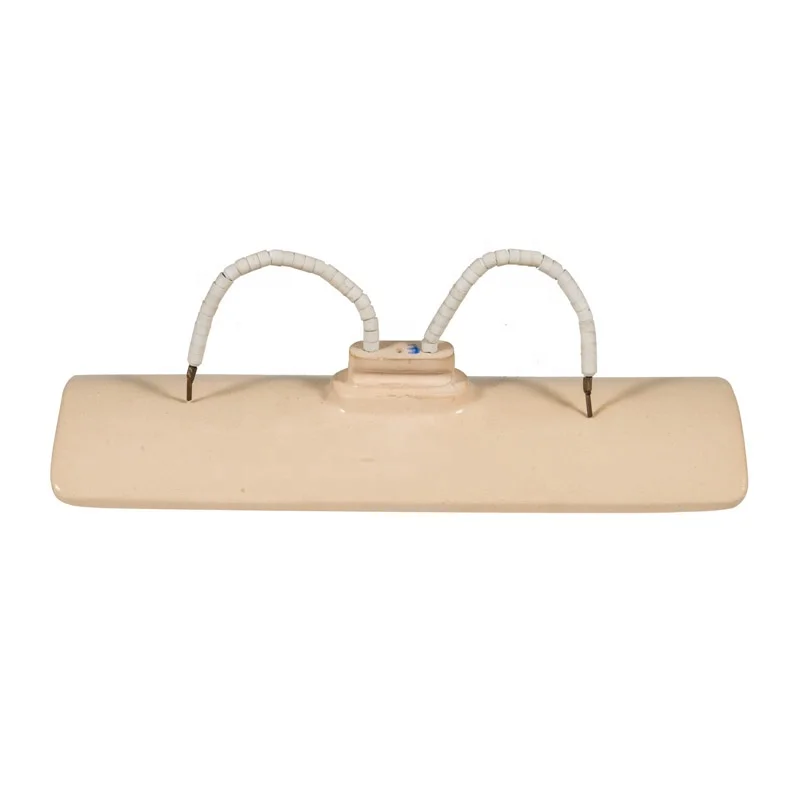

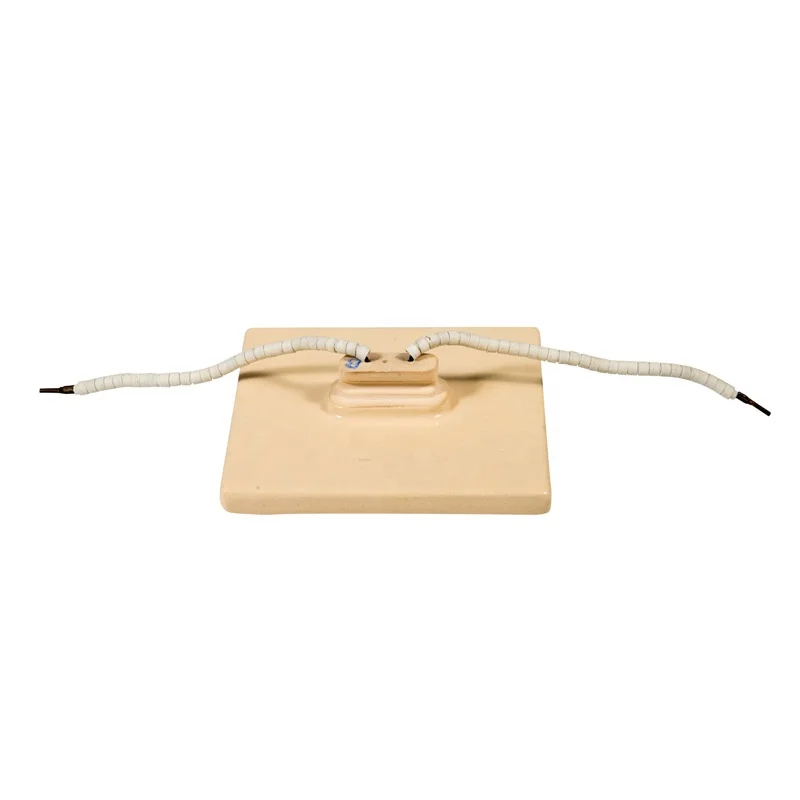

120x120mm 220v 800w ceramic far infrared heater elements hollow for industry
Far infrared ceramic heater is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
Dimension（mm） | 240 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. | ||||||
Shapes | Trough, Hollow and Flat | ||||||
Insulation Material | Ceramic | ||||||
Conductor Material | Nichrome Wire | ||||||
Voltage | 220 volts, 380 volts, 110 volts | ||||||
Wattage | 250 watts - 1000 watts | ||||||
Lead Connection | Ceramic Bead Lead Wire 150mm | ||||||
Thermocouple | Optional, K or J Type | ||||||
Operating Temperature | 300C - 700C | ||||||
Recommended Radiation Distance | 100mm - 200mm | ||||||
Size:60*60mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Size:80*80mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Size:122*122mm
Type:Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-750W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-750W
TC:Optional K or J Type
Size:122*60mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-500W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-500W
TC:Optional K or J Type
Size:245*60mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Size:245*80mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
When you order, pls provide above this;
1.The ceramic heater type: Trough, Hollow and Flat
2.The ceramic heater size:245*60mm,245*80mm and other can be customized.
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :125W,150W,200W,250W,300W and other can be customized.
2.The ceramic heater size:245*60mm,245*80mm and other can be customized.
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :125W,150W,200W,250W,300W and other can be customized.
Applications
<1>.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
<4>.Heating in vertical or half round array (for example: Angle iron, Aluminum windows paint stove) .
<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
<4>.Heating in vertical or half round array (for example: Angle iron, Aluminum windows paint stove) .
Recommend Products
Certifications

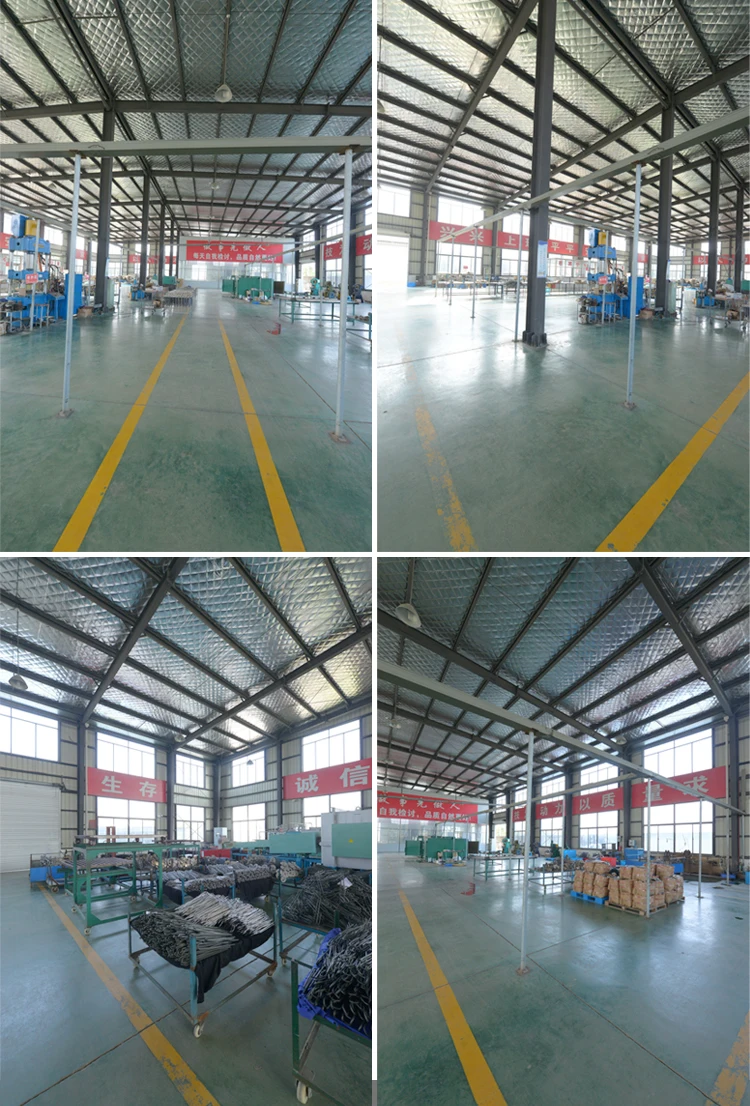

Our Factory
