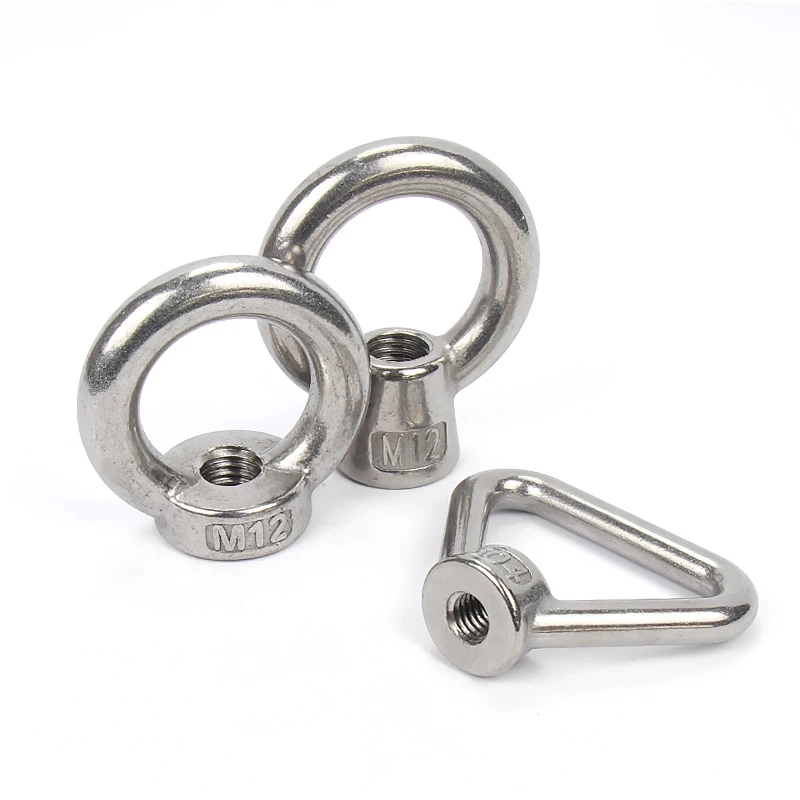

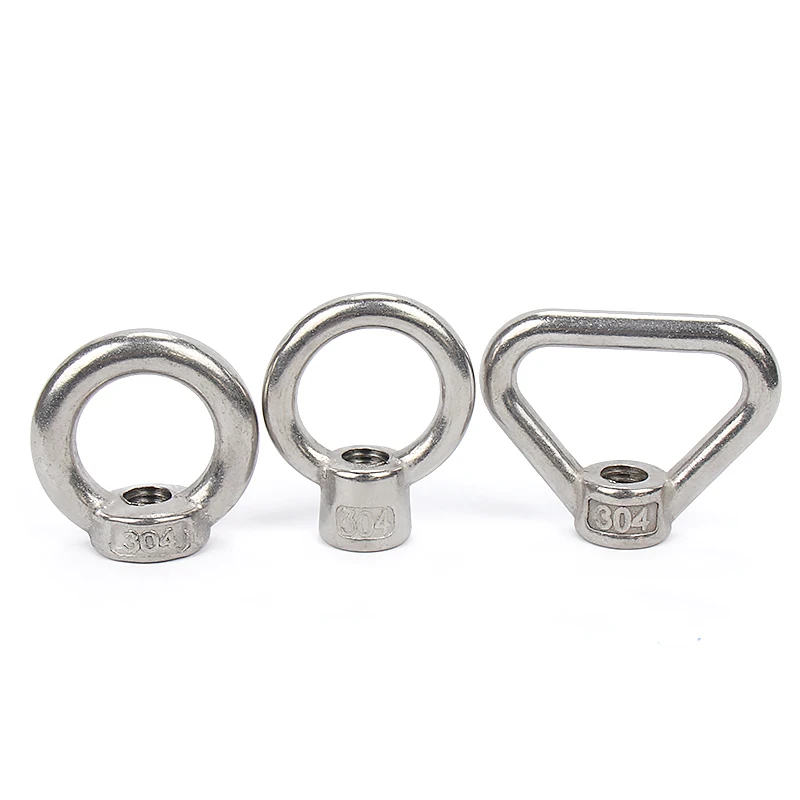

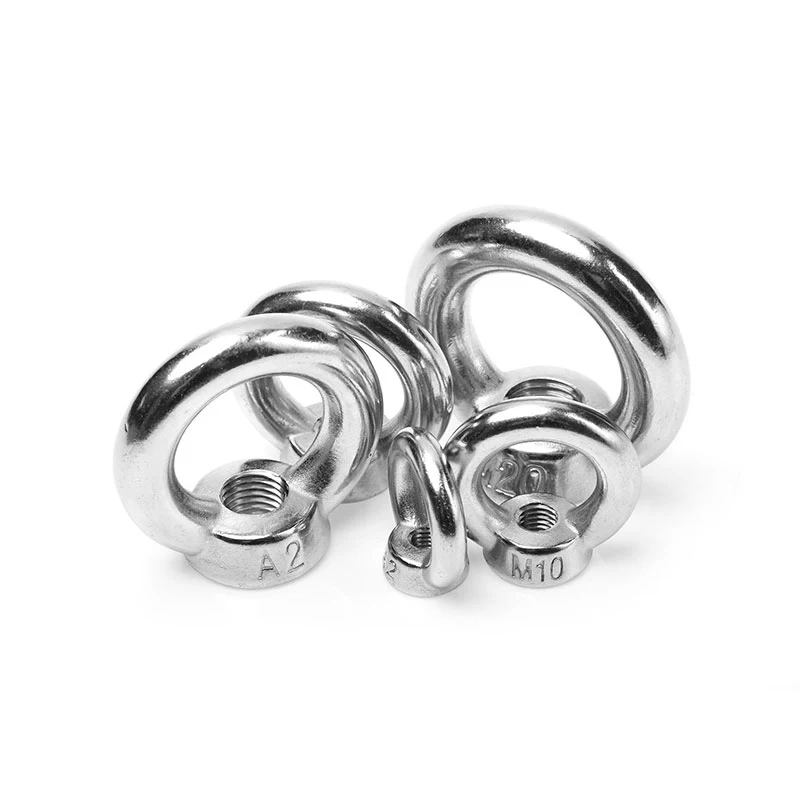

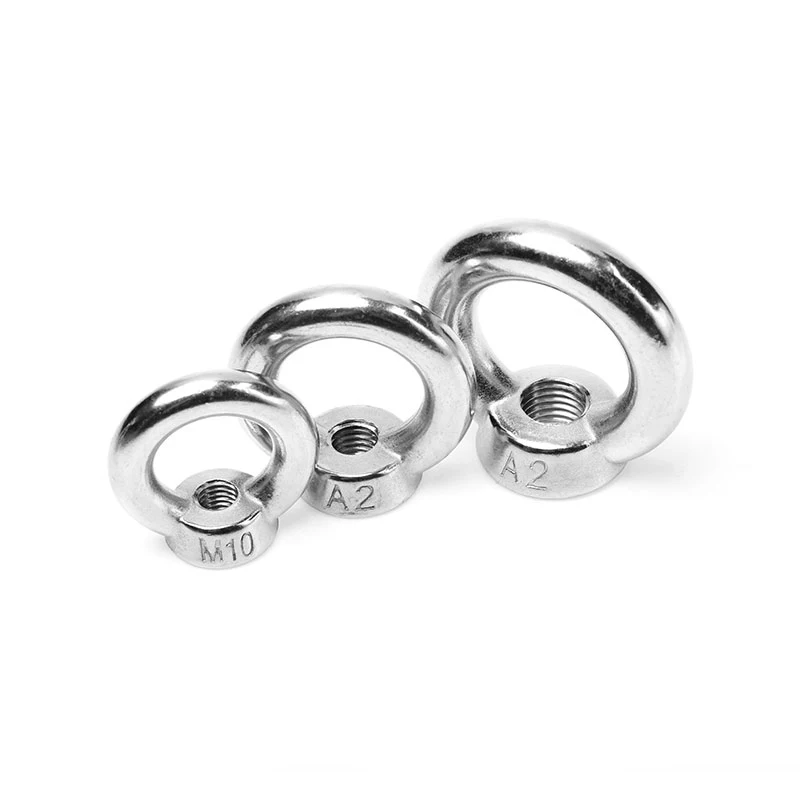

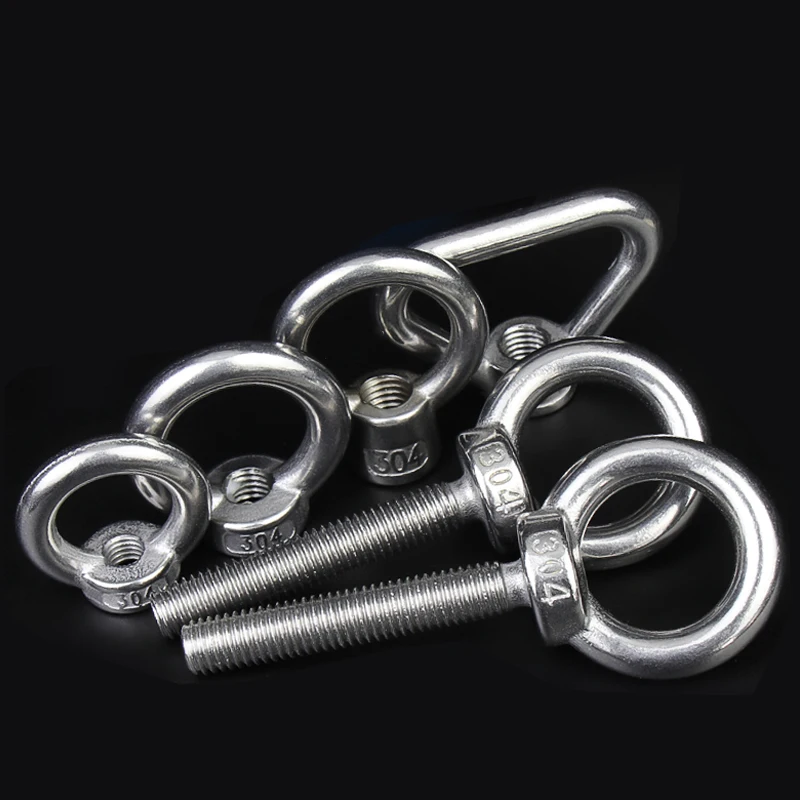

DIN582 rigging hardware rings nut 304, 316 stainless steel anchor eye bolt
- Category: Nuts >>>
- Supplier: Shenzhen Hengxiang Hardware Products Co. Ltd.
Share on (1600563436992):
Product Overview
Description
Specification
Product name | lifting eye nut |
texture of material | Carbon steel, stainless steel 304, stainless steel 316 |
standard | DIN、DIN582、JIS、ASME/ANSI |
size | M3-M36 |
appearance | Natural color |
Delivery time | 3-15 days |
packing | Plastic bag / carton |
Non-standards | OEM is available,please supply drawing or sample |
Products Description

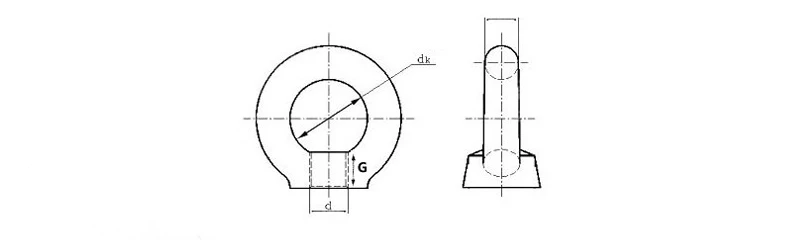

lifting eye nut
specification | diameter | Ring inside diameter | Diameter of outer ring | Single weight | Lifting ≈ mass /t | depth of thread |
M3 | 3 | 7.22 | 3 | 4.6 | ||
M4 | 4 | 10.64 | 4.25 | 5.3 | ||
M5 | 5 | 13.86 | 4.87 | 6.3 | ||
M6 | 6 | 17.38 | 5.2 | 19.5 | 7.8 | |
M8 | 8 | 20.23 | 7.85 | 37.5 | 0.16 | 9.8 |
M10 | 10 | 24.12 | 8.49 | 64 | 0.25 | 9.9 |
M12 | 12 | 29.53 | 9.36 | 102.5 | 0.4 | 10.9 |
M14 | 14 | 31.74 | 11.99 | 147 | 0.63 | 13.2 |
M16 | 16 | 33.56 | 12.63 | 178 | 1 | 16.3 |
M18 | 18 | 33.8 | 13.1 | 180 | 1.6 | 17.5 |
M20 | 20 | 40.8 | 14.7 | 291 | 2.5 | 18.8 |
M24 | 24 | 43.8 | 18.8 | 470 | 4 | 20.3 |

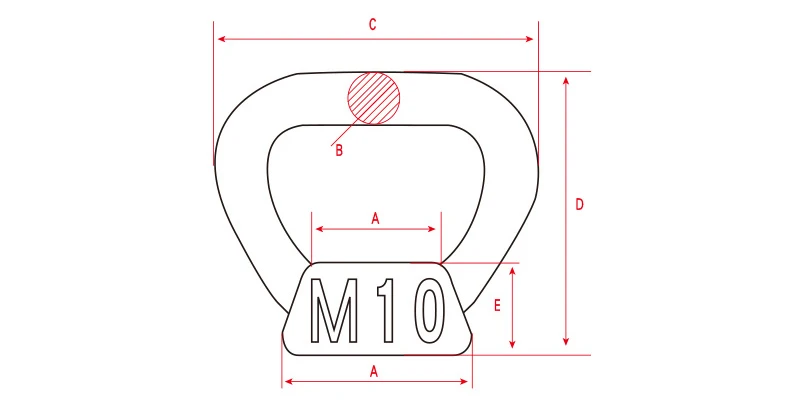

Triangular nut
specification | B | C | D | E | F | Weight (g) |
M10 | 8 | 60 | 47 | 12 | 20 | 65 |
M12 | 10 | 65 | 52 | 15 | 23 | 110 |
M14 | 10 | 66 | 52 | 11 | 23 | 120 |
M16 | 12 | 75 | 60 | 18 | 29 | 188 |
M18 | 12 | 75 | 60 | 18 | 29 | 198 |
M20 | 13 | 85 | 71 | 22 | 35 | 280 |
M24 | 14 | 97 | 83 | 26 | 45 | 430 |
M30 | 16 | 110 | 120 | 35 | 59 | 830 |

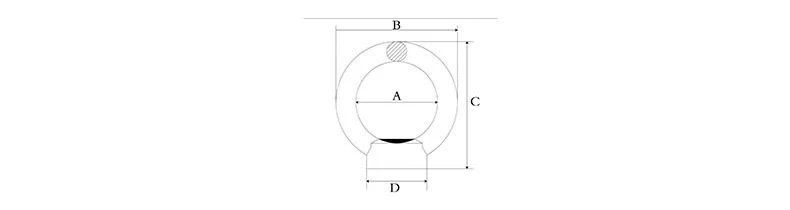

High nut
specification | A | B | C | D | E | Weight (g) |
M6 | 16.36 | 25.48 | 30.6 | 12.42 | 5.25 | 13.5 |
M8 | 20.46 | 32.2 | 38.2 | 14.9 | 5.9 | 25.32 |
M10 | 24.9 | 40.68 | 45.9 | 18.3 | 7.3 | 45.22 |
M12 | 30.5 | 50.26 | 60.1 | 21.72 | 10.5 | 89.51 |
M16 | 34.99 | 59.49 | 71.8 | 27.9 | 12.25 | 175.6 |
M20 | 39.9 | 68.57 | 82.9 | 33.65 | 14.79 | 309 |
M24 | 50.1 | 88.62 | 108.35 | 37.34 | 19.45 | 588 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
