P717 pH/Conductivity/DO Meter
- Category: >>>
- Supplier: Shanghai Yoke Instrument Co. Ltd.
Share on (1600563676677):
Product Overview
Description
Product Description
Details Images
General Features:
1. 6.5-inch LED screen with concise and friendly-use interface.
2. Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
3. Wireless printing and real-time data transfer to mobile phone are optional.4. Smart electrode status display to ensure accurate use.
5. Omron long lasting and light touch key can be used more than 100,000 times.
6. Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel.
Features:
● pH Mode:
1. Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration.
● Conductivity Mode:
1. Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm.
2. Can switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
3. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
● DO Mode:
1. It has functions of ATC, auto salinity compensation and auto pressure compensation.
2. Polarographic DO electrode, short polarization time (3-5 mintues).
● ISE Mode:
1. Can test electric potential, pH, pX, ORP, ion concentration and temperature.
2. Can switch 6 kinds of concentration units: μg/L, mg/L, g/L, mol/L, mmol/L, PX.
3. Auto recognition of buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3, 4, 5 point calibration.
Specification
Model | Description | Application |
P711 | pH meter | General laboratory pH meter, which can be used in most of the areas related to water quality analysis. |
P712 | Conductivity meter | Used to measure the conductivity value of conventional aqueous solutions, especially in education and scientific research. |
P713 | pH/Conductivity meter | Suitable for high-precision pH/conductivity measurement in scientific research, quality control, biotechnology, fine chemicals,etc. |
P714 | DO meter | Applicable to aquaculture, water source monitoring, sewage treatment and environmental monitoring, etc., also widely used in education and scientific research. |
P715 | pH/DO meter | Suitable for biotechnology, aquaculture, power plants and environmental protection industries, especially in education and research. |
P716 | Conductivity/DO meter | Widely used in biotechnology,aquaculture,power plants and environmental protection industries. |
P717 | pH/Conductivity/DO meter | Suitable for the fields of petroleum, chemical, pharmacy, power plants and environmental protection, also widely used in education and scientific research. |
P718-F | Fluoride ion meter | Test and analysis of the fluoride in drinking water, surface water, sea water, living sewage and industrial wastewater and the fluorine ion in mineral ,organic,and biological materials. |
P718-Na | Sodium ion meter | Suitable for measurement of sodium ion and pH value in natural water,boiler water and industrial drainage,especially for the quality monitoring of high purity water in power plant. |
P718-Cl | Chloride ion meter | Measure chloride ion and pH value in drinking water, food and sewage. |
P718-Ca | Calcium ion meter | Test calcium ion and pH value of water solutions. Widely used in the analysis and research of water quality, biochemistry and biomedicine. |
P718-Br | Bromide ion meter | Test bromide ion and pH value in drinking water, food and sewage. |
P718-NO | Nitrate ion meter | Test nitrate ion and pH value in drinking water, food and sewage. |
P718-K | Potassium ion meter | Measure potassium ion and pH value in drinking water, food and sewage. |
P718-NH | Ammonia Ion Meter | Test ammonia & nitrogen and pH value in drinking water, food and sewage. |
P718-Cu | Copper ion meter | Test copper ion and pH value in food, beverage, electroplating industry and sewage. |
P718-I | Iodide ion meter | Test iodide ion and pH value in drinking water, food and sewage. |
Model | P711 | P712 | P713 | P714 | P715 | P716 | P717 | P718 | ||
Standard Accessaries | Electrode holder | √ | √ | √ | √ | √ | √ | √ | √ | |
pH composite electrode | √ | √ | √ | √ | ||||||
Cond. electrode (K=1) | √ | √ | √ | √ | ||||||
DO electrode | √ | √ | √ | √ | ||||||
Ion electrode | √ | |||||||||
Temperature probe | √ | √ | √ | √ | √ | √ | √ | √ | ||
Reference electrode | √ | |||||||||
pH buffer solution | √ | √ | √ | √ | ||||||
DO filling solution | √ | √ | √ | √ | ||||||
Membrane cap | √ | √ | √ | √ | ||||||
Cathode polishing paper | √ | √ | √ | √ | ||||||
Power adapter | √ | √ | √ | √ | √ | √ | √ | √ | ||
Manual | √ | √ | √ | √ | √ | √ | √ | √ | ||
Model | P711 | P712 | P713 | P714 | P715 | P716 | P717 | ||||
Parameters | pH/mV | √ | √ | √ | √ | ||||||
Measuring range | ISE | ||||||||||
Resolution | Cond./TDS/Sal./Res. | √ | √ | √ | √ | ||||||
Accuracy | DO | √ | √ | √ | √ | ||||||
Auto calibration | Temp. | √ | √ | √ | √ | √ | √ | √ | |||
pH | Measuring range | (-2.00 ~ 18.00)pH | √ | √ | √ | √ | |||||
Resolution | 0.01 pH | ||||||||||
Accuracy | Electrode:±0.01 pH, Meter:±0.02 pH | ||||||||||
Auto calibration | 1, 2, 3 point | ||||||||||
Buffer | Europe & USA, NIST, China standards | ||||||||||
mV ORP | Input current | ≤2×10-12 A | |||||||||
Input impedance | ≥1×1012 Ω | ||||||||||
Stability | ±0.02 pH/3h | ||||||||||
pX | Temp. compensation | (0 ~ 100)℃, auto or manual | |||||||||
mV ORP | Measuring range | ±1999.9mV | √ | √ | √ | √ | |||||
Resolution | 0.1 mV | ||||||||||
Accuracy | ±0.03% FS | ||||||||||
pX | Measuring range | (0.000-14.000) pX | |||||||||
Ion Conc. | Resolution | 0.01 pX | |||||||||
Accuracy | ±0.02 pX | ||||||||||
Temp. compensation | (0 ~ 100)℃, auto or manual | ||||||||||
Cond. | Auto calibration | 1, 2, 3, 4, 5 point | |||||||||
Ion Conc. | Measuring range | (0-19990) | |||||||||
Resolution | 4 significant figures (scientific notation) | ||||||||||
Accuracy | ±0.5% | ||||||||||
Cond. | Measuring range | Conductivity: | √ | √ | √ | ||||||
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm | |||||||||||
(200~2000)μS/cm, (2.00~20.00)mS/cm | |||||||||||
(20.0~200.0)mS/cm, | |||||||||||
(200~2000)mS/cm (K=10) | |||||||||||
TDS:(0 ~ 100)g/L | |||||||||||
Salinity:(0 ~ 100)ppt | |||||||||||
Resistivity:(0 ~ 100)MΩ·cm | |||||||||||
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | ||||||||||
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | ||||||||||
Temp. compensation | (0 ~ 50)℃, auto | ||||||||||
Electrode constant | 0.1 / 1 / 10 cm-1 | ||||||||||
Reference Temp. | 25℃、20℃、18℃ | ||||||||||
DO | Measuring range | (0-20.00)mg/L(ppm), (0-200.0)% | √ | √ | √ | √ | |||||
Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % | ||||||||||
Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | ||||||||||
Response time | ≤30s (25℃, 90%response) | ||||||||||
Residual current | ≤0.1 mg/L | ||||||||||
Temp compensation | (0 ~ 45)℃, auto | ||||||||||
Salinity compensation | (0 ~ 45) ppt, auto | ||||||||||
Pressure compensation | (80 ~ 105) kPa, auto | ||||||||||
Auto calibration | Air saturated by water, water saturated by air | ||||||||||
Electrode type | Polarographic | ||||||||||
Temp. | Measuring range | (0 ~ 100)℃ | √ | √ | √ | √ | √ | √ | √ | ||
Resolution | 0.1℃ | ||||||||||
Accuracy | 5 ~ 60℃:±0.4℃ Others: ±0.8℃ | ||||||||||
Other | Display | 6.5-inch LED screen | √ | √ | √ | √ | √ | √ | √ | ||
Data storage | 1000 sets | ||||||||||
Power | 12V/1A | ||||||||||
Output | USB | ||||||||||
Ambient Temp. | 5 ~ 35 ℃ | ||||||||||
Ambient Humidity | ≤85% | ||||||||||
IP grade | IP54 | ||||||||||
Dimensions/N.W. | 215×170×37mm/600g | ||||||||||
Shipping Size/G.W. | 470x430x72mm/3kg | ||||||||||
Model | P718 | |||
Parameters | pH/mV | √ | ||
ISE | √ | |||
Cond./TDS/Sal./Res. | ||||
DO | ||||
Temp. | √ | |||
pH | Measuring range | (-2.00 ~ 18.00)pH | √ | |
Resolution | 0.01 pH | |||
Accuracy | Electrode:±0.01 pH, Meter:±0.02 pH | |||
Auto calibration | 1, 2, 3 point | |||
Buffer | Europe & USA, NIST, China standards | |||
Input current | ≤2×10-12 A | |||
Input impedance | ≥1×1012 Ω | |||
Stability | ±0.02 pH/3h | |||
Temp. compensation | (0 ~ 100)℃, auto or manual | |||
mV ORP | Measuring range | ±1999.9mV | √ | |
Resolution | 0.1 mV | |||
Accuracy | ±0.03% FS | |||
pX | Measuring range | (0.000-14.000) pX | √ | |
Resolution | 0.01 pX | |||
Accuracy | ±0.02 pX | |||
Temp. compensation | (0 ~ 100)℃, auto or manual | |||
Auto calibration | 1, 2, 3, 4, 5 point | |||
Ion Conc | Measuring range | (0-19990) | ||
Resolution | 4 significant figures (scientific notation) | |||
Accuracy | ±0.5% | |||
Cond. | Measuring range | Conductivity: | ||
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||||
(200~2000)μS/cm, (2.00~20.00)mS/cm | ||||
(20.0~200.0)mS/cm, | ||||
(200~2000)mS/cm (K=10) | ||||
TDS:(0 ~ 100)g/L | ||||
Salinity:(0 ~ 100)ppt | ||||
Resistivity:(0 ~ 100)MΩ·cm | ||||
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |||
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |||
Temp. compensation | (0 ~ 50)℃, auto | |||
Electrode constant | 0.1 / 1 / 10 cm-1 | |||
Reference Temp. | 25℃、20℃、18℃ | |||
DO | Measuring range | (0-20.00)mg/L(ppm), (0-200.0)% | ||
Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % | |||
Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |||
Response time | ≤30s (25℃, 90%response) | |||
Residual current | ≤0.1 mg/L | |||
Temp compensation | (0 ~ 45)℃, auto | |||
Salinity compensation | (0 ~ 45) ppt, auto | |||
Pressure compensation | (80 ~ 105) kPa, auto | |||
Auto calibration | Air saturated by water, water saturated by air | |||
Electrode type | Polarographic | |||
Temp. | Measuring range | (0 ~ 100)℃ | √ | |
Resolution | 0.1℃ | |||
Accuracy | 5 ~ 60℃:±0.4℃ Others: ±0.8℃ | |||
Other | Display | 6.5-inch LED screen | √ | |
Data storage | 1000 sets | |||
Power | 12V/1A | |||
Output | USB | |||
Ambient Temp. | 5 ~ 35 ℃ | |||
Ambient Humidity | ≤85% | |||
IP grade | IP54 | |||
Dimensions/N.W. | 215×170×37mm/600g | |||
Shipping Size/G.W. | 470x430x72mm/3kg | |||

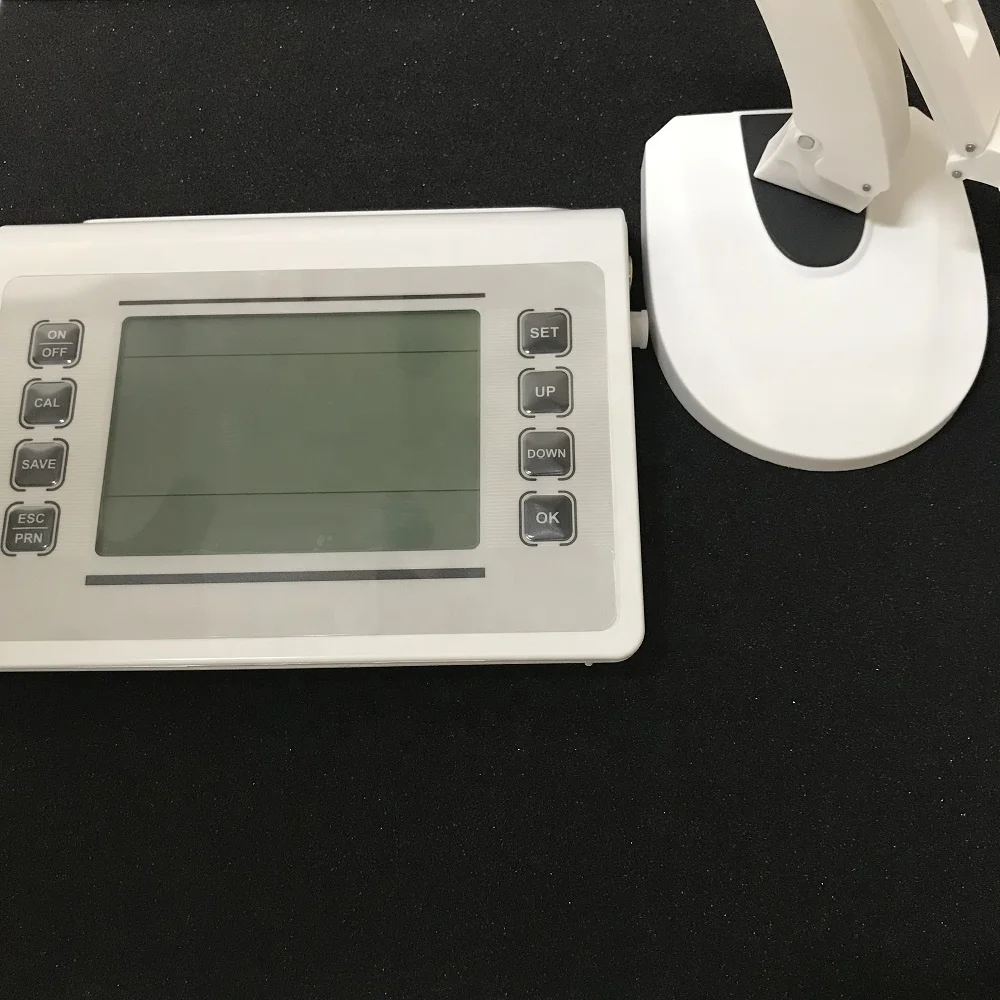

Good Design

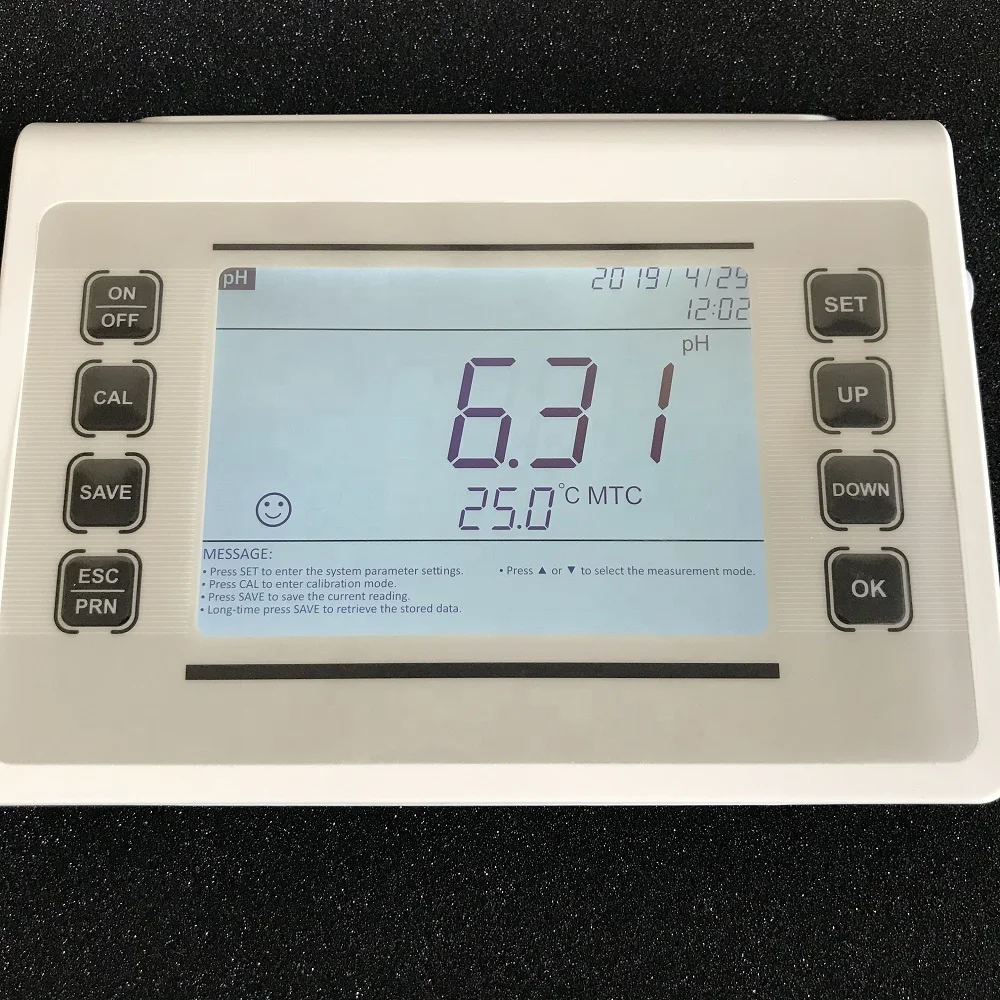

6.5-inch LED screen
Interface

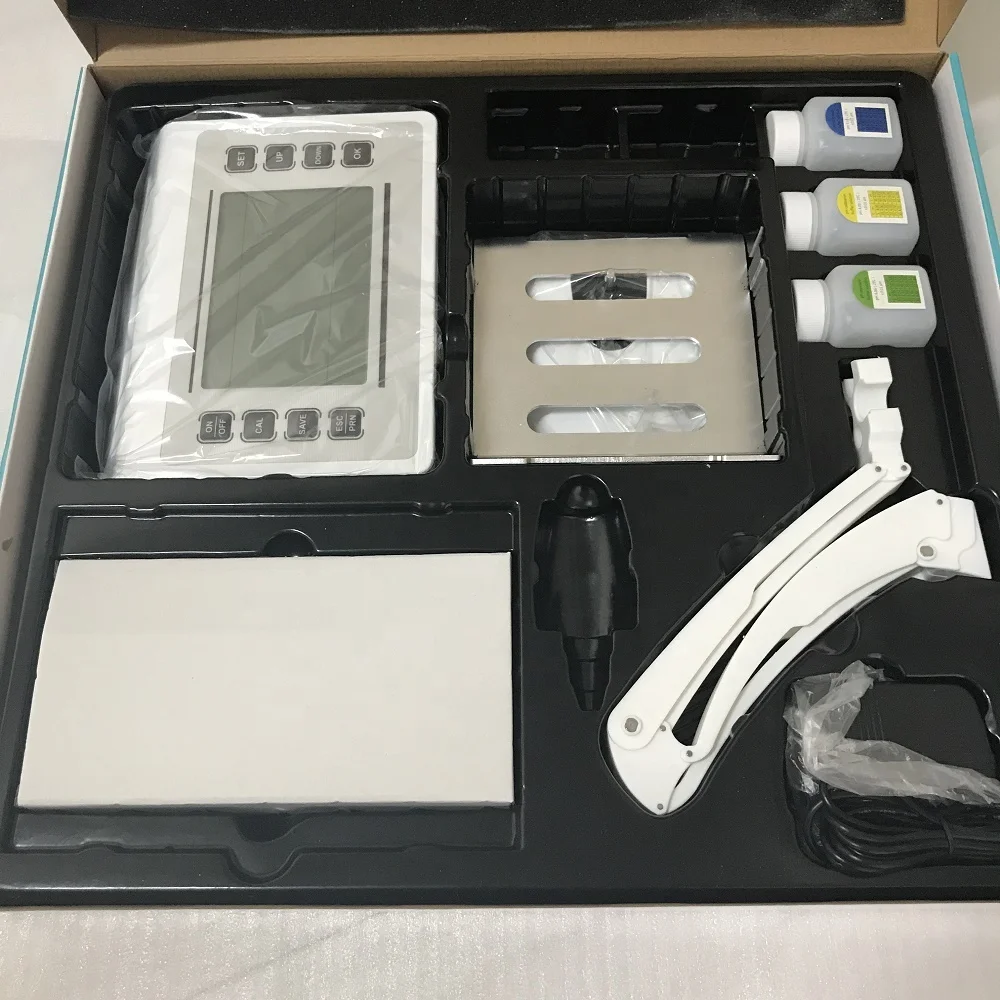

Standard Accessories:Electrode holder
Standard Accessories:pH electrode,Conductivity electrode,DO electrode,Temperature probe
Standard Accessories:pH buffer solution,DO filling solution(buffer solution will not come with the meter as it can not be shipped by Air )

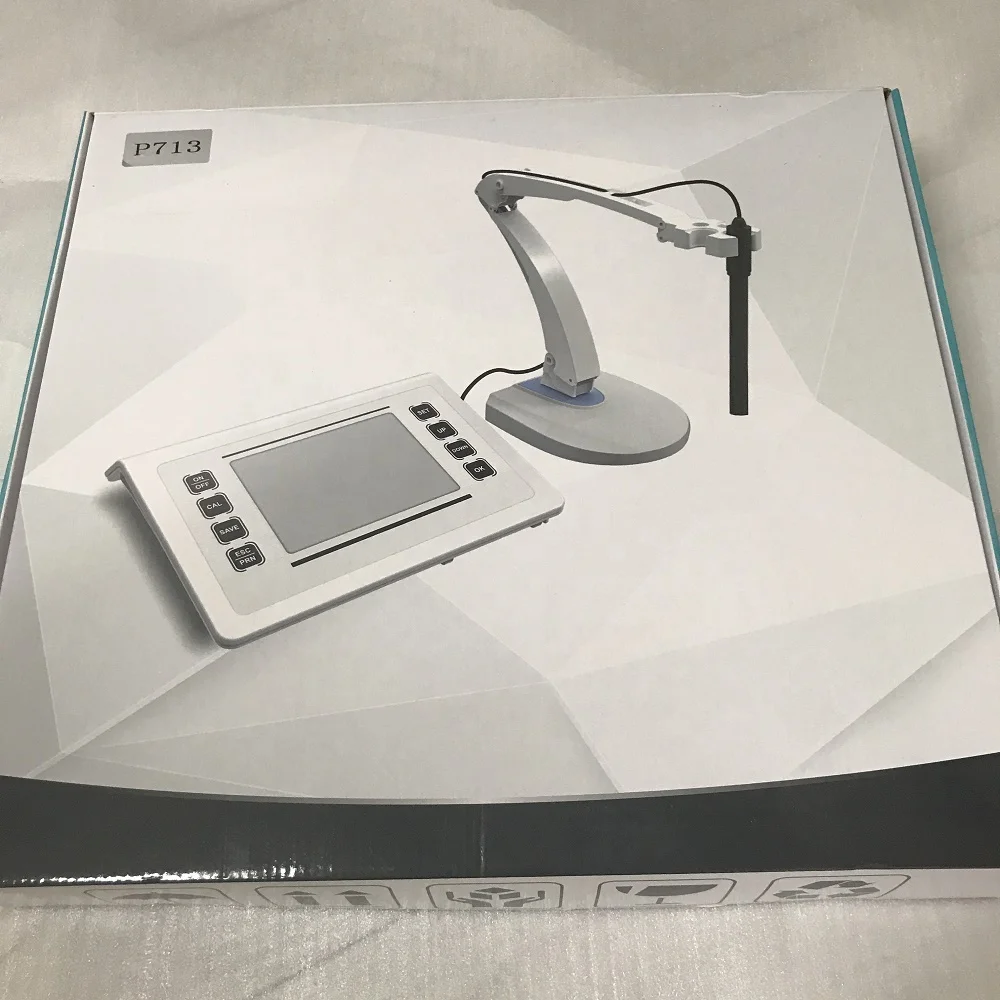

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
