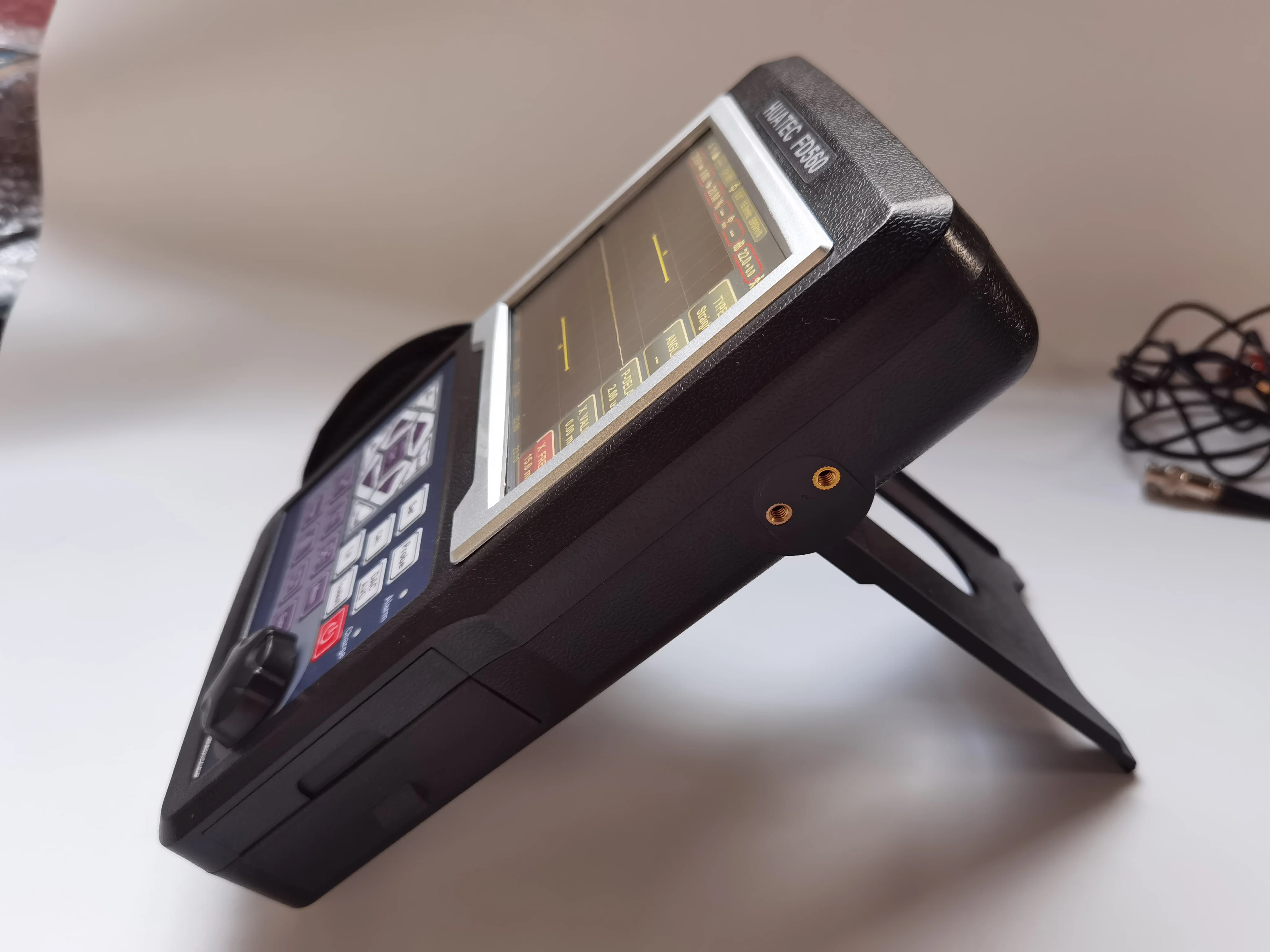

HUATEC Newest 0 10000 mm Portable Digital Ultrasonic flaw detector FD560 DAC, AVG, TCG AWS
- Category: >>>
- Supplier: Huatec Group Corporation
Share on (1600563887828):
Product Overview
Description

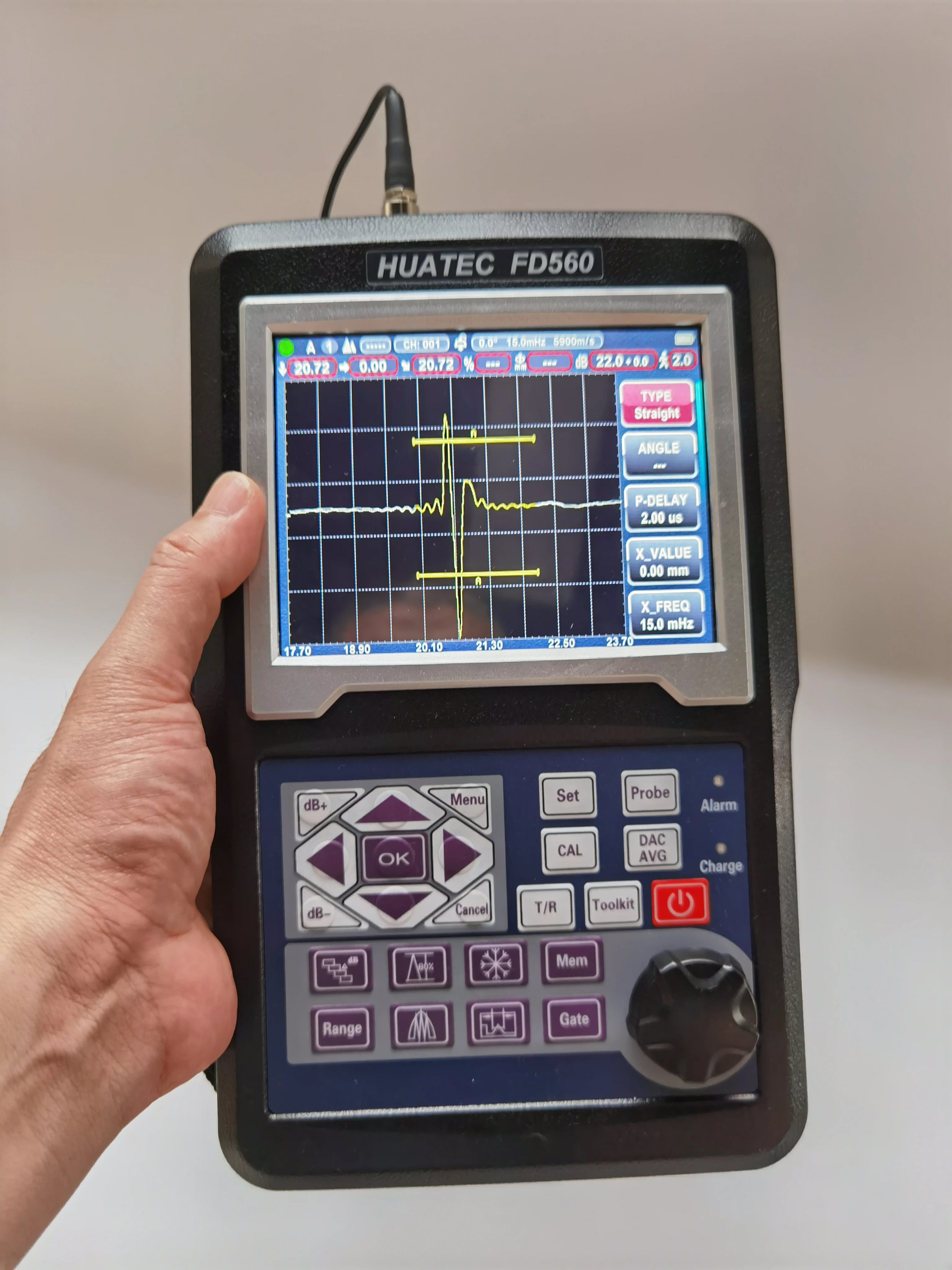

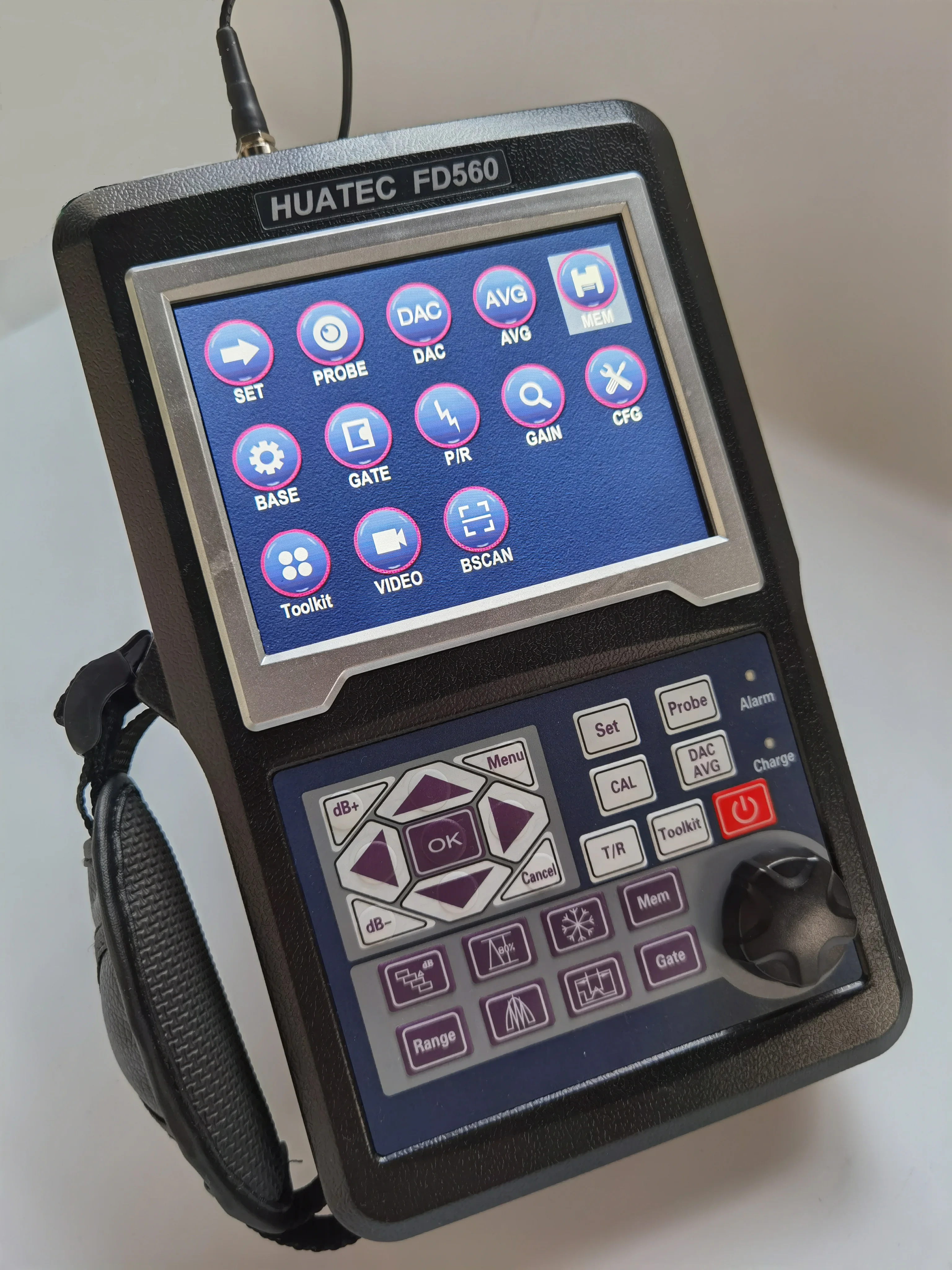

Universal Ultrasonic Flaw Detector HUATEC FD560

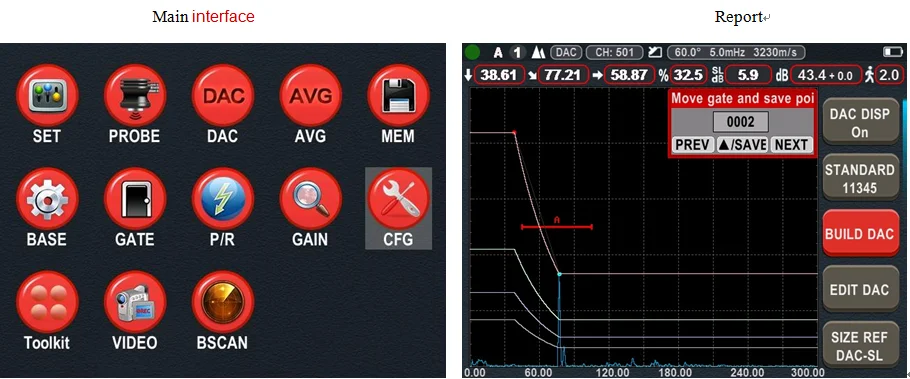

* User friendly dialog interactive helps operations like Calibration, making curves, etc.
* All tools you need: DAC, AVG, TCG AWS, etc.
* Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
*High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
* 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
* Can use probe frequency 20M perfectly .

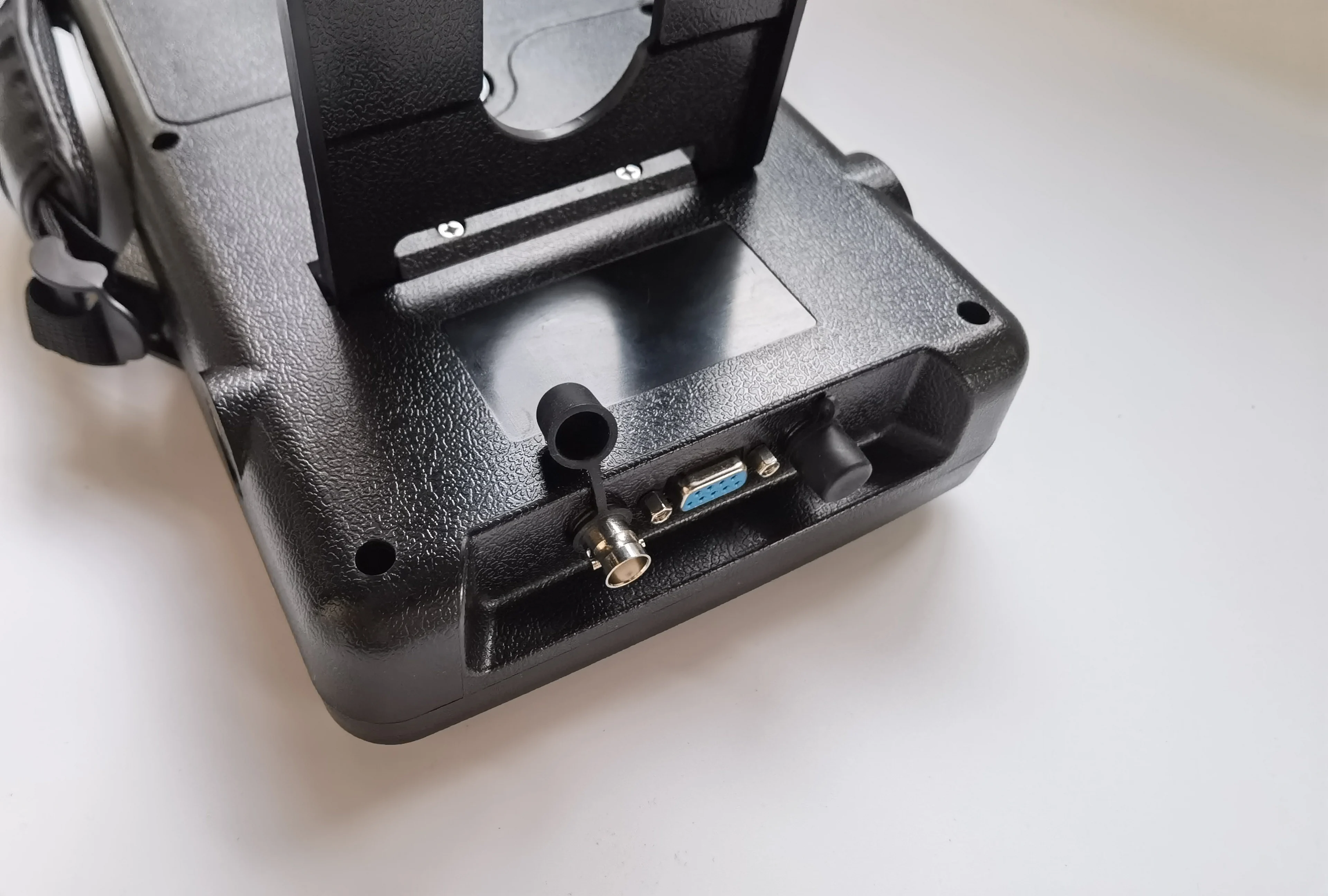

* IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.
* Battery lasts 15 hours for one charge.
Product Description
Specifications
Range:0-10000 mm ,at steel velocity Material Velocity:100~20000 m/s Pulse Repetition Frequency:10-2000Hz Dynamic range:≥38dB Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH ) Resolving Power:>40dB (5P14) Sensitivity Leavings:>68dB Reject (suppression): 0 to 80% full screen height 500 independence setup, any criterion can be input freely, we can work in the scene without test block; Big memory of 1000 A graph Test Modes: Pulse echo, dual element and thru-transmission Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface Gate Monitors: Two independent gates controllable over entire sweep range Units: Inch or millimeter Power Requirements: AC Mains 100-240 VAC, 50-60 Hz Display Delay: -20 to 3400 µs Probe Delay/Zero Offset : 0 to 99.99µs Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh 15 hours nominal operating time depending on display brightness 4 hours typical recharge time H×W×D(mm):250×165×55 (mm) Weight :1.2kg Operating Temperature: -10℃ to 50℃ Storage Temperature: -30℃ to 50℃ Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable Rectification: Positive half wave, negative half wave, full wave, RF System Bandwidth (amplifier bandpass ): 0.2 to 25 MHz Gate Monitors: Two independent gates controllable over entire sweep range Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB. Transducer Connections: BNC or LEMO
Functions

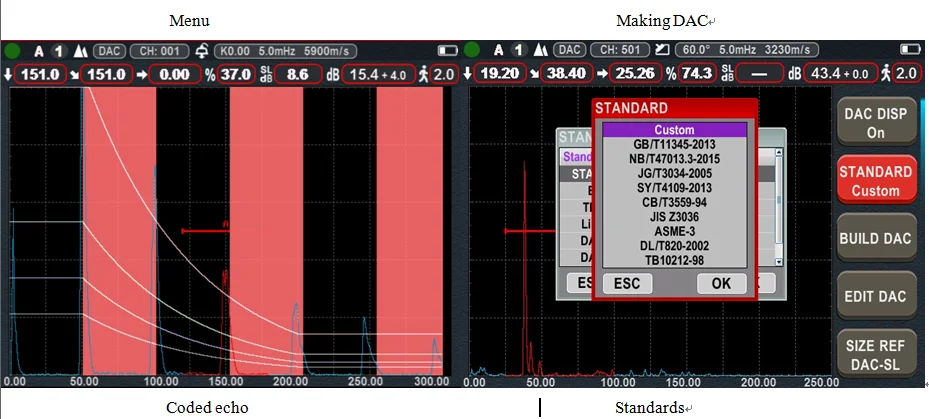

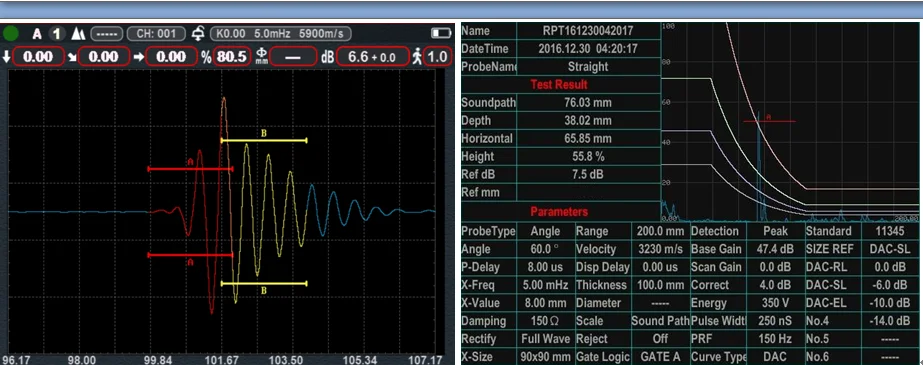

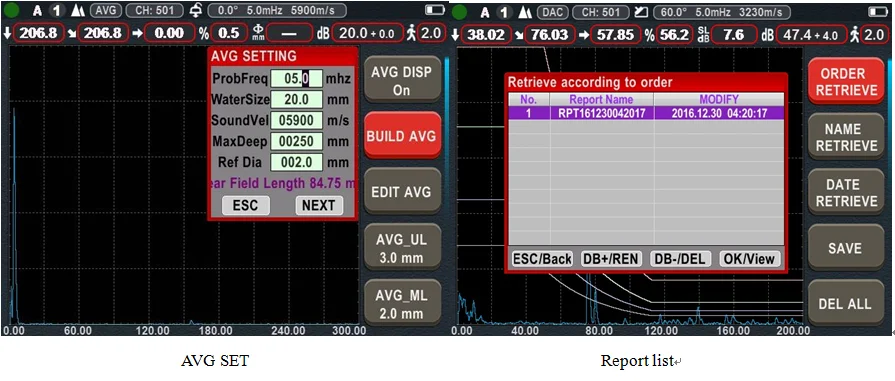

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Diameter). Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection. Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole ) Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated. Connectting U-Disk,the unit can get unlimited memory. There are 17 standards of in the unit. Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1. Curved Surface Correction feature. Crack Height Measure function. Magnify gate:spreading of the gate range over the entire screen width. Auto-gain function. Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display. Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results. Scan Freeze:Display freeze holds waveform and sound path data. Alarm:Beep and LED. Real Time Clock. Fill echo. Capture mark. Echo color within the Gate.

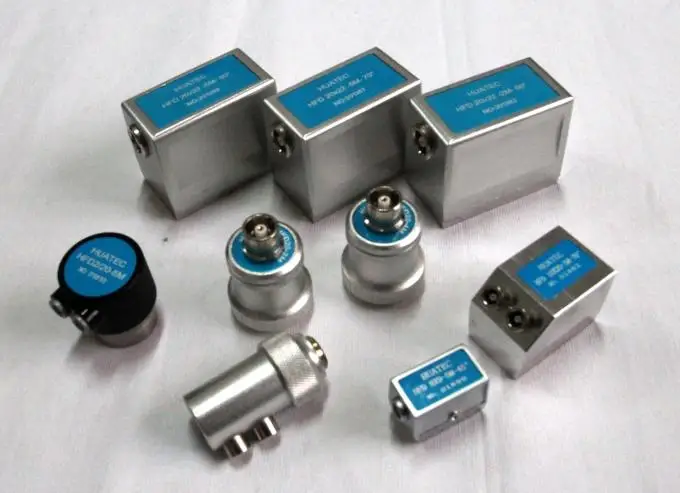

Base Instrument PackagePortable Ultrasonic Flaw Detector Straight Beam Transducer (2.5 MHz, Φ20) Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) Interconnect Cable for the transducer (Q9-C5,or optional C9- C5) Rechargeable Li-Ion Battery Package, 8 amp hour Power supply/charger unit Operating Manual in English App Software protective rubber casing Strap

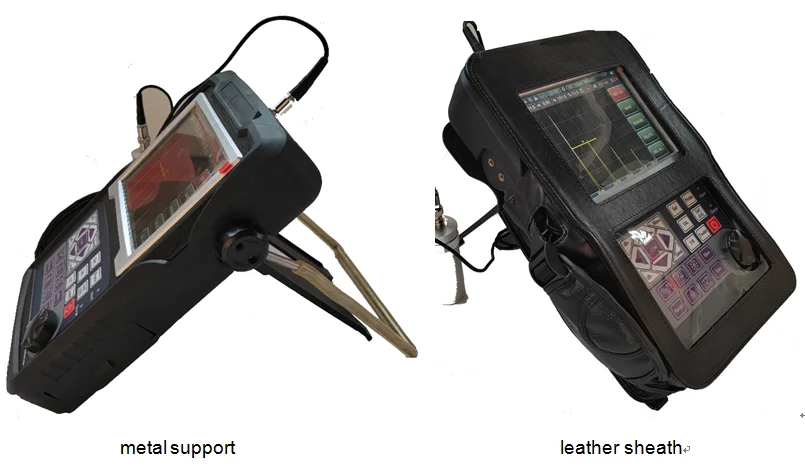

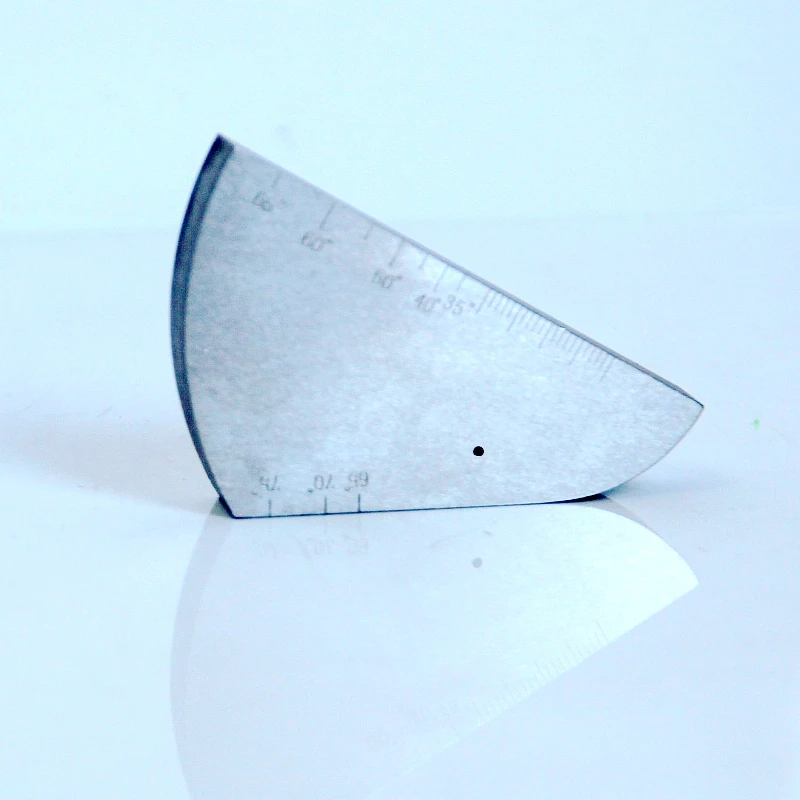

Options: 1. Swiveling metal support, Damping support makes it stands in any angle. 2. Bluetooth connection to mobile device to generate and print detection reports on-site. Bluetooth App on mobile device. 3. IIW V2 block. 4. Leather sheath.
|
Packaging & Shipping
- Packaging Details
- High quality level industry travel use suit case
- Delivery Time
- 3~6 working days after confirm payment
Our Services
HUATEC Group employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.
HUATEC Group, based on most advanced technology in China, is an China famous industry group, focus on development & research and precision production of various testing equipment. The group has two own factories and two sister factories located in area of Beijing, Liaoning, Shandong and Guangzhou. All the products are produced following ISO9001 regulations and the products have been exported to most of world markets in passed years.
Our promise: Reliable quality, competitive price, fast delivery, satisfactory service.
Company Information
HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.
HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.
Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
