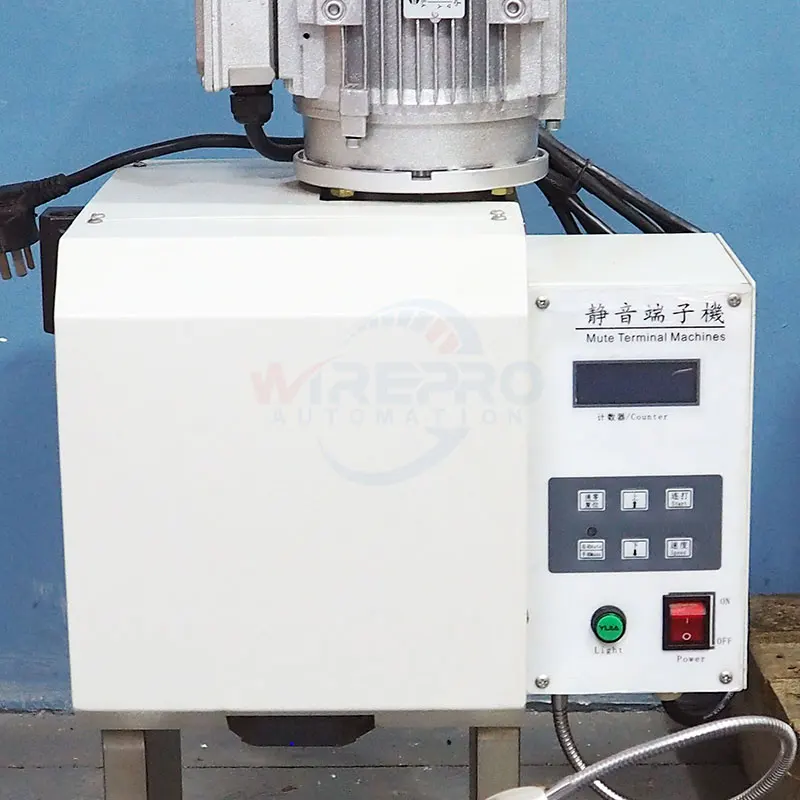

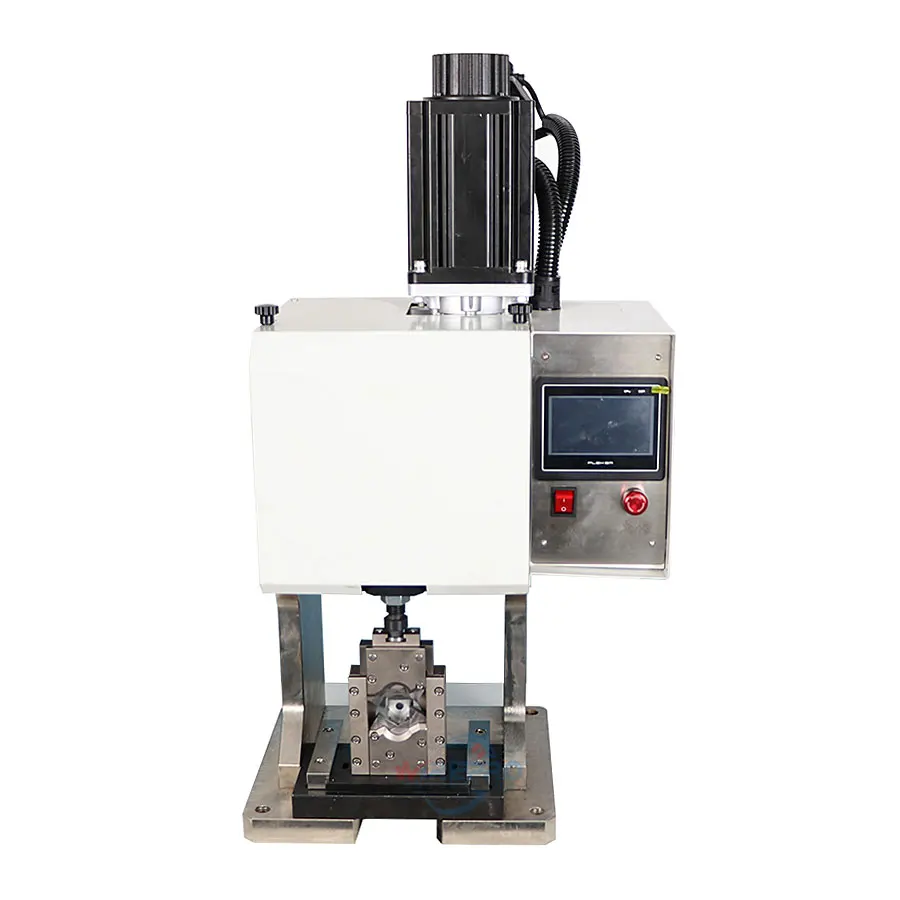

TU S08 Electric new energy wire/cable terminal crimping machine for terminal tubular cable lug
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600564003335):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description
Model | TU-S08 |
Cable range | Max about 35mm², based on terminal |
| Crimping Force | 8T |
Stroke | 30mm |
Crimping Tolerance | ±0.03mm |
| Speed | 10-30 pcs/min |
Driving Mode | Ball Screw |

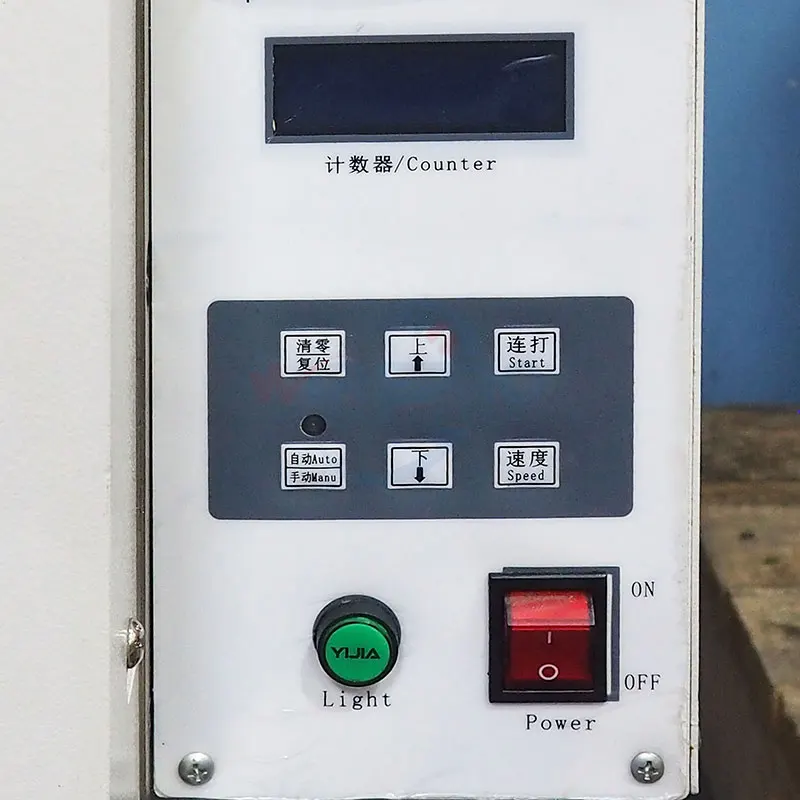

| Control System | Motion Control Board + Touch Screen Control |
| Reducer | Planet Reducer |
| Adaptive Mold | Hexagon Mold(Mold Exchange-Free), M-type,OPT, Quadrangle Mold |
| Power Source | 220V 50-60Hz |
| Motor Power | 1.5KW Servo Motor |
| Machine Size | 66*50*82cm |
| Machine Weight | 95kgs |
Description
This machine is mainly used for crimping large square battery tubular connectors, a lug crimping machine for 1-35mm2 cable.
Equip with hexagonal, quadrilateral applicator, not need to change the crimping applicator for crimping 1-35mm2 tubular terminal. The applicator will instantly change the size of the knife edge.
1. Industrial grade control chip cooperates with the high precision servo drive to make the machine run stable
2. PLC control system can instantaneously change the crimping range for different terminals
3. No need to change the crimping applicator for different sizes terminals
4. Support hexagonal, quadrilateral and M-shape crimping
5. The position can be adjusted for different square wire
6. compact structure, save space, work noise is small.
Appilacation:
Cable lug terminal crimping samples

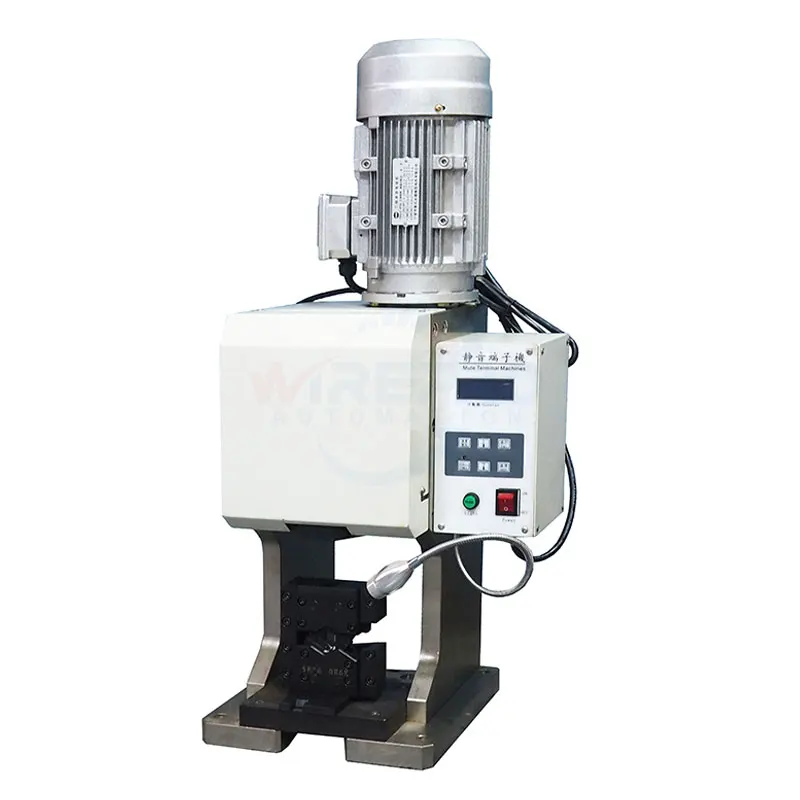

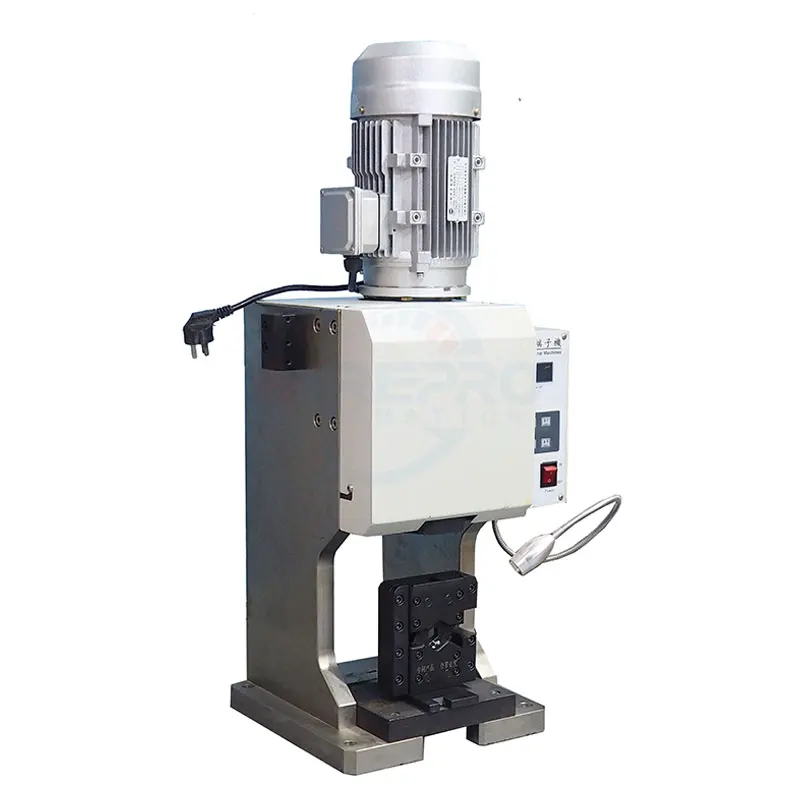

More machine pictures:
Related Products
A. Terminal Crimping Machine
B. Wire Cutting and Stripping Machine
Packaging & Shipping
Small size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
