Cup Medical Mask Making Machine N95 Cup Stapling Back End Automatic Cup Nonwoven Face Mask Making Machine

Share on (1600564104963):


Price:$60,000.00

Quantity:


Product Overview

Description







Products Description




HD-11701

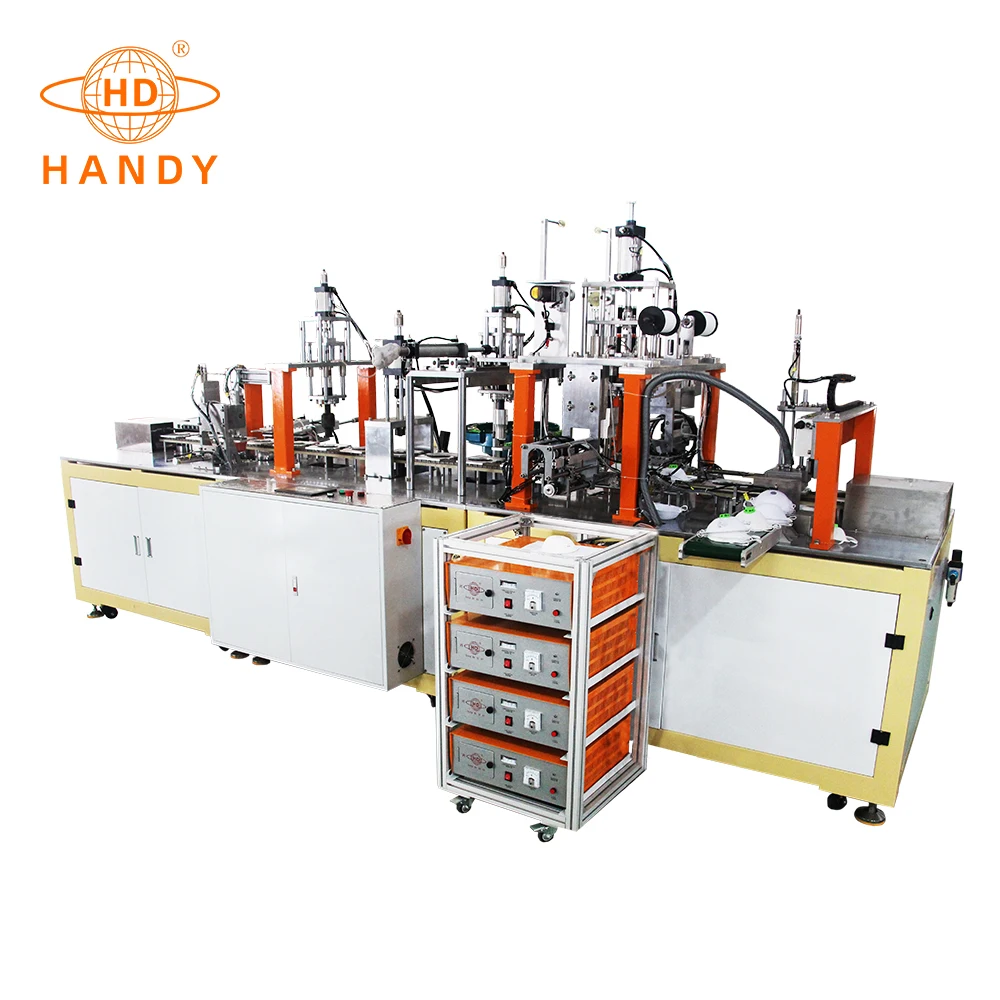

Machine’s instruction:
Full-automatic cup mask after process machine is fully automatic cup mask automatic equipment independently developed and produced by Handy technology. The machine is fully automatic controlled. It can be put into the mask body, without damaging the material, so as to achieve filtering performance. Automatic nose beam welding, LOGO printing, punching edge, breathing valve welding, ear band spot welding and other processes are automatically connected after the mask body is automatically shifted, so as to realize automatic production of the mask and automatic operation of the whole machine.

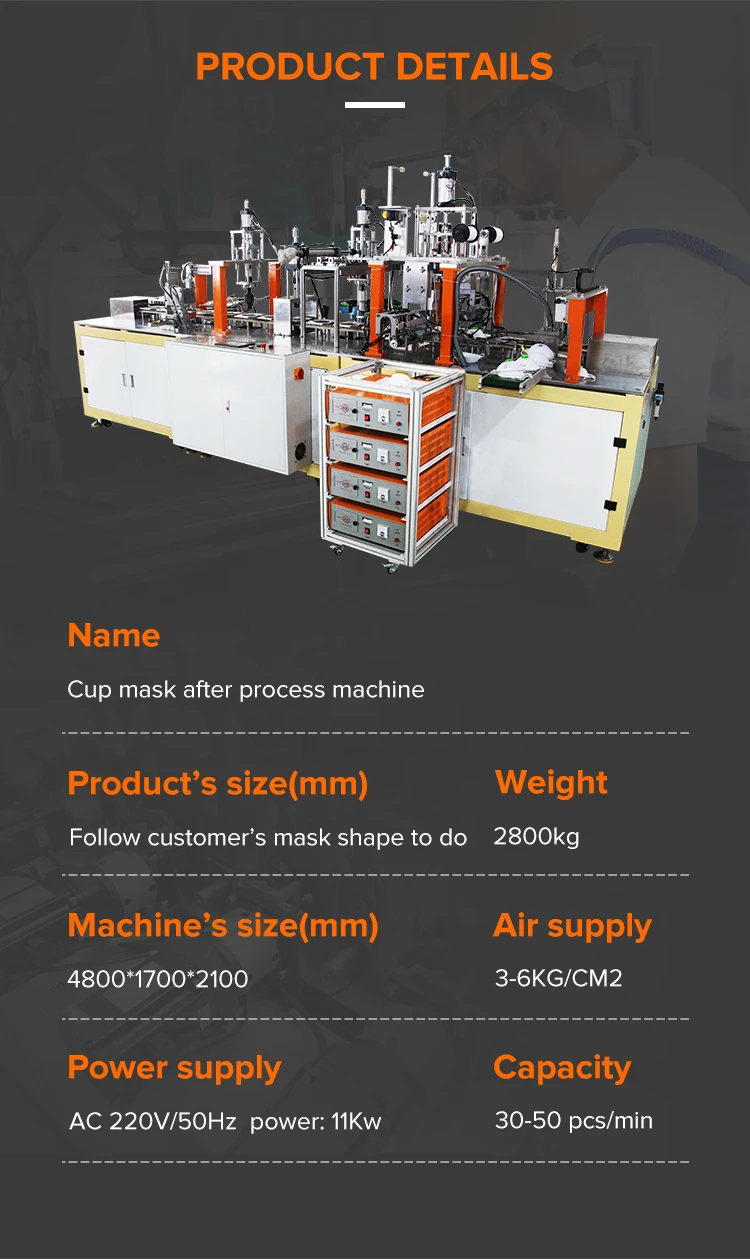

Technical data:
Capacity
30-50 pcs/min
Product’s size(mm)
Follow customer’s mask shape to do
Machine’s size(mm)
4800*1700*2100mm
Weight
2800kg
Power supply
AC 220V/50Hz Power:11Kw
Air supply
3-6KG/CM2


Machine’s characteristic:
1. Integrated design, raw material into finished product output, automatic operation

2. Servo shift, accurate positioning, smooth cutting edge

3. Several processes integrated production, reasonable design, high efficiency
