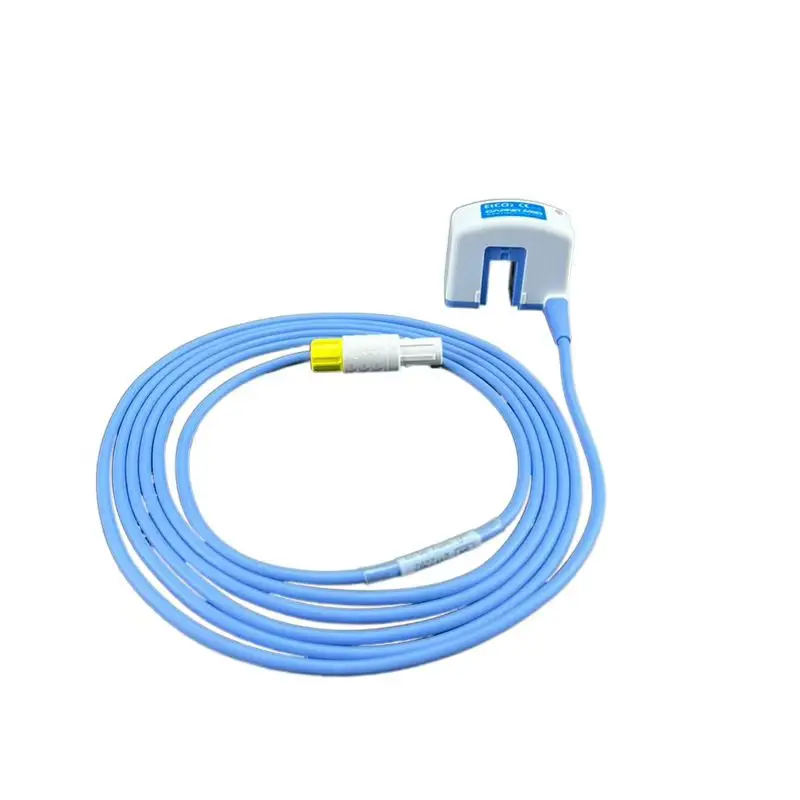

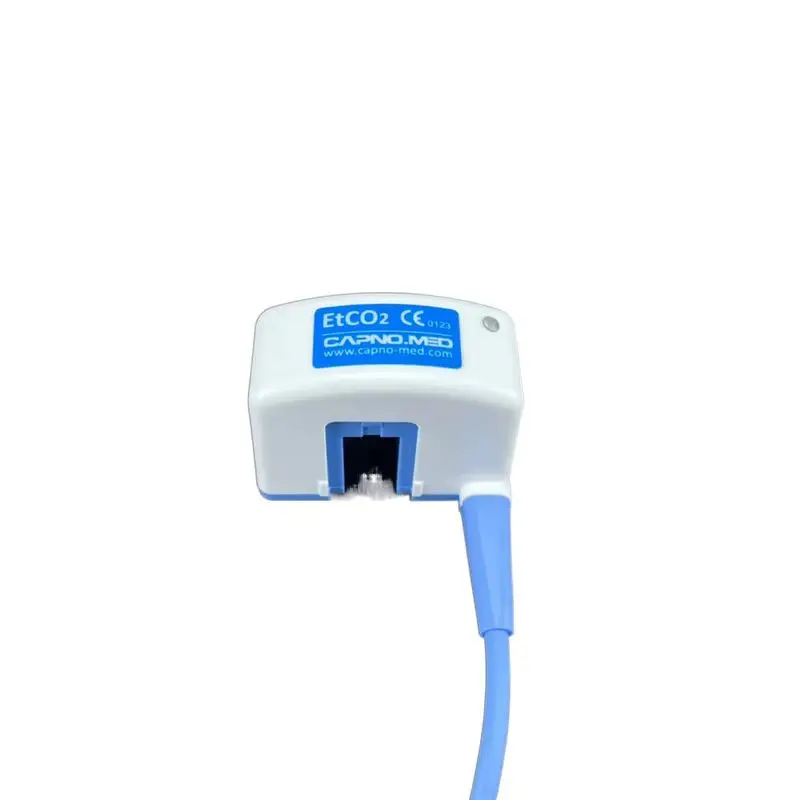

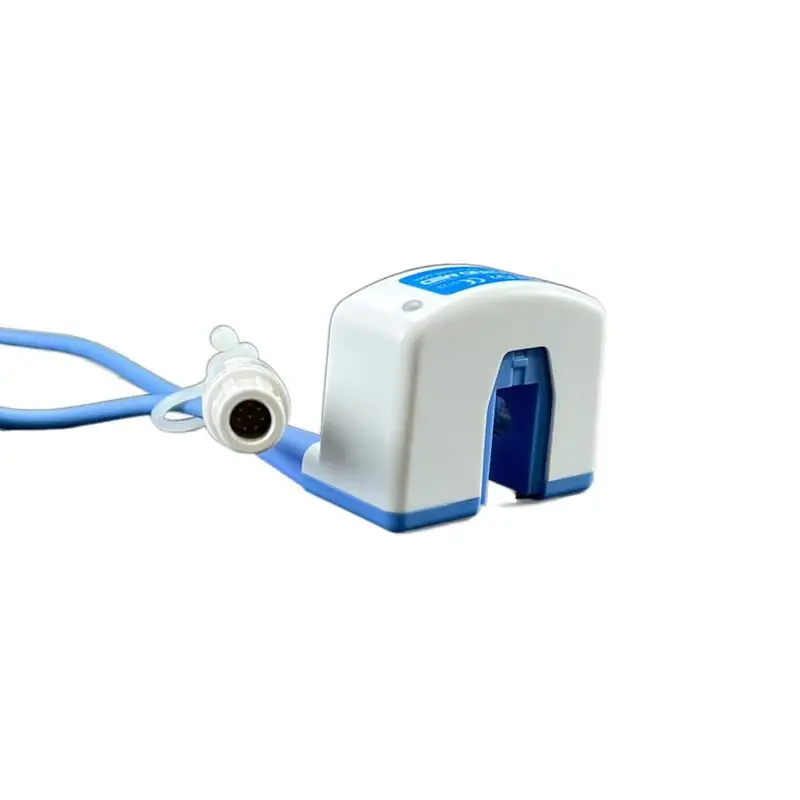

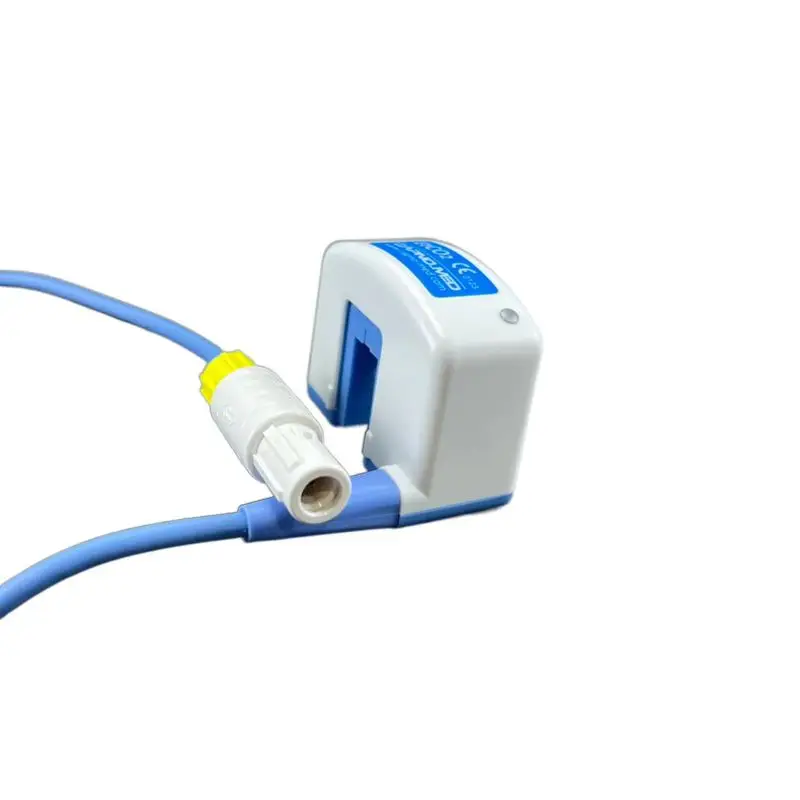

CAPNOSTAT 5 MAINSTREAM CO2 SENSOR FOR BIONET VETERINARY VITAL SIGNS MONITORS
- Category: >>>
- Supplier: Qinhuangdao Kapunuomaite Medical Equipment S & T Co. Ltd.
Share on (1600564145476):
Product Overview
Description
Product Description

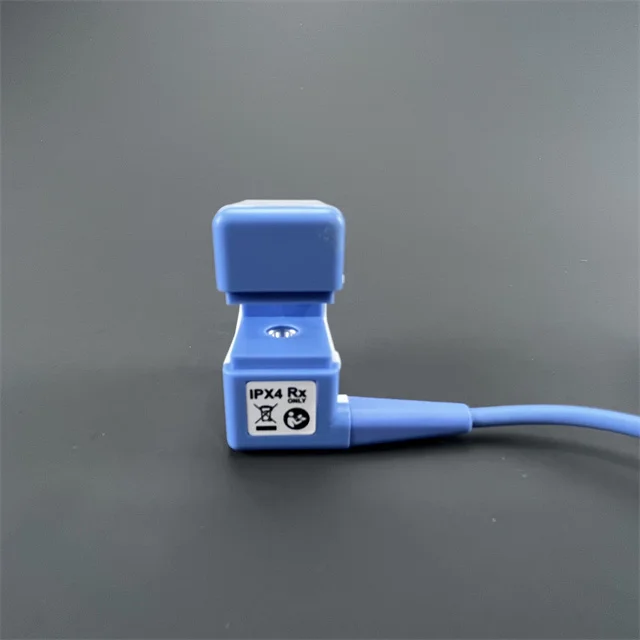

Mainstream Etco2 Sensor
EtCO2 Mainstream module which was R&D independently by CAPNOMED MEDICAL CO.,LTD are the ideal capnograph solution for all your CO2
monitor.It is applicable for OR,ICU,EMC and veterinary monitoring.
monitor.It is applicable for OR,ICU,EMC and veterinary monitoring.
Verification of ET tube placement
Alerts if accidental extubation occurs
Verification of ventilation during transport

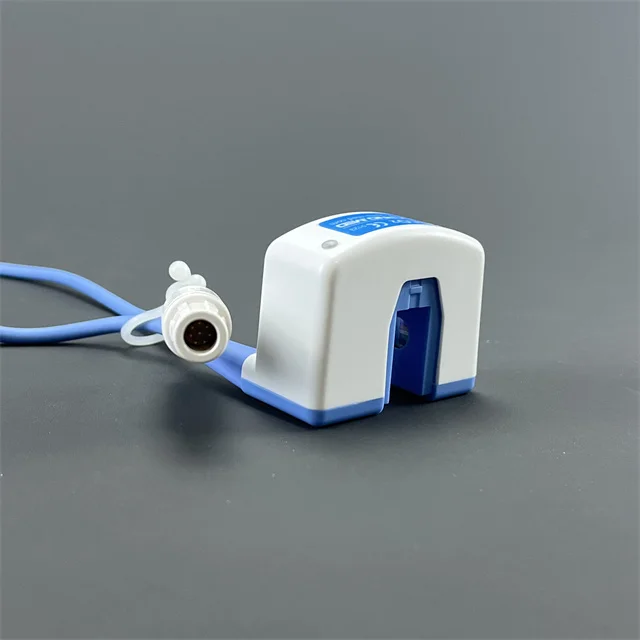

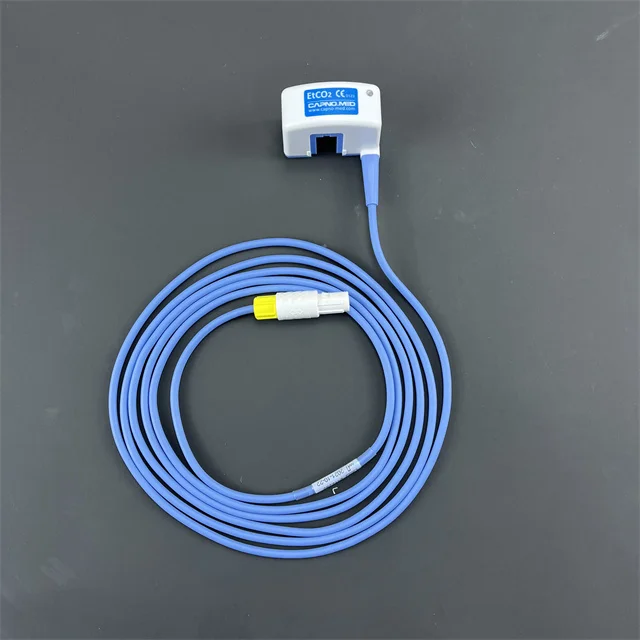

The Sensor is a highly integrated mainstream CO2Sensor. It’s the one-step capnography solution for patient monitoring system. Within a very compact size, it provides measurement of End-Tidal Carbon Dioxide(ETCO2), respiration rate, capnogram, which can cover most of requirement from the patient monitoring system. With a very simple RS232 interface and industry compatible protocol, it’s fairly easy to connect the mainstream module to any patient monitoring system and other medical treatment system where CO2 sensor is needed. With the stability, flexibility and easy to use as the built in essence, this is your ideal choice for your capnography subsystem.
Specification
Product Name | ETC02 Sensor |
Sample Flow Rate | Range:50-150 ml/min; Accuracy:±20% ; Default: 75 ml/min |
Principle of Operation | Non-dispersive infrared, dual wavelength, no moving parts |
Initialization Time | Capnogram displayed in less than 4 seconds, at an ambient temperature of 25℃, full specifications within 2 mintues |
CO2 measurement Range | 0-114 mmHg ; 0-15% ; 0-15.2 kPa |
CO2 Response Time | Includes Transport time and rise time.Less than 2 seconds, at 150 ml/min sampling flow Less than 3 seconds, at 100 ml/min sampling flow Less than 4 seconds, at 50 ml/min sampling flow |
CO2 Resolution | 0.2 mmHg @ 0-59 mmHg ; 0.5mmHg @60-114 mmHg |
CO2 Accuracy | 0-40 mmHg ± 2 mmHg41-70 mmHg ± 5% of reading 71-100 mmHg ± 8% of reading 101-114 mmHg ±10% of reading Above 80 reaths per mintue ±12% of reading * Note:Gas temperature at 25℃ |
CO2 Stability | Short Term Drift : Drift over three hours shall not exceed 1 mmHg maximumLong term Drift : Accuracy specification will be maintained over a six hour period |
CO2 Noise | RMS noise of the sensor shall be less than or equal to 0.5 mmHg at 5% CO2 |
Sampling Rate | 100Hz |
Respiration Rate Range | 2 to 150 breaths per minute |
Respiration Rate Accuracy | ± 1 breath |
Calibration | No Routine user calibration required |
EtCO2 Calcuation | Method: peak of the expired CO2 waveform |
Inspired CO2 Measurement | Method: Lowest reading of the CO2 waveform in the previous 20 seconds |
Temperature | Operation : 0 to 40℃ ; Storage :-40 to 70℃ ; Transport :-40 to 70℃ |
Humidity | Operation :10 to 90 % RH, Non-condensing ; Storage :10 to 90 % RH, Non-condensing. Transport: 10 to 90 % RH, Non-condensing. |
Atmospheric Perssure | Operating :400-800 mmHg ; Storage :400-800 mmHg ; Transport :400-800 mmHg |

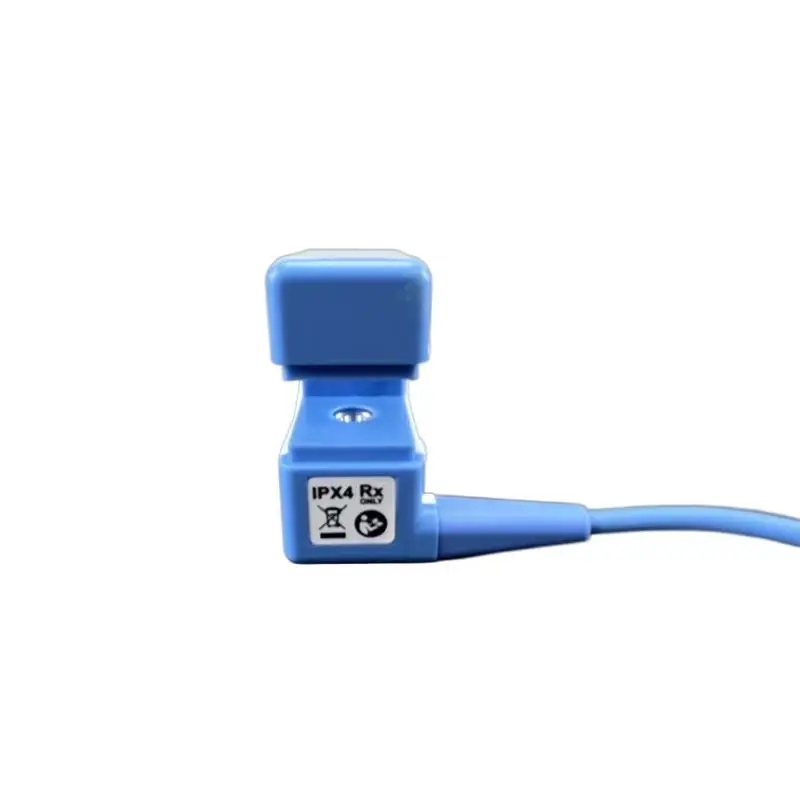

Water Resisitance | IPX4-Splash-Proof- sensor only |
Voltage Requirements | 5 VDC ±5% ; Ripple not to exceed 100.0mV |
Power Raing | < 1.2W Typical; < 2.0 W Warm-up |
Sensor Weight | < 250 g |
Sensor Size | Deep*Wide*High 102*62*38mm |
Cable Length | 75cm |

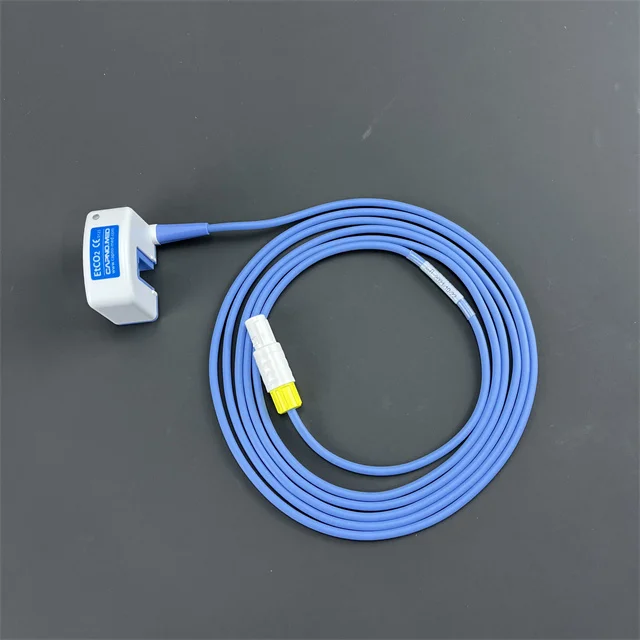

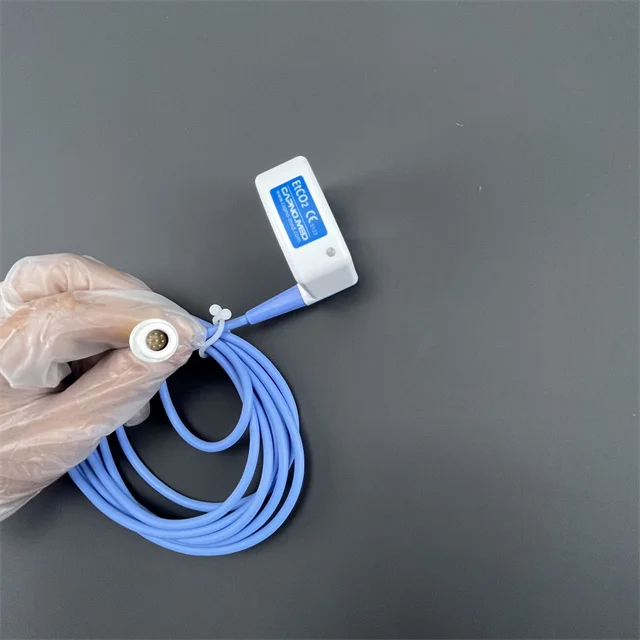

Details Images
Recommend Products

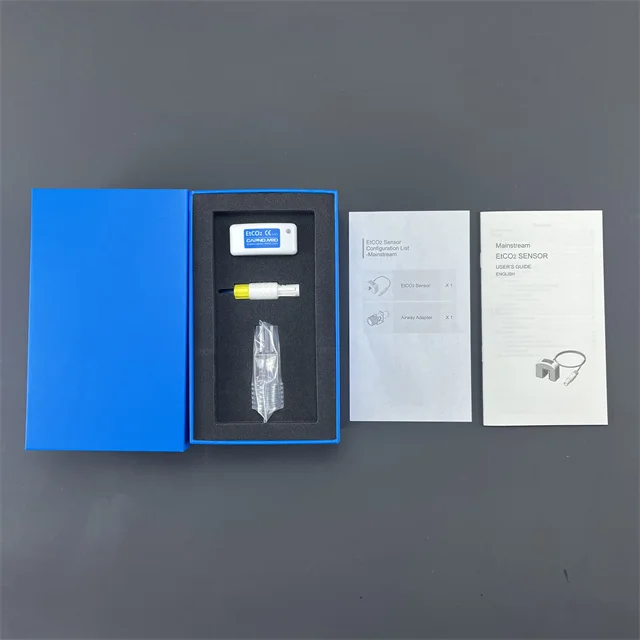

Packing &Delivery
