Hot Sale Lithium Iron Battery Pack Deep Cycle 3000 Times 170Ah 12v Lifepo4 UPS Marine Battery for Solar Energy System
- Category: >>>
- Supplier: Shenzhen Yabo Power Technology Co. Ltd.
Share on (1600564161930):
Product Overview
Description
Specification
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 170Ah@0.2C | |
Energy | 2176Wh | |
Internal Resistance | ≤50mΩ | |
Cycle Life | 3000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
Charging Current | 100A | |
Max.Charging Current | 100A | |
Standard Discharging | Discharging Current | 200A |
Max. Continuous Current | 200A | |
Max.Pulse Current | 400A(<3S） | |
Discharging Cut-off Voltage | 10.0 | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Structure | Cell & Format | 4S1P |
Casing | Plastic | |

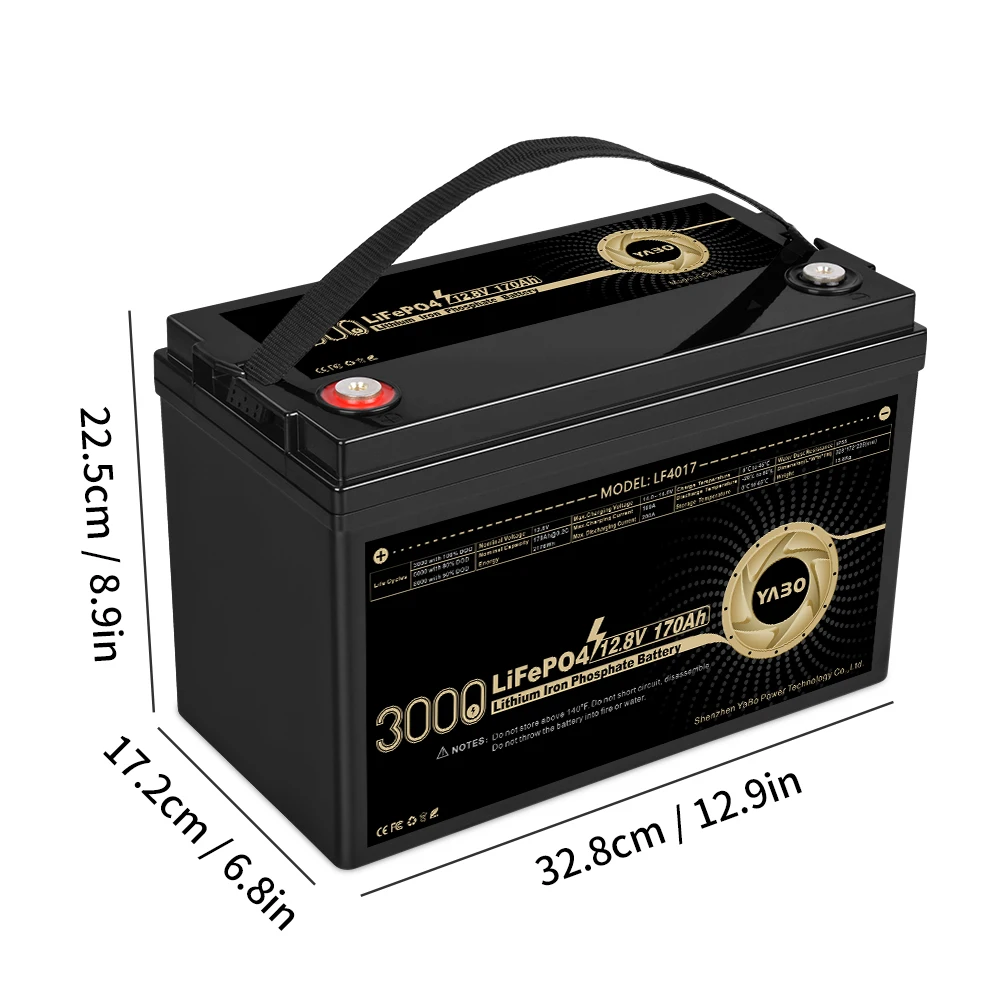

Dimension(L*W*H*TH) | 328*172*216*216mm | |

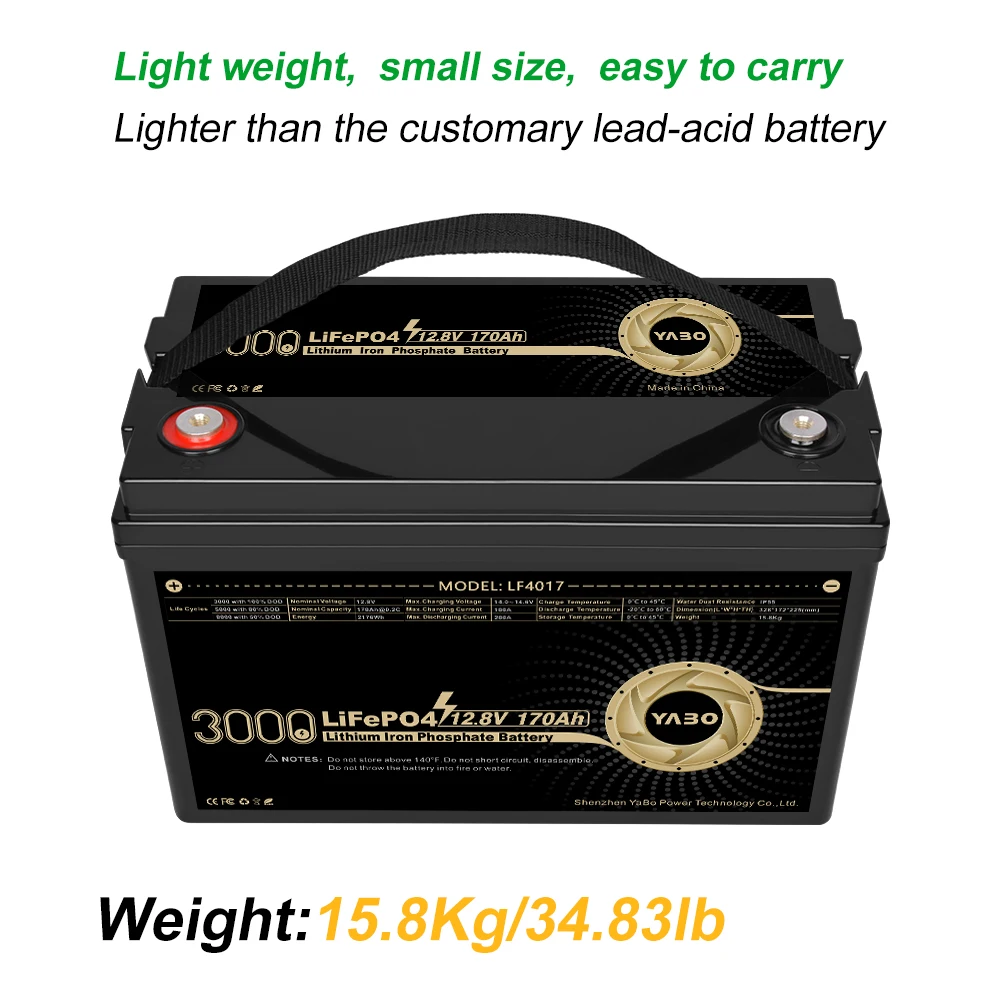

Weight | Approx. 15.8Kg | |
Terminal | M8 |
Details Images
Test Chart
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Free of maintenance .
◆ Internal cell balancing.

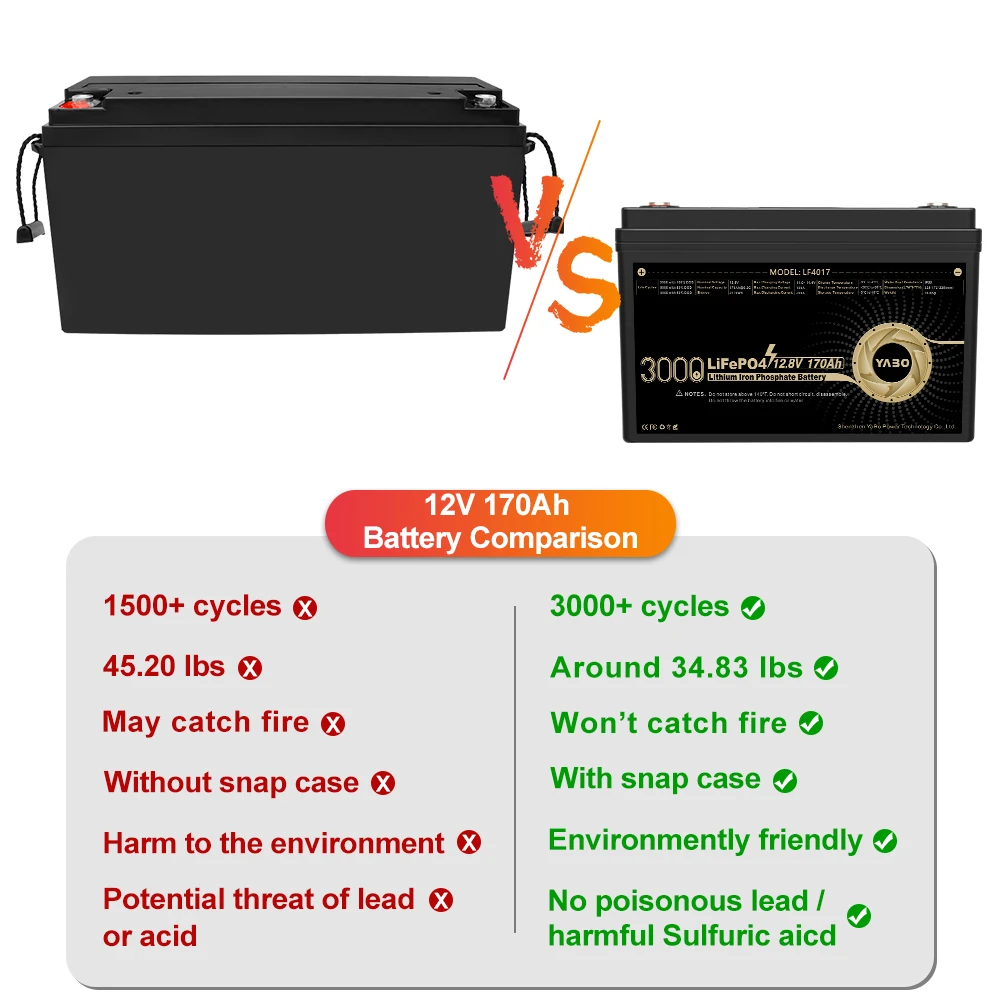

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Why Choose Us
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:3 year warranty.
