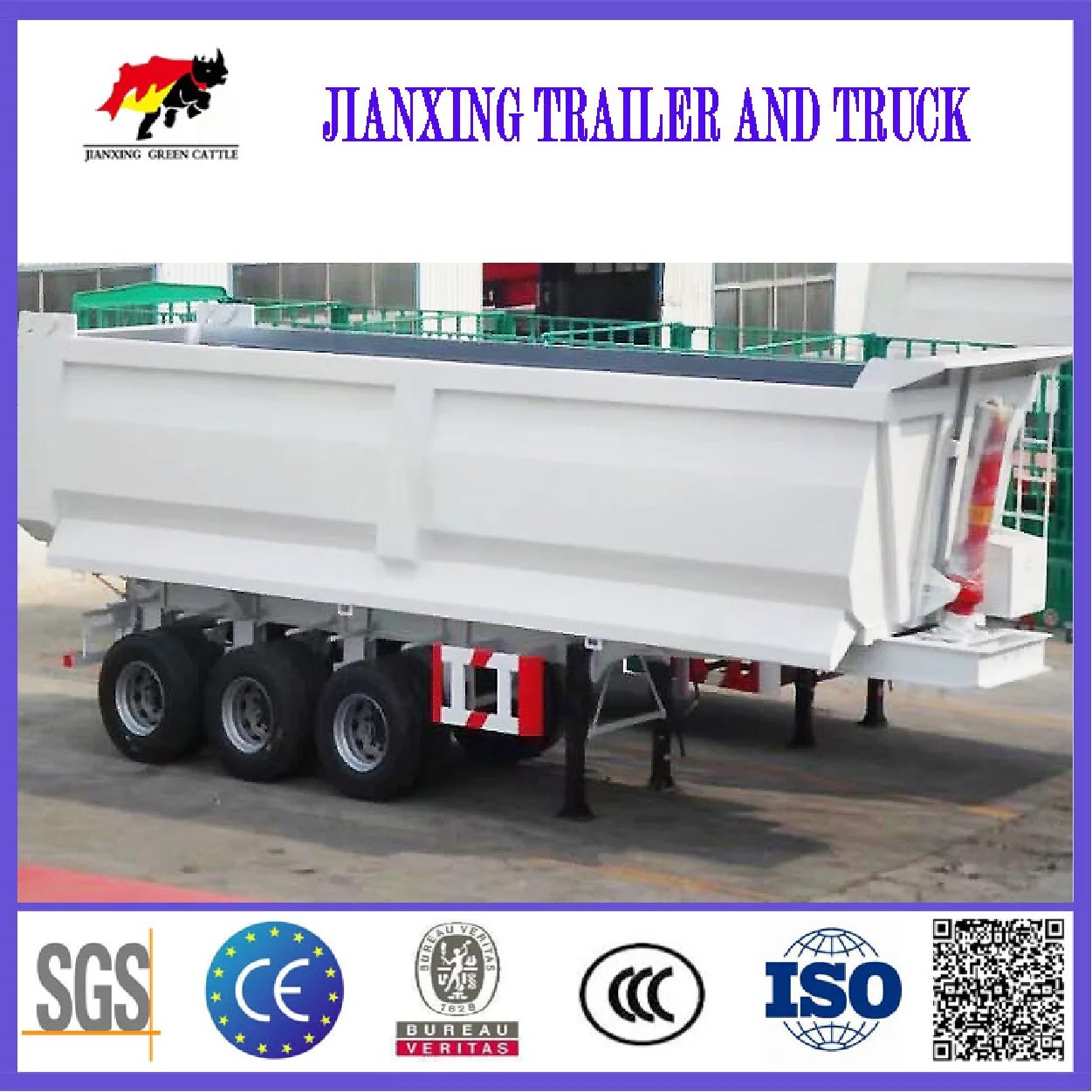

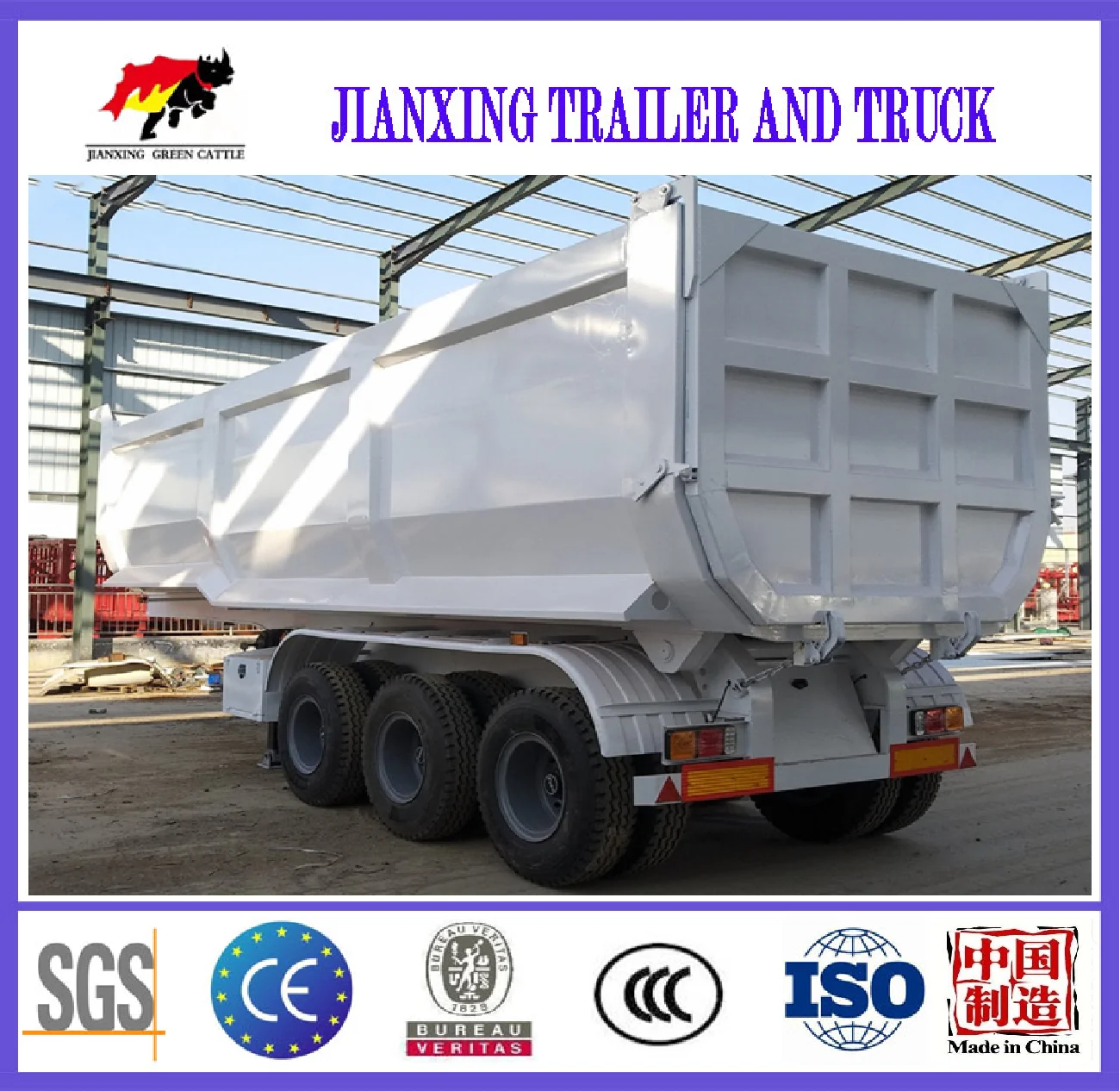

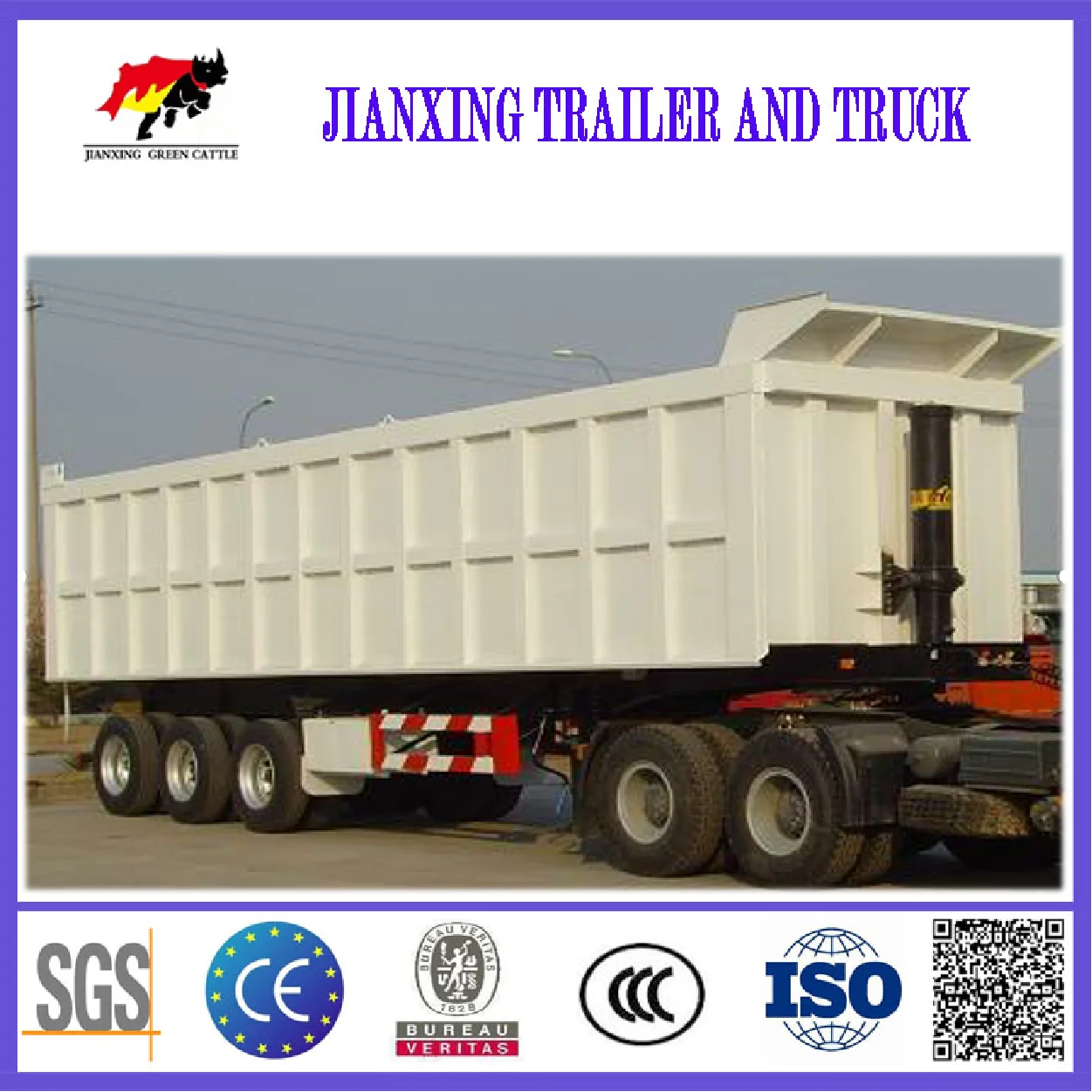

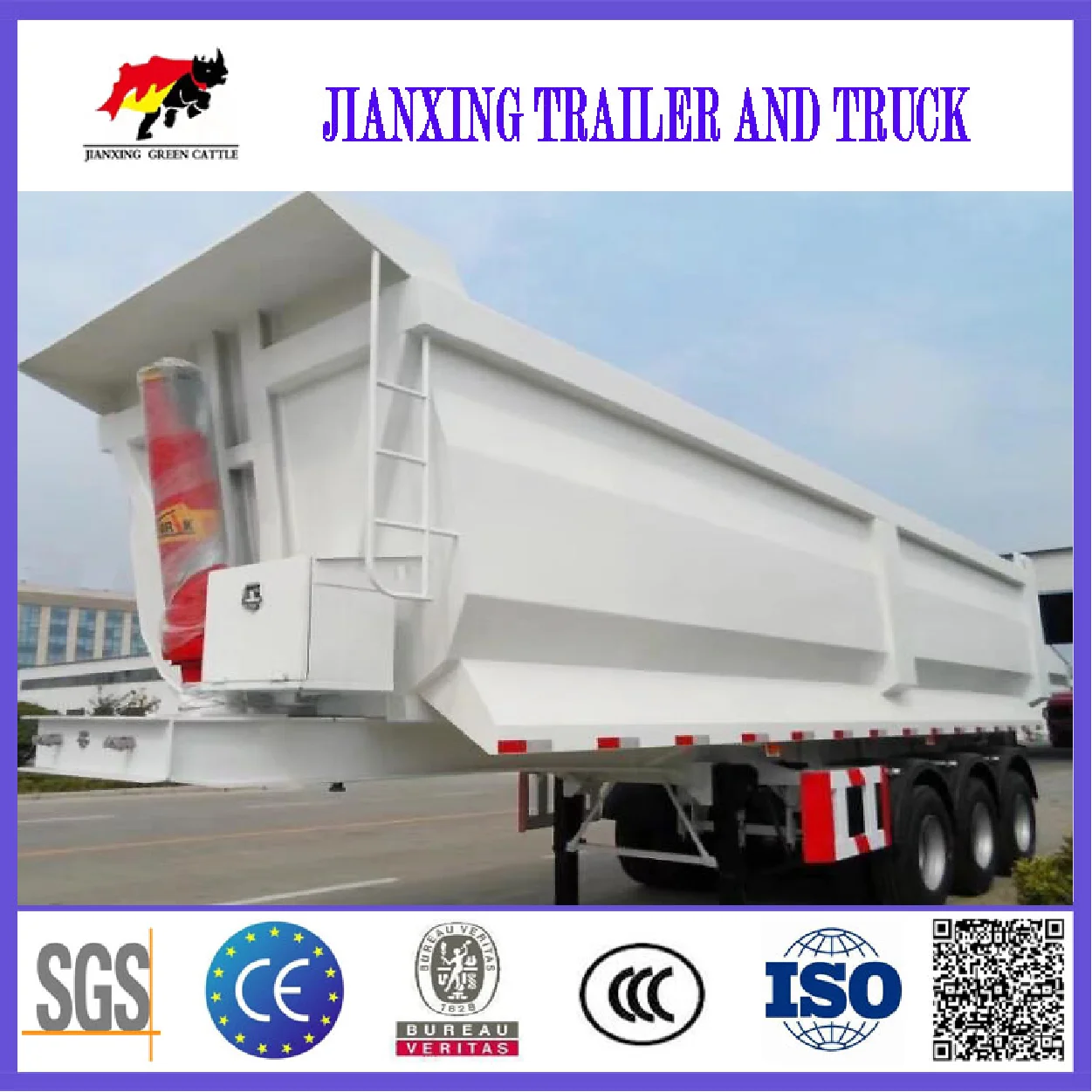

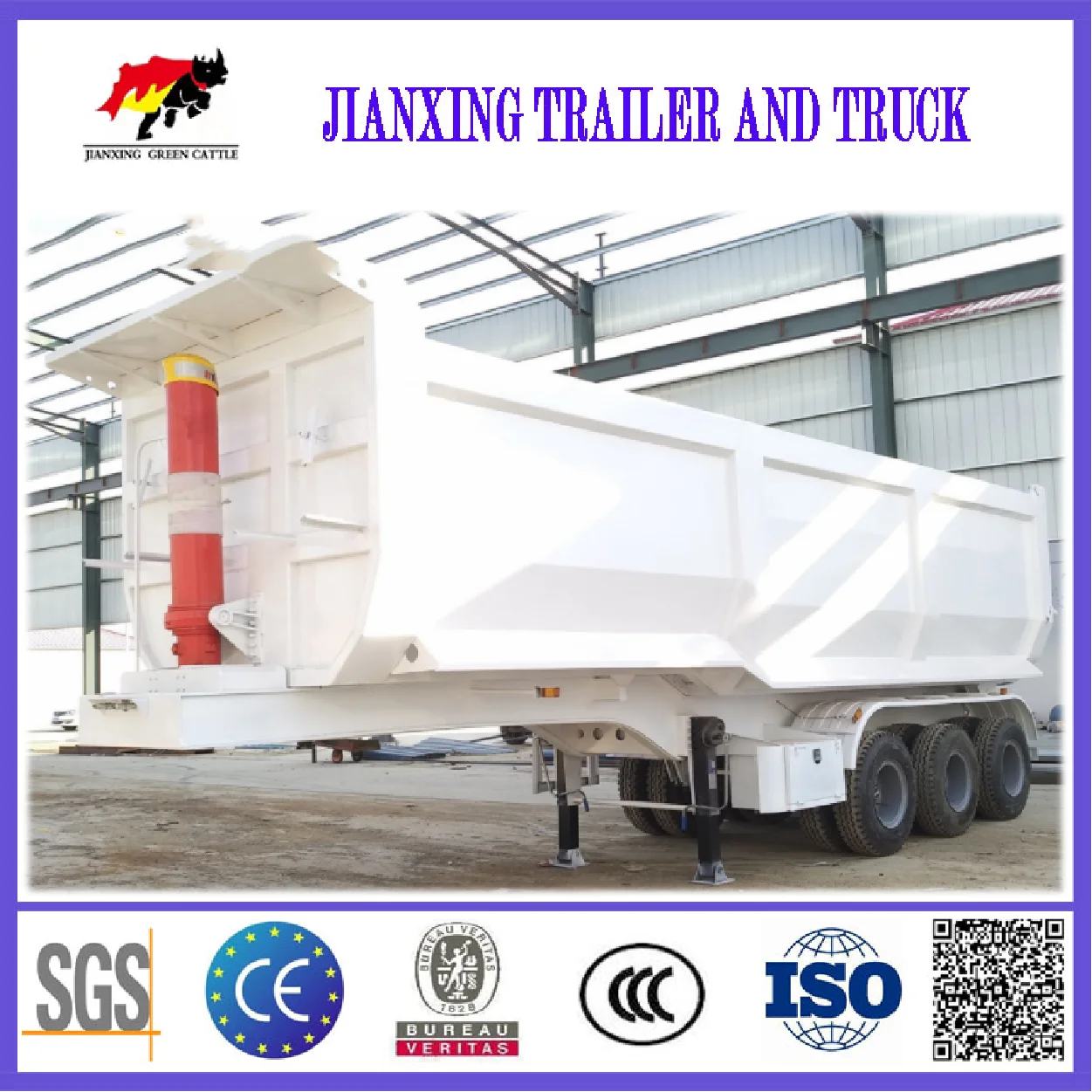

semi dumper trailer 30ton dump trailer tractor dump trailer
- Category: >>>
- Supplier: Sen Xiang International (Shandong) Co. Ltd.
Share on (1600564176877):
Product Overview
Description
Our Advantages
1. Factory direct sale, no agent, no agency fees, low price for high quality.Give you the best product and the best price.
2. Our products can be customized for various needs.And customizable unique company logo is available.

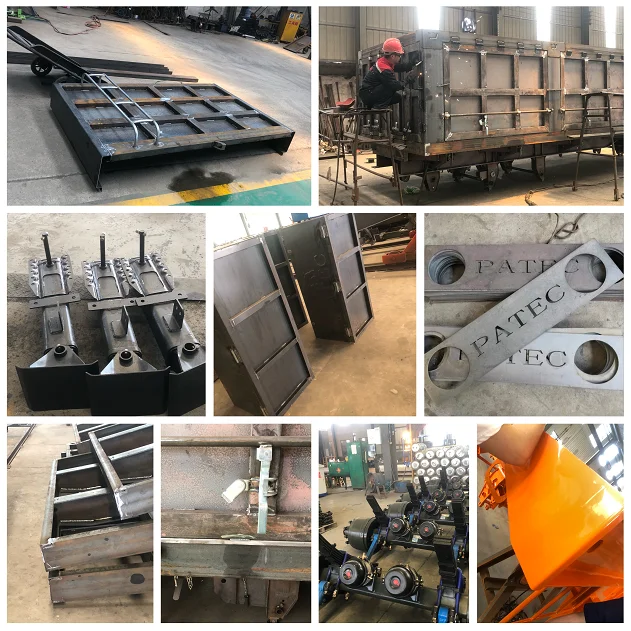

3. The welding method adopts the method of manual spot welding first, and then unified welding by machine. The weld seam is full, and the quality is reliable.
4. Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process
2. Our products can be customized for various needs.And customizable unique company logo is available.
3. The welding method adopts the method of manual spot welding first, and then unified welding by machine. The weld seam is full, and the quality is reliable.
4. Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process
What is the purpose on dump trucks?
A dump truck is a vehicle that unloads goods by itself by hydraulic or mechanical lift. Also called tipper truck.Dump trucks are often used to pull heavy goods such as building materials, sand and gravel, and decoration materials. Widely used in construction sites, etc.

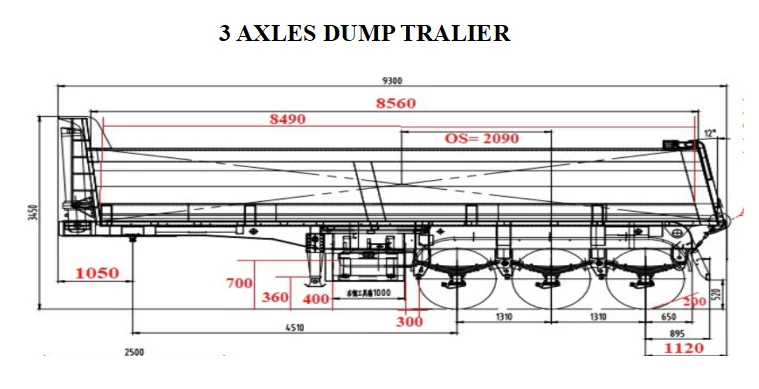

MAIN DESCRIPTION | ||
Overall Dimension | 9.8m*2.5m*3m(L*W*H) | |
Tare Weight | 8000kg | |
Pay Load | 45ton | |
King Pin Setting | 1220mm | |
RUNNING GEAR | ||
Suspension | 3 axle mechanical suspension with 11-pcs leaf spring | |
Axle | AQ，FUWA, BPW or STEYR axle, load capacity 13ton | |
Rims & Tires | Rim 8.0-20 or 8.5-20, tire 11.00-20 or 12.00-20 | |
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |
UNDER FRAME | ||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. | |
Cross Beam | Mild Alloy Q235 | |
King Pin | Welded kingpin, size 50# (2'') or 90#(3.5’’) | |
Landing Gear | Double sides operation, Static capacity 30Ton | |
CARGO BODY | ||
Inside Dimension | 9.3m*2.3m*1.5m(L*W*H) | |
Steel sheet | Floor thickness 8mm, side wall thickness 6mm | |
Hydraulic Jack | Full set of HYVA hydraulic system, front setting telescopic jack | |
Tailgate | One-piece tailgate with upper articulation, safety lock system | |
ELECTRICAL & PAINT | ||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Wiring | 24V, 6 lines | |
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |
Paint | Sand blasting before painting, color upon request | |
Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. Our products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
Our products have passed the China Quality Certification Center "ccc" certification and ISO9001: 2000 quality management system certification. And we also have BV certification, SGS certification, CE certification,etc.
The factory covers an area of 25 acres, with a workshop area of more than 15 acres and more than 300 employees. The company has professional equipment with advanced processing technology and selected high-quality raw materials and components to manufacture full trailers and semi-trailers. From the cutting of the sheet to the welding to the packaging, there is a special team responsible for it.
The various trailers produced by the company are novel in shape, unique in design, reasonable in structure, sturdy and durable.
The various trailers produced by the company are novel in shape, unique in design, reasonable in structure, sturdy and durable.
By ro-ro ship transportation
The ro-ro ship, also known as on-board and off-board, is a transport ship that uses a tractor to pull semi-trailers directly into and out of the cargo hold. The advantages of ro-ro ships are high loading and unloading efficiency, fast ship turnover and convenient water and land direct inter modal transportation.
By Bulk Cargo ship transportation
Bulk cargo transportation refers to the organizational form engaged in the transportation of bulk cargo by sea.It can realize the mechanization of loading and unloading, handling, and the effective loading capacity is large.
By Container ship transportation
Container transport is a modern mode of transport in which containers are used as transport units to transport goods.Container transportation can ensure the safety of goods, save packaging costs, and use machinery to load and unload, makes it more
efficient.
efficient.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
