Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
XINKE fully automatic square bottom paper bag making machine kraft with printing
- Category: Packaging Material Making Machine >>>
- Supplier: Ruian Xinke Machinery Co. Ltd.
Share on (1600564184386):
Product Overview
Description
Product Description
Twisted Handle Paper Bag Making Machine
This paper bag machine is designed for the production of shopping paper bags with handle, it use the paper round ropes and reel paper to produce the twisted handle in the machine automatic, then deliver by the conveyor belt to paste in the primary color or printed paper roll, then the paper with hand glue through side gluing, forming, cutting off, open bottom, bottom gluing, closing bottom and conveying out of the bag, the whole process is completed simultaneously at one time. Therefore, it truly shows this machine is full automation production can effectively save labor costs.
This paper bag machine is designed for the production of shopping paper bags with handle, it use the paper round ropes and reel paper to produce the twisted handle in the machine automatic, then deliver by the conveyor belt to paste in the primary color or printed paper roll, then the paper with hand glue through side gluing, forming, cutting off, open bottom, bottom gluing, closing bottom and conveying out of the bag, the whole process is completed simultaneously at one time. Therefore, it truly shows this machine is full automation production can effectively save labor costs.
Product Parameter
Model | XKFD-330T | XKFD-450T | XKFD-540T |
Cutting length(Ful) | 270-430mm | 270-430mm | 400-670mm |
Bag width(Ful) | 220-330mm | 290-450mm | 320-540mm |
Bag Length(Ful) | 225-370mm | 225-370mm | 320-580mm |
Bottom width | 60-180mm | 80-220mm | 120-260mm |
Paper Thickness(Ful) | 60-160g/m2 | 80-160g/m2 | 90-160/m2 |
Paper roll width(Ful) | 585-1050mm | 770-1370mm | 910-1630mm |
Roll paper diameter | φ1200mm | φ1200mm | φ1200mm |
Paper core | 76mm | 76mm | 76 mm |
Handle Height | 100mm | 100mm | 100mm |
Patch length | 152.4mm | 203.2mm | 203.2mm |
Patch width | 40-50mm | 40-50mm | 40-50mm |
Handle distance | 75mm | 95mm | 95mm |
Rope diameter | φ3-5mm | φ3-5mm | φ3-5mm |
Patch paper roll width | 80-100mm | 80-100mm | 80-100mm |
Patch paper thickness | 100-135g/m2 | 100-135g/m2 | 100-135g/m" |
Production speed for bags without handles | 30-160bags/min | 30-160bags/min | 30-160bags/min |
Production speed for bags with handles | 30-120bags/min | 30-120bags/min | 30-120bags/min |
Power Supply | 380V 3Phase 35KW | 380V 3Phase 35KW | 380V3Phase 39KW |
Machine weight | 12000kg | 13500kg | 15000kg |
Machine size | 14000x5800x2400mm | 14000x6000x2400mm | 14000x6500x2400mm |
Machine detail
Forming

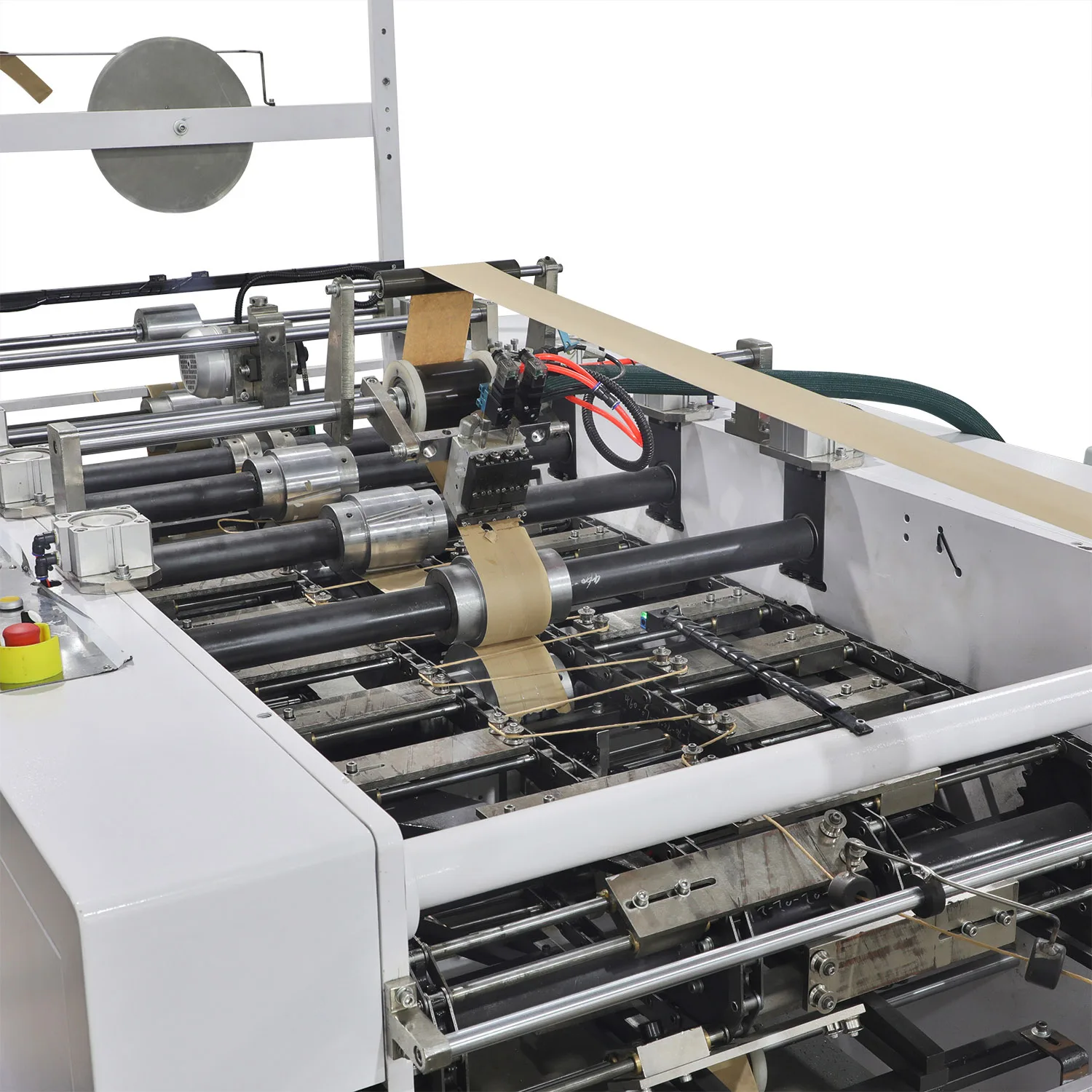

Handle delivery
Open Bottom
Production Process
Paper Bag Samples
1.Quality Commitment: One year guarantee, Lifelong maintenance, Vulnerable parts are provided free of charge within 12 months.
2. After-sales Service: 24 hours online to help customer solve problem.
3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.
4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.
2. After-sales Service: 24 hours online to help customer solve problem.
3. Operation Guide: after the customer receives the goods, the engineer will guide the installation throughout.
4. Machine Parts: all machine parts are imported from famous imported brands, which are convenient for customers to repair and buy by themselves.
Package And Loading
Company Profile
RUIAN XINKE, as a professional overseas sales and service team,who is one of China's preeminent paper bag machine manufacturers, with more than two decades of experience in packaging machinery Industry, our machine have been delivered to over 2000 companies in 30 countries.Our partners and technical consultants can be found in Europe, America and Southeast Asia, bringing us techniques and expertise from all over the world.RUIAN XINKE is certifled to ISO9001 and CE standards, and have obtained more than 200 patents. Home to over 100 talented employees, and the workshop spans 3000 square meters, we can produce 50 sets of packing equipment in one month. Every machine is made based on customer's requirements and carefully debugged before shipping.Our R&D team is comprised of more than 10 people, to develops new equipment to keep up with ever changing technology and market demands.
Besides, we have a professional after service team, comprised of 10 people. who can provide one to one video calling, door-to-door service, as well as free technical training for our partners. We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 15 professional factories to supply whole packaging solution.
Besides, we have a professional after service team, comprised of 10 people. who can provide one to one video calling, door-to-door service, as well as free technical training for our partners. We do not only produce pouch packaging machine, thermoforming packaging machine but also cooperate with 15 professional factories to supply whole packaging solution.
You can tell me your requirements,
and I will match a set of the most suitable production line for you.
Exhibition
Partner
Q: Are you manufacturer or trading company?
A: We are the manufacturer.
Q: Where are your factories located? May I have a visit?
A: First of all,warmly welcome! Our factory located in Ruian city, Zhejiang Province
Q: Do you have machines in stock to sell?
A: No,we according to customers’ requirements to manufacture the machine.
Q: How is the quality of your machine?
A: We have 20 years experience of manufacture the machine, choose the famous brand parts to produce the machine, the quality can be guaranteed.
Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity. Normally, the produce period is 60 days.
Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
A: We are the manufacturer.
Q: Where are your factories located? May I have a visit?
A: First of all,warmly welcome! Our factory located in Ruian city, Zhejiang Province
Q: Do you have machines in stock to sell?
A: No,we according to customers’ requirements to manufacture the machine.
Q: How is the quality of your machine?
A: We have 20 years experience of manufacture the machine, choose the famous brand parts to produce the machine, the quality can be guaranteed.
Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity. Normally, the produce period is 60 days.
Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
