Product Overview
Description

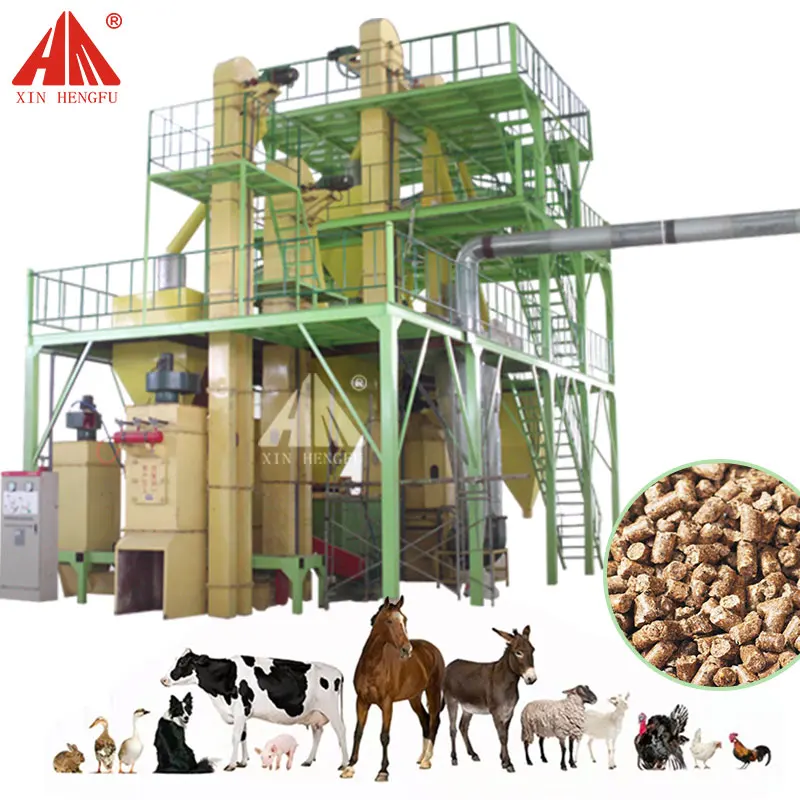

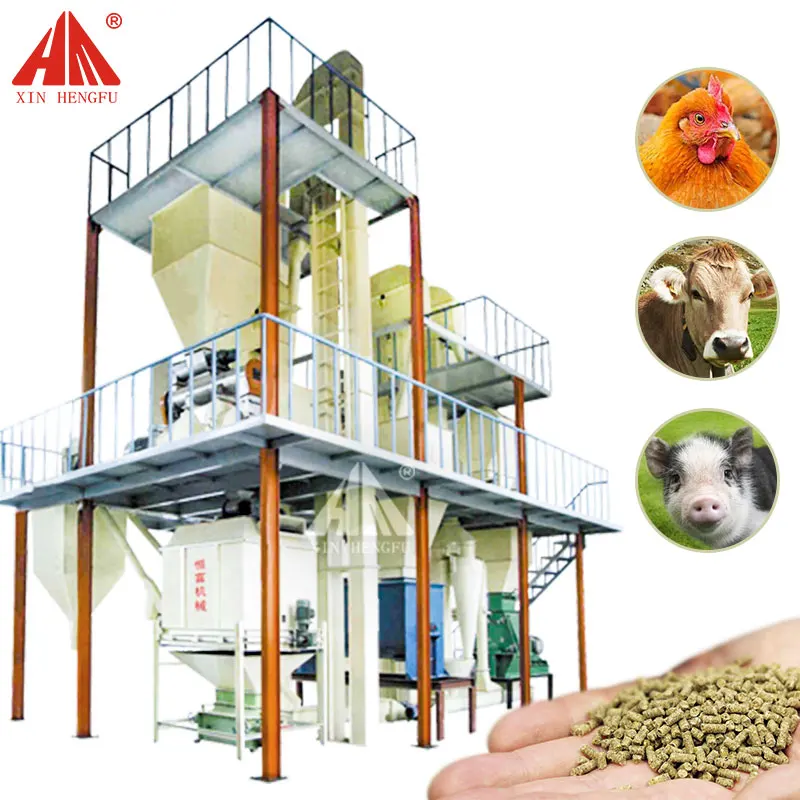

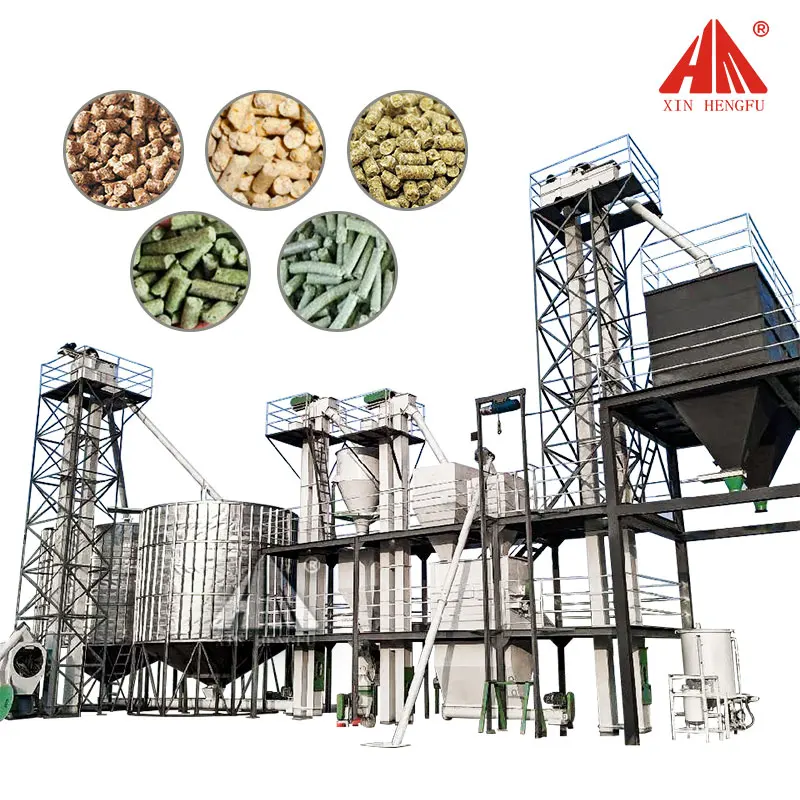

China xinhengfu 29 years factory produce good animal feed pellet production line
Product Description of animal feed pellet production line
| Type | animal feed pellet production line |
| Usage | feed mill and farms feed production making |
Silo:
-Diameter: 3.05 meters, height: 7.5 meters number of floors: 3 floors
-Capacity: 30 cubic meters
-Thickness of barrel: 1.0 millimeter
-Thickness of upper and lower cone: 1.2 millimeter
-thickness of galvanized layer: 275 grams
-thickness of column plate: 2.5 millimeters
-supports: 1000 degree hot-dip galvanizing
-screw: galvanized
-number of legs: 6 pcs
-feed proportion: 650 kg meters cubed
9HT750 feed grinder and mixer:
-capacity: 500-750 kg/hour
-grinder: 7.5 kilowatts
-mixer: 2.2 kilowatts
-sieve size: 131 millimeter by 1500 millimeter
-hammer model and qty: 120 millimeter * 16 pcs
-width of grinding chamber: 132 millimeter
-diameter of sieve pore: 2 sets of 8 millimeter and 1 set of 10 millimeter
-G.W.: 480 kg
-voltage 380v, 3 phase, 50-60 HZ
1.It’s widely used for producing animal feed, like poultry,livestock,fish, and so on.
2.Adopt high-precision gear driven, advanced flexible coupling, for high productive efficiency .
3. Main driving adopt imported SKF ( NSK) bearing and NAK oil seal, Siemens motor.
4.This series feed granulator line for processing animal feed are mainly used for pelletizing all kinds of feed particles, such as corn,soybean, rice husk and coffee husk etc.
5.Super quality bearing and oil seal to ensure high efficiency, stability and low noise.
6. The pelletizing chamber is equipped with air draft cooling system.
7.The variable-frequency and variable-speed motor is adopted to ensure the quality of the pellet.

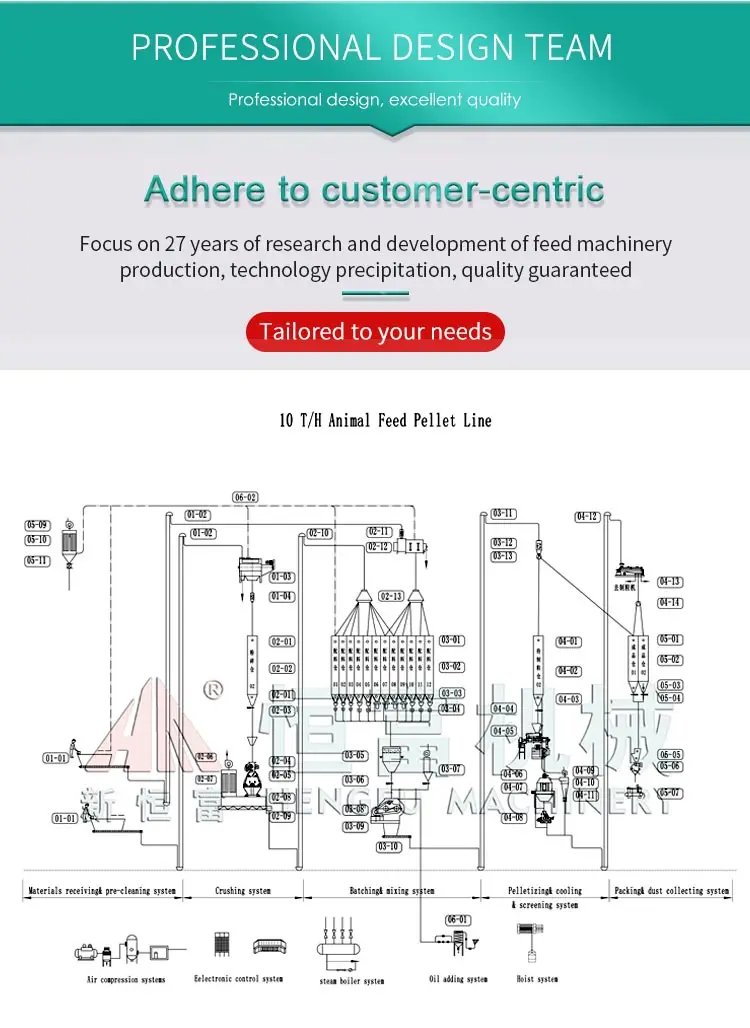

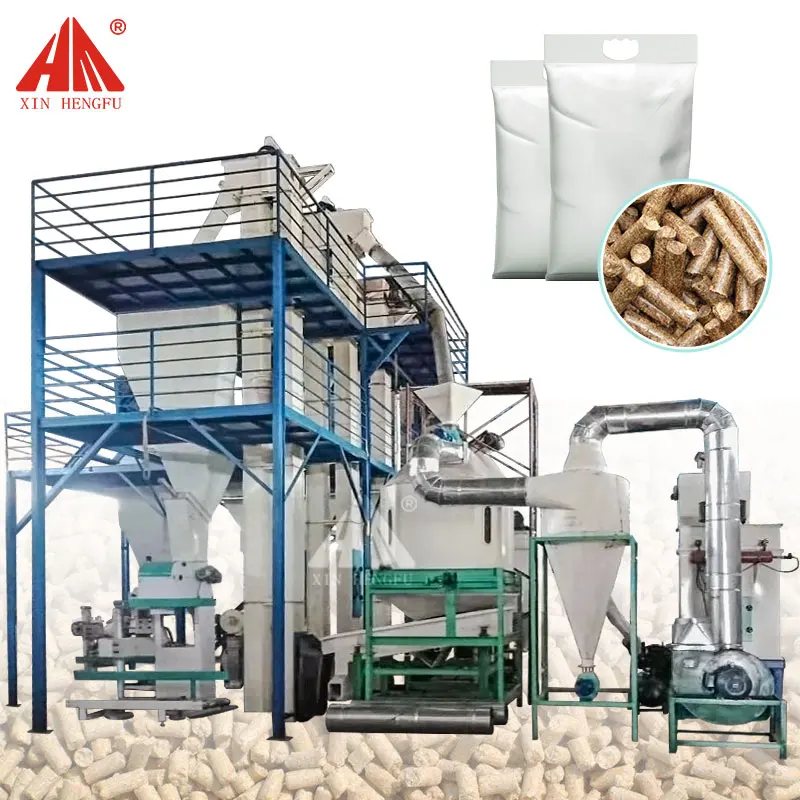

China xinhengfu 29 years factory produce good animal feed pellet production line:

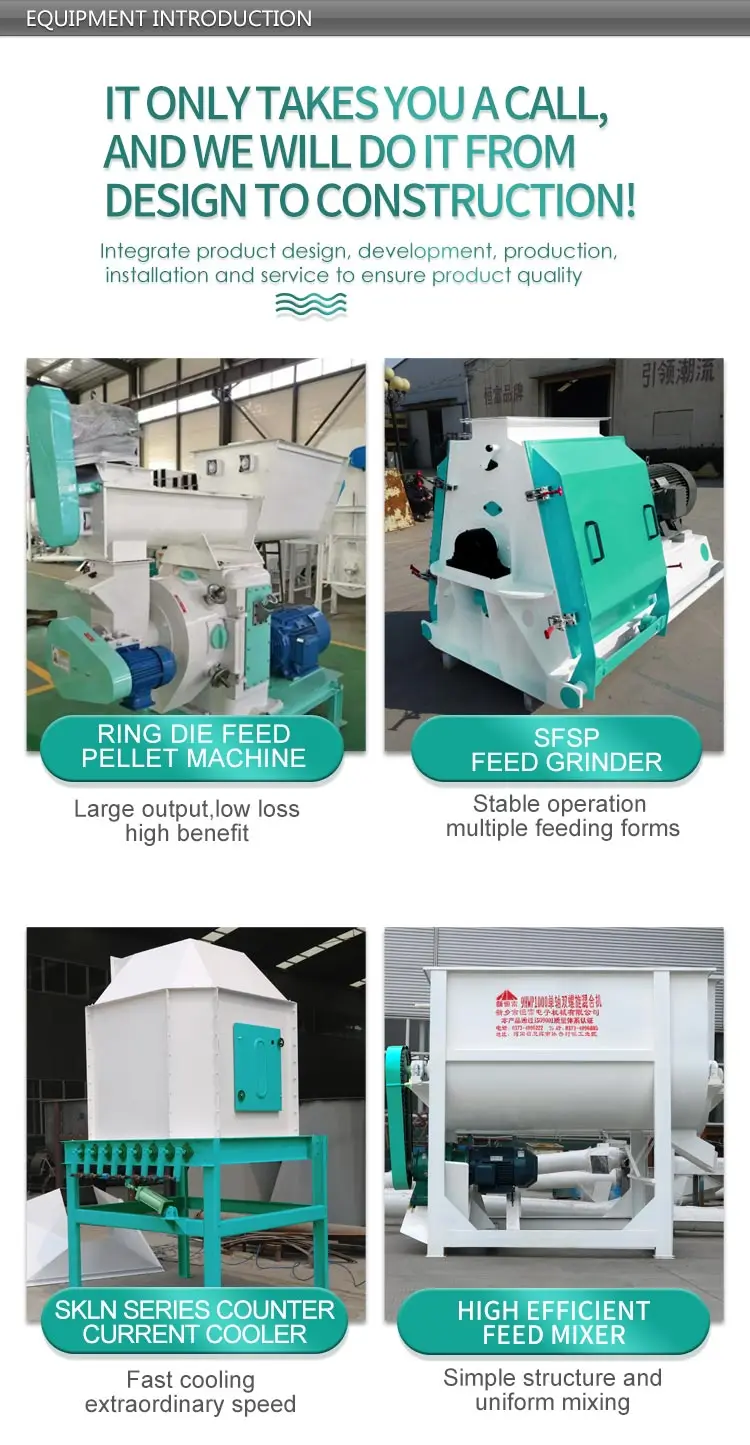

1.Grinding section:Before making pellet, the raw materials should be grinded into small pieces.
We use hammer mill to grind raw materials into small particle.
2.Mixing section:Use mixer to mix the grinding raw materials to even particles. Themixer have
two types: single shaft ribbon mixer and double shaft paddle mixer.

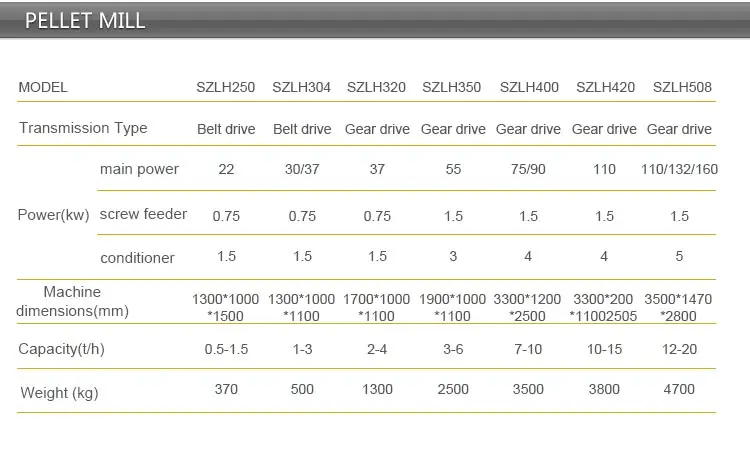

3.Pelleting section: Use pellet mill to make pellet. It is equipped with feeder, conditioner and pellet mill. The feeder can control the feeding amount. Conditioner can make moisture and temperature of the feed more high, to make pelleting easily.
4.Cooling section:The pellet after cooling is more than 2-3 degree than room temperature. The pellet cooler we use is octagon. Octagon type is more beneficial to cool the pellet. No dead cooling corner.
5.Crumbling section:Crumbling section is optional. When required pellet is small, can use crumbler to grind, such as chick feed.
6.Sieving section:We use rotary screener to sieve the pellet. It has three layers sieves.
7.Bagging:Generally speaking,when the oupt is small,you can choose a scale and pack products manually.
When the output is big,you can choose a automatic packing machine which include automatic weighing,conveying,and sewing.
Related Products
Feed production line
flat die type grass pellet mill
powder feed plant pellet feed plant
Pellet feed machine
flat die pellet mill ring die pellet mill
Feed grinder
water drop hammer mill 9fq feed grinder
Feed mixer
single shaft mixer double shaft mixer
Feed mixer and grinder
Packaging & Shipping
Specialized design of wooden box packing, ensure that the goods are not damaged,; Container transport.
Our Services
Pre-sale service:
1.Provide our client with investment guide for free.
2.Provide our client with evaluation investment scheme for free
3.Free visit to our factory.
4.Design of production line scheme is provided for free.
In-sale service:
1. Experienced workers are sent to provide track service when equipment is transported.
2. Experienced technicians or engineers will be sent for on-site installation, adjustment and technical devices according to clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
² Professional engineering design
² Earliest delivery ,high quality with best price
² Safe and efficient transport services
² Efficient installation guide can send video installation and operation
² One year guarantee for whole machine, except the wearing parts .
² We can provide engineers available to service machinery overseas.
² 24 hours technical support by E-mail or telephone.
Company Information
With More than 25 Years in Production of Animal Feed Machines
Henan Hengfu Electronic Machinery Co. Ltd, founded in 1993, is currently one of the best key enterprises specialized in the research and development of feed machinery, pellet machines, animal feed mixers and grinders in the machinery manufacturing industry, which have passed the certification of CE due to our ISO 9001:2008-certified operations. Our feed complete equipment have been exported to North and South America, Africa, Asia, Europe, and more than 20 countries worldwide. We also have strict and complete QC system.

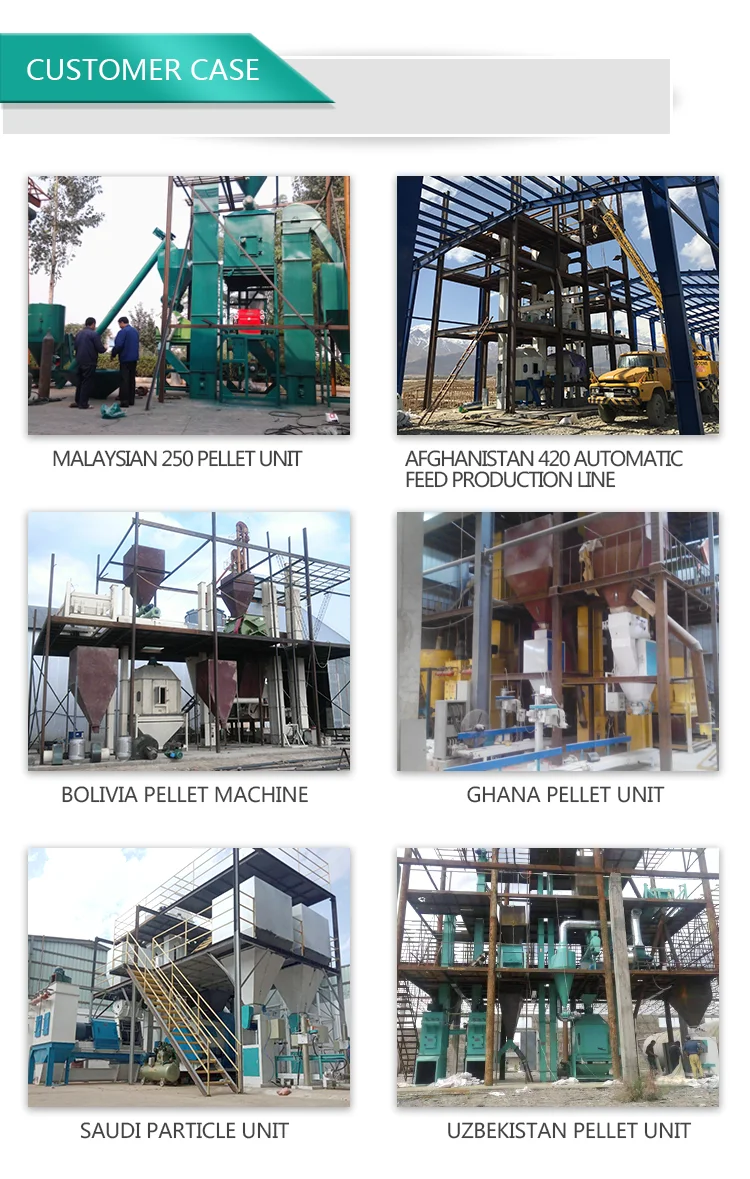

Good quality, competitive price and excellent after-sale service are highly praised by customers. So far, product sales have covered more than 25 provinces and cities in China and also exported to Ghana, Botswana, Benin, Ivory Coast, Venezuela, Mozambique, Indonesia, Malaysia, Korea and over more than 20 countries.
FAQ
To give you the accurate price, there are some details to confirm as follows:
1. What's your raw material?
2. what kind of animal do you feed?
3. The output per hour?
4. Do you also need automatic packing machine?
5. The basic processing technology: Grinding, mixing, pelleting, cooling, crumbling, screeening, packing. Any special requirement, let me know directly.
6. Our normal voltage is 380V, 50HZ,3phase, if yours is different, tell me yours.
1.Are you manufacturer,yes or not?
Answer:Yes. We have been feed machine manufacturer for 23 years and it will be longer.Now we are capable of producing not only feed machines but also biomass machines and mineral stone processing machines.
2.Can you accept the customized plan? Can you simplify my plan for reducing costs?
Answer:Of course,our brilliant engineers are waiting for it all the time.
3.What's your MOQ?
Answer:Generally speaking,one is okay,but larger quantity ,lower price.
4.What i need know to build a feed processing plant?
Answer:You just need figue out the following questions:
(1)What animal you want to feed? the animal amount?This is used for confirming the production capacity and feed type.
(2)What raw materials you have?material size?material moisture?
(3)Any speical demand?Wait for your contact anytime.
