Tunnel Battery Locomotive CCG8 Type Online Machine Installation Maintenance Instruction Mining Electric Trolley Locomotive
- Category: Locomotive >>>
- Supplier: Shandong,China,Coal,Group,Co.,Ltd.,Import,&,Export,Branch
Share on:
Product Overview
Description
product Introduction
Introduction Of Underground Mining Narrow Gauge Locomotive Trolley Locomotive
Electric Trolley Underground Mining Locomotive using DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.ZMWM11
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The Electric Trolley Underground Mining Locomotives are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
1. The vector control transformer, AC frequency change electric motor and new locomotive cabinet designed and developed by yourself.
2. The products has good sticking, good overload ability, good climbing, safety braking, big traction and easy to operate
3.Human oriented design, the operation table of driver cab has speed/odometer display and locomotive running signal lamp.
4. Energy-saving, 25% energy saved compared to DC driving.
5. The products can adapt mining working environment, accepted temperature within -40°C~+50°C, accepted floated voltage range within -40%~+30%, with dust-proof and shake-proof function.
Parameter
Parameters Of Underground Mining Narrow Gauge Locomotive Trolley Locomotive
Model | CCG 3.0/600J (B) | CCG 5.0/600J (B) | CCG-5.0/600 double cylinder explosion-proof diesel locomotive | CCG8.0/600J |
Matched Power Model | ZS1115FB | YH1125SFB | / | YH4108DFB(A) |
Dimension (L*W*H) mm | 2400*920(1000)*1600 | 3020*1000(1098)*1600 | 3500*1100*1580 | 3700*1100*1600 |
Weight kg | 3000 | 5000 | 5000 | 8000 |
Greatest Traction | 4.5 | 7.5 | 12 | 12 |
Fuel tank (L*W*H mm) | / | / | 320*280*180 | / |
Pulling Tonnage T | 15 | 22 | 40 | 35 |
Gauge mm | 600(made to order) | |||
Wheelbase mm | 706(712) | 880(860) | 900 | 980 |
Greatest Speed km/h | 15+1 | 17+1 | no-load:forward:14.6 backward:12.5; | 20+2 |
Diesel Engine Power (kw)/Rotating Speed (r/min) | 11/2200 | 14.7/2200 | 17.24/2200 | 52/2400 |
Smallest Railway Orbit m | 5 | 6 | 7 | 7 |
Greatest Braking Force N | 5000 | 8000 |
| 12800 |
Traction Height mm | 270 320 | 320 430 | 270 320 430 | 320 430 |
Braking Distance m | 40 | |||
Height Above Ground mm | 80 | 125 | / | 125 |
Braking Mode | foot and machine control | / | air and hand wheel control | |
Exhaust Quality | CO≤0.1% NOX≤0.08% | |||
Photos

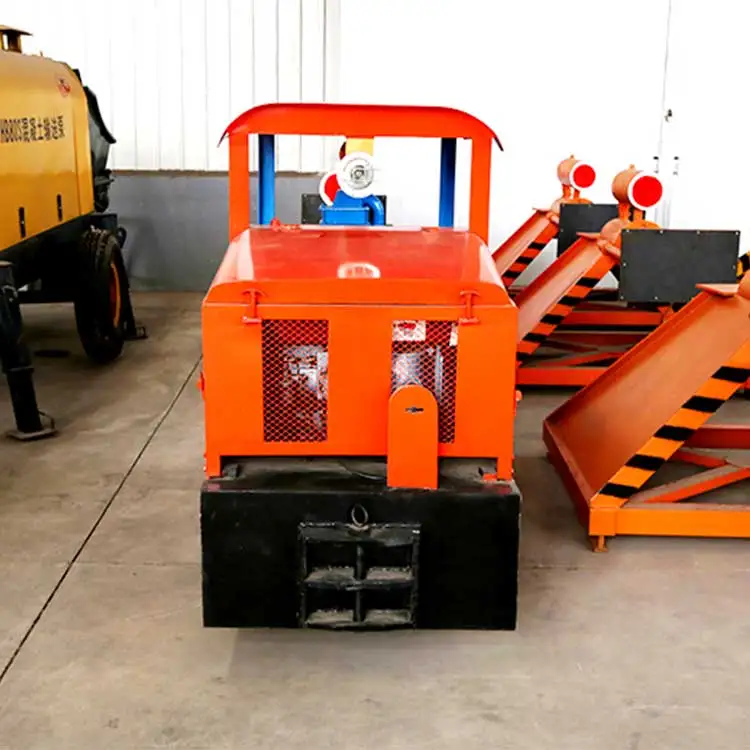

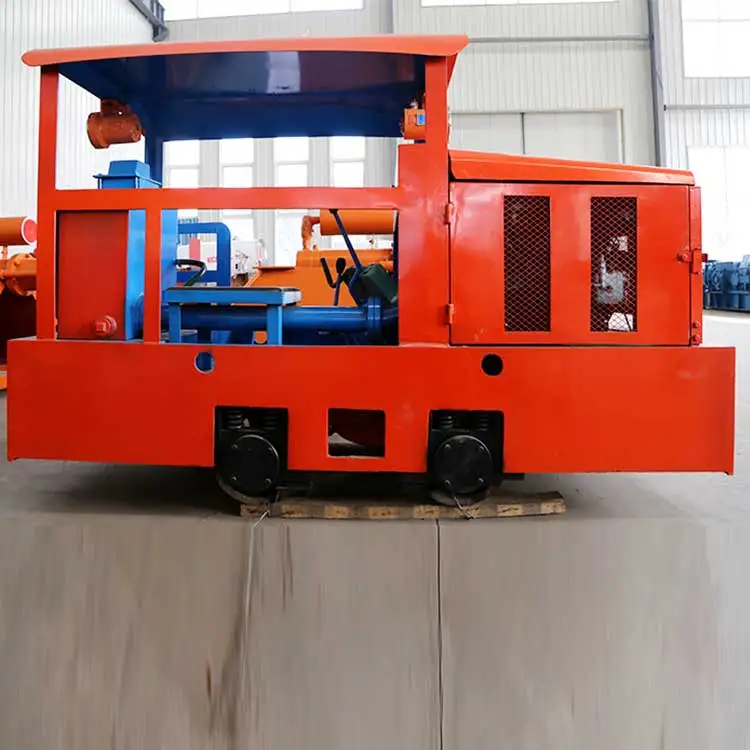

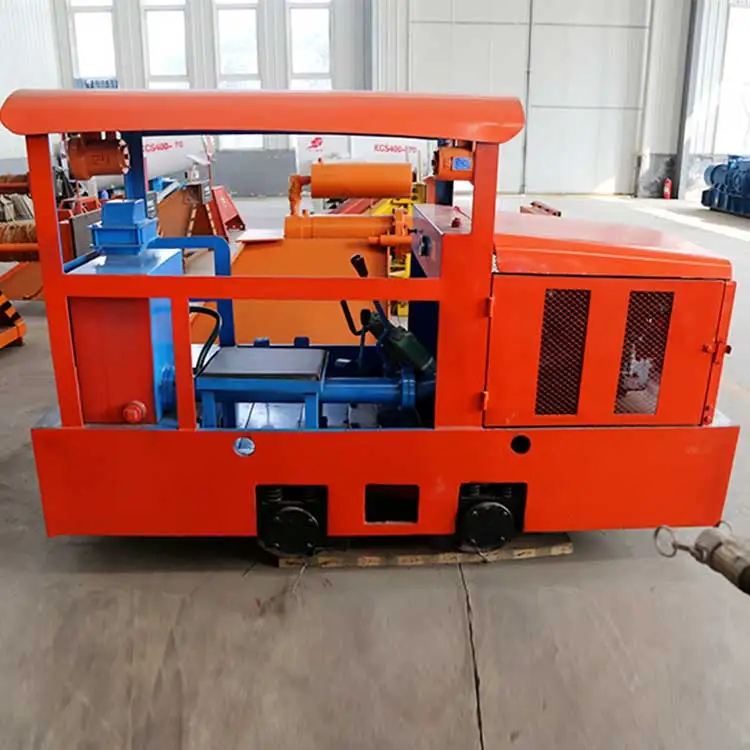

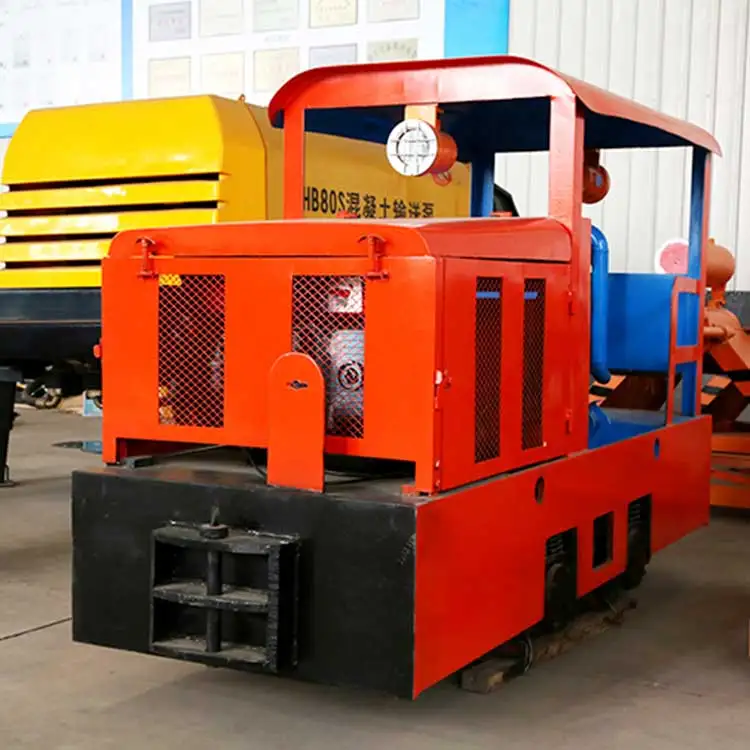

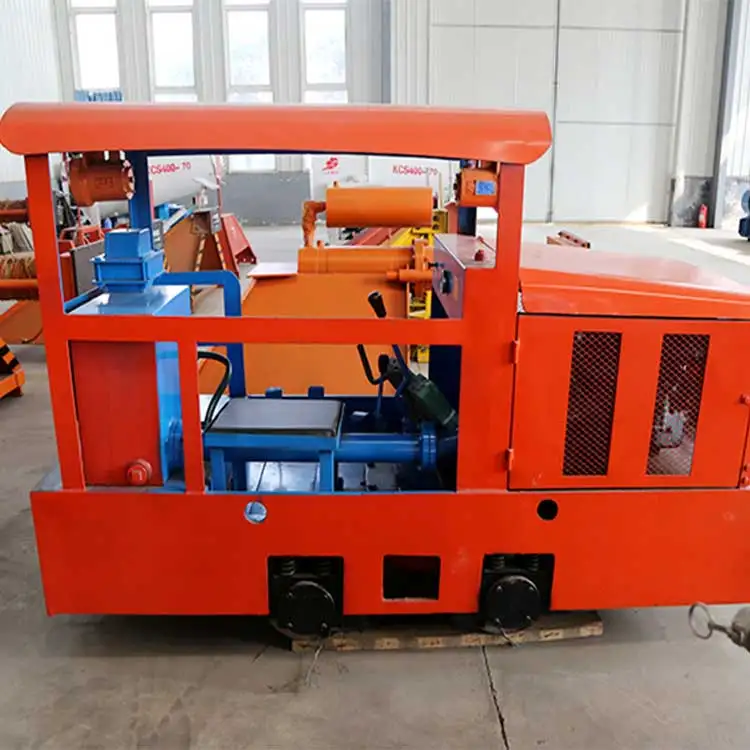

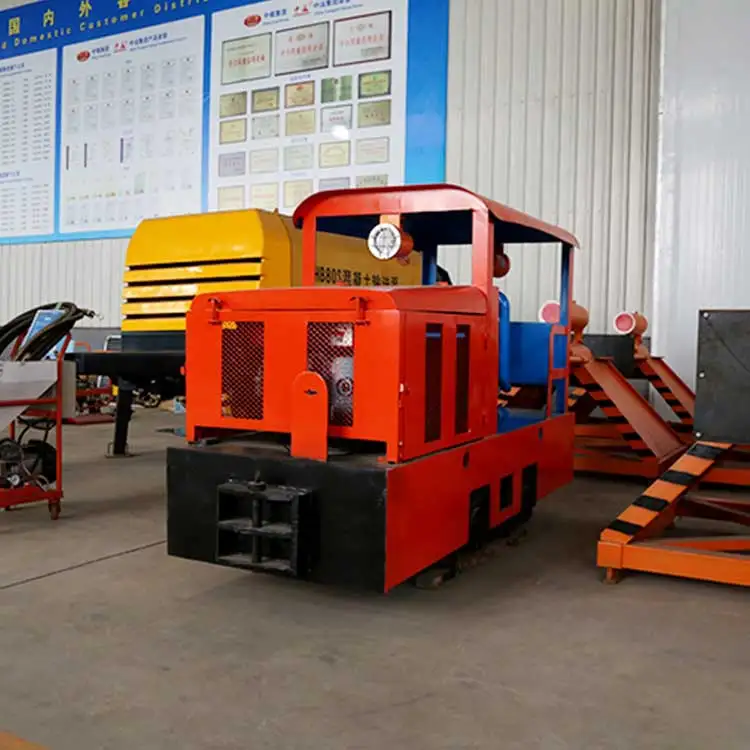

Photos Of Underground Mining Narrow Gauge Locomotive Trolley Locomotive
