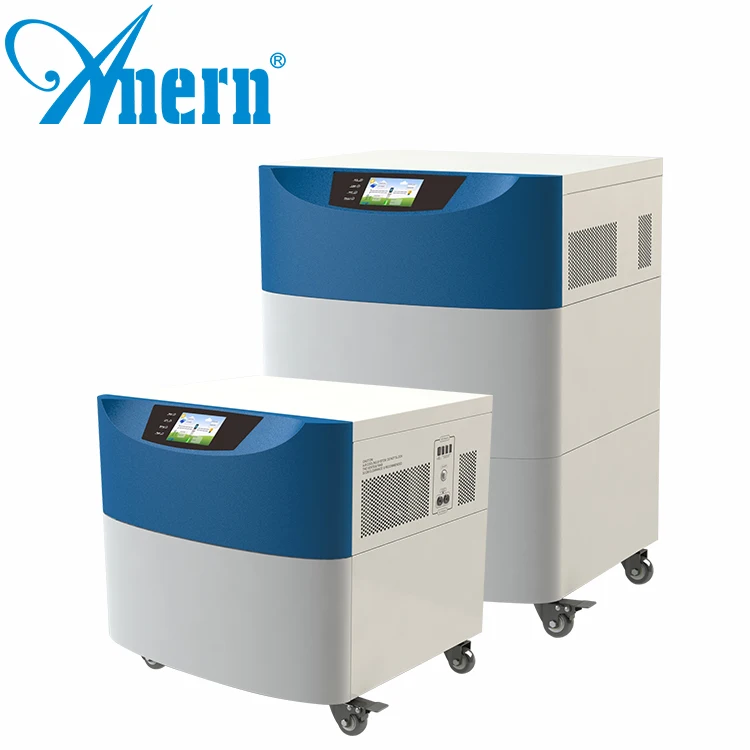

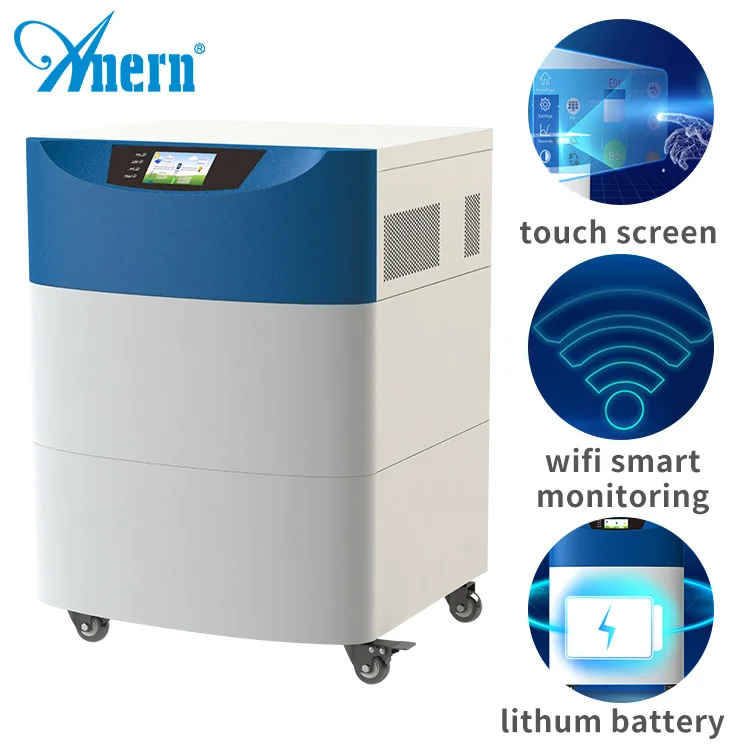

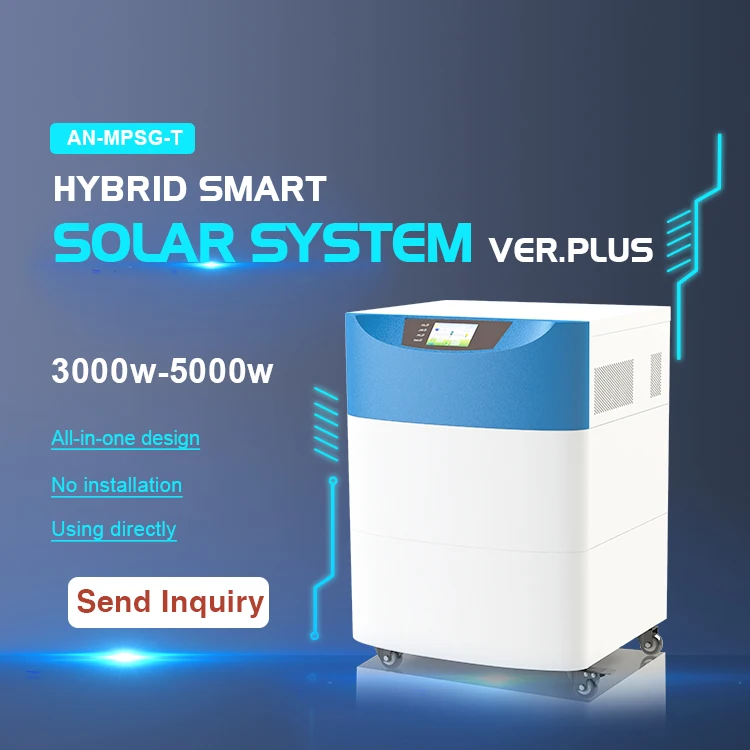

Anern Lithium Battery Solar System 3000w 5000w 6000w portable solar generator
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd.
Share on (1600564201244):
Product Overview
Description
Anern Lithium Battery Solar System 3000w 5000w 6000w portable solar generator
Products Description
Features:
◆ Excellent performance because of double CPU intelligent control technology;
◆ Excellent performance because of double CPU intelligent control technology;
◆ 6000 cycles lithium battery and has a 5 years service life ;

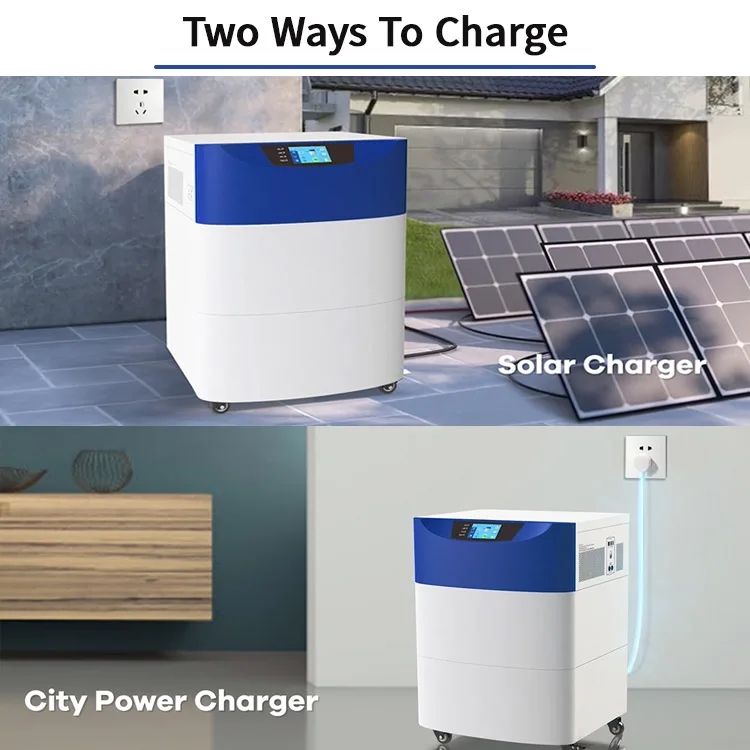

◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Touch screen can view system data more convenient;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Touch screen can view system data more convenient;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;
Specifications:
Model | MPSG-T-S3000 | MPSG-T-S5000 | MPSG-T-D5000 | |||
Battery Voltage | 24V | 48V | 48V | |||
Inverter | ||||||
RATED POWER | 3000W | 5000W | 5000W | |||
Input Voltage Range | 170-275VAC | |||||
Input Frequency | 45-65 | |||||
Output Voltage | 110/220 | |||||
Output Frequency | 50/60 | |||||
Output Wave | Pure Sine Wave | |||||
Speficifation Of Built-in Lithium Battery | 2600WH(Single battery box) | 4500WH(Single battery box) | 9000WH(Double battery box) | |||
Communication | WIFI(optional) | |||||
MPPT Solar Input | ||||||
Max. PV Power | 1500W | 1500W | 3000W | |||
Range Of Charging Voltage | 30-150VDC | 60-150VDC | 60-150VDC | |||
Rated Charge Current | 60A(MPPT) | 30A(MPPT) | 60A(MPPT) | |||
MPPT efficiency | ≥99% | |||||
Voltage For Floating Charge | 24.9VDC | 49.8VDC | 49.8VDC | |||
Low Voltage Recovery Voltage | 23.4VDC | 46.8VDC | 46.8VDC | |||
Low Voltage Protecton Voltage | 18.6VDC | 37.2VDC | 37.2VDC | |||
DC Output | ||||||
Mobile output | TYPE C-PD60 / USB QC3.0 / USB-5VDC 2.4A/2 units | |||||
12VDC Output Ports | 2 units /MAX 2A | |||||
PHYSICAL | ||||||
Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | |||||
Display | Touch Screen | |||||
External Size：W*D*H（mm） | 536*480*505mm | 536*480*735mm | ||||
Product Details
Touch Screen
* Touch screen can view systemdatalhore convenient. * The controller, inverter, and battery are all built-in it
* It is easier and more convenient to use.
* Touch screen can view systemdatalhore convenient. * The controller, inverter, and battery are all built-in it
* It is easier and more convenient to use.
Double CPU
* Excellent performance * Integrated design
* Using detachable battery cover,easy maintenance and replacement
* Excellent performance * Integrated design
* Using detachable battery cover,easy maintenance and replacement

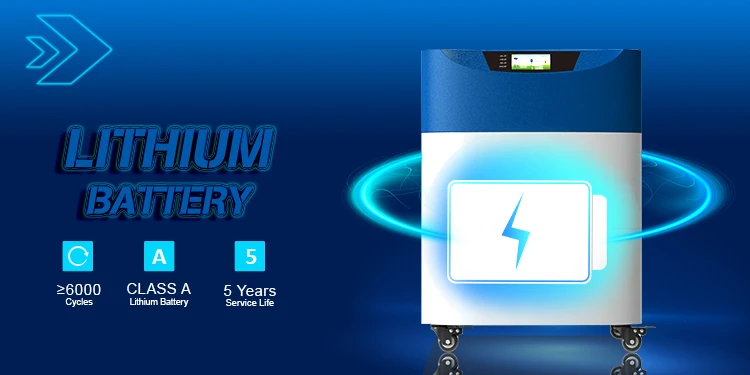

Lithium battery
* 6000 cycles lithiumbattery and has a 5 years service life
* 6000 cycles lithiumbattery and has a 5 years service life
* Built in brand new lithium battery with large capacity and long service life
* Designed with wheels, convenient for movement and transportation
* Designed with wheels, convenient for movement and transportation

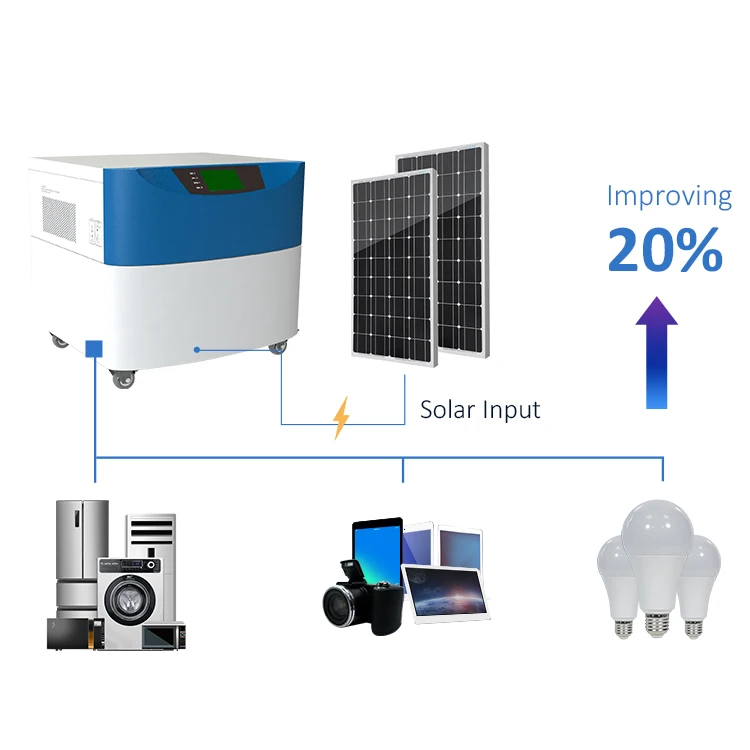

MPPT CONTROLLER
* MPPT controller greatly improving the charging efficiencymore than 20%
* MPPT controller greatly improving the charging efficiencymore than 20%
* The system's working status would be shown by mobile phone APP through wifi module
* It only takes 5-6 hours per day (with sufficient sunlight) to fully charge
* It only takes 5-6 hours per day (with sufficient sunlight) to fully charge

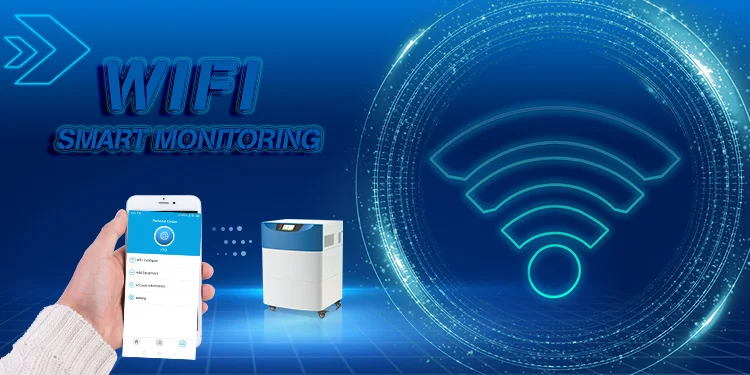

WIFI SMART MONITORING
The svstem's working status would be shown by mobile phone app through wifi module.
The svstem's working status would be shown by mobile phone app through wifi module.
WIRING DIAGRAM
Solar energy pioneer with professional R&D team, install MW solar capacity in more than 200 countries and regions,we can develop a scientific solution based on each client's situation.
Solar energy pioneer with professional R&D team, install MW solar capacity in more than 200 countries and regions,we can develop a scientific solution based on each client's situation.

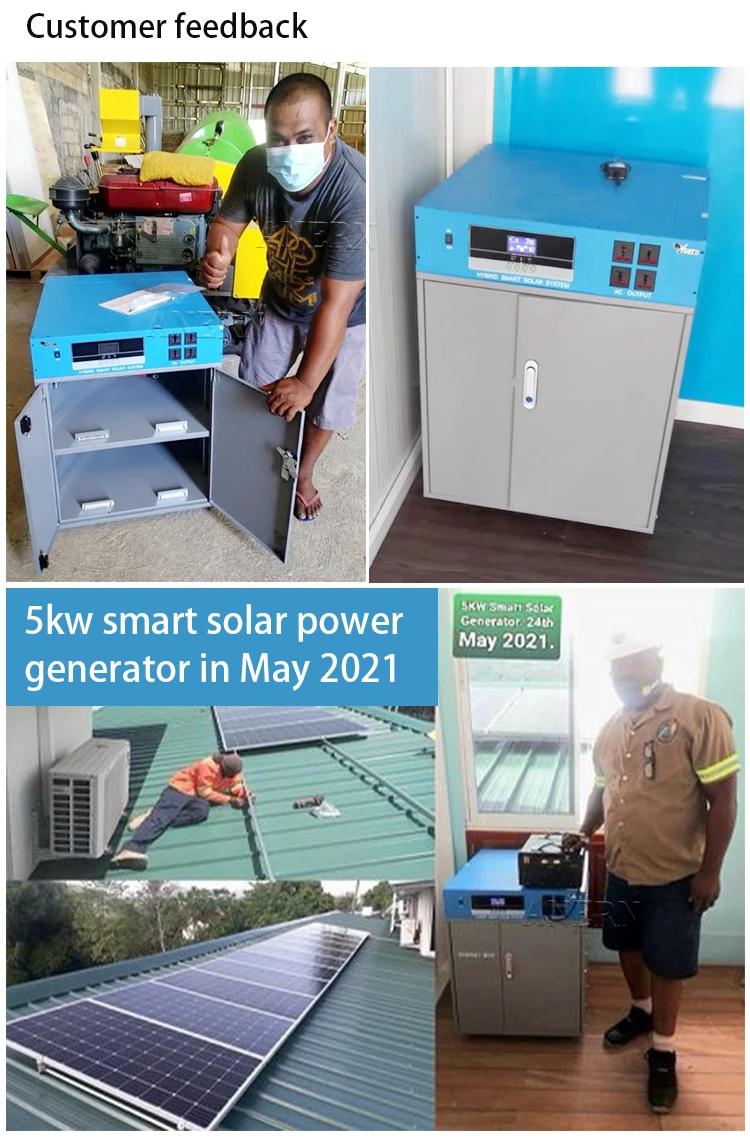

Project & Feedback

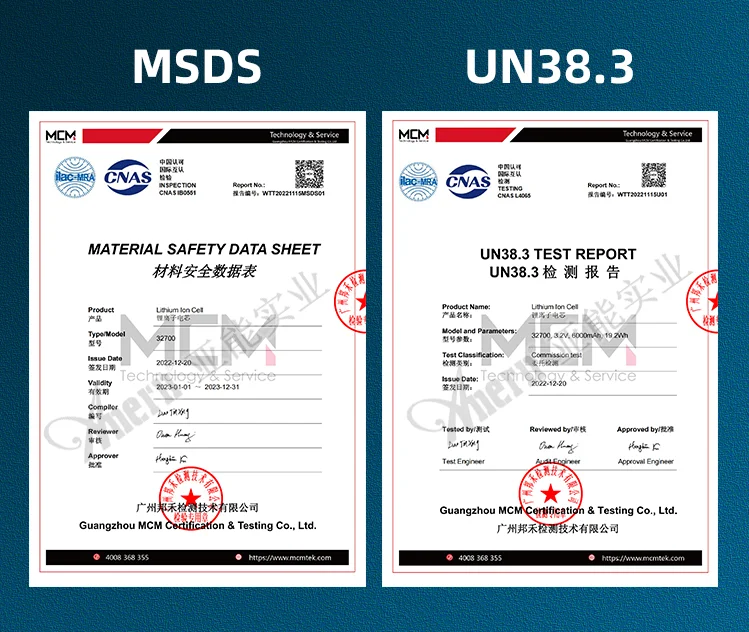

Certifications

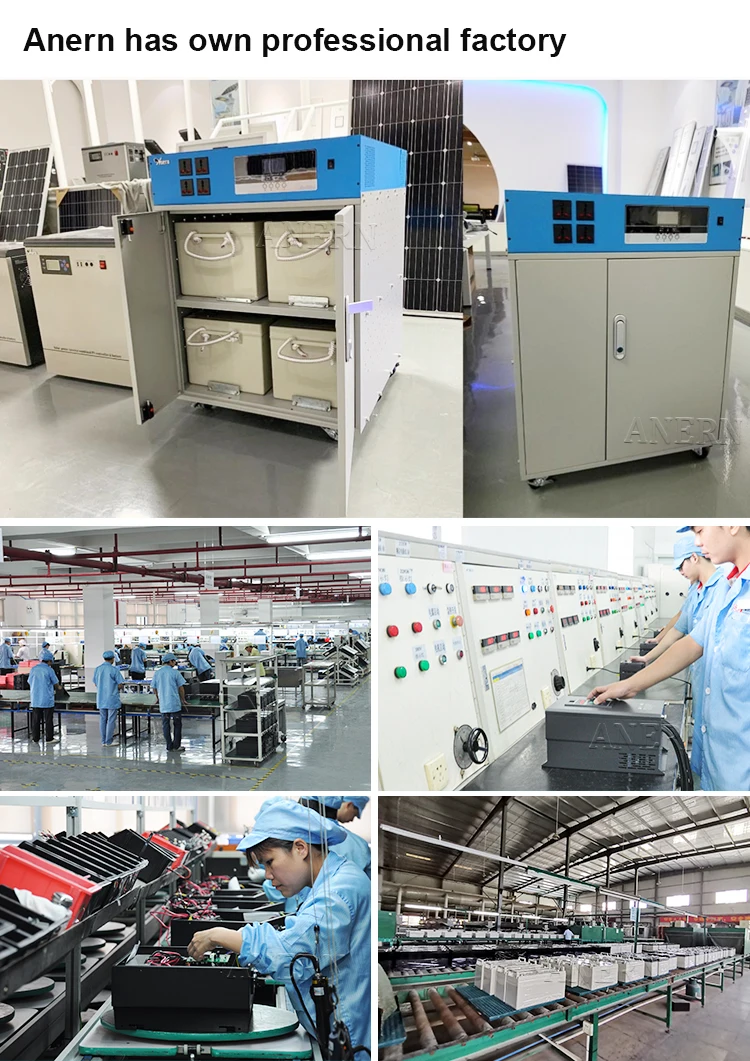

Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the stable-performance and high-quality products. We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution.
