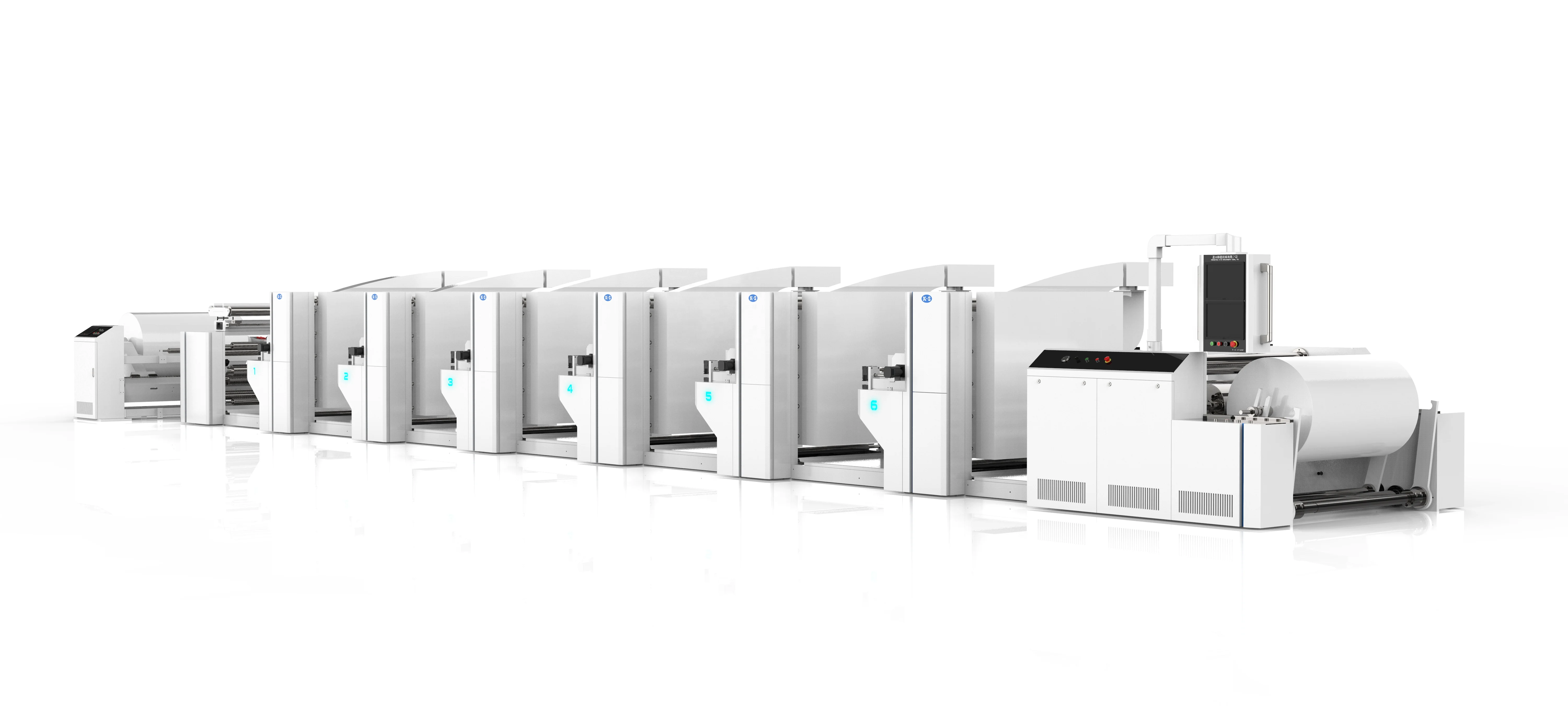

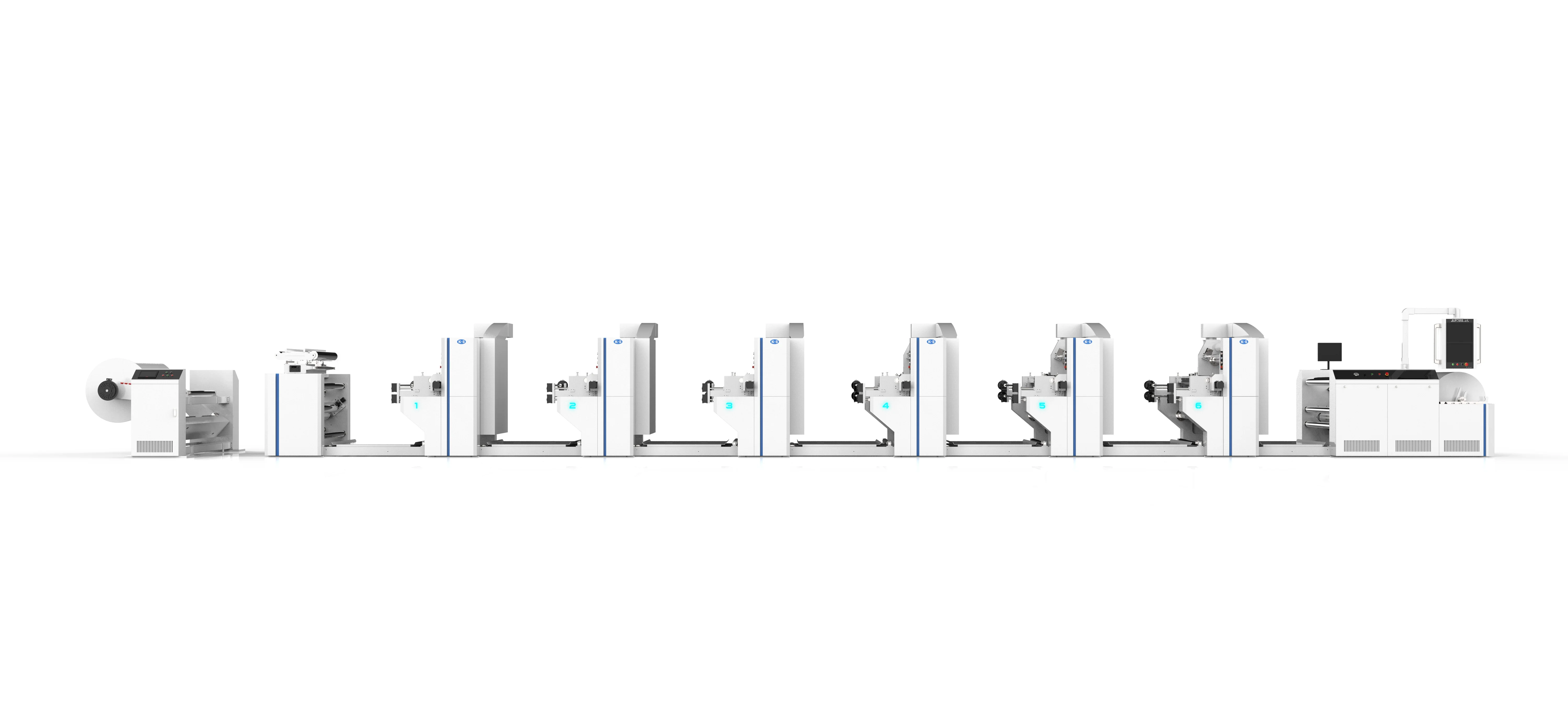

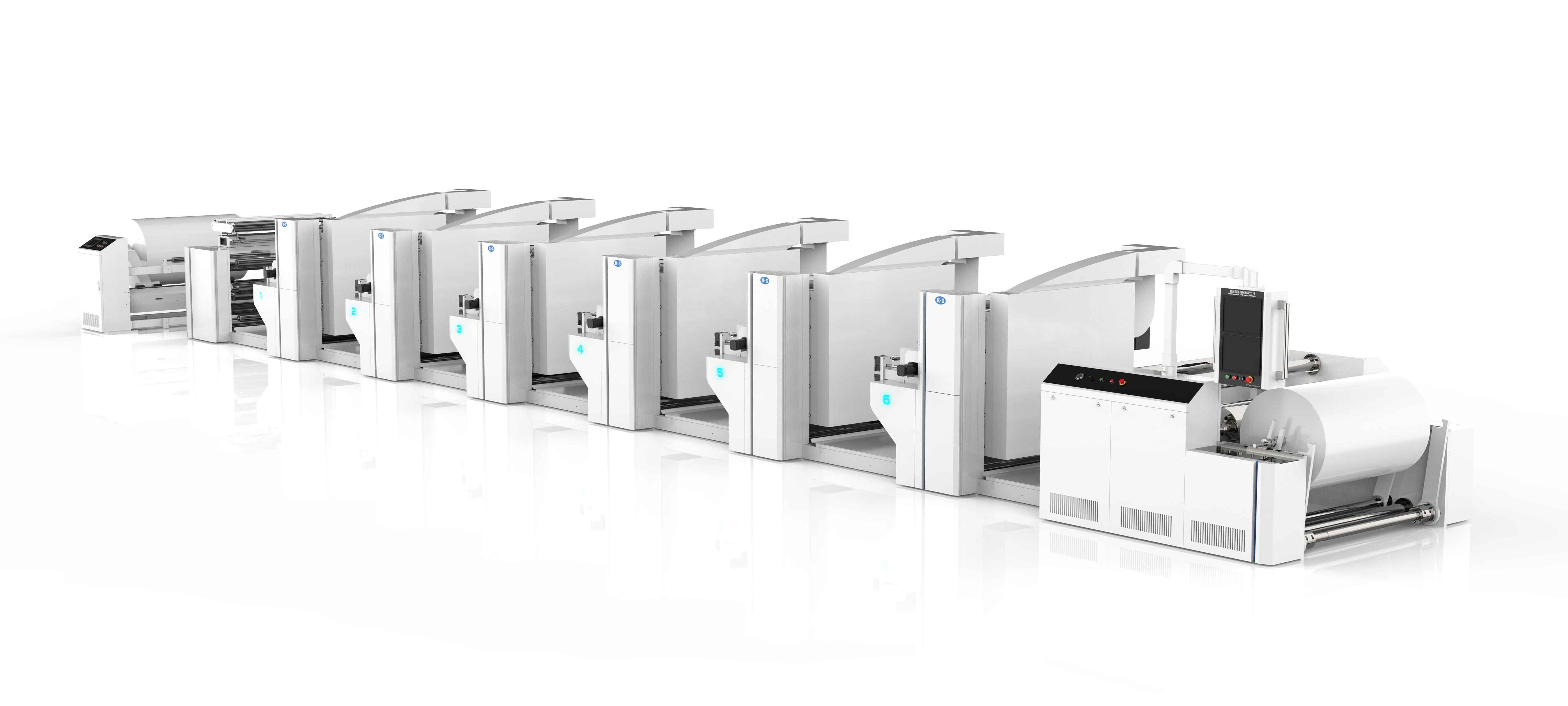

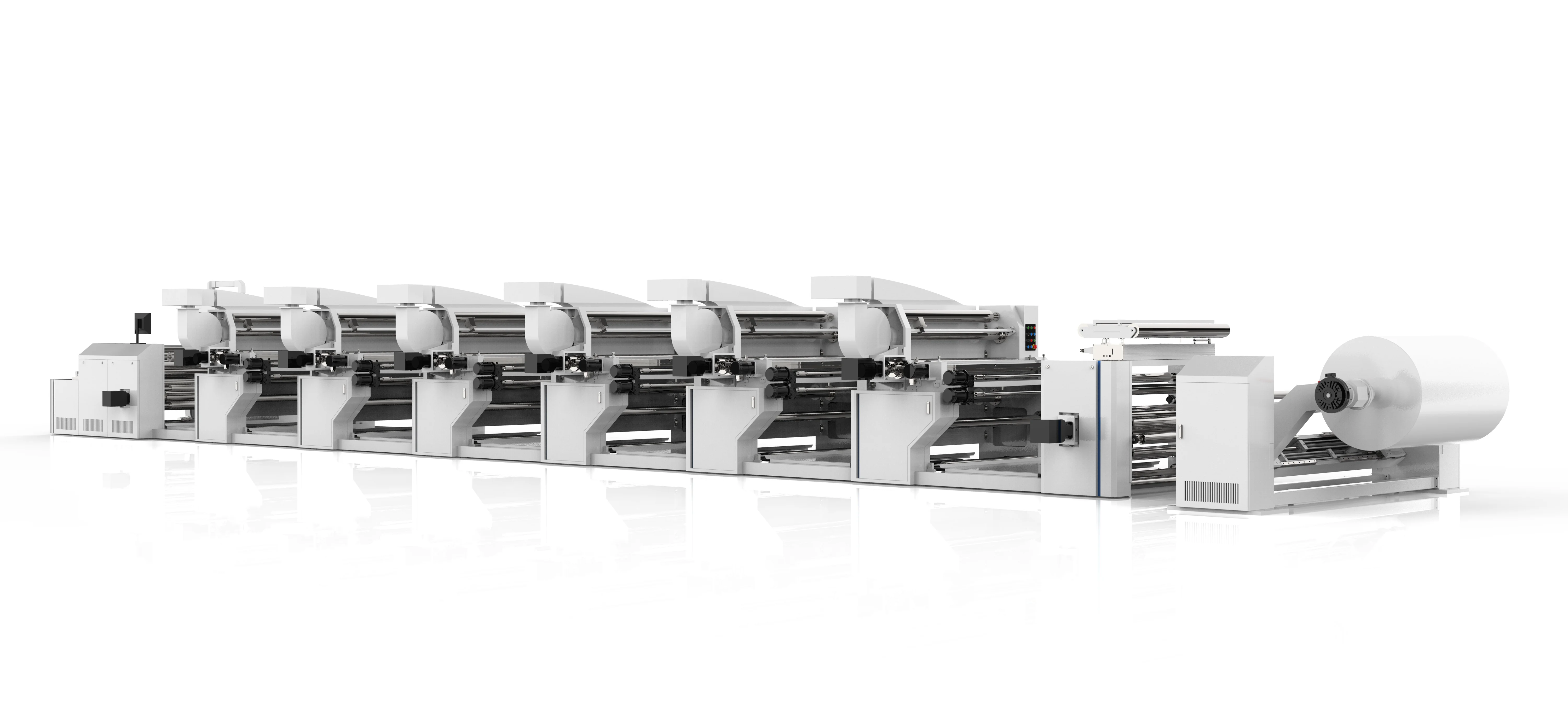

6 Color Unit Type Paper Bag Roll Flexographic/Flexo Printing Machine
- Category: >>>
- Supplier: Wenzhou K-S Machinery Co. Ltd
Share on (1600564203308):
Product Overview
Description
6 Colors High Speed Cardboard Box Roll Paper Unit Type Flexo Printing Machine
FEATURES AT A GLANCE
Application:
Paper cup, paper bag, carton pre-printing, food packaging, tobacco and alcohol packaging, pharmaceutical packaging, daily
necessities, non-woven fabric, plastic film, industrial products, and other flexible packaging materials
necessities, non-woven fabric, plastic film, industrial products, and other flexible packaging materials
Main features:
1. Drive mode: shaft gearbox drive or servo drive
2. Color printing method: 360 degrees manual color printing or automatic computer overprinting device
3. Detection system: color printing effect monitoring system
4. Advance and retreat system:
plate roller and anilox roller are electrically controlled, which can achieve fast advance and retreat
plate roller and anilox roller are electrically controlled, which can achieve fast advance and retreat
5. Inking mode: fully enclosed scraper inking system
6. Tension control: multi-section tension control, floating roller detection, automatic control
7.Applicable ink: water-based ink, solvent ink and UV ink
8. Drying device: extended drying system is adopted for color group drying
9. Dry heat source: electricity, steam, thermal oil, natural gas, etc
9. Dry heat source: electricity, steam, thermal oil, natural gas, etc
10. Discharge correction: adopt high precision deviation correction device
11. Feeding control: automatic control with pneumatic brake
12. Rewind control: controlled by frequency conversion motor

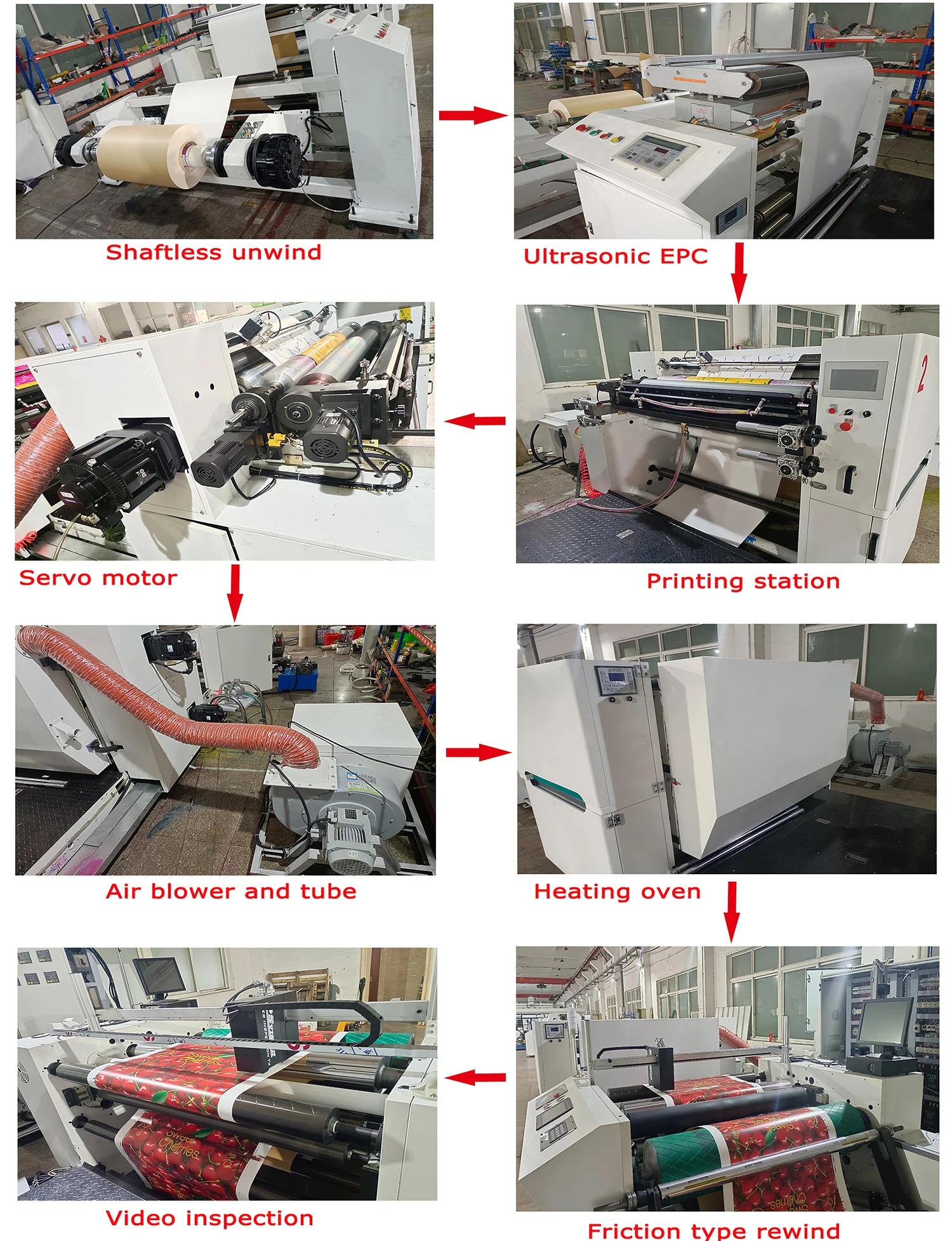

Details Images
PRODUCT CONFIGURATION
Model | KSJP-S-A850 | KSJP-S-A1050 | KSJP-S-A1350 | KSJP-S-A1650 | |||
Max Material Width | 800mm | 1000mm | 1300mm | 1600mm | |||
Max Printing width | 770mm | 970mm | 1270mm | 1570mm | |||
Printing length | 360-1200mm | ||||||
Printing color | 1-12 | ||||||
Mechanical speed | 20-200m/min | ||||||
Printing speed | 20-180m/min | ||||||
Printing unit Composition | Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder, Pressure roller | ||||||
Color registration | Vertical: manual or computer automatic color Horizontal: manual or electric | ||||||
Voltage | 3p 380v 50hz | ||||||
Weight | Depend on model | 6500kg | 7000kg | 7500kg | |||
Dimension | Depend on model | 5.6x2x3.2m | 5.6x2.2x3.2m | 5.6x2.4x3.2m | |||
Optional devices | 1.Reverse printing 2.Slitting device 3.Laminating device | ||||||
