| HDMI Version | HDMI2.0 HDMI1.4 |
| HDMI Resolution | up to 3840x2160P/30Hz |
| Support Video Format | 24/30/36 bit deep color |
| Support Audio Format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max Bandwidth | 300MHZ |
| Max Baud Rate | 10.2Gbps |
| Power Adapter Format | Output: DC5V/2A |
| Material | Aluminum Alloy |
| Color | Black |

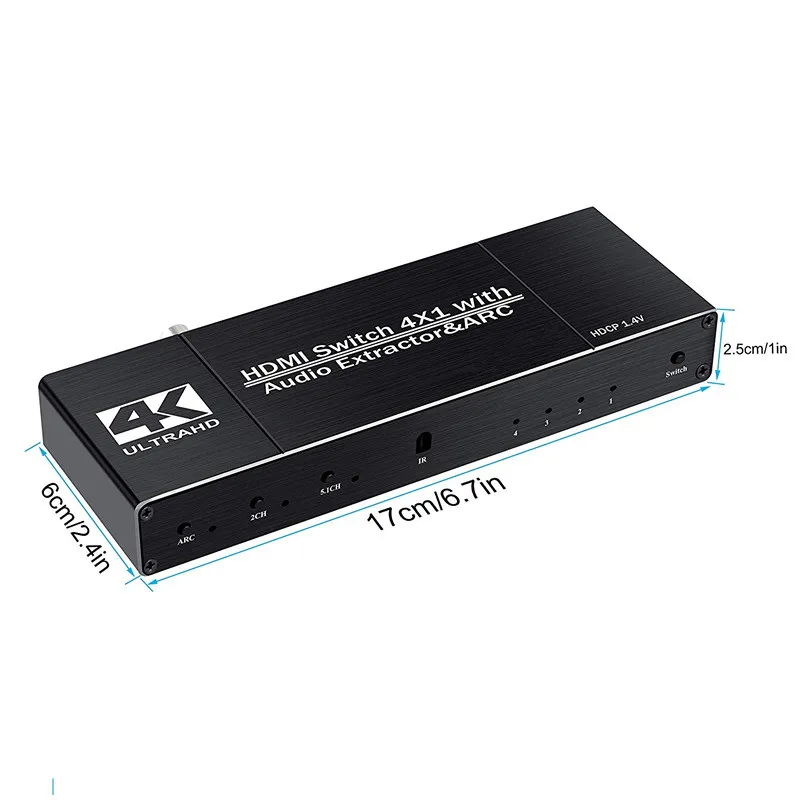

| Dimension(LxWxH) | 170X57X25mm |
| Weight | 312g |

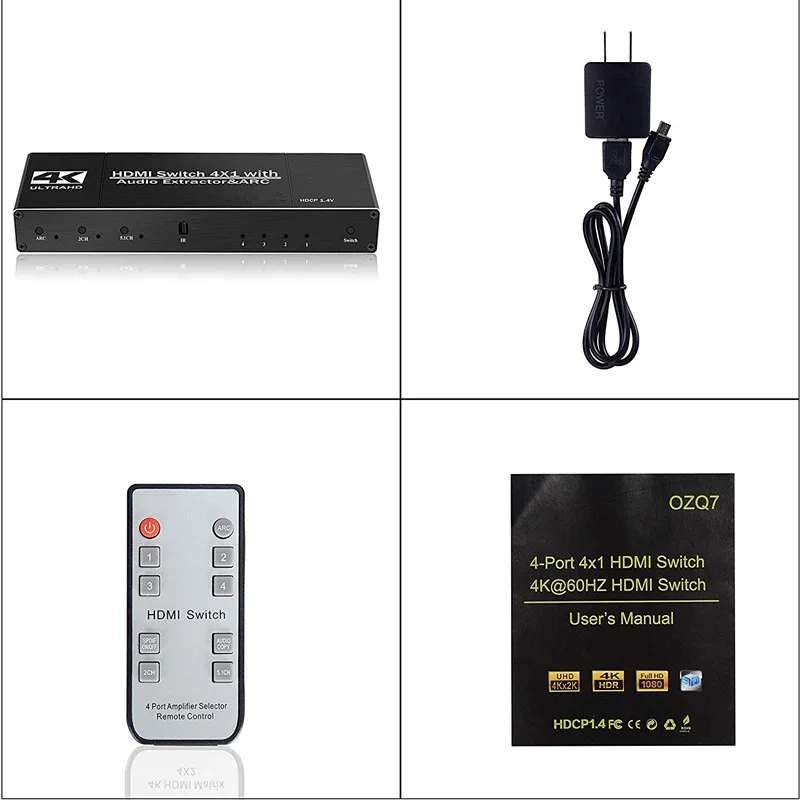

| Package | Giftbox (Remote+User Manual+Power Adapter) |

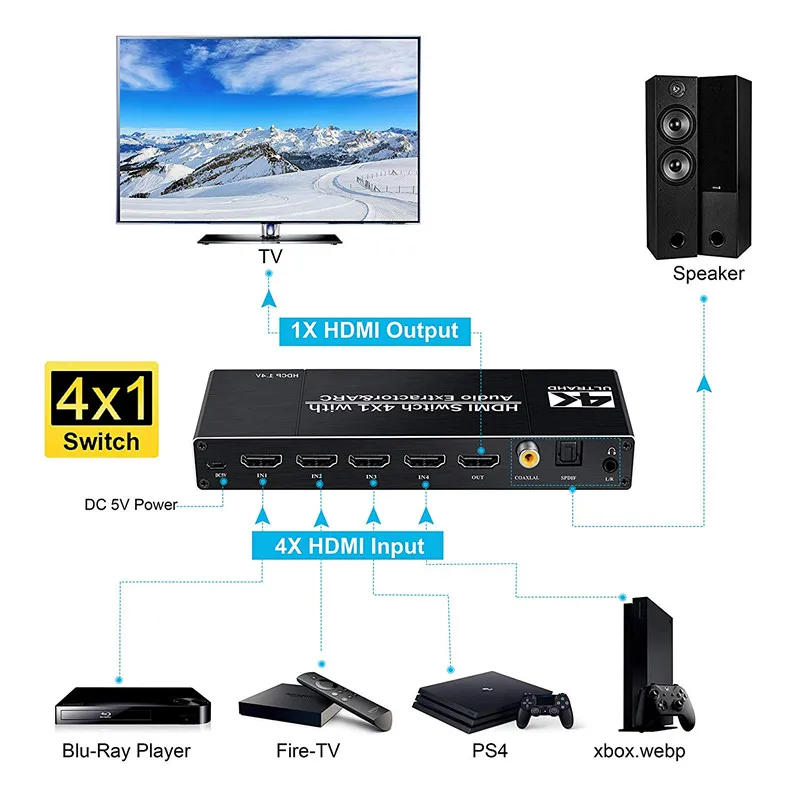

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the infusion of science and technology into life.
Features:

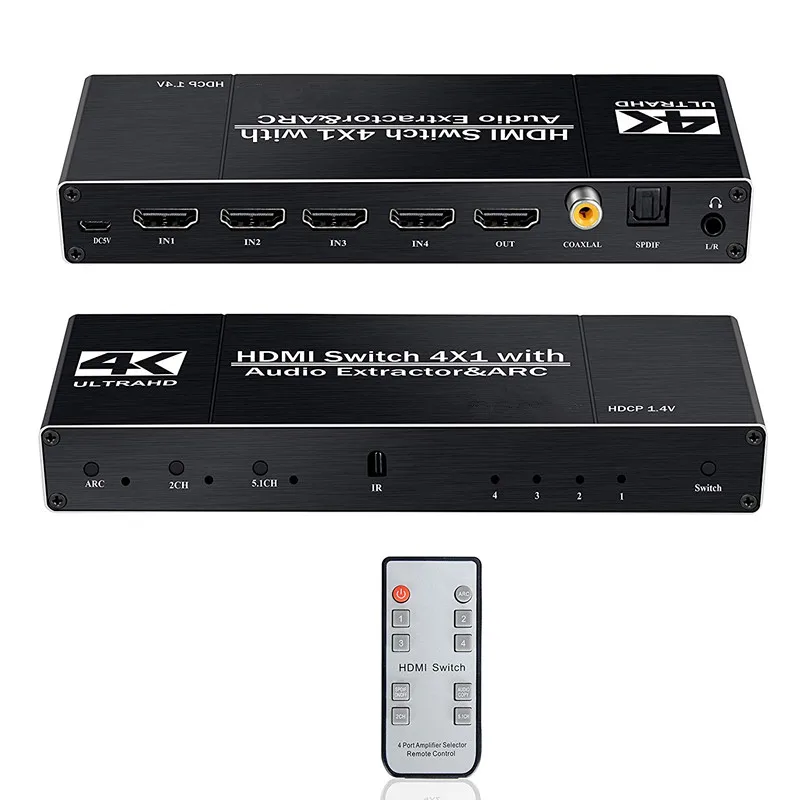

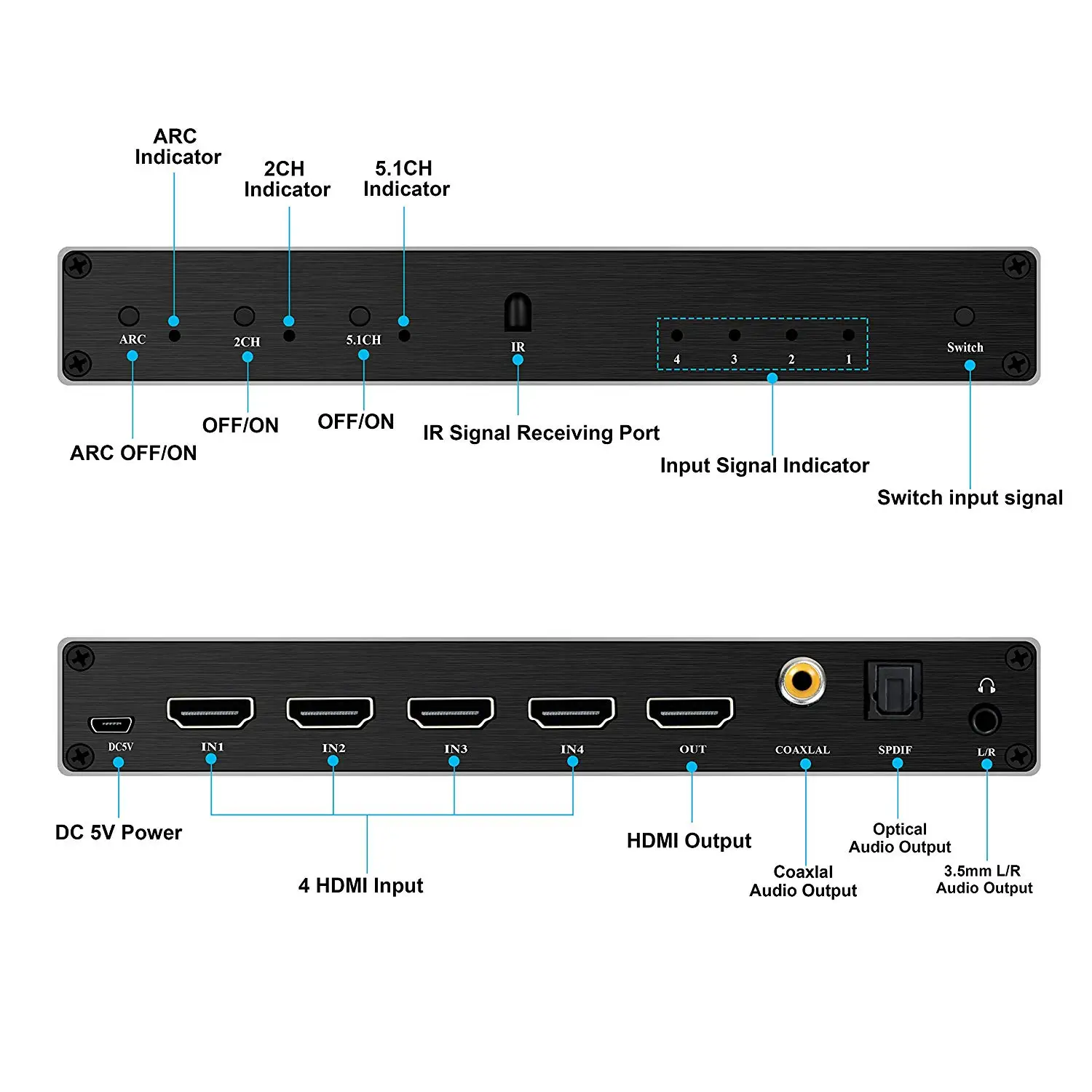

-Input: HDMI x 4
-Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1
-Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)
-support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)
-Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps
-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
-Support 24/30/36 bit deep color per channel (Kindly Note: It is not compatible with DVI.we do not recommended that you use HDMI to DVI cable connect to your projector /monitor)
-HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ
