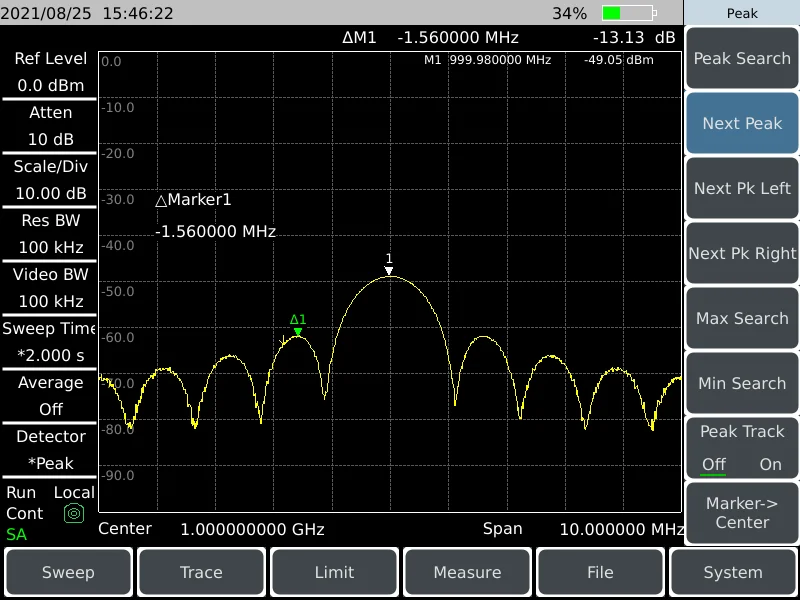

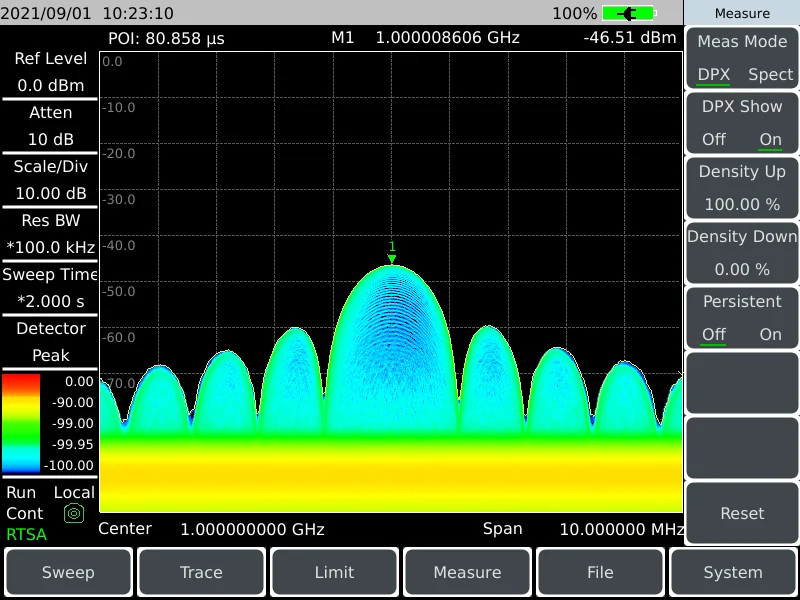

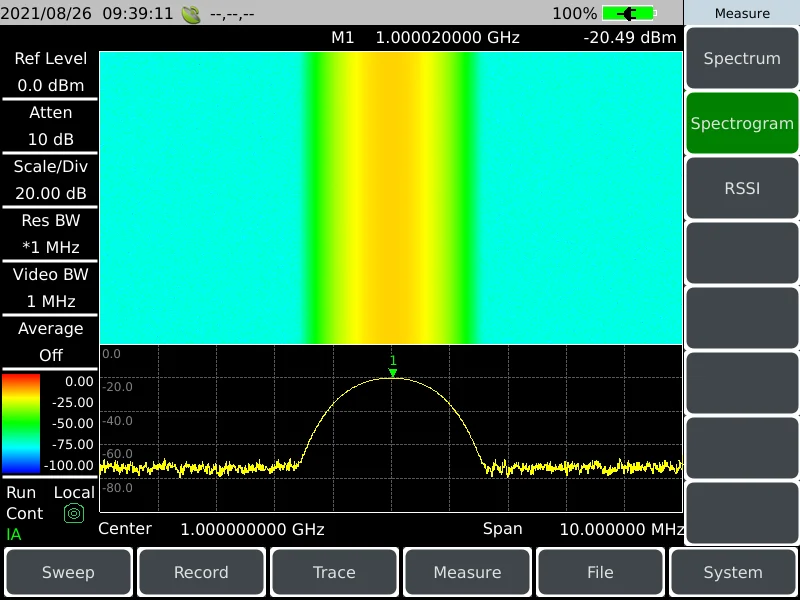

4024ca Signal And Real time Spectrum Analyzer
- Category: Spectrum Analyzers >>>
- Supplier: Ceyear Technologies Co. Ltd.
Share on (1600564233866):
Product Overview
Description
Product Description
Specification
Model | 4024CA |
Frequency Range | 4024CA: 9kHz～9GHz Frequency Resolution:1Hz |
Frequency Reference | Frequency: 10MHz Aging Rate: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0.1ppm(-10～50℃, Comparative to 25℃) |
Sweep Time | Range: 10μs～6000s (Zero Span) Accuracy: ±2.00% (Zero Span) |
Frequency Readout Accuracy | ±(Frequency Readout× frequency Reference +2%× Span +10%× Resolution Bandwidth) |
Frequency Span | Range: 100Hz～9GHz or 0Hz Accuracy: ±2.0% |
Resolution Bandwidth | 1Hz～10MHz (1-3 Times of Stepping), 20MHz |
Video Bandwidth | 1Hz～10MHz (1-3 Times of Stepping), 20MHz |
SSB Phase Noise (Carrier 1GHz) | ≤-108dBc/Hz@ Frequency Offset 10kHz ≤-110dBc/Hz@ Frequency Offset 100kHz ≤-118dBc/Hz@ Frequency Offset 1MHz ≤-129dBc/Hz@ Frequency Offset 10MHz |
Displayed Average Noise Level (input port is connected with a 50zzence +2%× Span +10%× Resolution Bandwidth)o interference analysis, electromagnetic environment background assessment, s℃~30℃) | Pre-amplifier Off: ≤-140dBm(2MHz～3GHz) ≤-138dBm(3GHz～9GHz) Pre-amplifier On: ≤-160dBm(2MHz～3GHz) ≤-157dBm(3GHz～9GHz) |
Residual Response | (exceptional frequency: 3.15GHz): Pre-amplifier Off: ≤-82dBm（10MHz～9GHz） Pre-amplifier On: ≤-95dBm（10MHz～9GHz） |
Second Harmonic Distortion (0dB attenuation, -30dBm input signal) | 50MHz~2GHz: <-65dBc 2GHz~4.5GHz: <-70dBc |
TOI(-15dBm two-tone signal, 100kHz span, pre-amplifier off) | 50MHz~5.2GHz ≥+10dBm 5.2GHz~9GHz ≥+12dBm |
Absolute Amplitude Accuracy (input signal 0dBm~-50dBm, all settings are automatic couplings, 20℃~30℃, 30 minutes of preheating) | ±1.3dB (10MHz～9GHz) |
Input Attenuator | Attenuation Range: 0dB～30dB, 5dB Steps |
Maximum Continuous Input | +27dBm Peak Typical(≥10dB Attenuation) +20dBm Peak Typical(<10dB Attenuation) +10dBm Peak Typical(Pre-amp On) |
Reference Level | Range: -150dBm～+30dBm Conversion Uncertainty: ±1.20dB |
Dimension | 314mm (W)×218mm (H)×91mm (D) (Excluding Handle, Stand) 338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand) |
Weight | ≤4.6kg |
Working Temperature | -10℃～+50℃ (the battery operation temperature is 0℃～+45℃) |
Storage Temperature | -40℃～+70℃ (the battery storage temperature is -20℃～+60℃) |
Electromagnetic Compatibility | Conforms to GJB3947A-2009 3.9.1 Requirements |
Power Supply | AC power adapter: input 100 to 240VAC, 50/60Hz Output 15VDC, 4A Lithium-ion battery: 10.8V |
Battery operation time | 2h (typical) |
Power Consumption | ≤40W |
Test Interface | RF input: Type-N Connector（female） |
Other Interfaces | 10MHz Reference Input/Output: BNC (female) Connector External Triggering Input: BNC (female) Connector IF Output: BNC (female) Connector GPS Antenna Input: BNC (female) Connector |
Company Profile
50 years experience, 3000 employees and 870 engineers China Electronic Technology Instruments Co.,Ltd, owns the 40th and 41st institute of CETC(China Electronics Technology Group Corporation) as the core. The 41st Institute of China Electronics Technology Group Corporation(short for CETC 41), established in 1968, is the only professional Electronic Measurement Instrument Institute in China with over 3000 employees and 870 of them are engineers and more than 500 intermediate and senior engineers.The only professional research institute of electronic measurement instruments in ChinaCETC 41 is the only professional research institute of electronic measurement instruments in national defense and technical industry area in China. The company has a professional team engaged in the research and development of Microwave/Millimeter-Wave Measurement Instruments, Optic-Electronic Measurement Instruments, Communication Measurement Instruments, Basic Measurement instruments, Solutions of Automatic Test System, Modular Instruments and Microwave/Millimeter-Wave Components/Modules, which enables the company with powerful capability of research and development, manufacturing, test and verification. The premier measurement instruments leader in ChinaCETC 41 is authorized by Chinese Government as "Key Lab of Electronic Test and Measurement", "National Defense of Optic-electronic Primary Metrology Laboratory", "National Quality Supervision and Inspection Center of Electronic Instrument", "National Import and Export Electronic Instrument Inspection Lab", "R&D Center of Integrated Test and Support" and "Postdoctoral Programme".Complying with CE, ROHS and ISO9001Our commitment to the highest quality led us to acquire and employ the most advanced testing equipment and comply with the strictest standards in our industry, such as ISO9001 quality control system (registed in March, 1998) and CE-EMC, CE-LVD, REACH and ROHS certificate.
