100V 120V 220V 230V 240V 270W 230V 200W 300W 315W Hot Surface Alumina Heater Igniter with Flange
- Category: >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (1600564248902):
Product Overview
Description

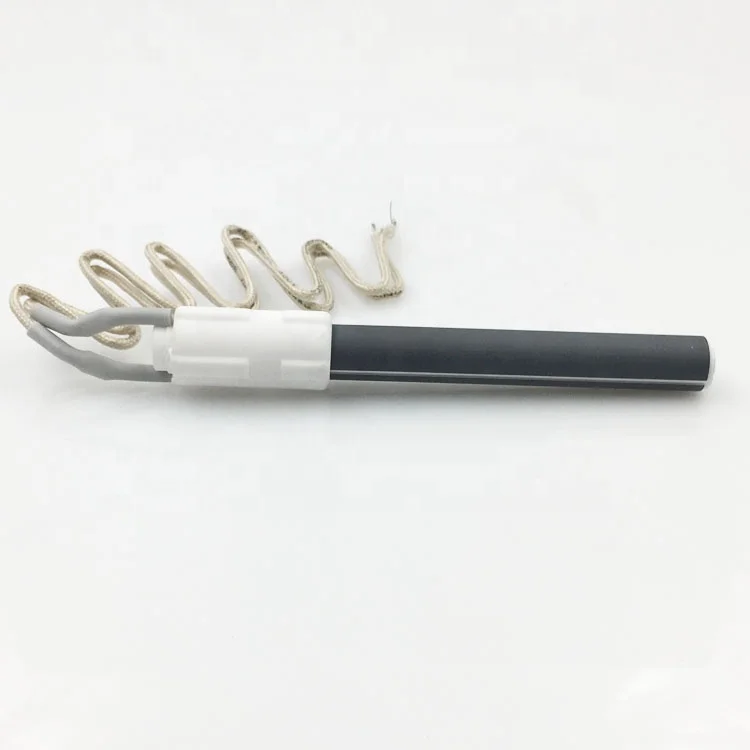

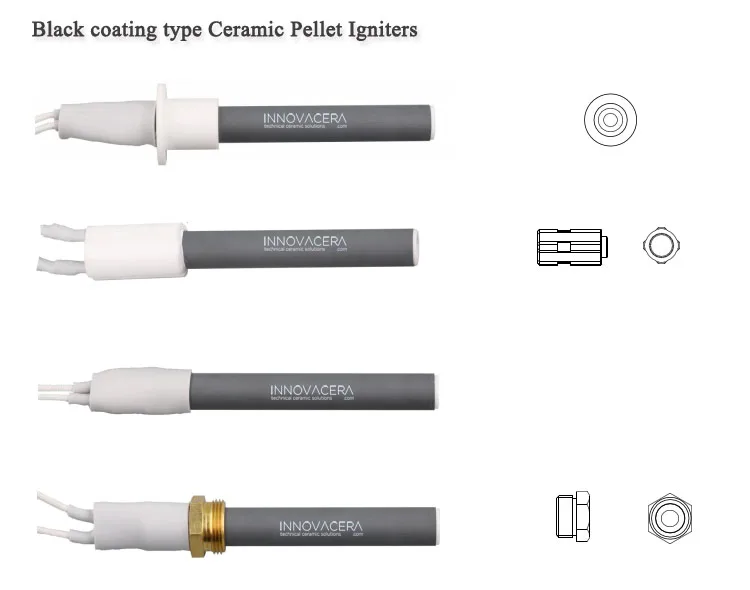

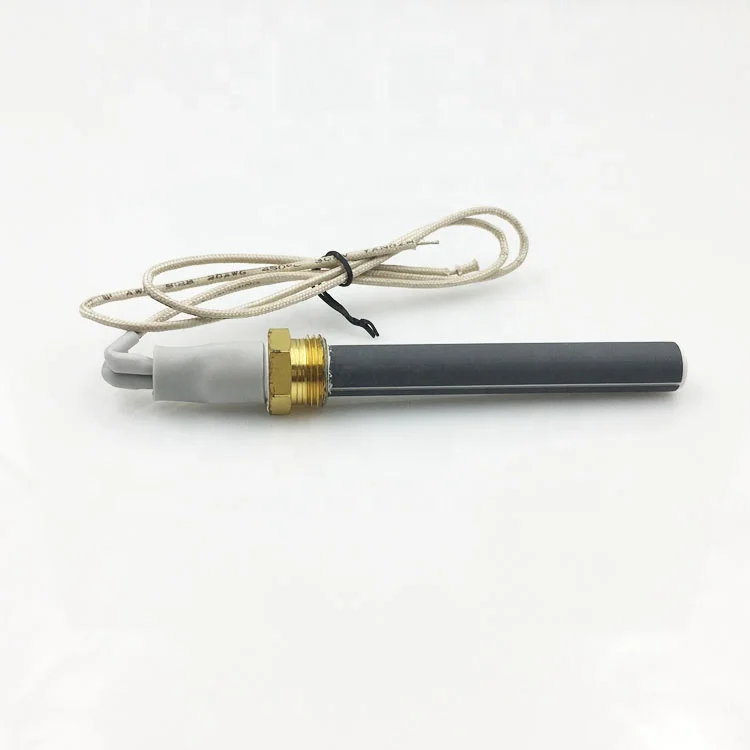

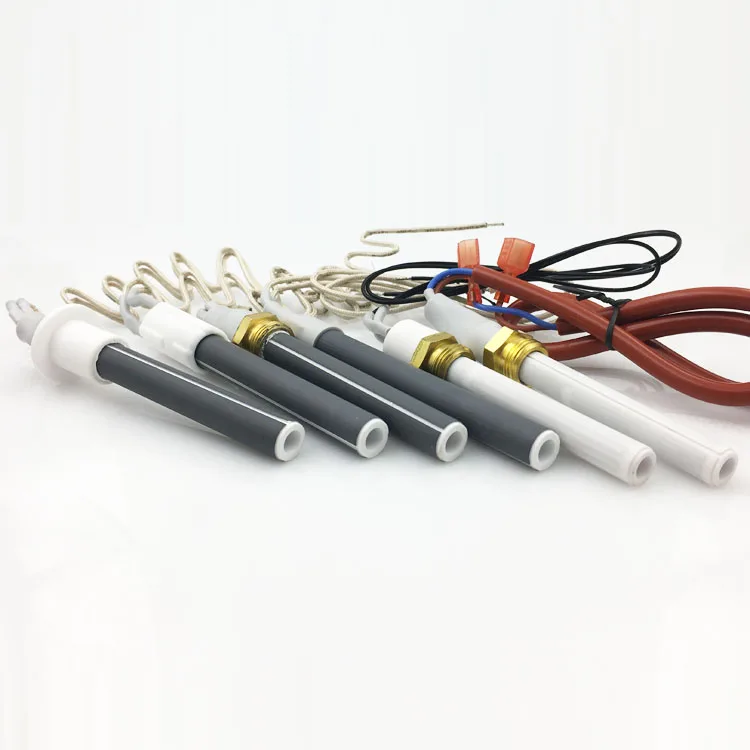

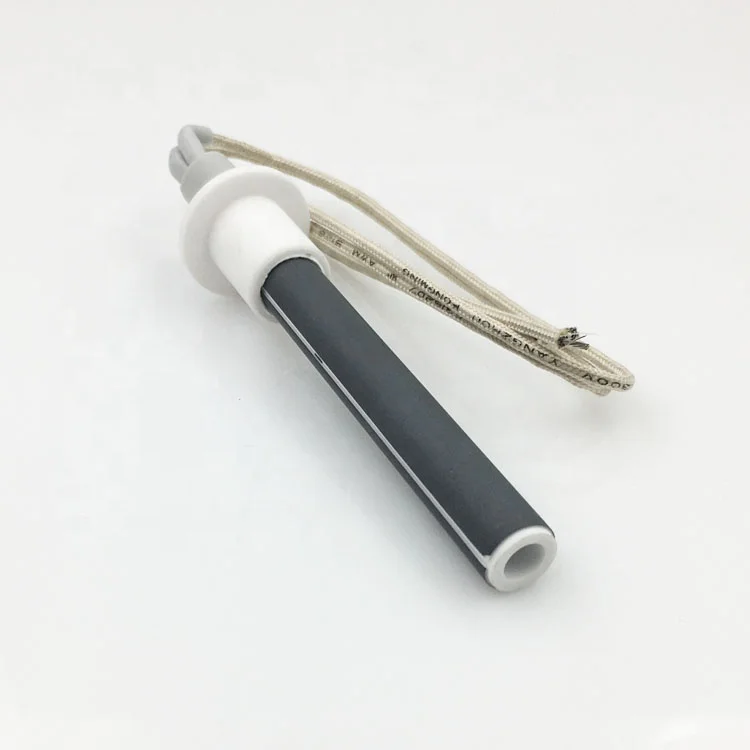

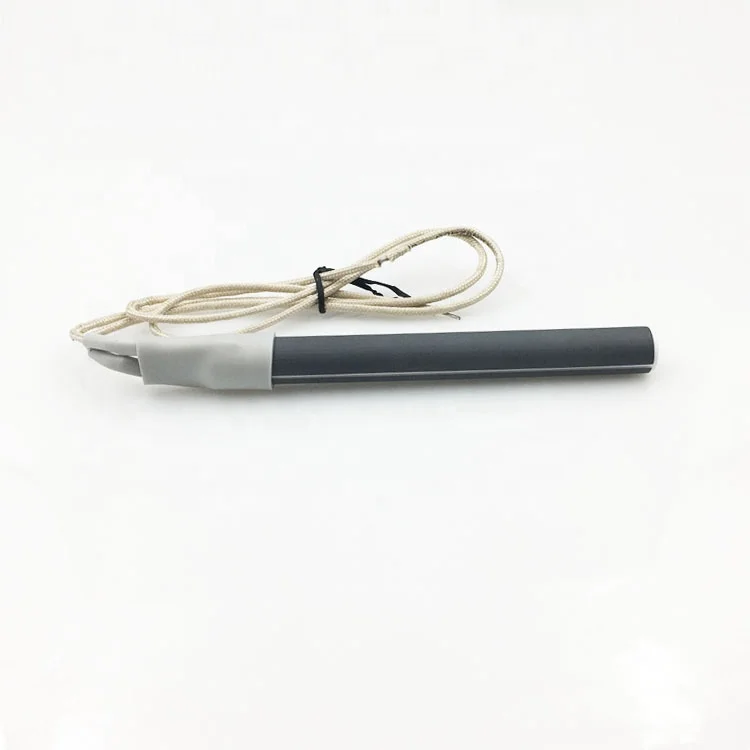

Black Coating Type 220V 230V 240V Alumina Pellet Ceramic Igniter
Alumina Ceramic Hot Surface Igniter can reach a permanent working temperature above 1000℃;Since air can through and around inside and outside of the heater tube. Heat can be transferred from both inside and outside of ther heater element. Igniting wood chips, firewood, coal bricks or other biomass fuel.
> Dimension: 106*11.5mm (Or Customized)
> Voltage: 230V
> Power: 270W - 315W
> Lead wire: 300mm / 400mm / 500mm / 900mm (Customized is accept)
> Range of temperature: 800~1000°C
> Electrode: Welding leads on the electrode
> Lead wire: 300mm / 400mm / 500mm / 900mm (Customized is accept)
> Range of temperature: 800~1000°C
> Electrode: Welding leads on the electrode
FEATURES:
1、Black coating type
2、300W+5%-10%
3、60-90 seconds ignition time
4、Available in 120V 220V-240V
5、ROHS/REACH certification
6、Many design available
7、Customized welcome
1、Black coating type
2、300W+5%-10%
3、60-90 seconds ignition time
4、Available in 120V 220V-240V
5、ROHS/REACH certification
6、Many design available
7、Customized welcome
Ceramic Heaters are manufactured by printing resistors on alumina shees,being laminated and sintered into
one pieces.
one pieces.
* Types:
■ Rectangular alumina ceramic heating element
■ Round shape alumina ceramic heating element
■ Rod shape alumina ceramic heating element
■ Rectangular alumina ceramic heating element
■ Round shape alumina ceramic heating element
■ Rod shape alumina ceramic heating element
■Tube shape alumina ceramic heating element
VR
Thermal Properties for Alumina Heater | ||||
Item | Unit | Value | ||
Vickers Hardness | Gpa | 11.5 | ||
Flexural Strength | Mpa | 300 | ||
Compressive Strength | Mpa | 2000 | ||
Modulus of Elasticity | Gpa | 300 | ||
Poisson's Ratio | --- | 0.22-0.23 | ||
Fracture Toughness | Mpam1/2 | 3.5-4.0 | ||
Thermal Conductivity | W/(m·k) | 25 | ||
Thermal Expansion Coefficient | 10-6/℃ | 6.5-7.5 | ||
Thermal Shock Resistance | △T℃ | 200 | ||
Maximum Use Temperature | ℃ | 1600 | ||
Dielectric Strength | KV/mm | >12 | ||
Dielectric Constant | εr | 9-10 | ||
Dielectric Loss Angle (1MHz) | --- | 0.0002 | ||
Volume Resistivity | Ω.m | >1015 | ||
Specific Heat | J/(kg·k) | 0.78x103 | ||
Not without reason, the high temperature heating elements pellet igniter is the reliable standard ignition system for pellet heating systems in Europe-hundreds of satisfied customers speak for themselves.
1.What's the max using temperature ?
Max 1700degree
2.Which composition suitable for metallized ceramics?
95%, 96% alumina
3.What's the 99 alumina's major applications?
Pump Shaft,Drive Shaft,Sealing Ring
4.Can you do OEM?
We are mostly doing by drawing
5.What's the delivery time?
About 20days
Max 1700degree
2.Which composition suitable for metallized ceramics?
95%, 96% alumina
3.What's the 99 alumina's major applications?
Pump Shaft,Drive Shaft,Sealing Ring
4.Can you do OEM?
We are mostly doing by drawing
5.What's the delivery time?
About 20days
If you are interested in our products, please click here to send me an inquiry, and I will reply you within 8 hours
