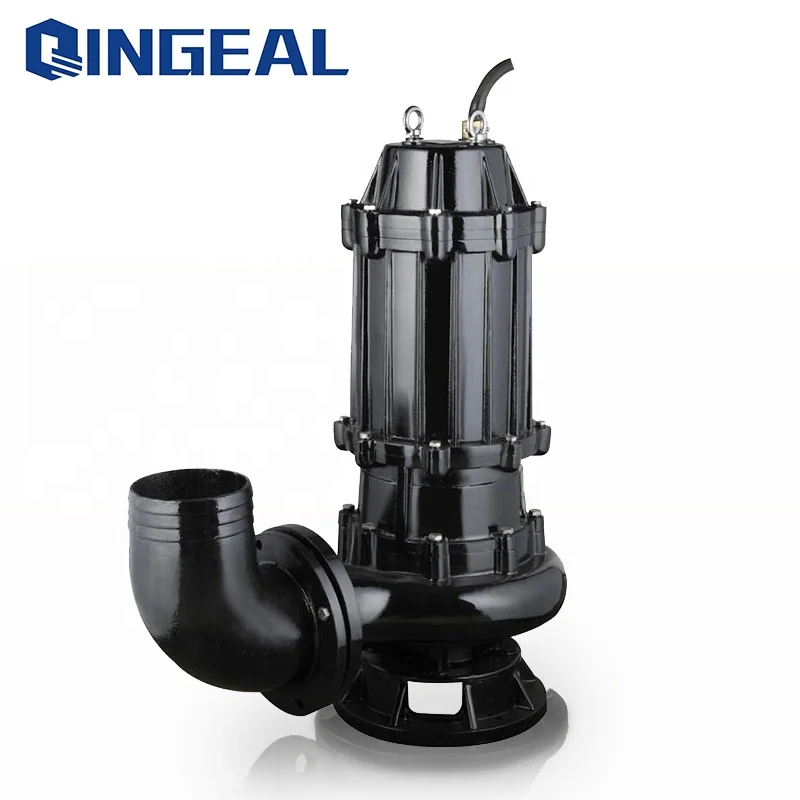

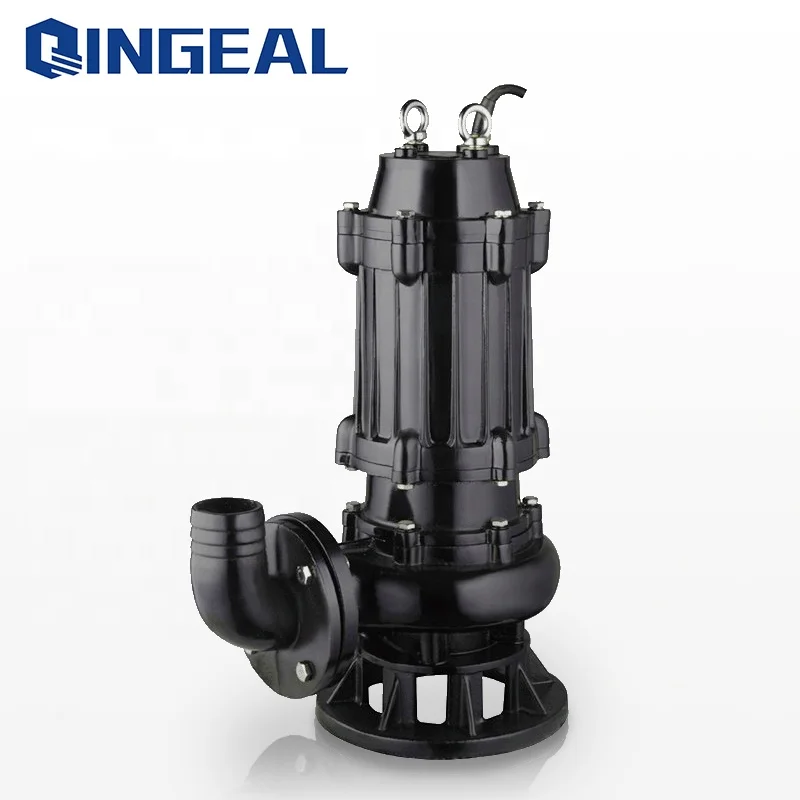

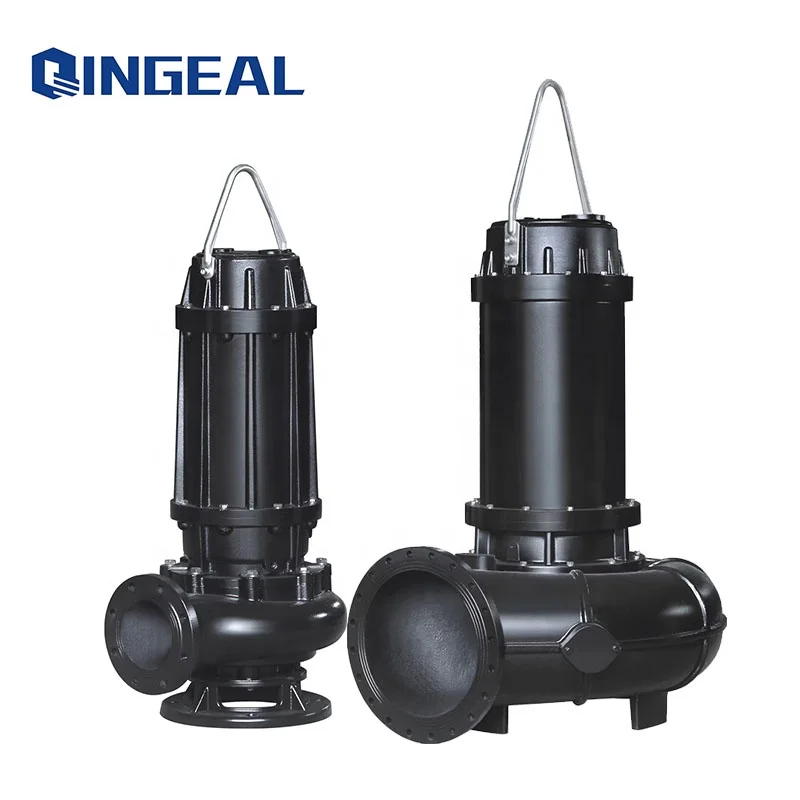

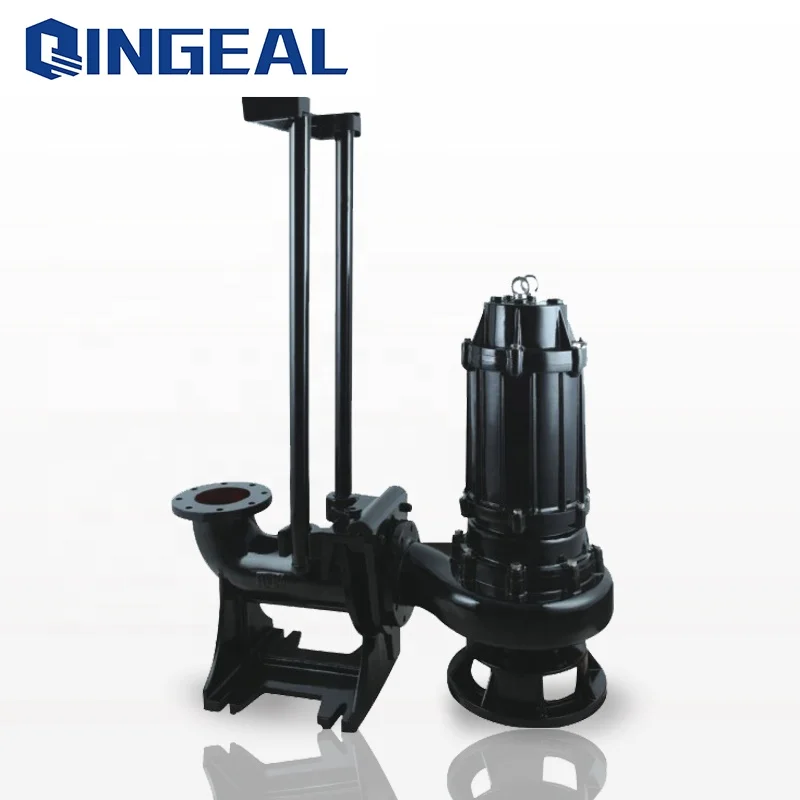

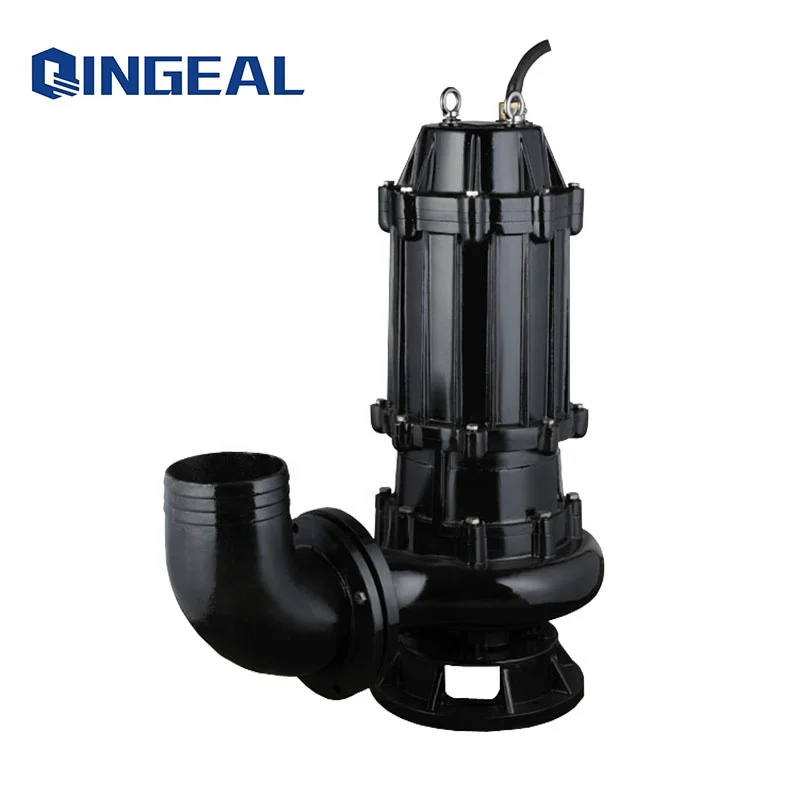

high pressure 30kw electric sewage submersible slurry sand pump cost
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (1600564272553):
Product Overview
Description
Product Introduction

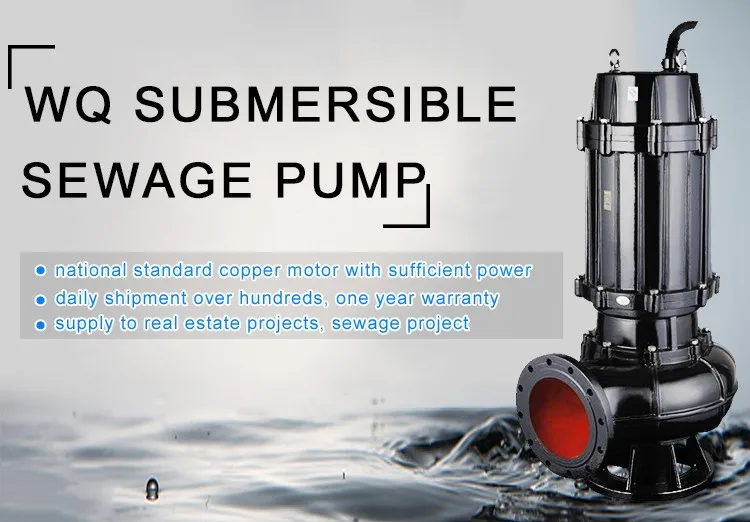

The submersible sewage pump is a combination of a pump and the motor. When working, the motor shaft drives the pump impeller to rotate and transfer energy to the slurry medium to generate a certain flow rate and drive the solid flow to realize slurry transportation.

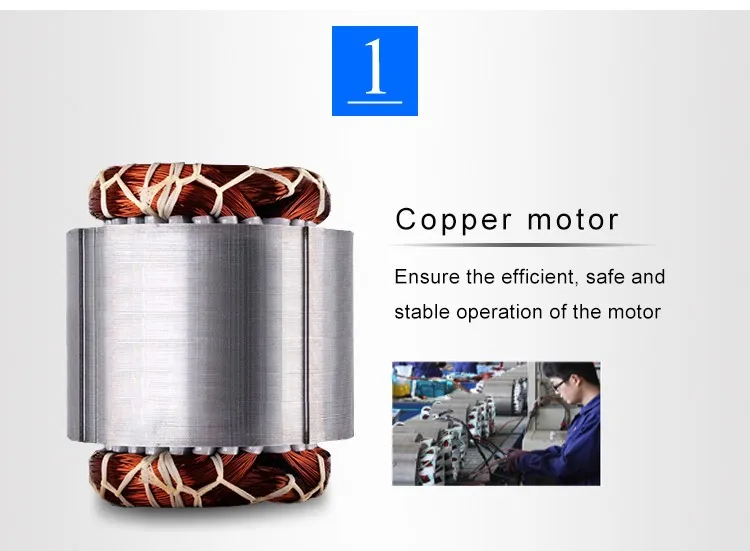

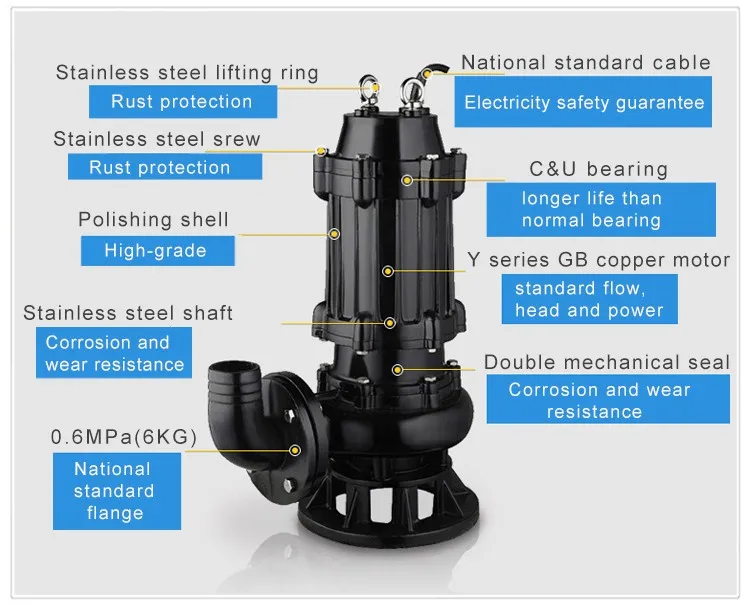

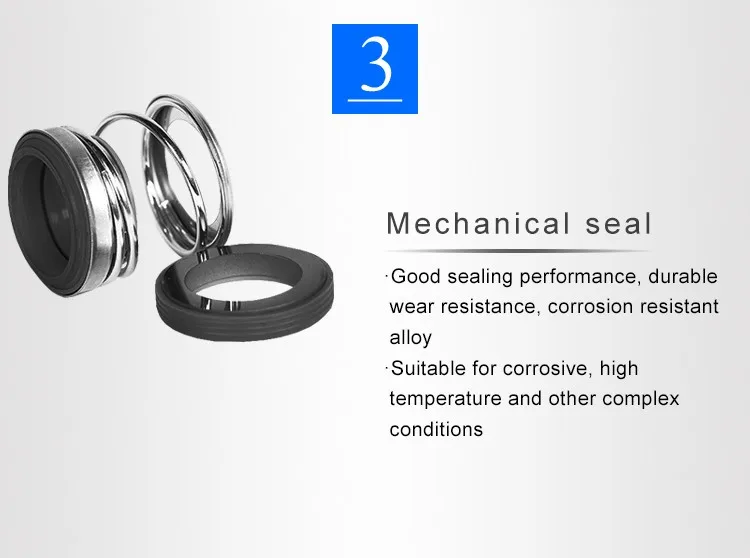

The motor is processed of copper coils, and if the leak-proof cable is damaged,the water will not enter into the motor. The packaging is packed in wooden cases. The double-faced alloy mechanical seal is not easy to leak, and the impeller runner is a curved passage from the inlet to the outlet.
Product Parameters

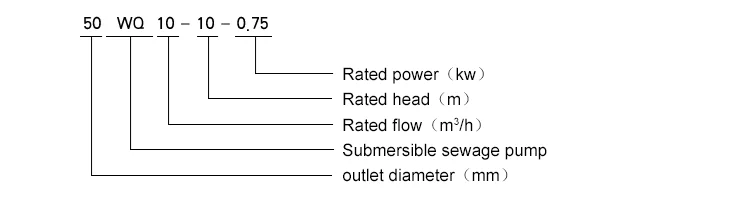

Model | Flow | Head | Power | DIA | Voltage |
m3/h | m | W | mm | V | |
25WQ5-18-0.75 | 5 | 18 | 0.75 | 25 | 220/380 |
32WQ6-16-0.75 | 6 | 16 | 0.75 | 32 | 220/380 |
40WQ7-15-0.75 | 7 | 15 | 0.75 | 40 | 220/380 |
50WQ10-10-0.75 | 10 | 10 | 0.75 | 50 | 220/380 |
65WQ15-7-0.75 | 15 | 7 | 0.75 | 65 | 220/380 |
80WQ35-5-0.75 | 35 | 5 | 0.75 | 80 | 220/380 |
25WQ8-18-1.1 | 8 | 18 | 1.1 | 25 | 220/380 |
32WQ12-15-1.1 | 12 | 15 | 1.1 | 32 | 220/380 |
40WQ7-18-1.1 | 7 | 18 | 1.1 | 40 | 220/380 |
50WQ9-15-1.1 | 9 | 15 | 1.1 | 50 | 220/380 |
65WQ15-9-1.1 | 15 | 9 | 1.1 | 65 | 220/380 |
80WQ40-6-1.1 | 40 | 6 | 1.1 | 80 | 220/380 |
25WQ7-22-1.5 | 7 | 22 | 1.5 | 25 | 220/380 |
32WQ8-20-1.5 | 8 | 20 | 1.5 | 32 | 220/380 |
40WQ10-18-1.5 | 10 | 18 | 1.5 | 40 | 220/380 |
50WQ15-15-1.5 | 15 | 15 | 1.5 | 50 | 220/380 |
65WQ25-7-1.5 | 25 | 7 | 1.5 | 65 | 220/380 |
80WQ40-8-1.5 | 40 | 8 | 1.5 | 80 | 220/380 |
40WQ8-25-2.2 | 8 | 25 | 2.2 | 40 | 380 |
50WQ15-20-2.2 | 15 | 20 | 2.2 | 50 | 380 |
65WQ20-15-2.2 | 20 | 15 | 2.2 | 65 | 380 |
80WQ45-9-2.2 | 45 | 9 | 2.2 | 80 | 380 |
100WQ50-7-2.2 | 50 | 7 | 2.2 | 100 | 380 |
50WQ15-30-3 | 15 | 30 | 3 | 50 | 380 |
65WQ-25-24-3 | 25 | 24 | 3 | 65 | 380 |
80WQ40-15-3 | 40 | 15 | 3 | 80 | 380 |
100WQ50-10-3 | 50 | 10 | 3 | 100 | 380 |
50WQ15-45-4 | 15 | 45 | 4 | 50 | 380 |
65WQ25-30-4 | 25 | 30 | 4 | 65 | 380 |
80WQ30-26-4 | 30 | 26 | 4 | 80 | 380 |
100WQ50-10-4 | 50 | 10 | 4 | 100 | 380 |
50WQ15-55-5.5 | 15 | 55 | 5.5 | 50 | 380 |
65WQ25-32-5.5 | 25 | 32 | 5.5 | 65 | 380 |
80wq30-30-5.5 | 30 | 30 | 5.5 | 80 | 380 |
100wq65-18-5.5 | 65 | 18 | 5.5 | 100 | 380 |
150wq100-7-5.5 | 100 | 7 | 5.5 | 150 | 380 |
50wq25-50-7.5 | 25 | 50 | 7.5 | 50 | 380 |
65wq30-40-7.5 | 30 | 40 | 7.5 | 65 | 380 |
80wq45-32-7.5 | 45 | 32 | 7.5 | 80 | 380 |
100wq65-26-7.5 | 65 | 26 | 7.5 | 100 | 380 |
150wq100-12-7.5 | 100 | 12 | 7.5 | 150 | 380 |

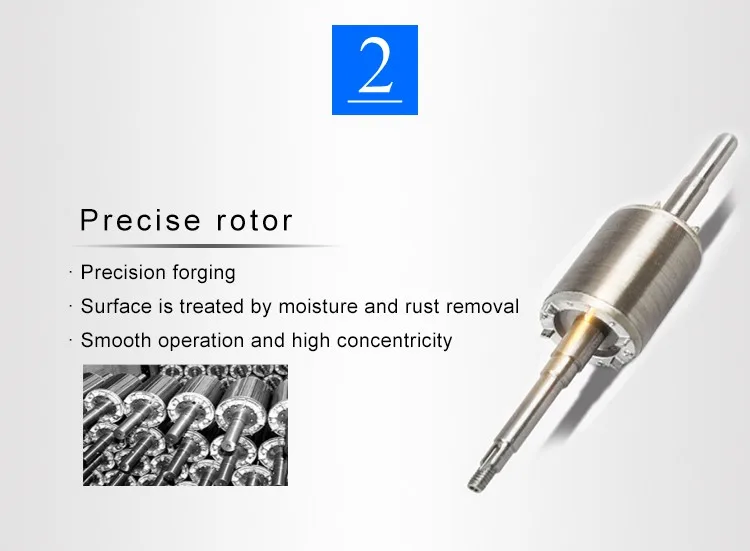

Product Details
Product Details Show

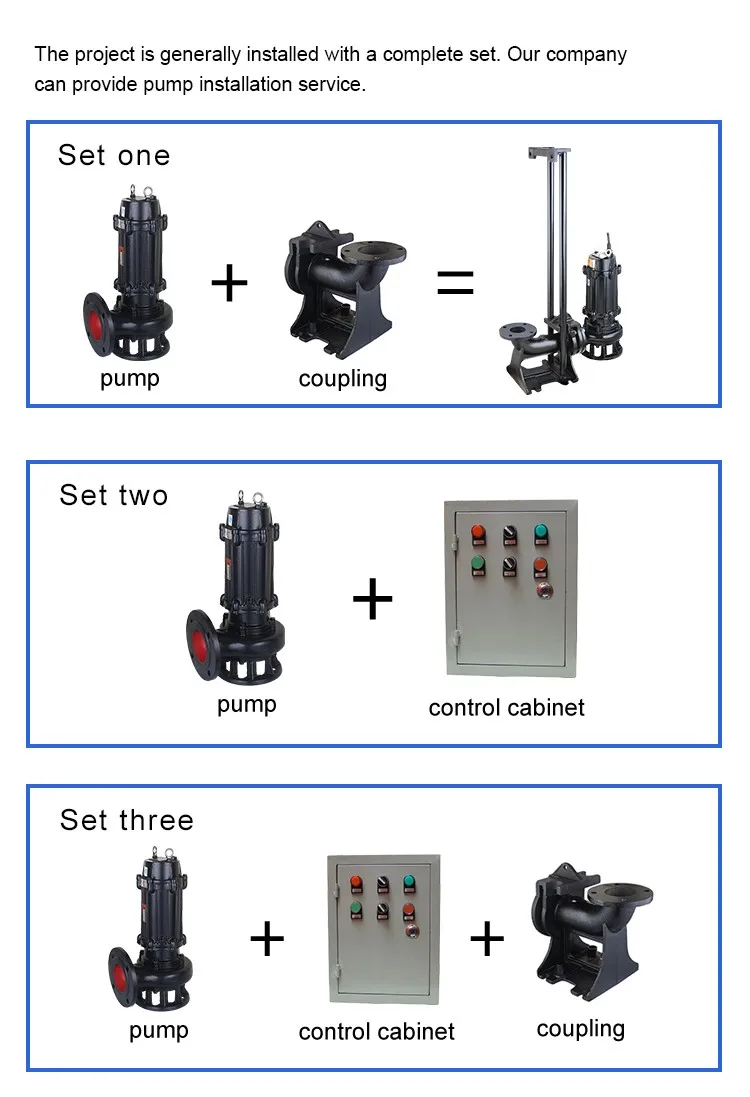

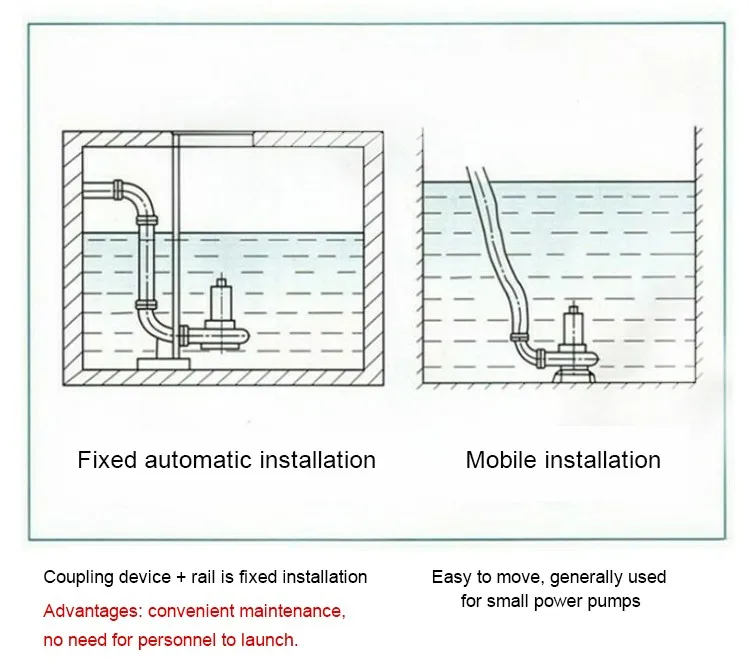

Installation & sets
Main Products
100m3/h electric submersible sewage sludge pump slurry mud pump
48v solar agriculture irrigation dc low pressure submersible water pump motor
china 50mm deep well solar water bore pump borehole pumps
4 inch hot sale cast iron centrifugal sand slurry sewage pump
100 meter meter solar submersible water deep well pump borehole pump
High Quality mining Centrifugal Submarine dirty water Sewage slurry Pump

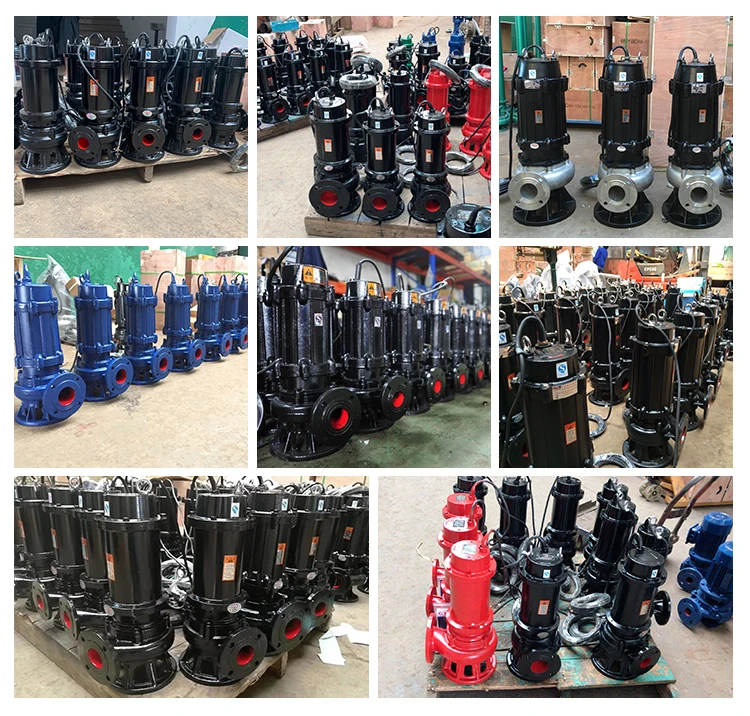

Product pictures

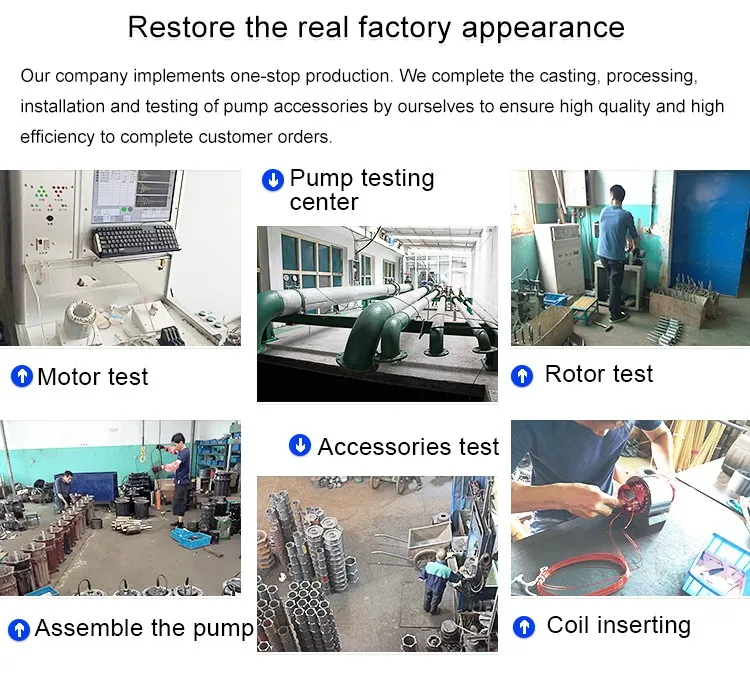

Our Company
Hangzhou Qinjie Electromechanical Co.,ltd is a branch company established by Feili Pump in 2015. Because Hangzhou is a big city with developed economy and trade and talents gathering.
We mainly produce and sell series of pump products such as solar water pumps, submersible pumps, pipeline pumps, fountain pumps and so on.
Our corporate mission is: World knows our creation, let’s change life.
Our goal is providing high-quality, cost-effective solar water pumps to customers around the world, so that people can use green and energy-saving products, no longer worry about shortage of water.
The company introduces the ISO9001 quality system, strictly controls the quality and stability of raw materials, and pushes high-end products to the global market. We have a 9,000 square meter workshop and two assembly lines with the ability to produce motors, assemble pumps, test and develop. Currently has 5 utility model patents.
At the same time, we implement the after-sales service feedback system within 24 hours. After receiving feedback from customers, we will provide solutions within 24 hours to prevent customers from worrying about after-sales problems.
At present, our pumps have obtained relevant export certificates such as CE SGS CB, and the products have certain market share and brand recognition in Southeast Asia, Africa and North America.
